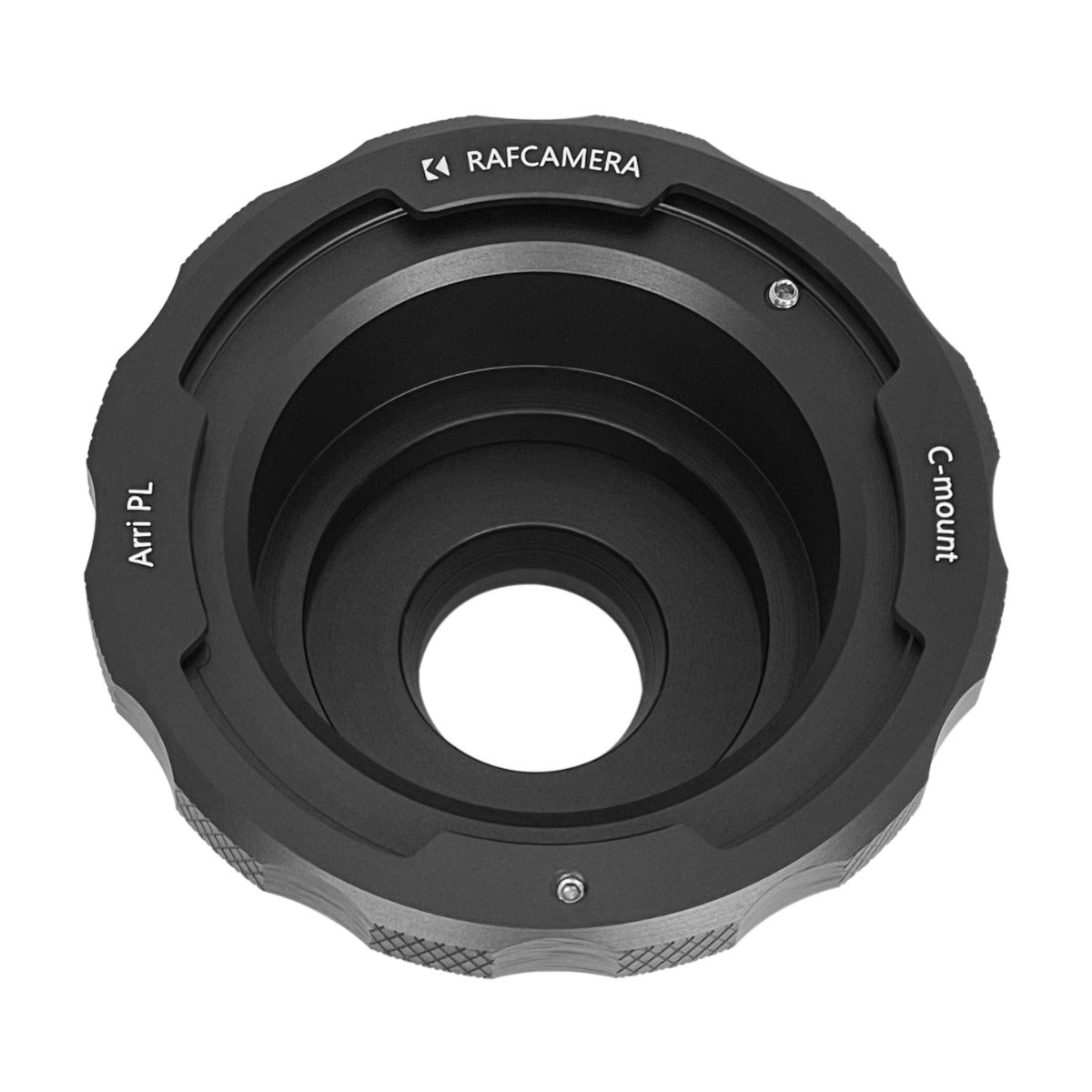

• Front side - Arri-PL female mount
• Rear side - C-mount male thread
• The adapter is machined of high quality aluminium alloy

This adapter allows using Arri PL lenses on cameras with C-mount.

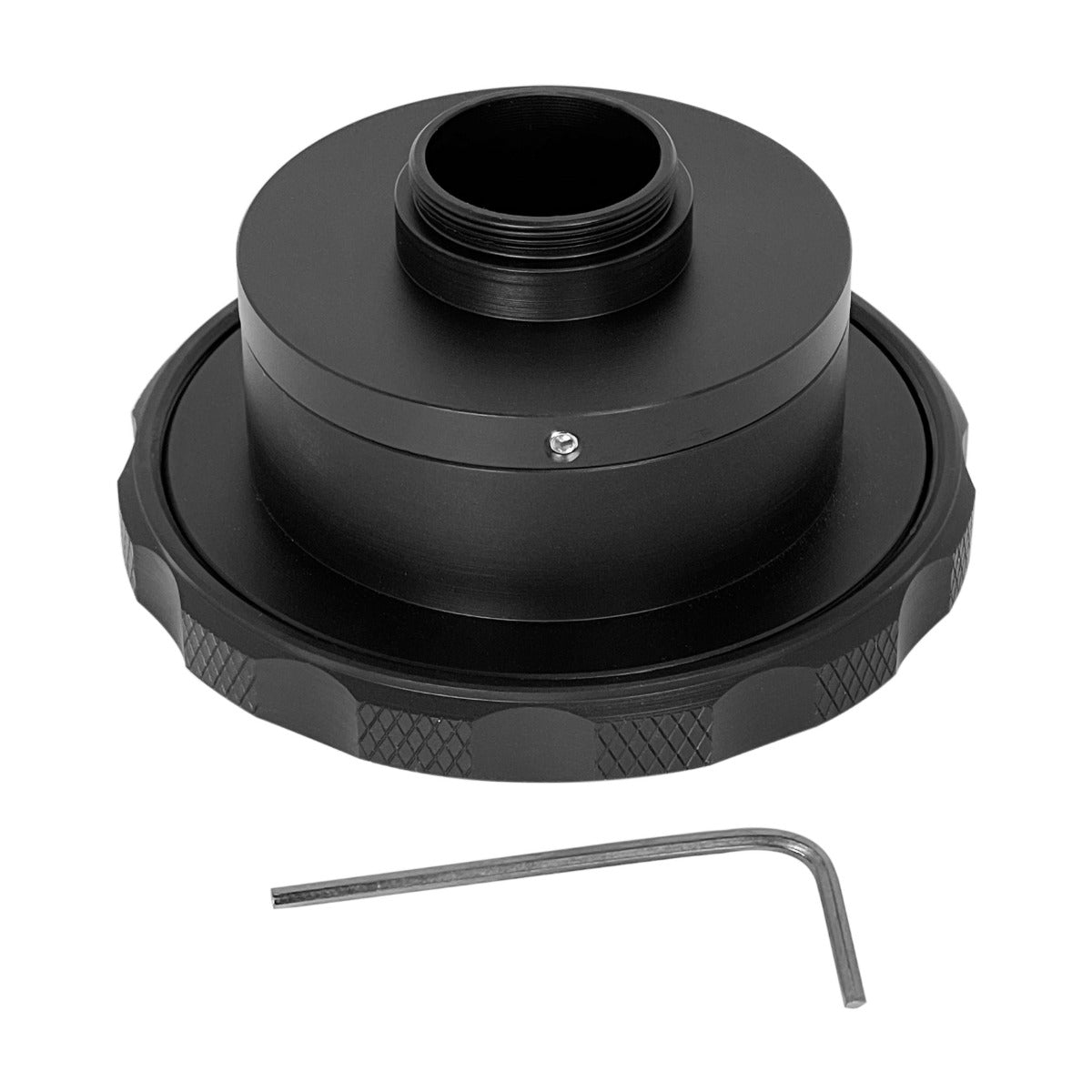

Infinity focus is possible. Removable rear part can be loosened and adjusted to place a witness mark into the necessary position.

WARNING 1: Not every camera fits this adapter. It has quite large rear diameter, so your camera should have not recessed thread mount, and there are should be no any protruding elements on the front that may collide with the adapter.

WARNING 2: Not every lens fits this adapter. We had to make it a bit raised to clear front elements of more cameras, but this resulted in less internal depth. Some lenses have too long rear parts, and can't be installed due to this.

Below is the list of (in)compatible cameras based on our customers' input:

Compatible cameras	Incompatible cameras
Bolex H16M5	Beaulieu R16

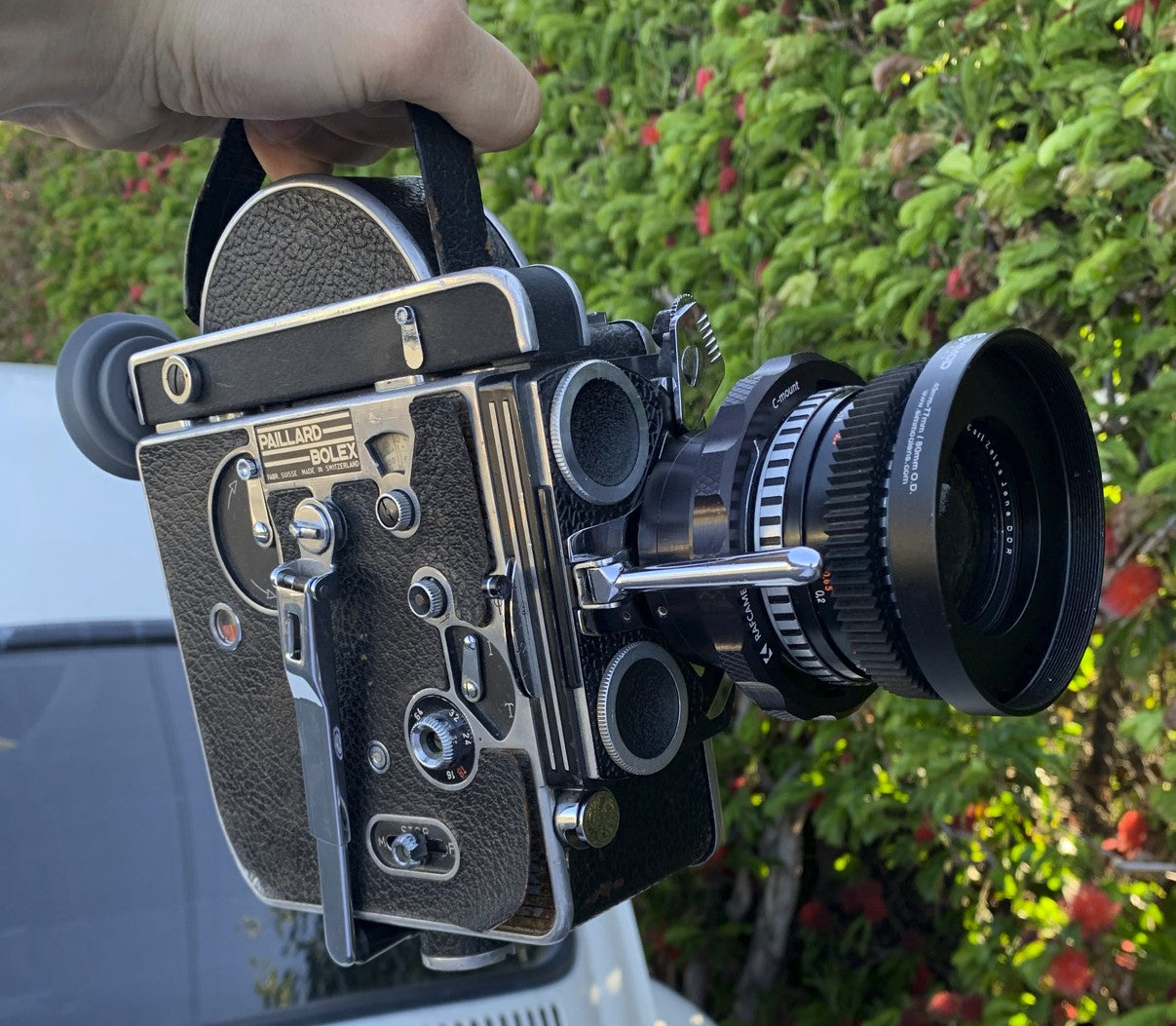

Bolex H16 REX-1 (you just aren't able to rotate the turret once it's attached)	Bolex H16
Digital Bolex D16	Bolex H16 REX-5 Super 16
Photosonics 1VN	Eclair NPR
PTZ POV-X camera with a flat standard c mount screw in mount
Sony polarization camera
	Incompatible lenses
	Arri Zeiss s16 Superpeeds
