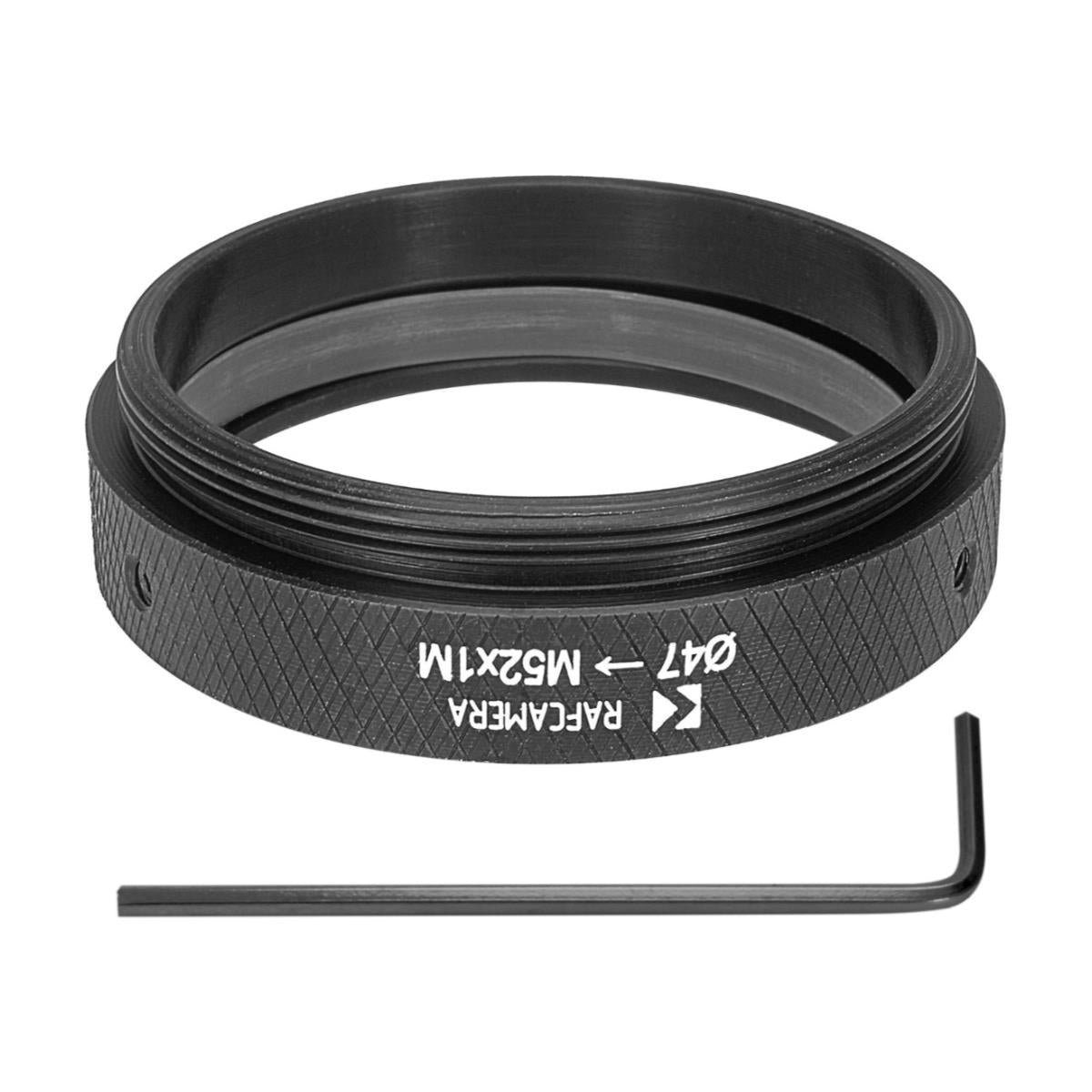

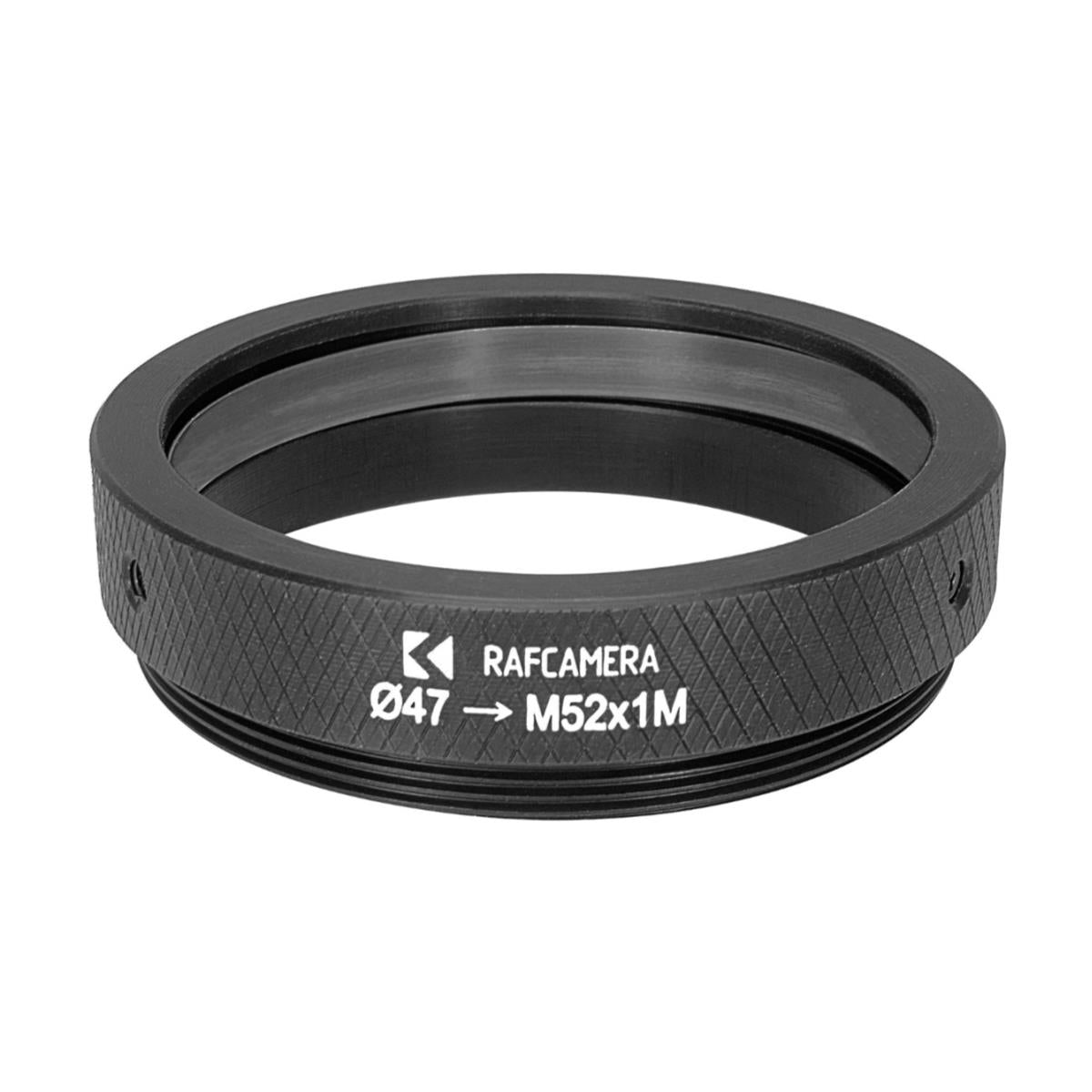

47mm clamp to M52x1 male thread adapter

1 3
€33,00 EUR
€33,00 EUR
Sale Sold out

SKU#:711332403703
This adapter allows using projection lenses that have 47mm barrel diameter on Chinese focusing helicoids with M52x1 screw thread. Such setup is great for portrait and macro shots.
View full details

  • Details
  • More Information
  • Questions

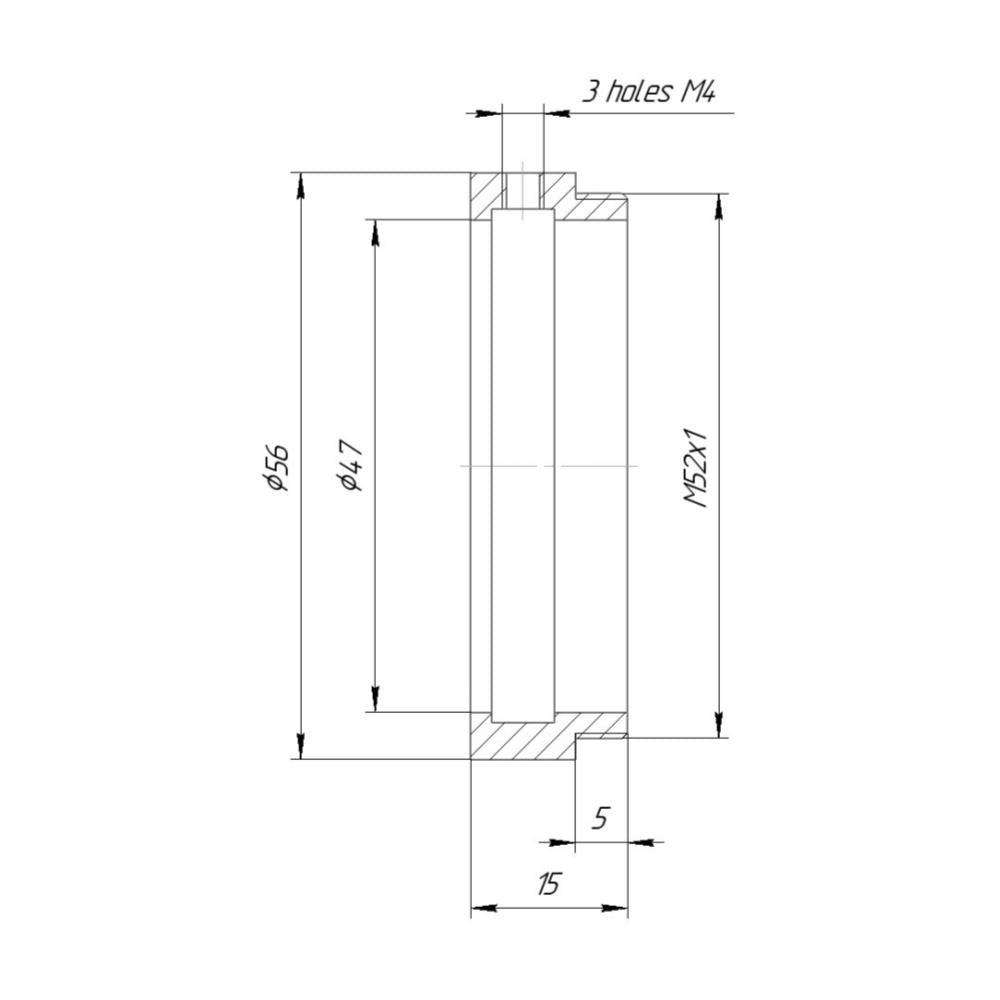

  • Front side - 47mm inner diameter
  • Rear side - M52x1 male thread
  • Full length - 14 mm
  • Weight - 27 g

This adapter allows using projection lenses that have 47mm barrel diameter on Chinese focusing helicoids with M52x1 screw thread. Such setup is great for portrait and macro shots.

The adapter is secured by 3 screw. Intermediate flat spring protects a lens barrel.

Made of anodized aluminium.

Known suitable lenses:

  • 70mm Cinelux Premiere Aspheric (with variable iris)



Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - 47mm inner diameter
  • Rear side - M52x1 male thread
  • Full length - 14 mm
  • Weight - 27 g

This adapter allows using projection lenses that have 47mm barrel diameter on Chinese focusing helicoids with M52x1 screw thread. Such setup is great for portrait and macro shots.

The adapter is secured by 3 screw. Intermediate flat spring protects a lens barrel.

Made of anodized aluminium.

Known suitable lenses:

  • 70mm Cinelux Premiere Aspheric (with variable iris)



More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
