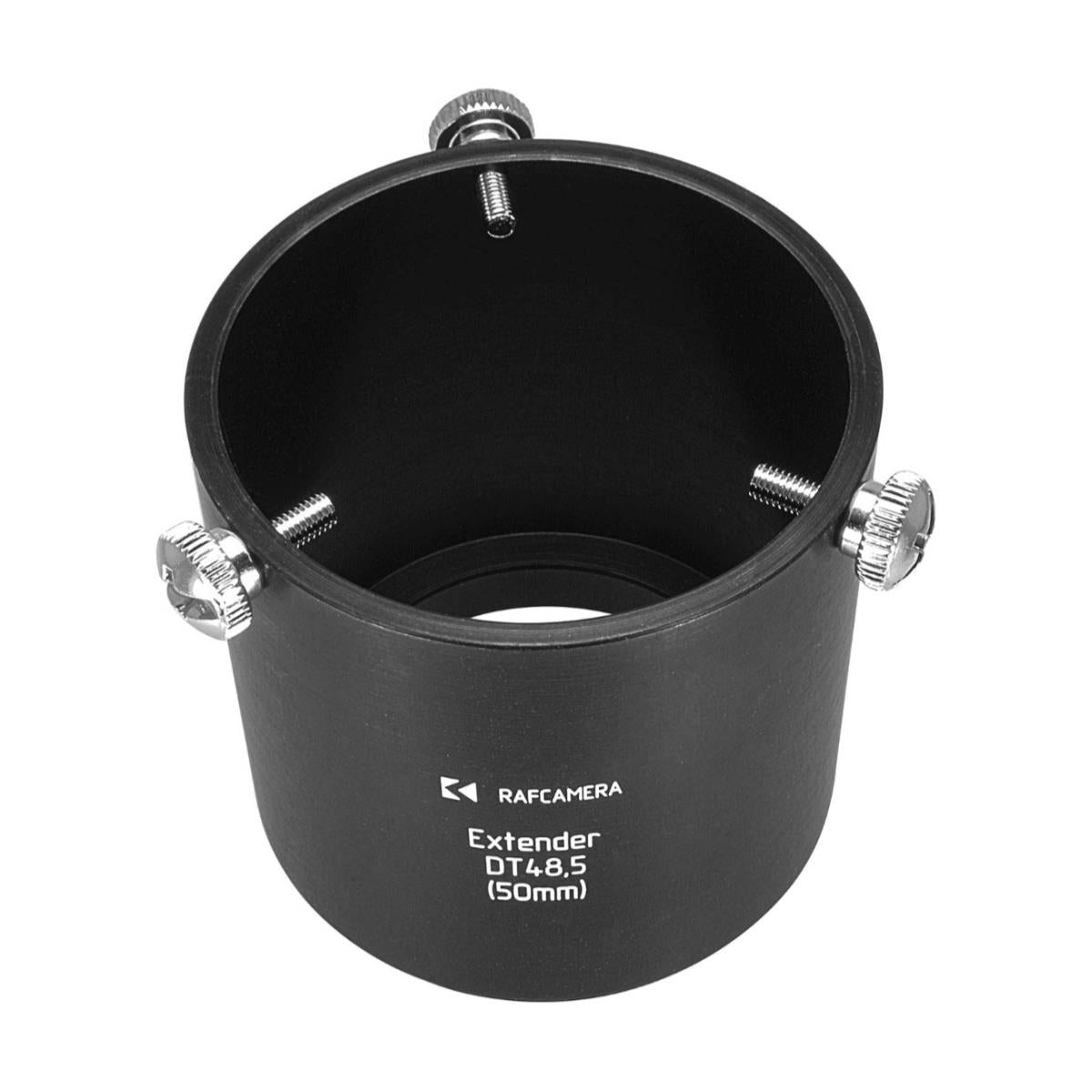

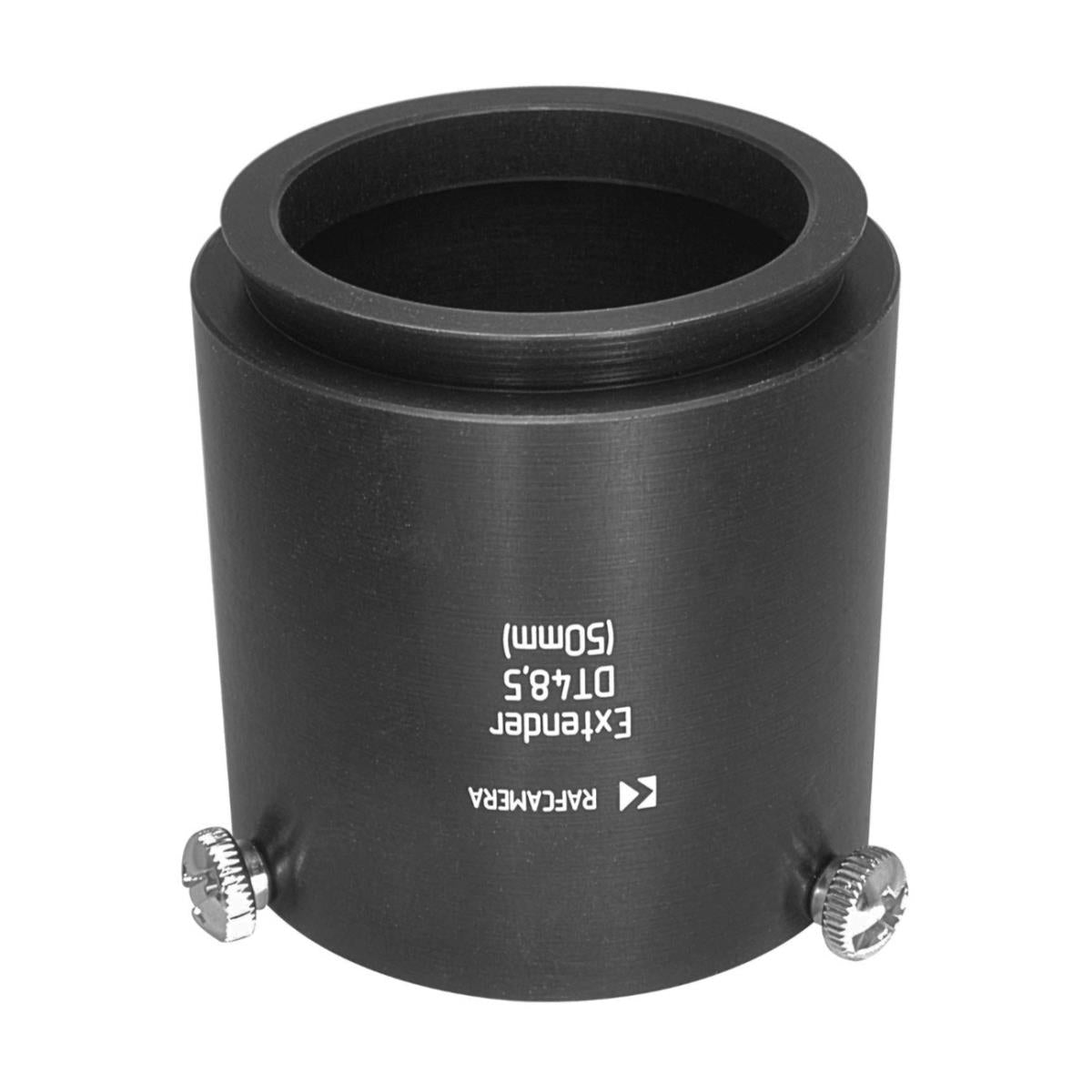

50mm extender for 48.5mm microscope dovetail mount

1 3
€46,80 EUR
€46,80 EUR
Sale Sold out

SKU#:711332403468
Such extender enables using 210mm tube length M Plan objectives (from Nikon or Olympus, for example) on 160mm tube length microscopes.
View full details

  • Details
  • More Information
  • Questions

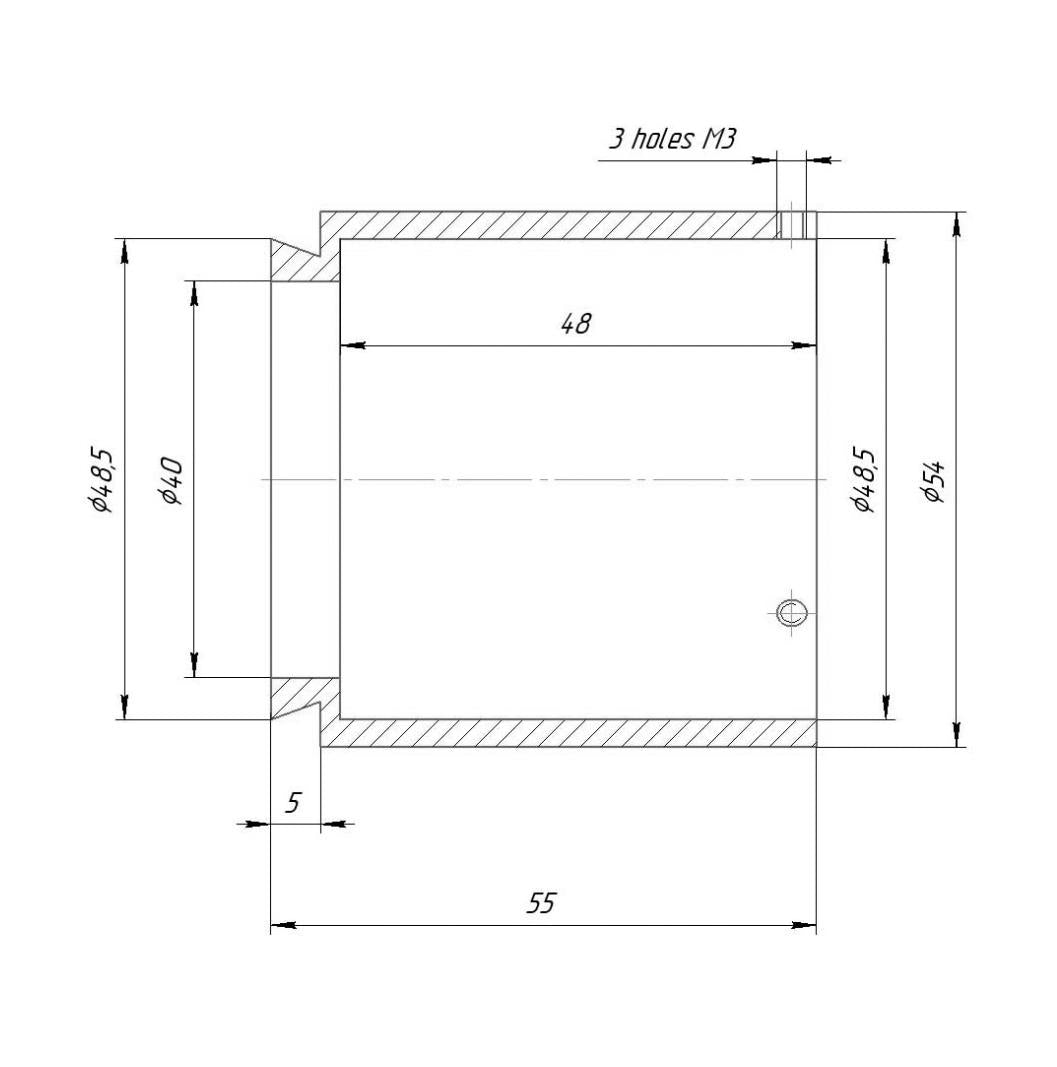

  • Front side - 48.5mm dovetail, male
  • Rear side - 48.5mm inner diameter
  • Length - 50mm (plus dovetail part)
  • Weight - 73g

Such extender enables using 210mm tube length M Plan objectives (from Nikon or Olympus, for example) on 160mm tube length microscopes.

48.5 mm dovetail is for Nikon Optiphot/Labophot, which are very popular scopes in USA.

Made of durable aluminium alloy.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - 48.5mm dovetail, male
  • Rear side - 48.5mm inner diameter
  • Length - 50mm (plus dovetail part)
  • Weight - 73g

Such extender enables using 210mm tube length M Plan objectives (from Nikon or Olympus, for example) on 160mm tube length microscopes.

48.5 mm dovetail is for Nikon Optiphot/Labophot, which are very popular scopes in USA.

Made of durable aluminium alloy.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
