56mm clamp to M58x1 male thread adapter

1 3
€40,80 EUR
€40,80 EUR
Sale Sold out

SKU#:808222974136
This adapter allows using attachments with 56mm rear diameter on helicoids with M58x1 thread.
View full details

  • Details
  • More Information
  • Questions

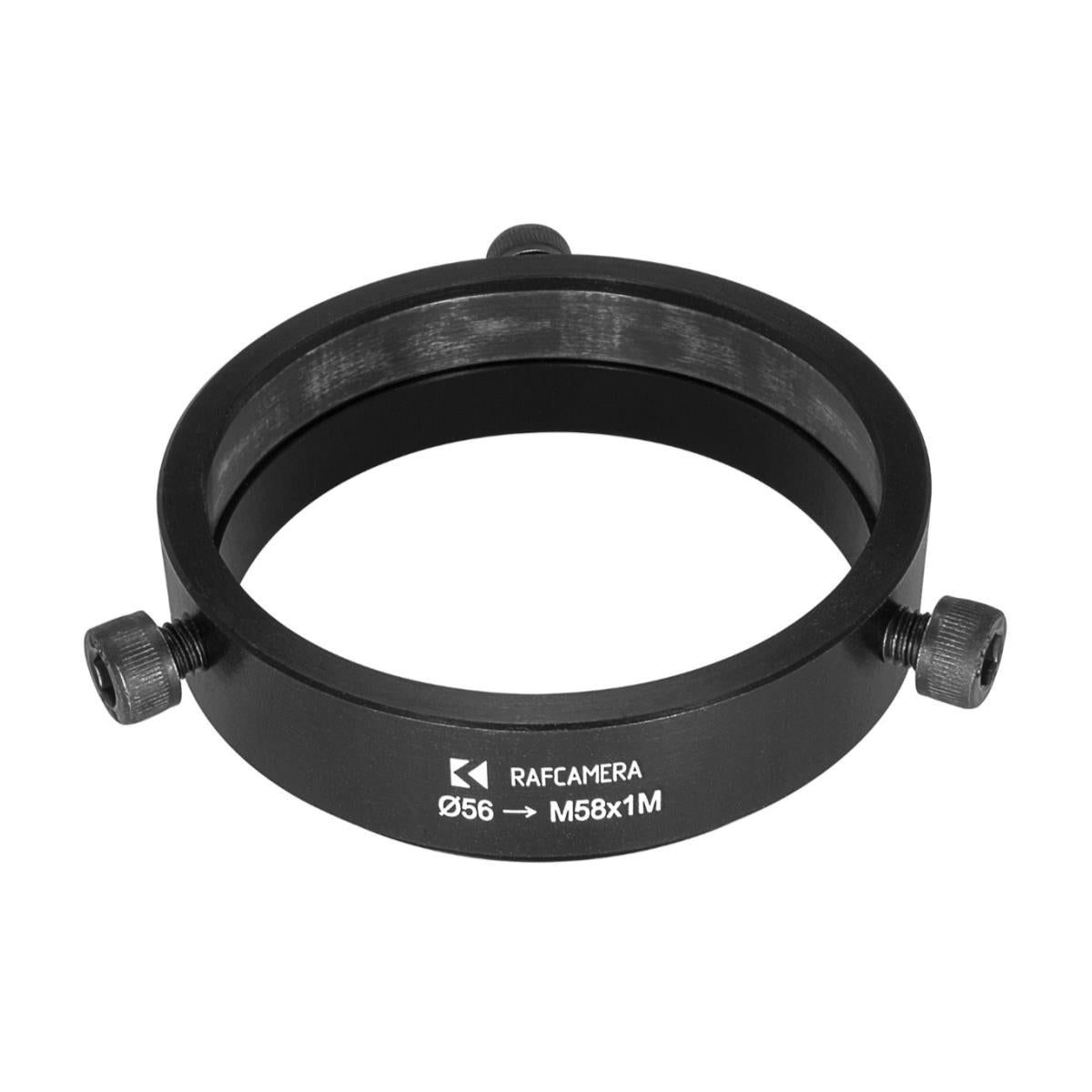

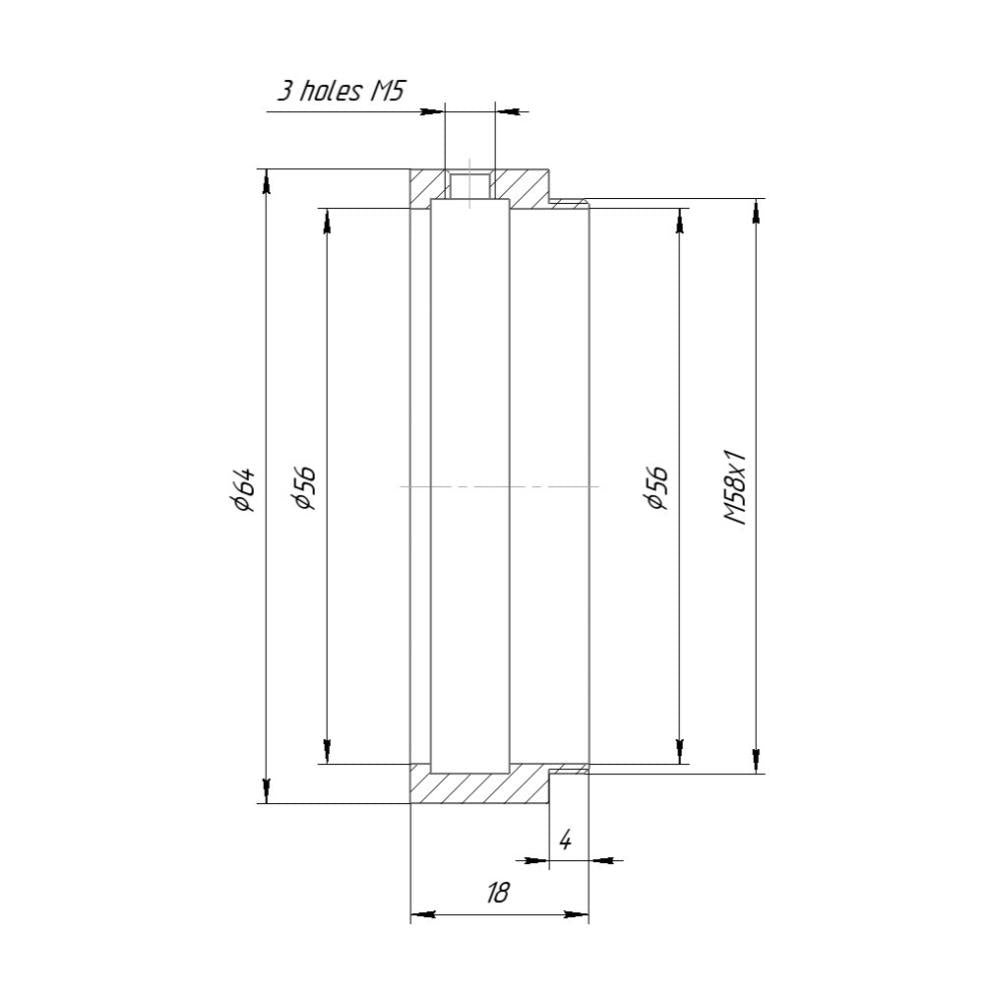

  • Front side - 56mm through bore

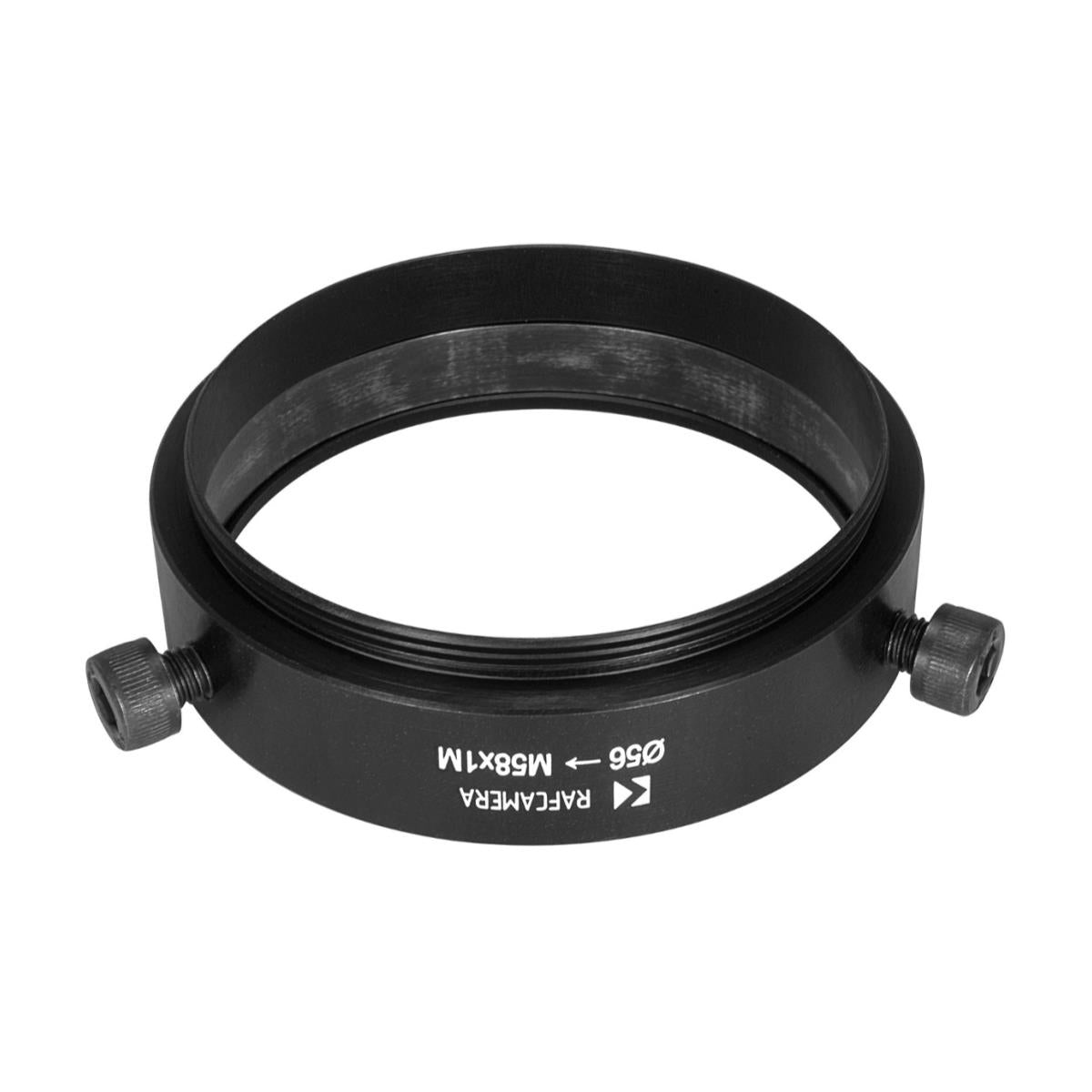

  • Rear side - M58x1 male thread

This adapter allows using attachments with 56mm rear diameter on helicoids with M58x1 thread.

Attachment is secured with 3 thumb screws. There is intermediate flat spring to prevent damage of the attachment body.

The adapter is made of anodized aluminium. Weight is 36 g.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - 56mm through bore
  • Rear side - M58x1 male thread

This adapter allows using attachments with 56mm rear diameter on helicoids with M58x1 thread.

Attachment is secured with 3 thumb screws. There is intermediate flat spring to prevent damage of the attachment body.

The adapter is made of anodized aluminium. Weight is 36 g.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
