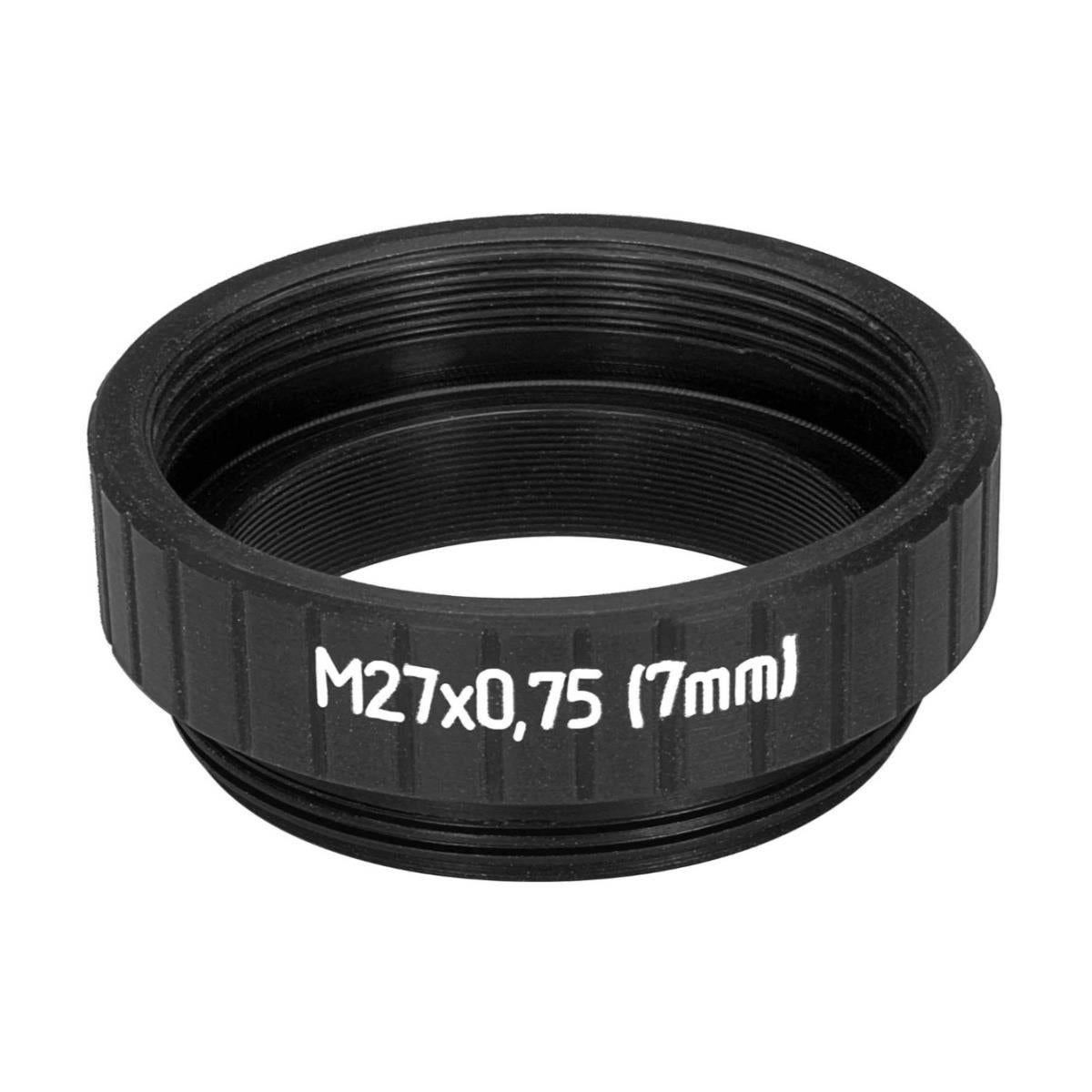

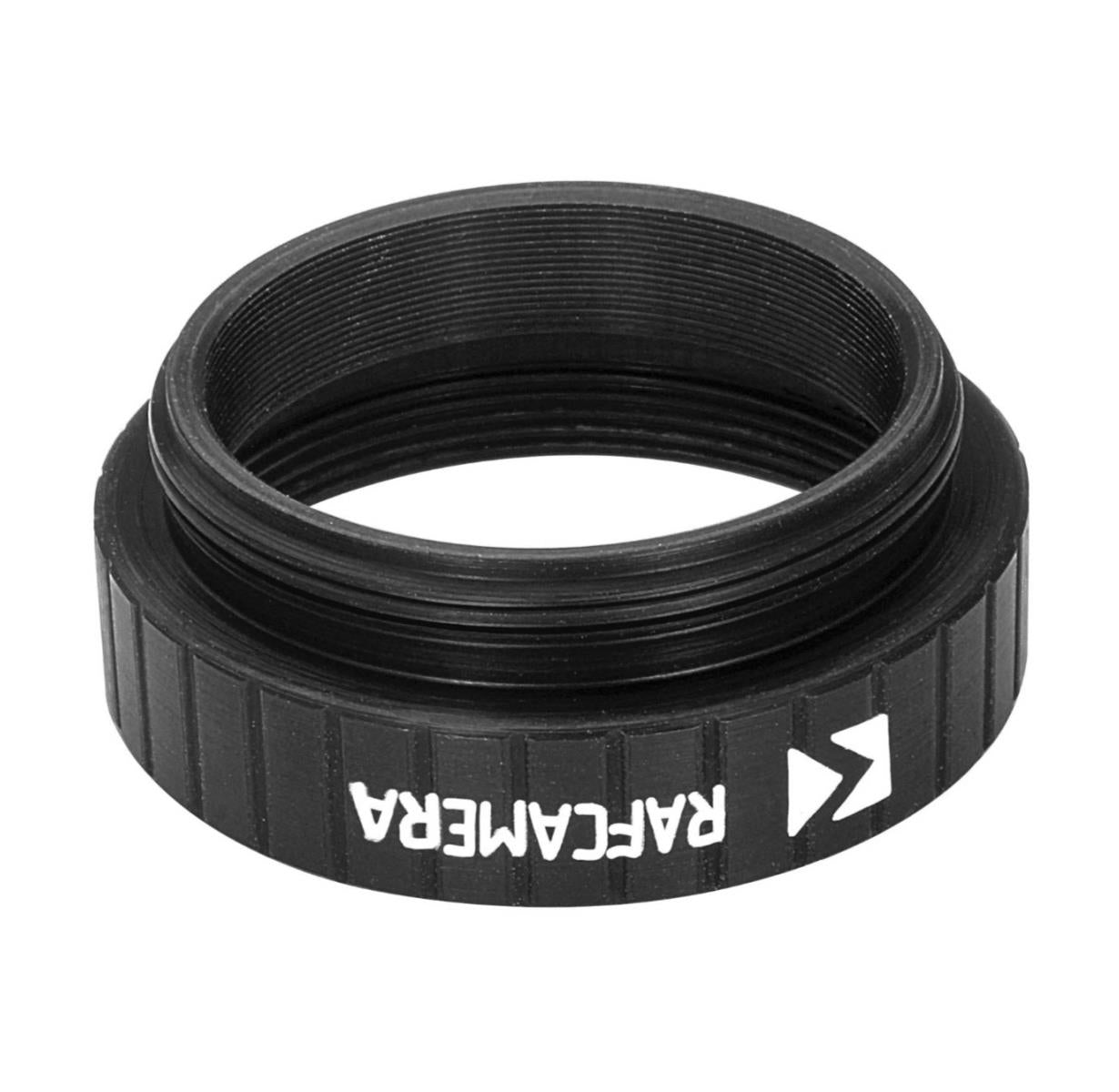

7mm extender for M27x0.75 microscope objectives, black

Skip to product information
1 of 4

Regular price €33,00 EUR
Regular price Sale price €33,00 EUR
Sale Sold out

SKU#:SKU: SKU#:763461172012


View full details

  • Details
  • More Information
  • Questions

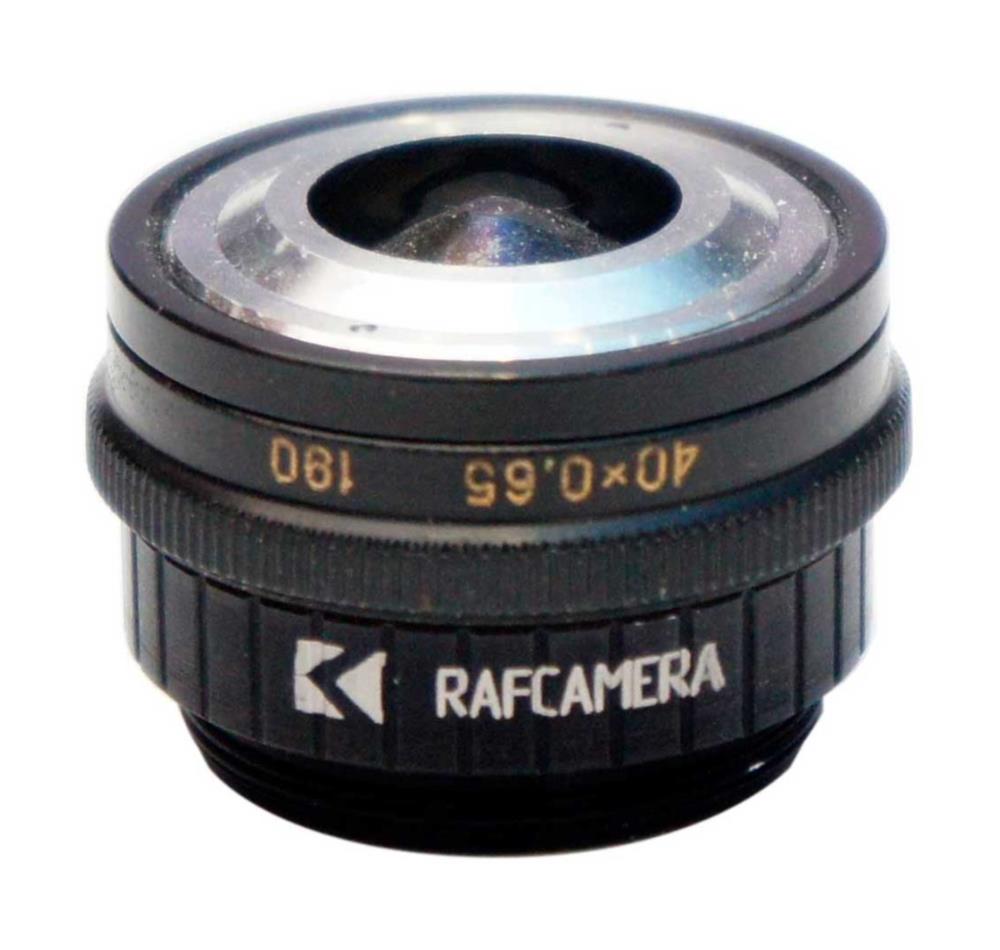

If you installed some objective on your M27 head using one of our adapters that have 7mm height, you may encounter one issue. If all your objectives were parfocal (45mm, for example), and you add 7mm with adapter, you'll get one or more objectives on the head with 52mm parfocal height, and switching between objectives will require 7mm up/down correction of the head. Quite inconvenient.

To solve this problem, you can just add these 7mm extenders and match parfocal height of all objectives on the head. Just micro-adjustment will be required after switching an objective now.

Another application of these extenders is changing of working area of microscope mechanism. After long usage around same height, mechanism gets wear. If you add 7mm to each head port, you'll be able to move to almost new parts of gears.

These extenders are made of anodized aluminium.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details

If you installed some objective on your M27 head using one of our adapters that have 7mm height, you may encounter one issue. If all your objectives were parfocal (45mm, for example), and you add 7mm with adapter, you'll get one or more objectives on the head with 52mm parfocal height, and switching between objectives will require 7mm up/down correction of the head. Quite inconvenient.

To solve this problem, you can just add these 7mm extenders and match parfocal height of all objectives on the head. Just micro-adjustment will be required after switching an objective now.

Another application of these extenders is changing of working area of microscope mechanism. After long usage around same height, mechanism gets wear. If you add 7mm to each head port, you'll be able to move to almost new parts of gears.

These extenders are made of anodized aluminium.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
