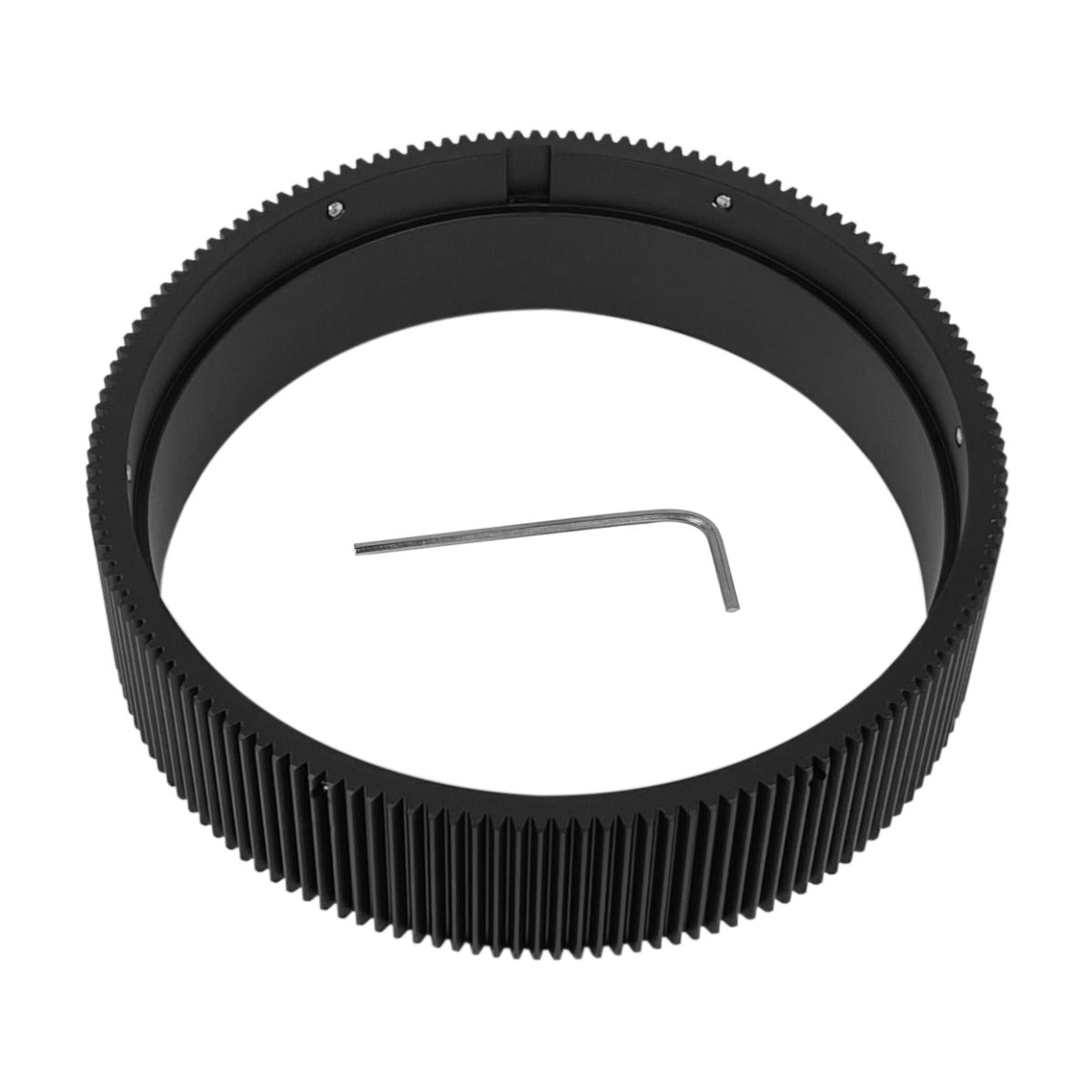

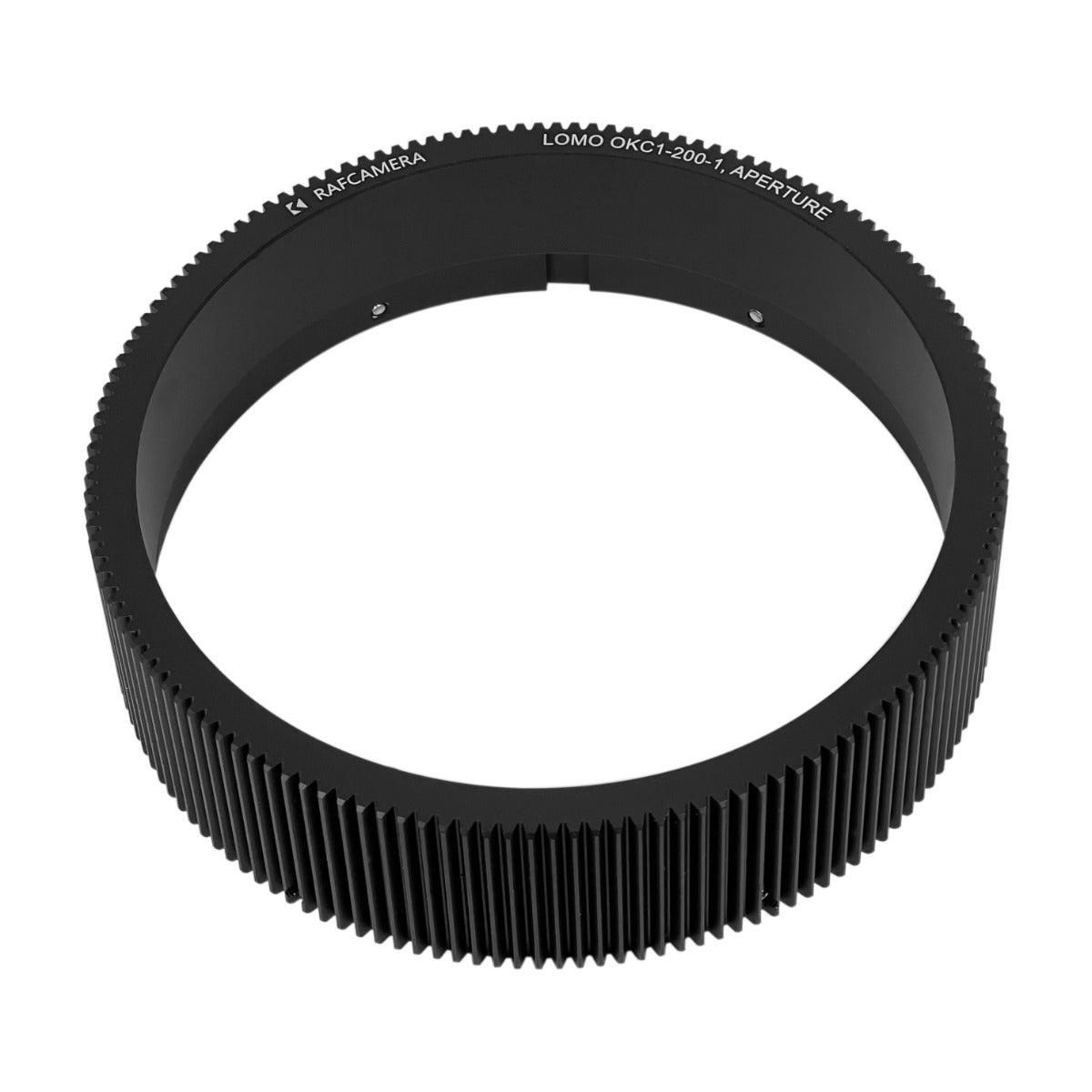

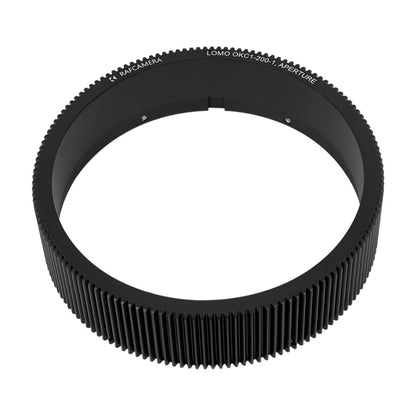

Made of anodized aluminium. Secured with 3 set screws by means of hex key (included).

• 32 pitch (mod 0.8).
• Inner diameter - 106 mm
• Outer diameter - 117 mm
• Width - 14 mm
• Weight - 57 g

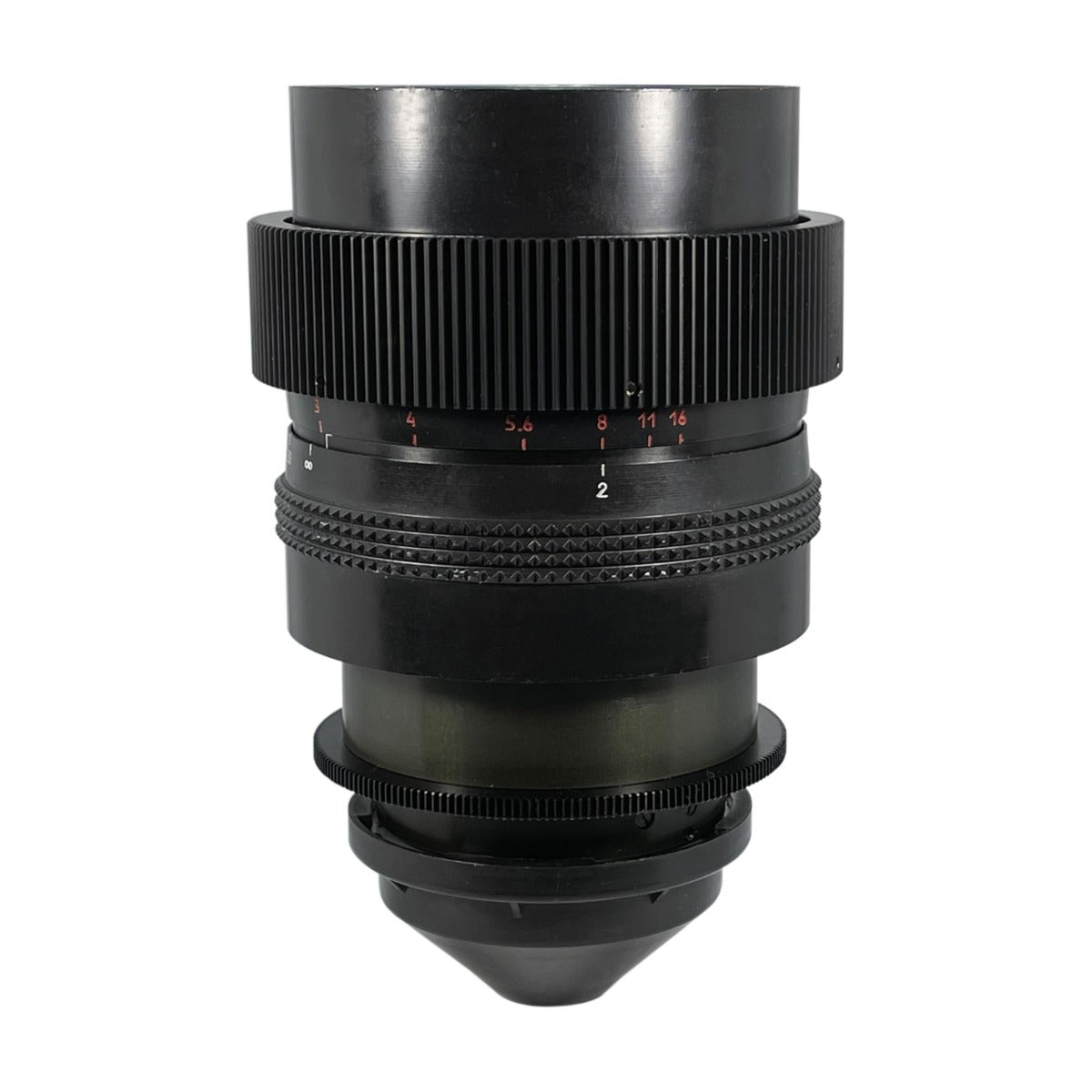

Purposed for LOMO OKC1-200-1 lens (2.8/200mm).

This gear is for APERTURE ring. One issue is that OKC1-200-1 lens extends 26.5mm forward when focusing from infinity to minimum focus distance. The gear is only 14mm long, so it will de-couple from drive FF gear at the middle of the range. We will make longer gear later.
