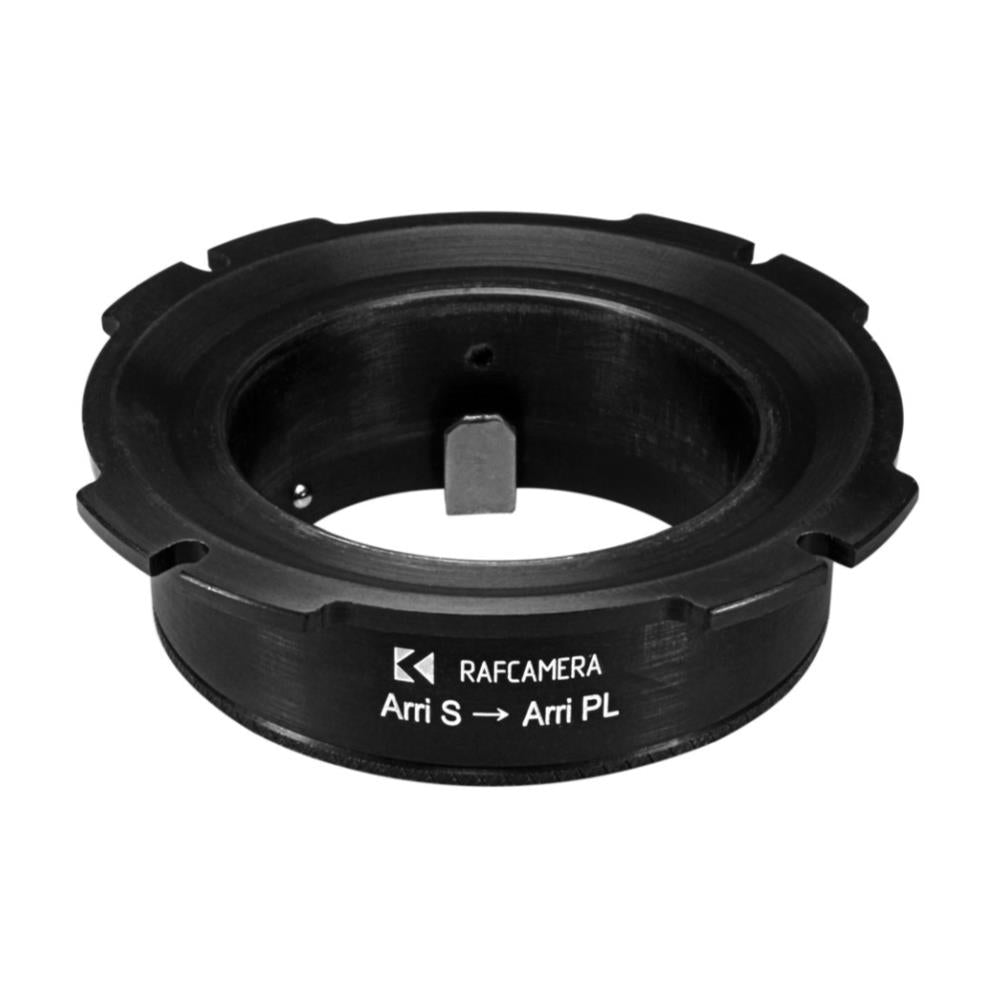

- Front side - accepts Arri Standard (Arri-S) lens

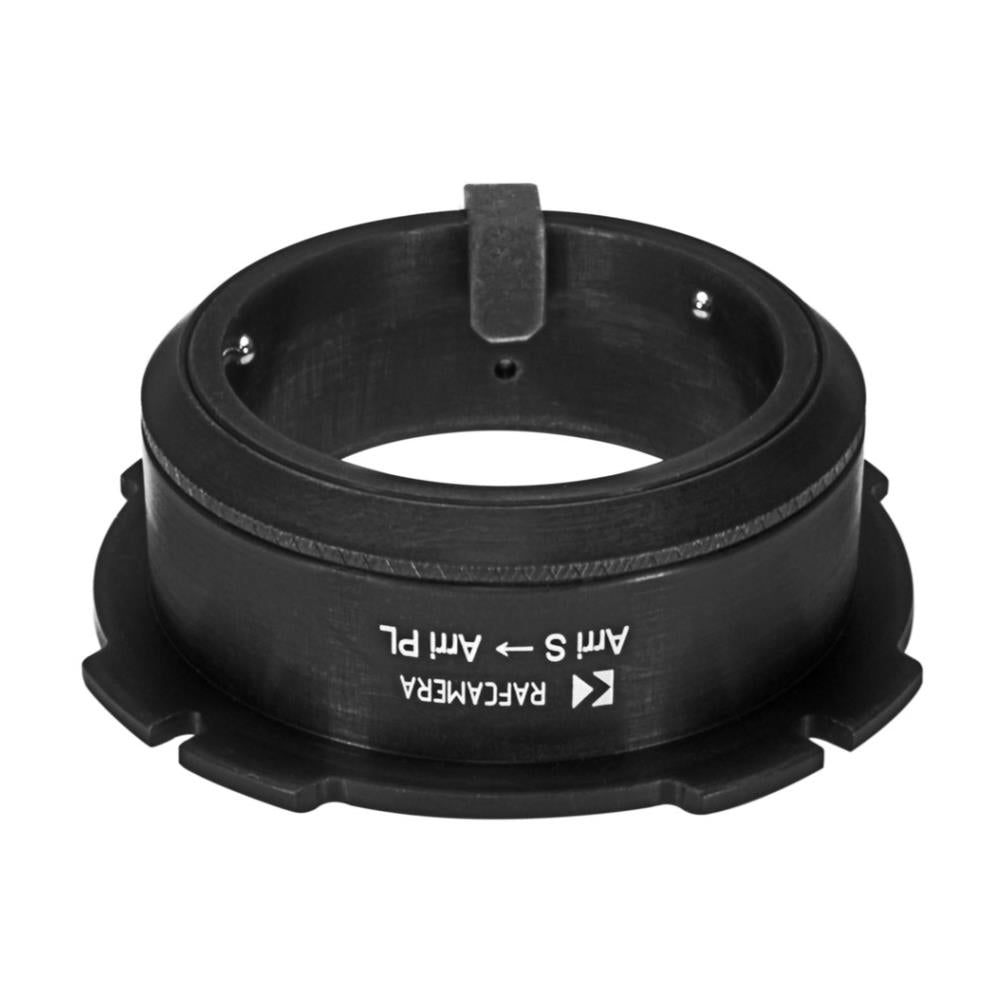

- Rear side - fits Arri PL camera mount
This adapter works correctly with Arri-S prime lenses - it holds inner optical block still, and allows focusing mount of the lens rotate as it should.
Quick-change mechanism implemented - you can change lenses in seconds. And there is even no need to remove adapter from camera. So, you may consider is as camera mount conversion if you wish - install the adapter into the camera mount, and just change Arri S lenses then.
HOW TO INSTALL: position the adapter guiding pin against a lens mount slit, make sure the pin enters the slit, and push it carefully till you hear and feel a click.
HOW TO REMOVE: just pull the lens out of the adapter with reasonable effort.
Word of caution: if you have a reflex camera, make sure to NOT position this adapter with its guiding pin facing the shutter - you will damage your stutter in this case.
In any case, if your camera has a rotating shutter, turn it few times carefully by hand to make sure the shutter clears the adapter.
Below is the table of compatible/incompatible cameras and lenses based on reports from our customers.
| COMPATIBLE | INCOMPATIBLE |

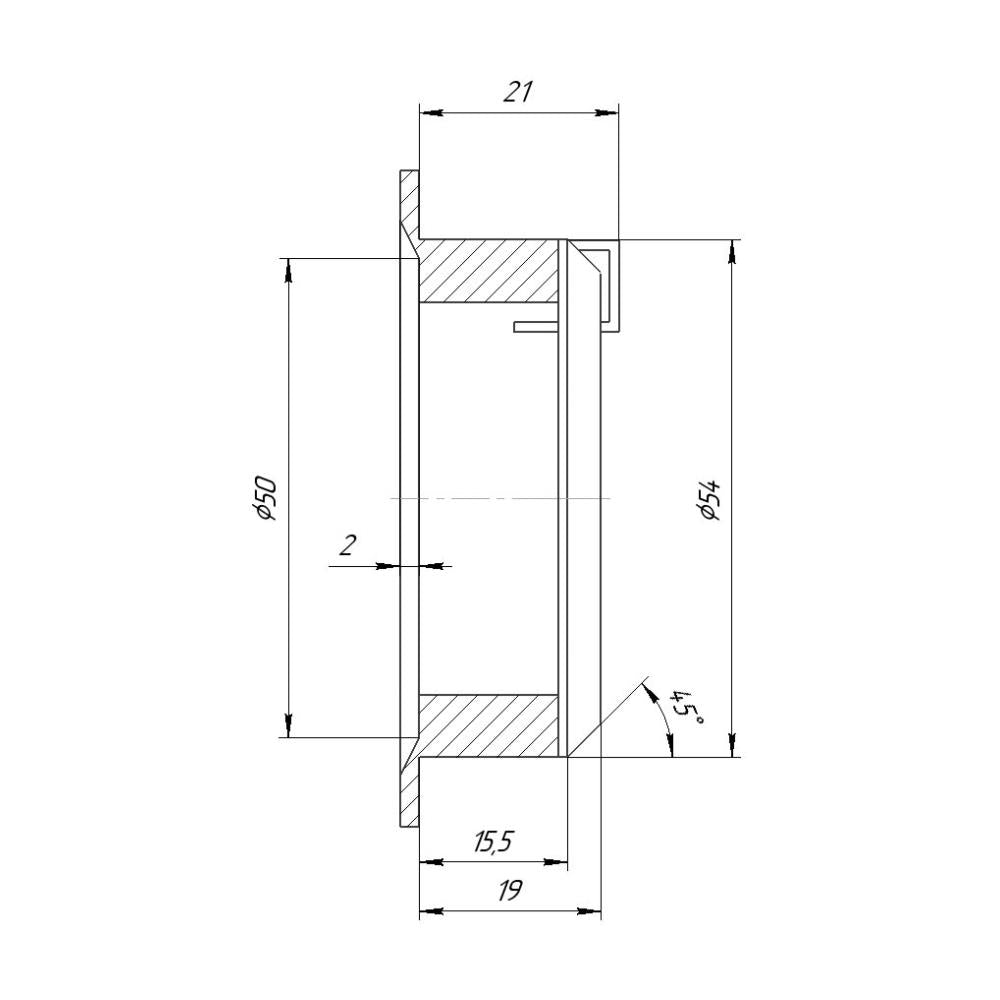

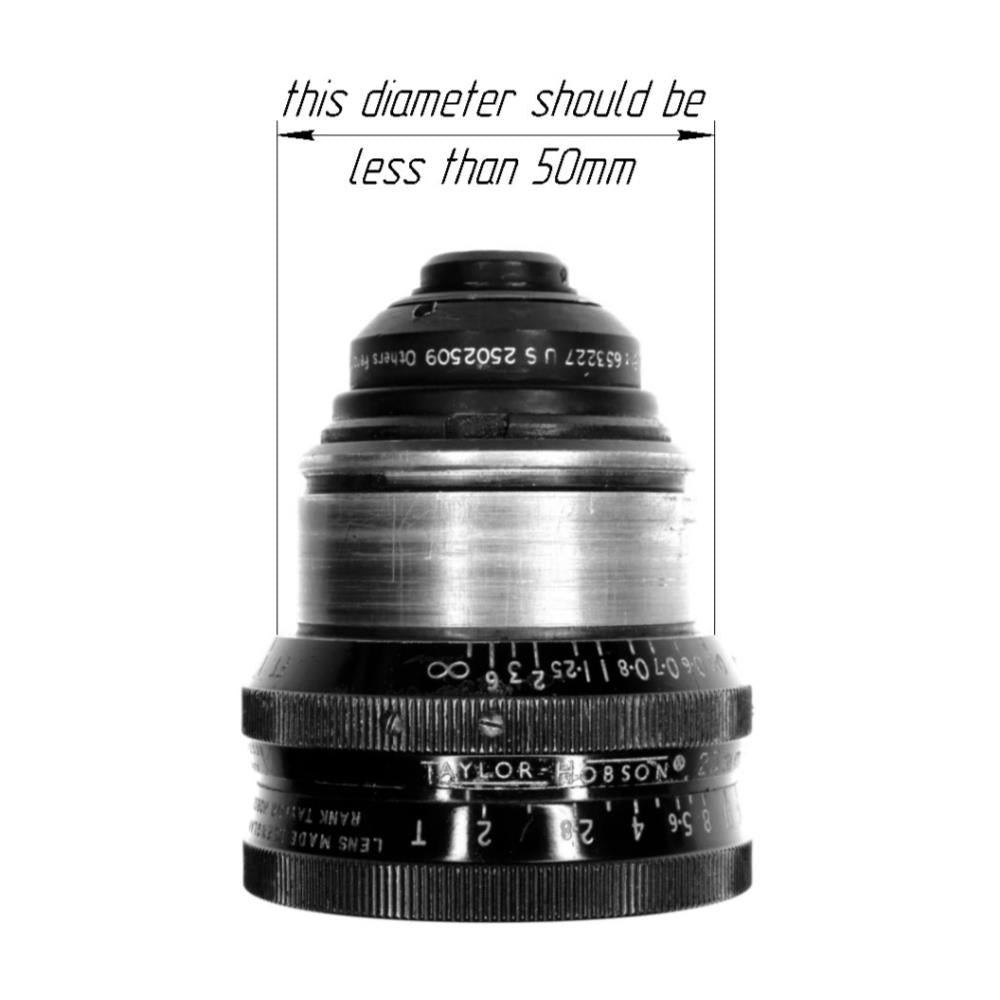

| LENSES (actually, most lenses should fit except of wide at the mount ones - please refer to the drawing) | |
|
Cooke Kinetals for 16mm Cooke Speed Panchro/i Classics Cooke Speed Panchro 32mm Zeiss S PL-mount lenses |
Old Zeiss planar 1:2 |
| CAMERAS | |
|
Aaton 35 Arri Alexa Mini (with a Taylor Hobson Kinetal 37.5mm from the late 1950’s) (contradictory info) Arriflex 2C Blackmagic Pocket Cinema Camera with PL / MFT adapter Blackmagic Ursa Mini Pro 4.6K (G1) BMPCC4K with another PL / MFT adapter Ikonoskop A-Cam DII Metabones PL to RF adapter for Canon R5 Moviecam compact super 35 Panasonic Lumix GF5 with PL / MFT adapter Red One with PL mount Red Scarlet 4K Sony A7SII with PL / E-mount adapter Sony F5 Varicam 35 with PL mount Varicam LT (version with Arri PL mount) Zcam with Novoflex PL adapter |
Aaton XTR ARRI 416 S16 Arri Alexa Amira Arri Alexa Classic Arri Alexa Mini Arri Alexa XT Arri BL IV Arri SR3 Black Magic Pocket 6k Pro with wooden cameras PL adapter Canon C300 MKII PL mount Canon C500 MKII PL mount It can be used on Canon 7D DSLR camera that has been modified. It has had the mirror removed and has a PL adapter attached. Not compatible without such modification. Metabones Arri PL to adapter Metabones PL - E-mount T converter RED Komodo Standard Z-Cam PL mount has a built in filter tray that prevents using our adapter. Ursa Mini 4.6 PL Ursa Mini Pro G2 with the PL mount from black magic. However after alot of trial and error I found it could only be done if you removed the PL Baffle inside the mount. Ursa Mini Pro with PL mount, but I had to slightly file down a small section of the edge of the PL mount's baffle for the RAF adapter to fit. |
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
