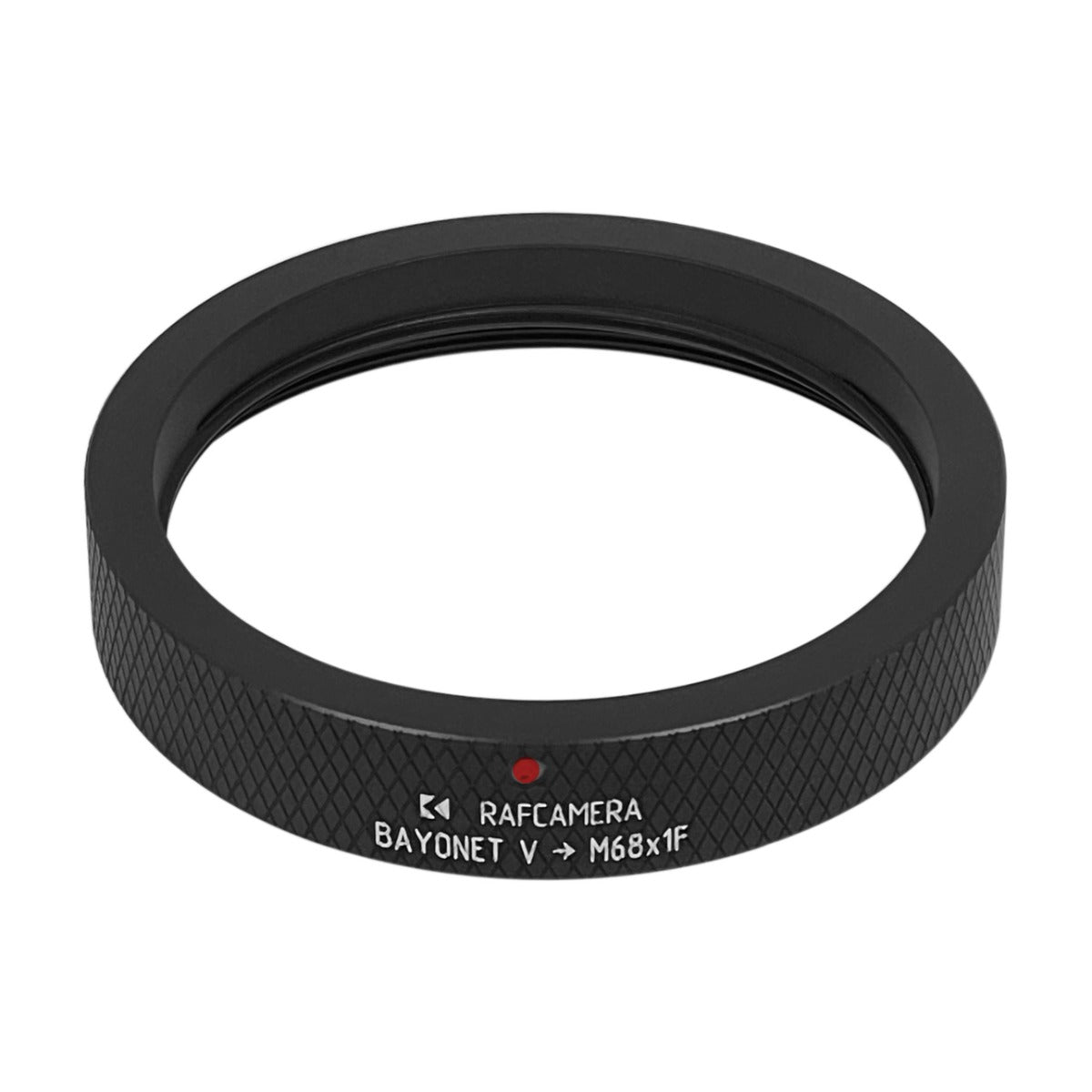

• Front side - Bayonet V female mount
• Rear side - M68x1 female thread
• Machined of high quality aluminium alloy.

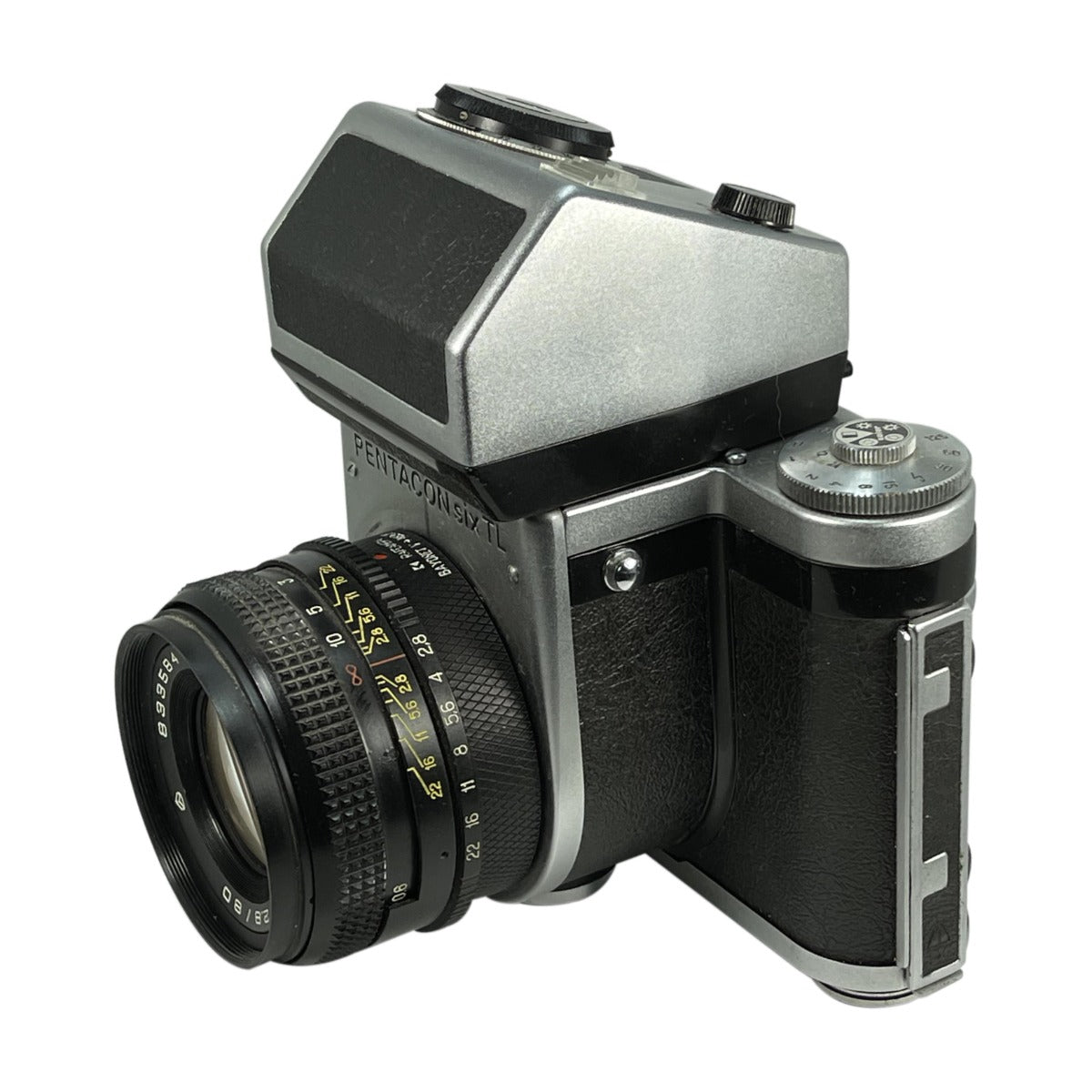

This adapter allows using lenses with Bayonet V mount on Pentacon Six cameras. Infinity focus is preserved.

To reach infinity focus, this adapter needs to be installed instead of the lens lock ring on the camera mount.

Installation

1. Remove the lens retaining ring from the camera mount.
2. Install the adapter.

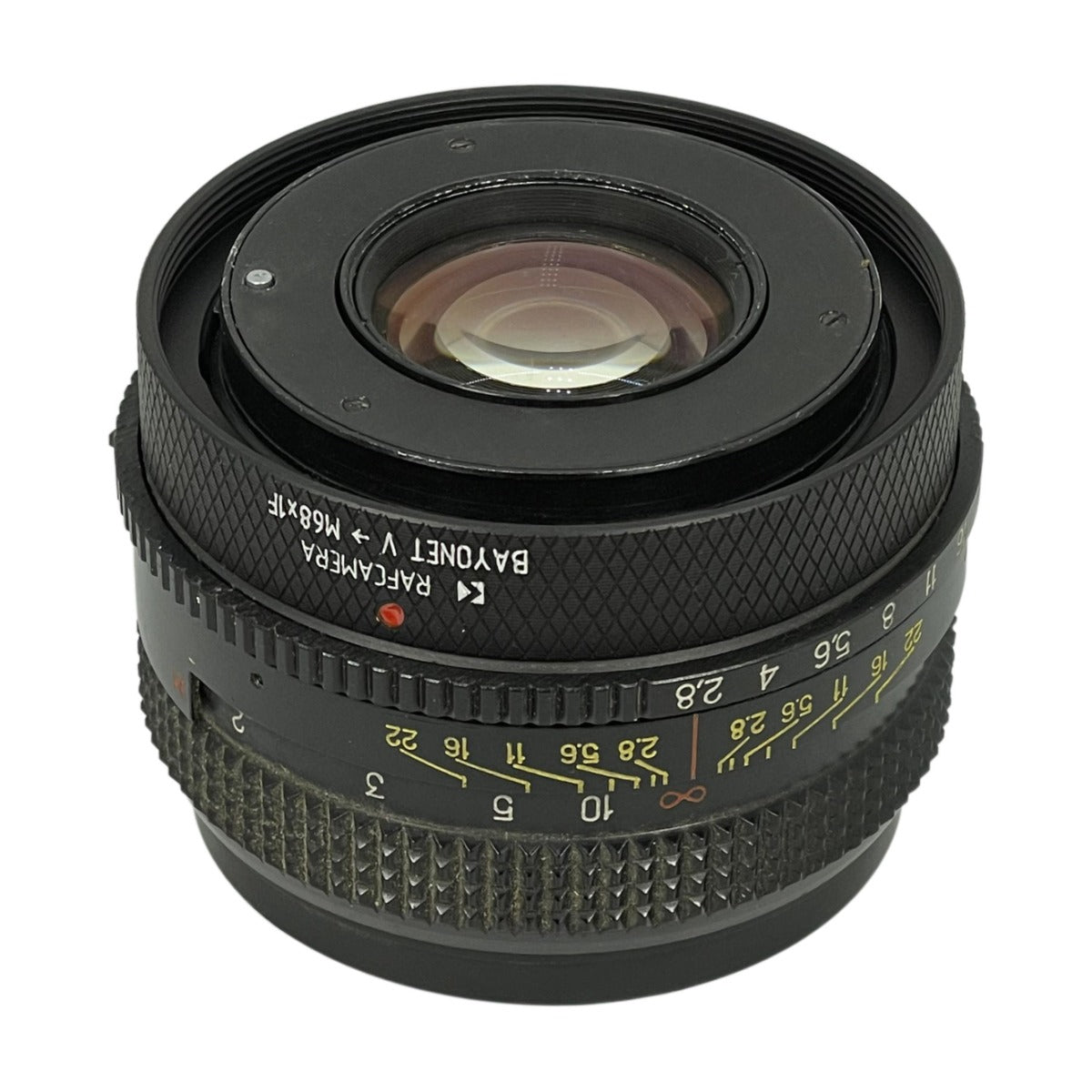

3. Install the lens.

Known compatible lenses are from the following cameras:

• Kiev-88
• Salyut-S
• Zenit-80
• Hasselblad 1000F
• Hasselblad 1600F
