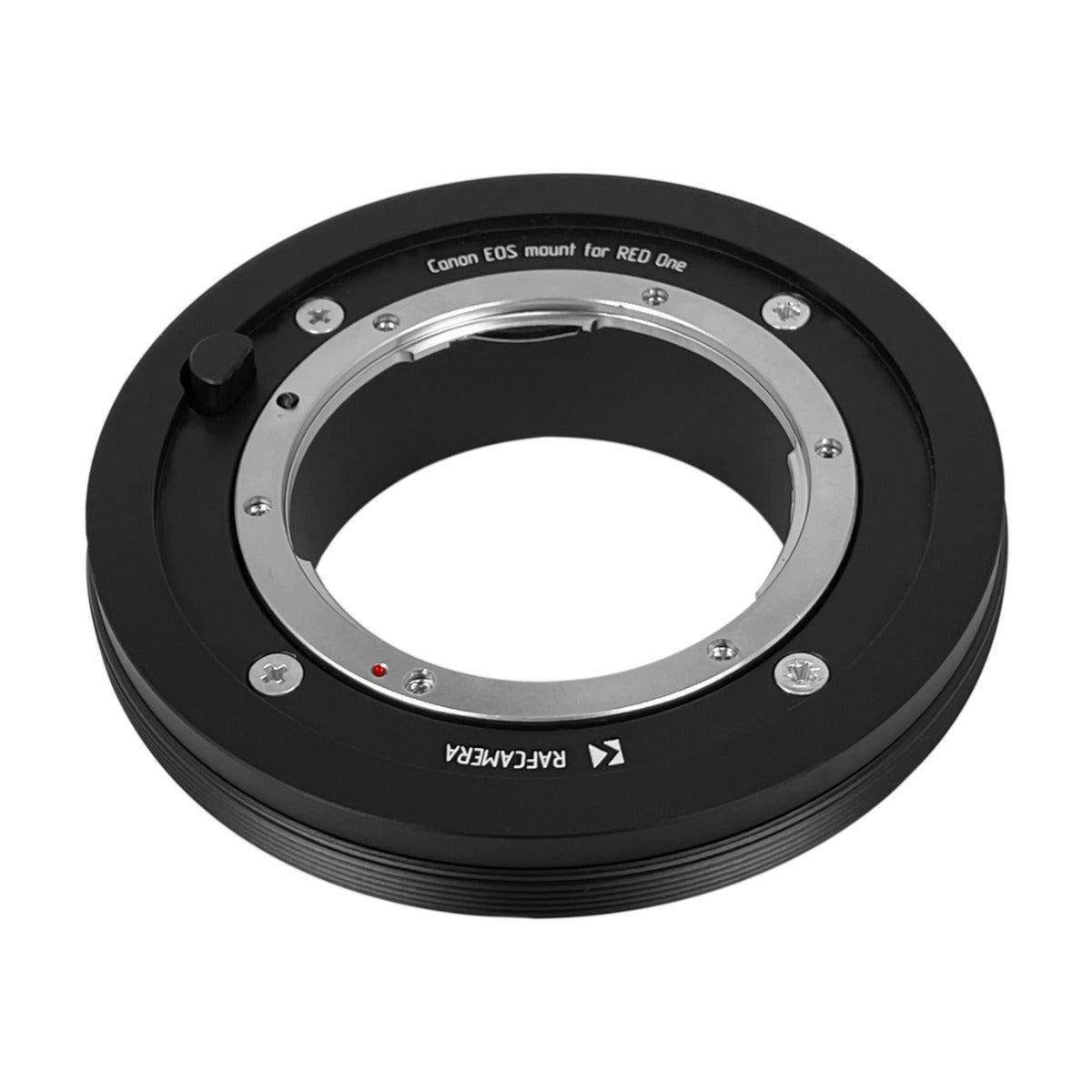

- Front side - Canon EOS (EF) mount

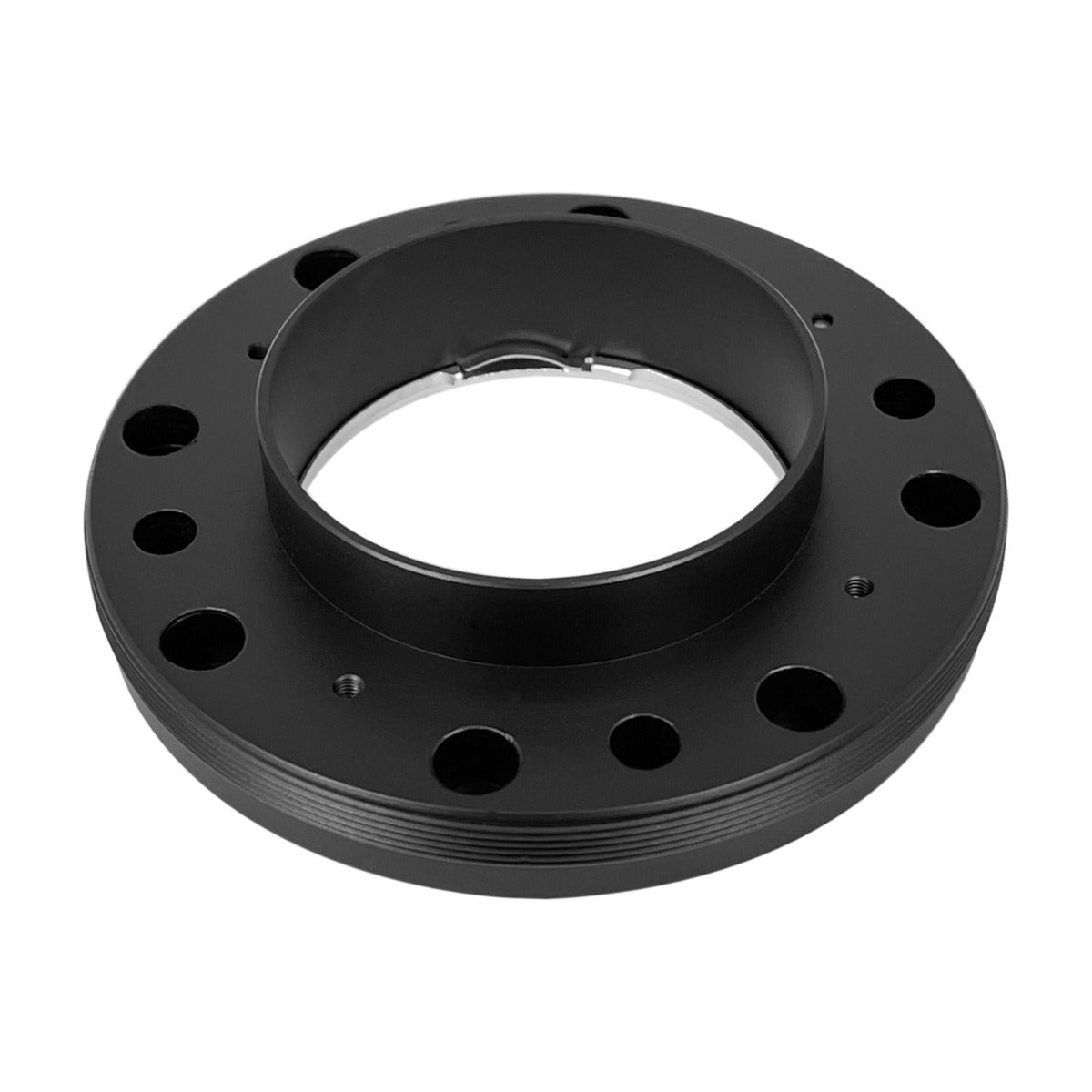

- Rear side - RED One interchangeable mount system
IMPORTANT NOTE: This adapter fits original RED One and Red One MX camera design only. It will NOT fit later modifications like Scarler or Epic.
INSTALLATION AND ADJUSTING

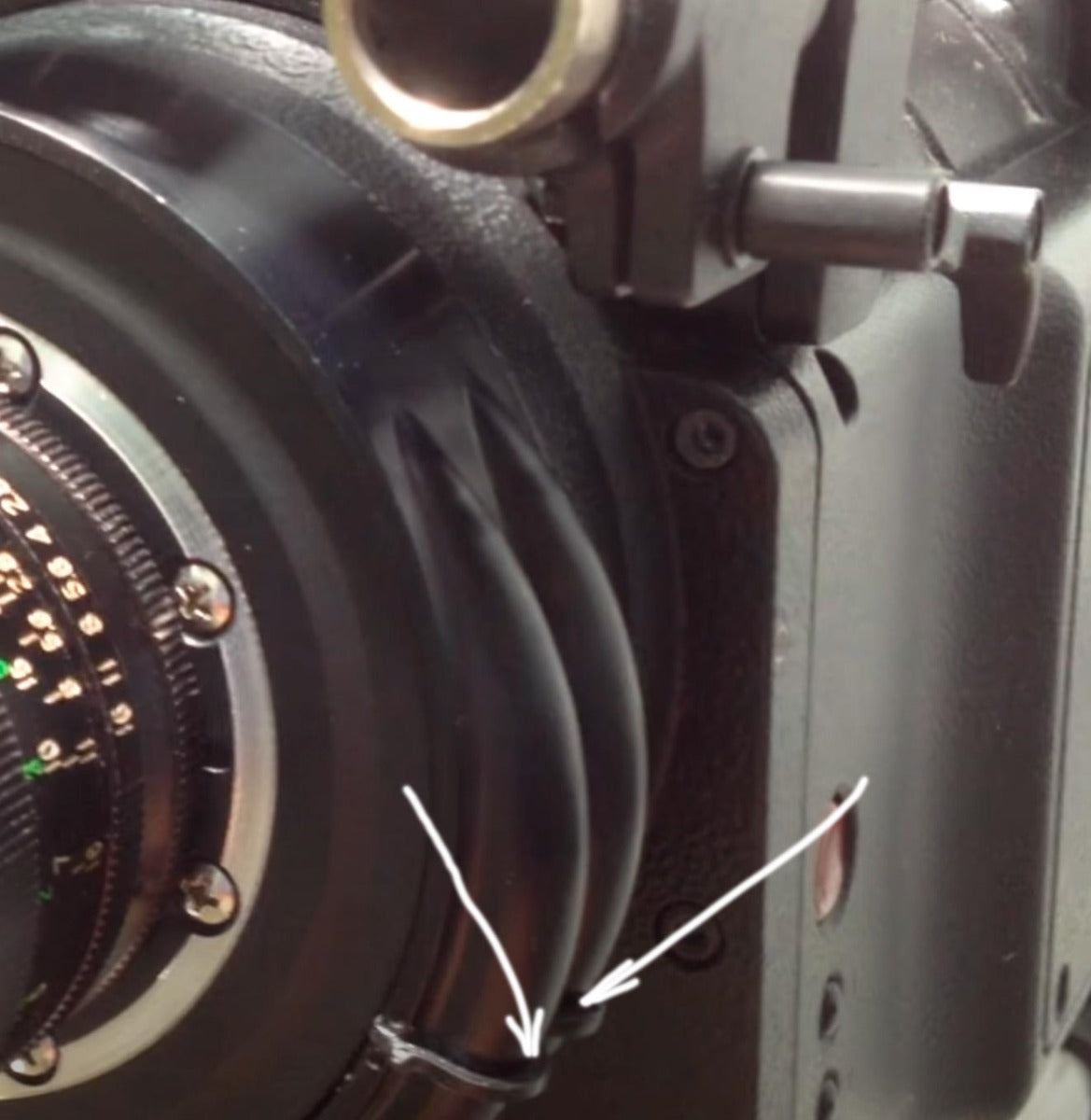

To install this mount, you need to loose two screws (marked on the photo), remove the original PL plate, and replace it with our mount plate.
Adjusting of back focus is necessary then.
You should mount a lens, set it to infinity, loose that two screws a bit (carefully, to not drop the plate with the lens off).
Point the camera to some distant object, and turn the turnbuckle to see if the image gets sharper. When direction is determined (clockwise or counterclockwise), continue to turn it till you get perfectly focused image of the distant object with the lens set to infinity.
Secure those two screws on the turnbuckle. That is all.
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
