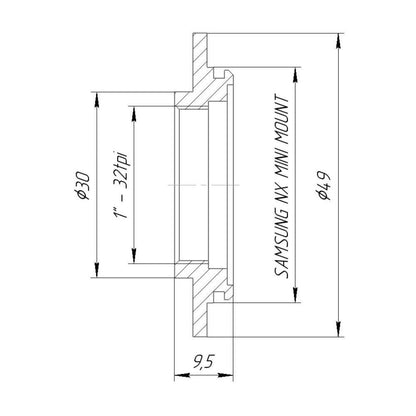

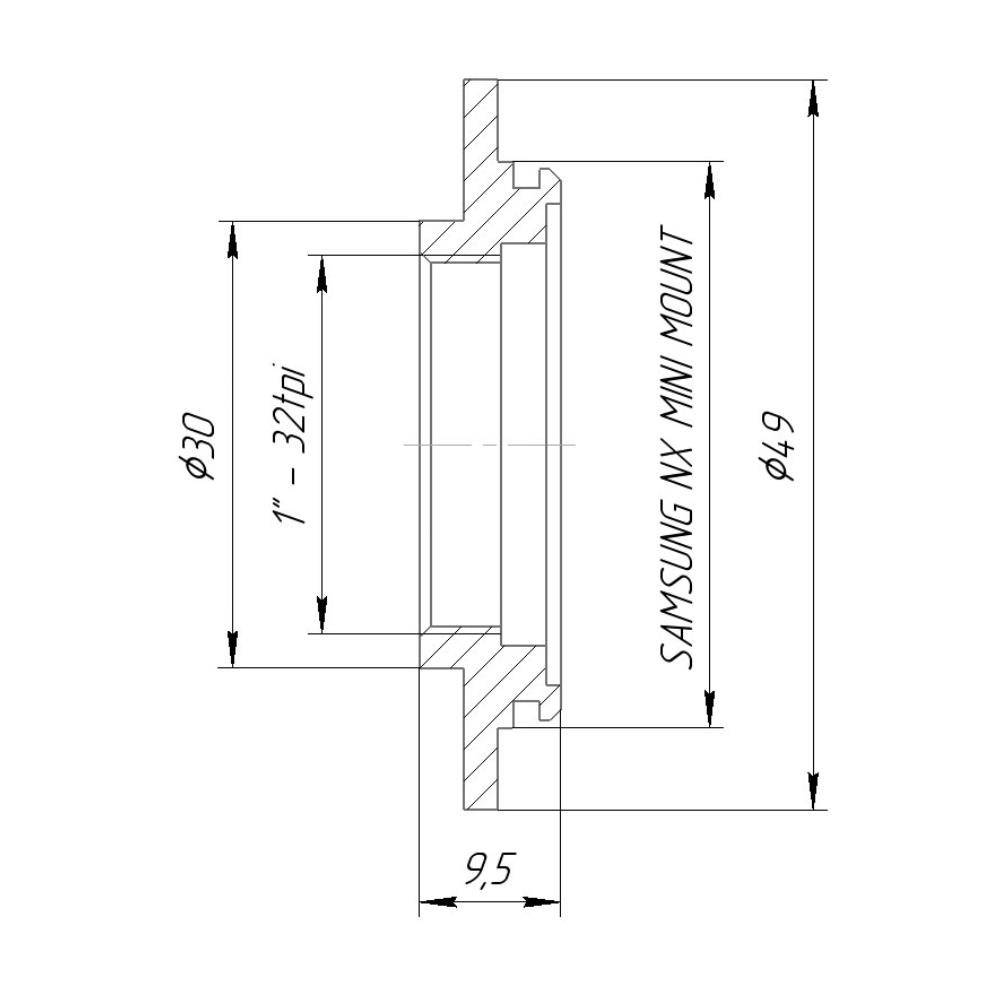

• Front side - CS-mount female thread

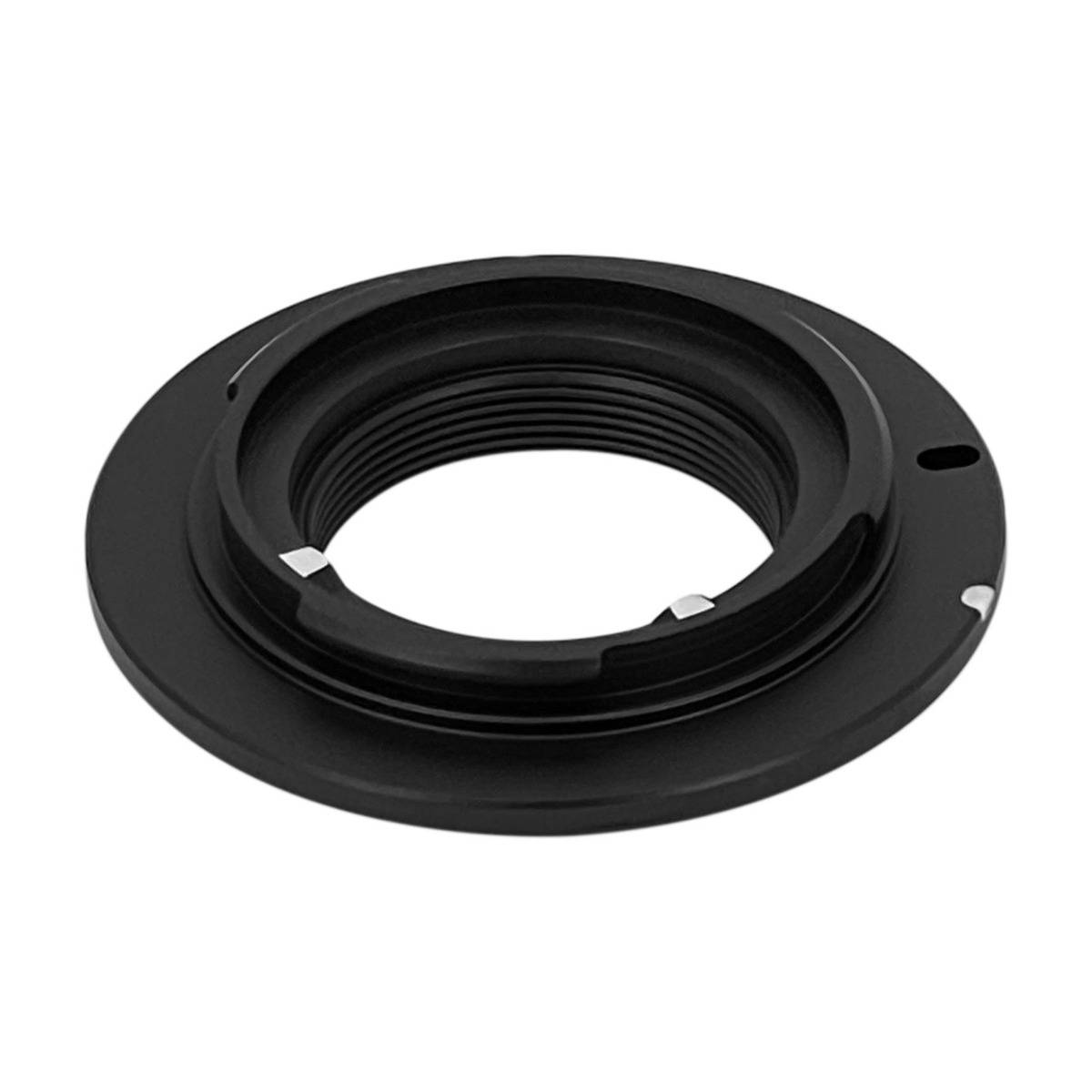

• Rear side - Samsung NX Mini male mount

Machined from high quality aluminium alloy.

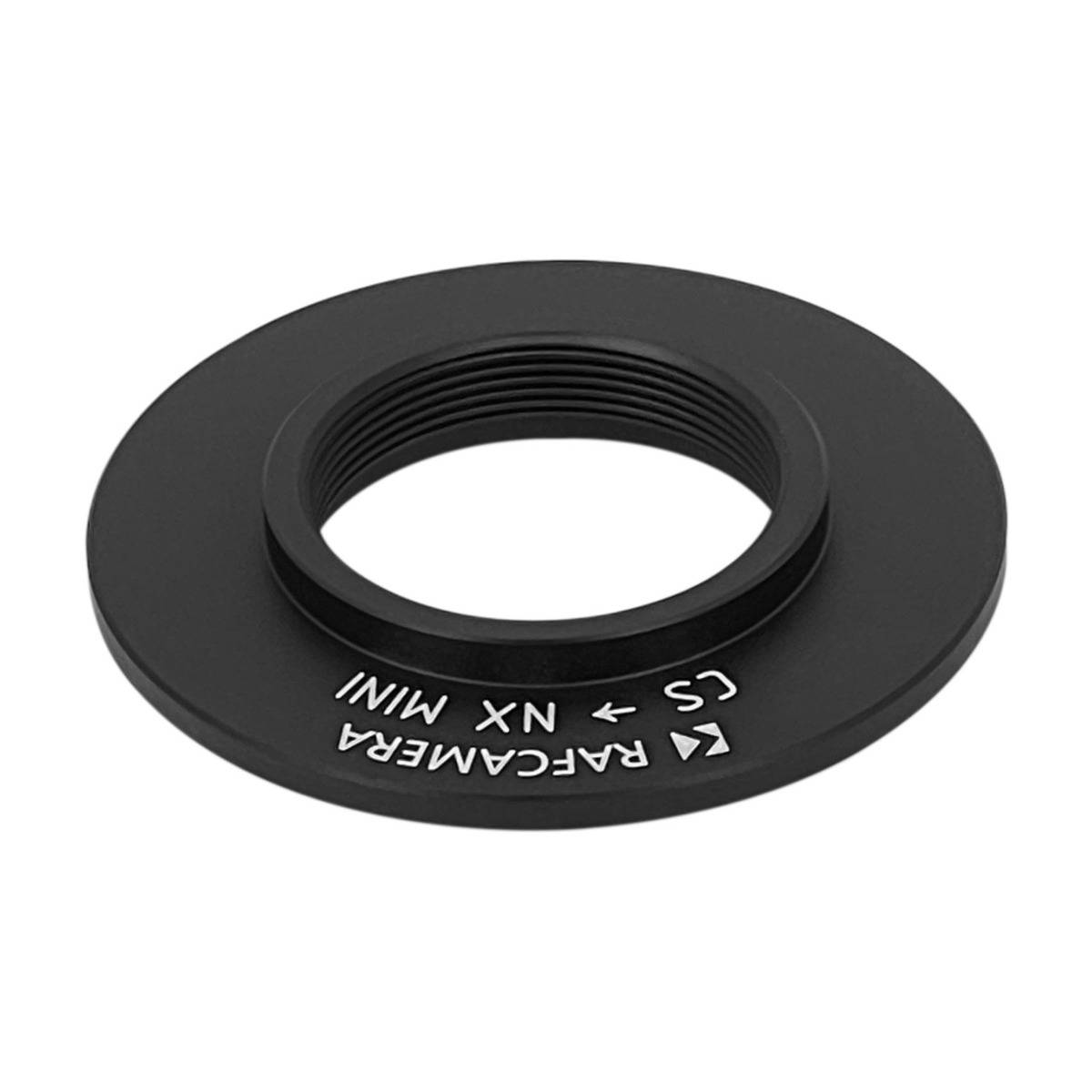

This adapter allows using CS-mount lenses on Samsung NX Mini cameras.

Shutter fires in P, A, S, M modes. But it is recommended to work in fully manual (M) mode, since any automatic adjustments will not work anyway.

TIP: If the camera does not see a lens, please clean two contacts on the rear side of the adapter. Aluminium oxide film does not conduct electricity.

NOTE: this adapter is purposed for CS-mount lenses. They have the same thread as C-mount (1"-32tpi), but 5mm shorter flange focal distance. C-mount lenses will not focus with this adapter, although they can be installed.
