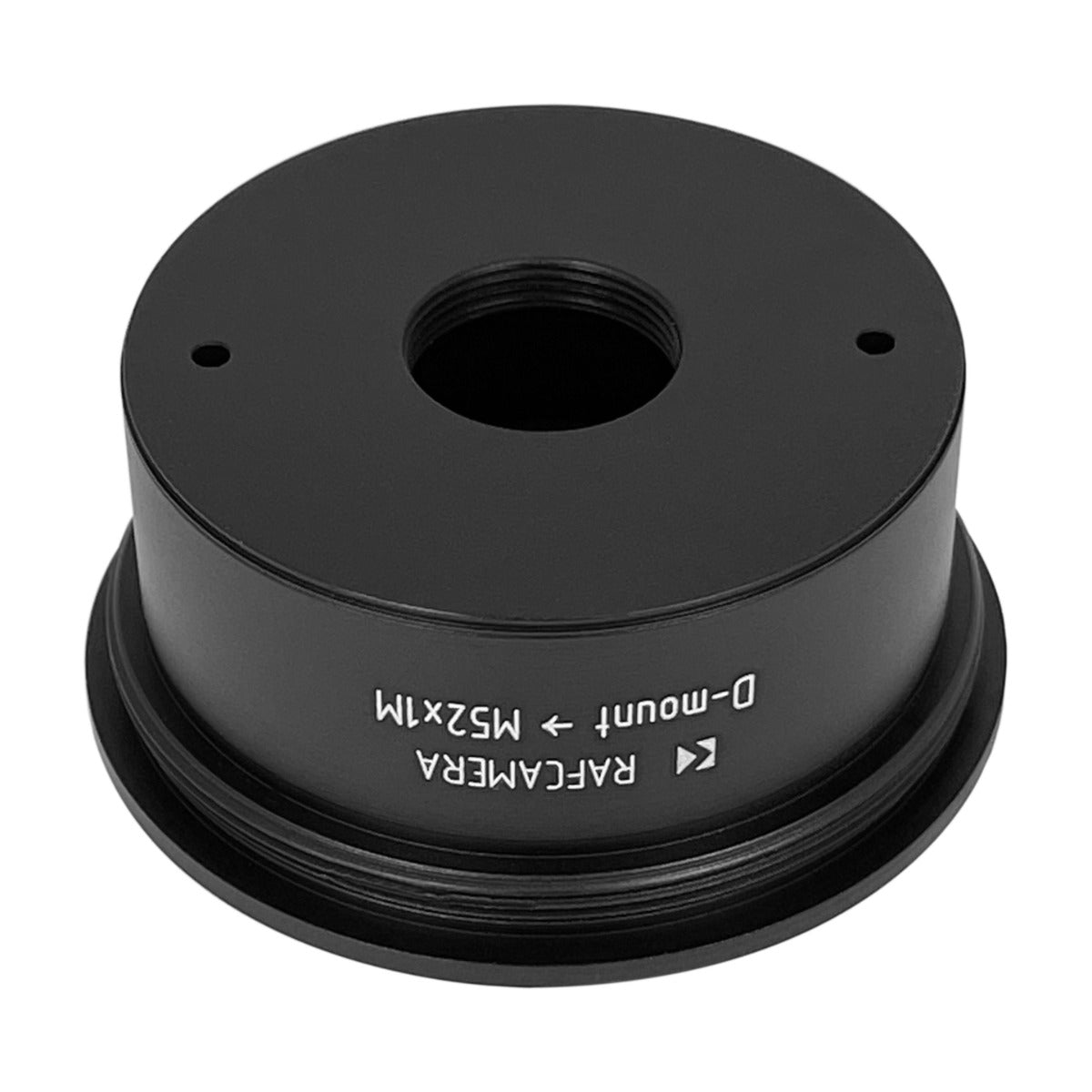

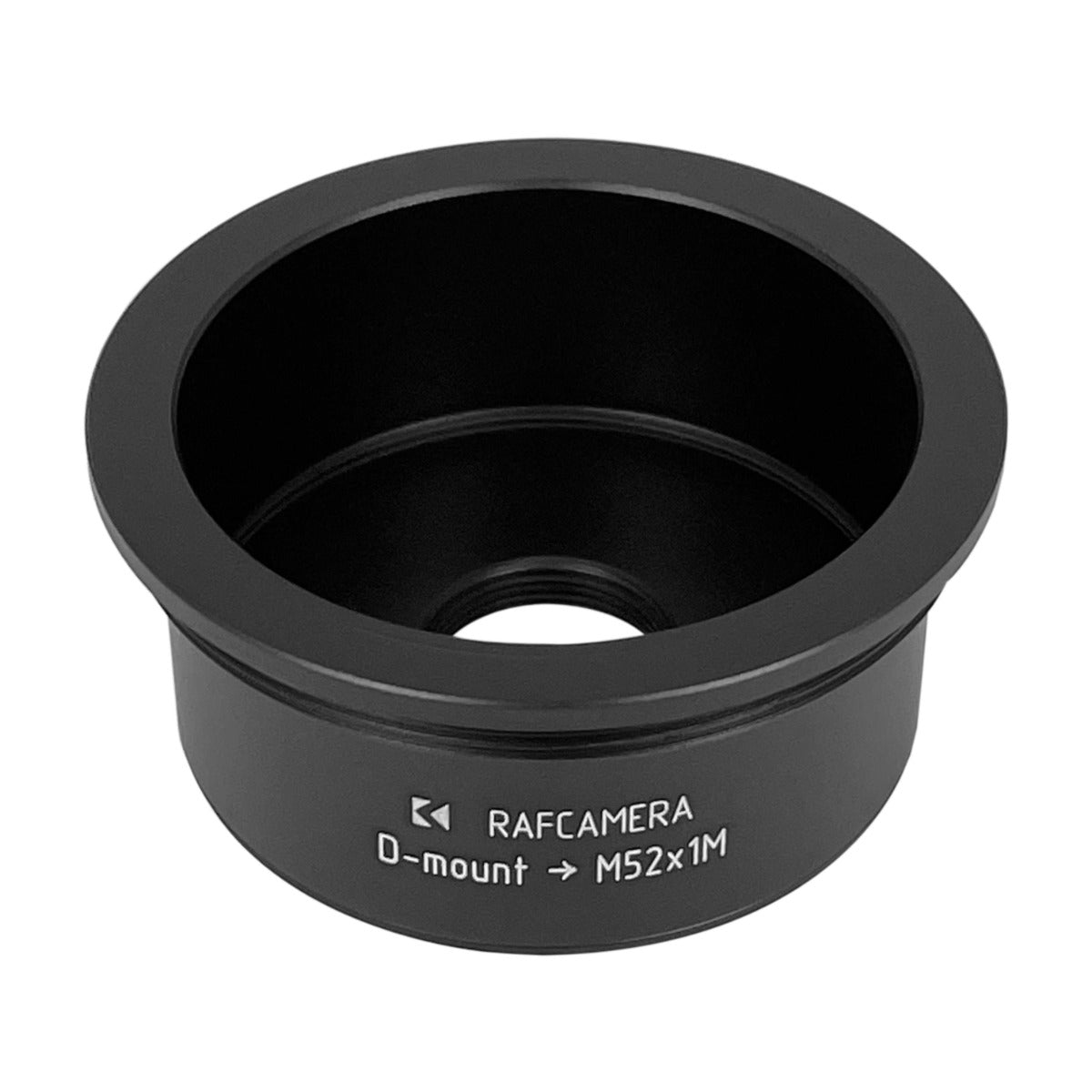

D-mount lens to M52x1 male thread adapter

1 5
€70,80 EUR
€70,80 EUR
Sale Sold out

SKU#:808238407871
This adapter is purposed to mount a D-mount lens to M52x1 focusing helicoid, and to some non-reflex digital camera then.
View full details

  • Details
  • More Information
  • Questions

This adapter is purposed to mount a D-mount lens to M52x1 focusing helicoid, and to some non-reflex digital camera then.

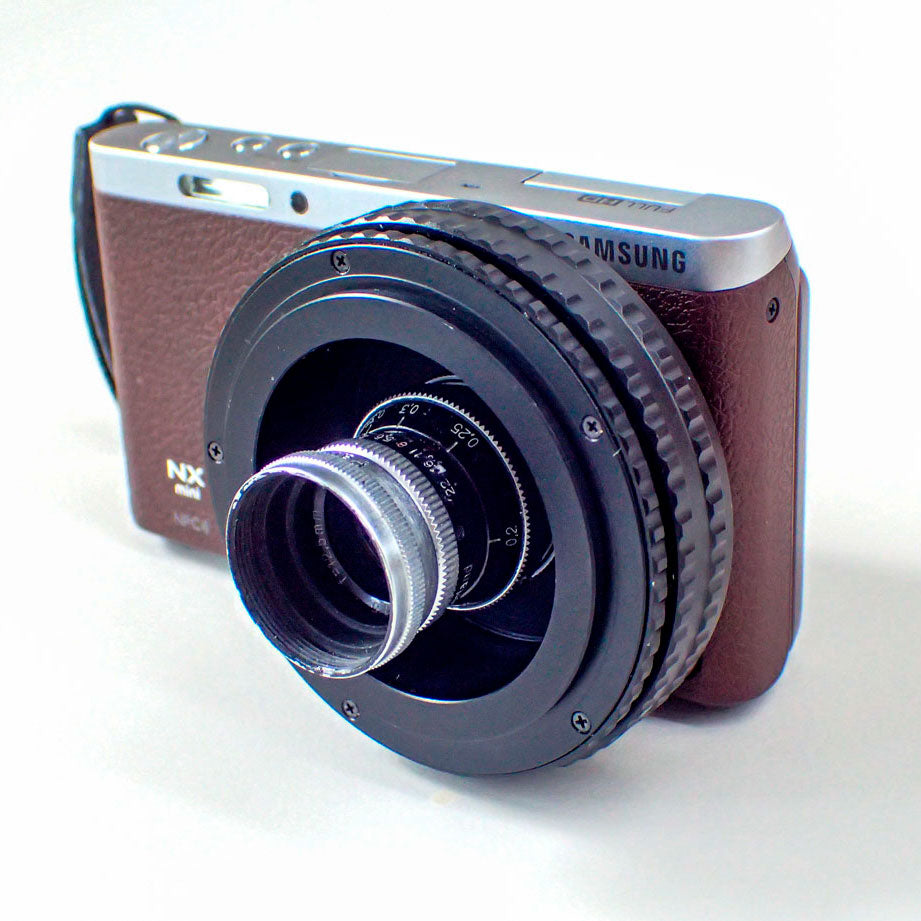

It was made with Samsung NX camera in mind, but will work for other cameras with shorter than 25.5mm flange focal distance.

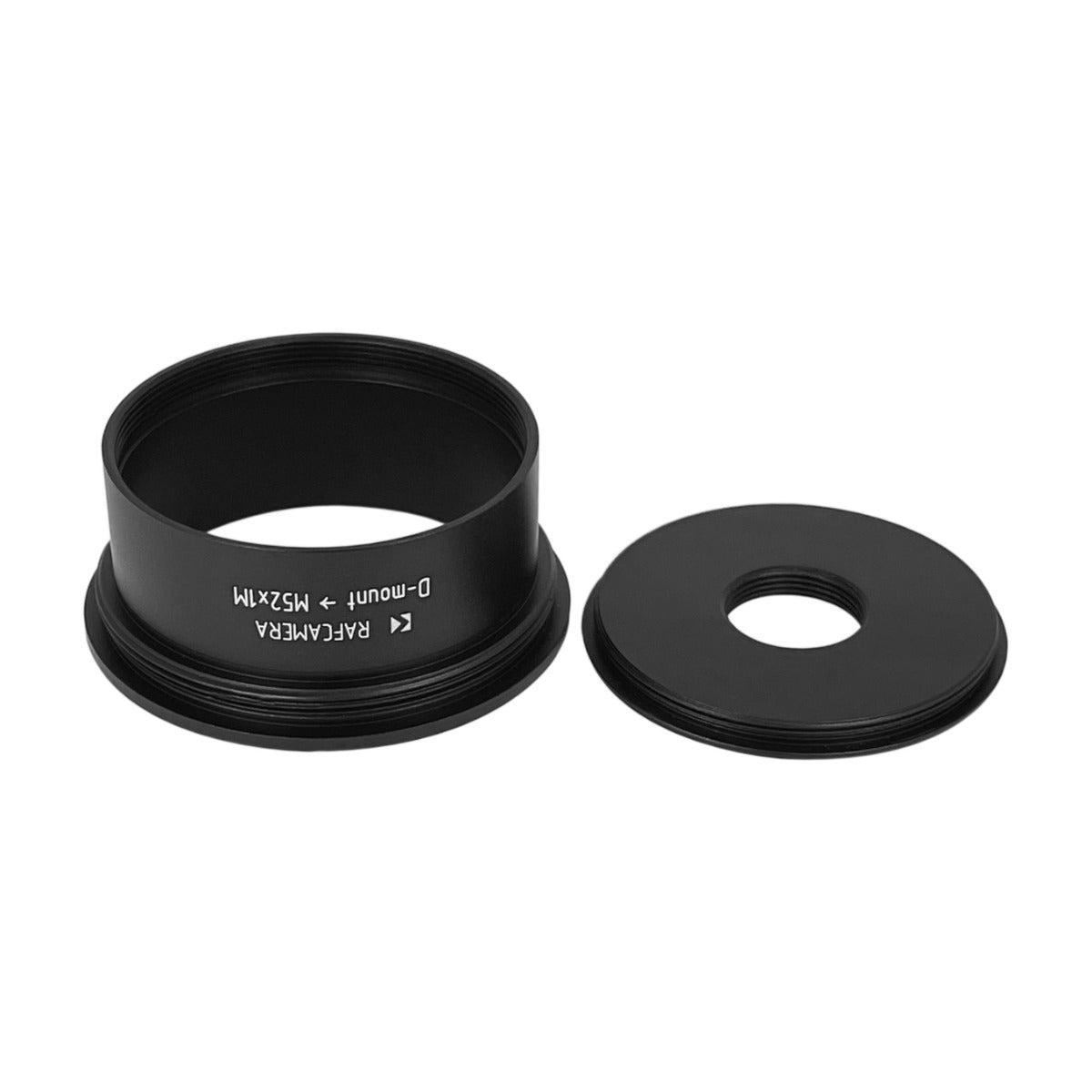

The adapter consists of two parts to make a lens installation more convenient.

Deep recession is necessary to reach infinity focus.

Using a focusing helicoid instead of the lens native tiny focus ring makes focusing process more convenient, though you will not see the distance scale.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details

This adapter is purposed to mount a D-mount lens to M52x1 focusing helicoid, and to some non-reflex digital camera then.

It was made with Samsung NX camera in mind, but will work for other cameras with shorter than 25.5mm flange focal distance.

The adapter consists of two parts to make a lens installation more convenient.

Deep recession is necessary to reach infinity focus.

Using a focusing helicoid instead of the lens native tiny focus ring makes focusing process more convenient, though you will not see the distance scale.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
