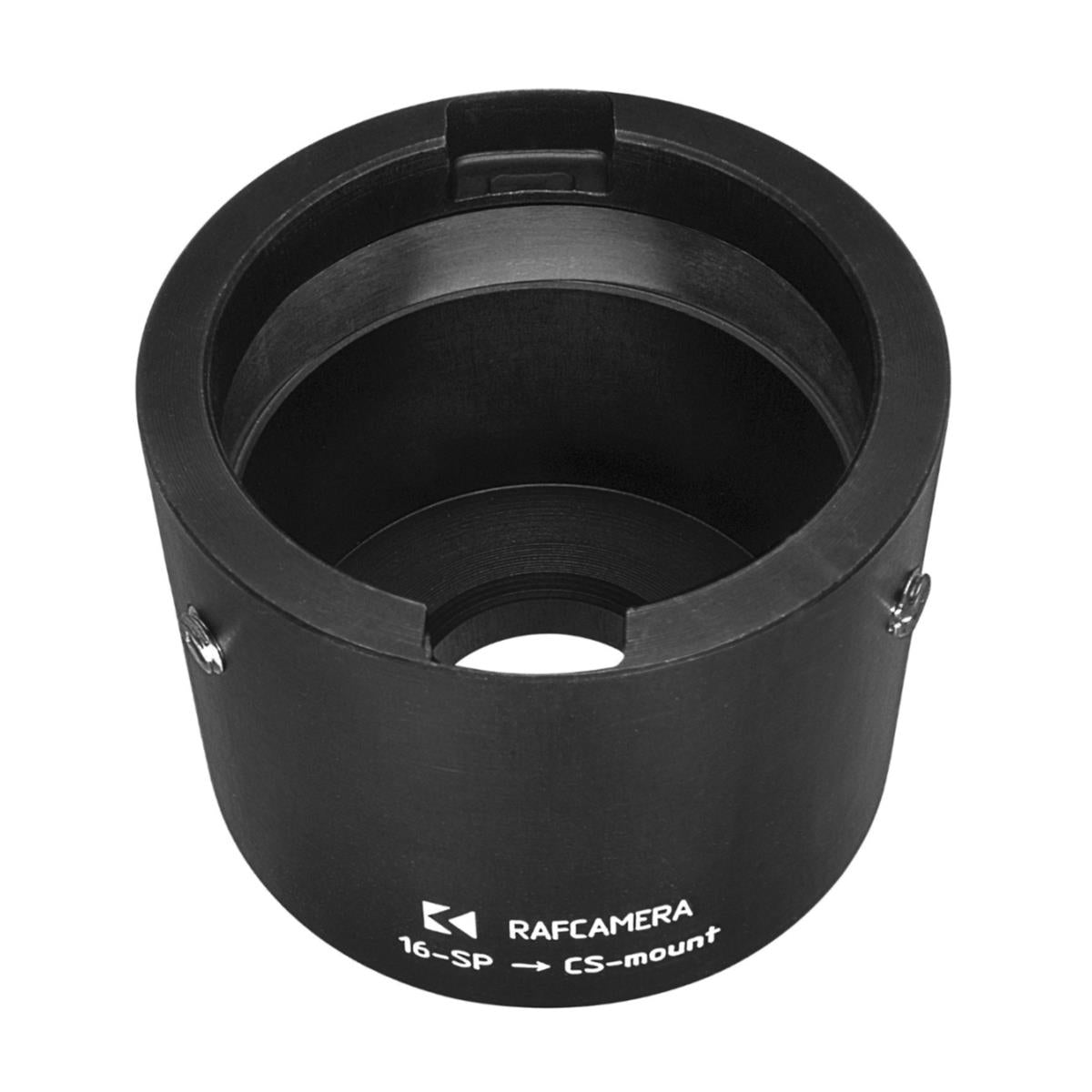

Krasnogorsk-2 (and 16-SP) lens to CS-mount adapter

Skip to product information
1 of 3

Regular price €54,00 EUR
Regular price Sale price €54,00 EUR
Sale Sold out

SKU#:SKU: SKU#:808222729217


This adapter can be installed on many cameras with CS-mount. Be careful - CS-mount is NOT C-mount. The thread is same, but flange focal distnce is 5mm shorter, so the adapter is 5mm longer. You can mount this adapter to a C-mount camera, but you will NOT reach infinity focus there.
View full details

  • Details
  • More Information
  • Questions

This adapter can be installed on many cameras with CS-mount. Be careful - CS-mount is NOT C-mount. The thread is same, but flange focal distnce is 5mm shorter, so the adapter is 5mm longer. You can mount this adapter to a C-mount camera, but you will NOT reach infinity focus there.

The only difference between K-2 and 16-SP mounts is wider bayonet lugs on 16-SP. This is our universal adapter that will fit both types of lenses.

Lenses compatibility:

  • Vega-9 2.1/50mm - yes, infinity focus
  • Vega-7 2/20mm - yes, infinity focus
  • Mir-11/11M 2/12.5mm - yes, infinity focus
  • OKC-2-15-1 - yes, infinity focus



Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details

This adapter can be installed on many cameras with CS-mount. Be careful - CS-mount is NOT C-mount. The thread is same, but flange focal distnce is 5mm shorter, so the adapter is 5mm longer. You can mount this adapter to a C-mount camera, but you will NOT reach infinity focus there.

The only difference between K-2 and 16-SP mounts is wider bayonet lugs on 16-SP. This is our universal adapter that will fit both types of lenses.

Lenses compatibility:

  • Vega-9 2.1/50mm - yes, infinity focus
  • Vega-7 2/20mm - yes, infinity focus
  • Mir-11/11M 2/12.5mm - yes, infinity focus
  • OKC-2-15-1 - yes, infinity focus



More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
