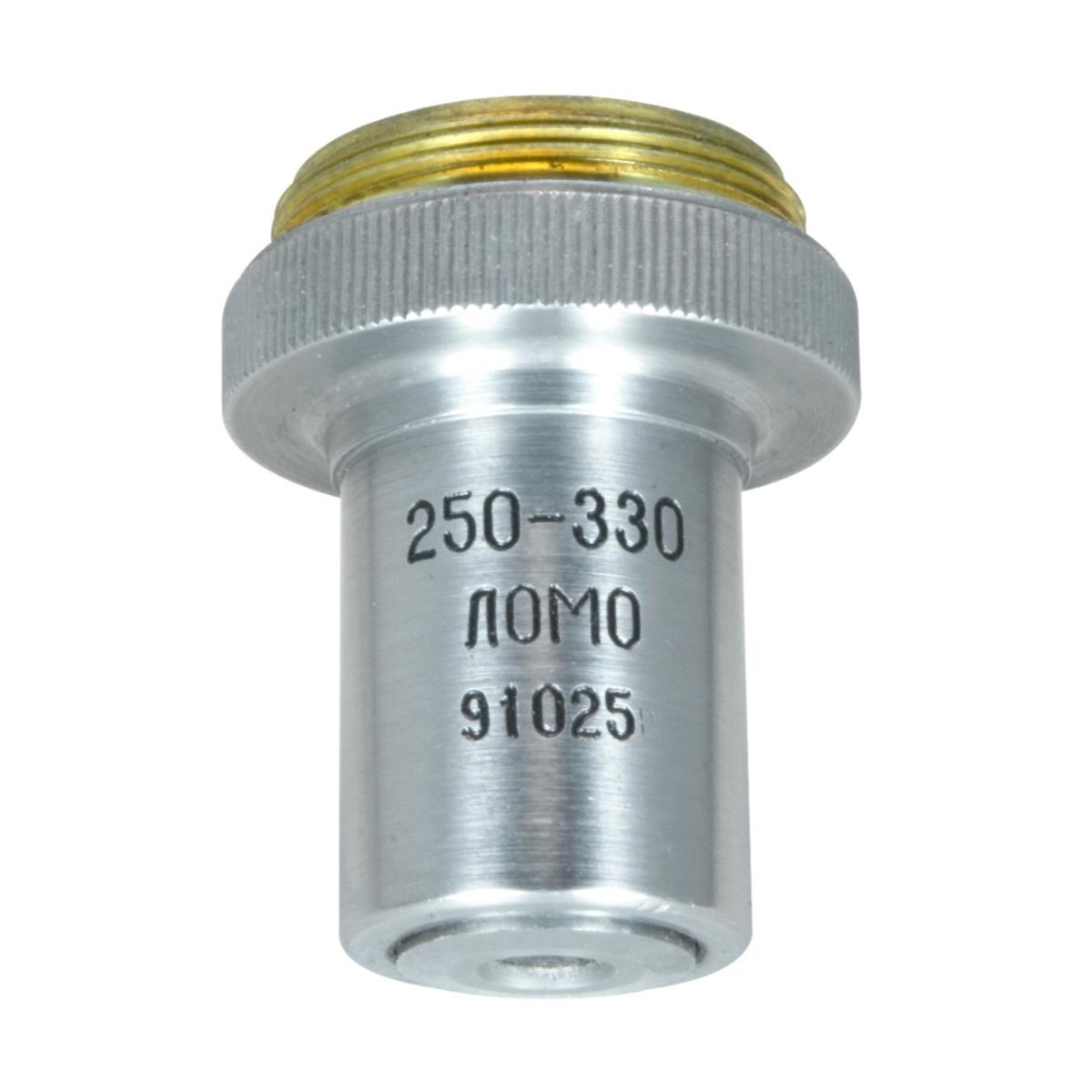

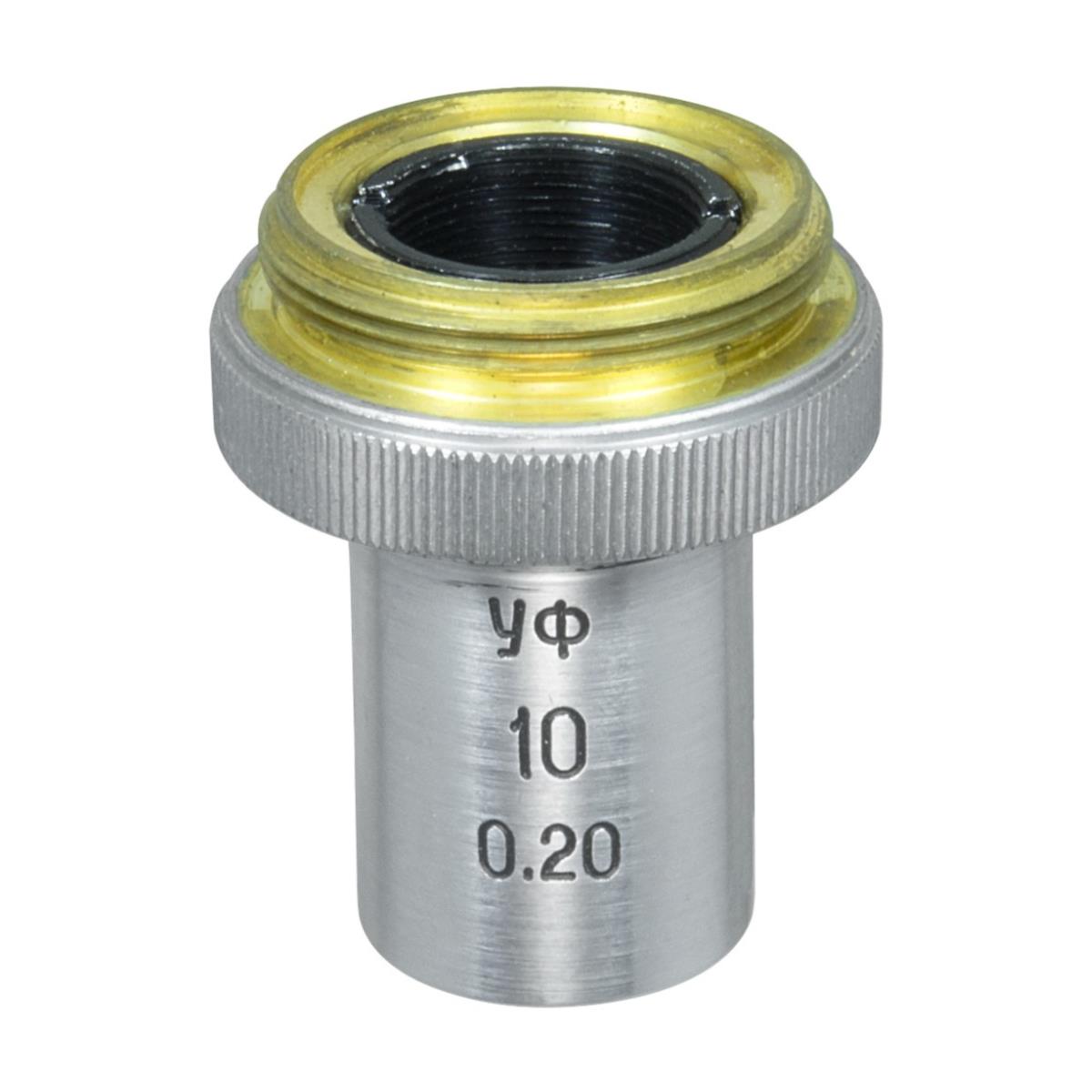

LOMO Microscope Objective - 10x0.20, Ultraviolet

Skip to product information
1 of 2

Regular price €234,00 EUR
Regular price Sale price €234,00 EUR
Sale Sold out

SKU#:SKU: SKU#:808222499066


Excellent used condition. Glass is clean and clear. RMS tread mount.
View full details

  • Details
  • More Information
  • Questions

Excellent used condition. Glass is clean and clear. RMS tread mount.

  • Objective code: OK-10-3
  • Mount: 0.8″-36 (RMS)
  • Tube length: 160mm
  • Cover glass thickness: 0.17mm
  • Magnification: 10х
  • Numeric aperture: 0.20
  • Focal length: 15.29mm
  • Immersion: Dry
  • Work distance: 6.61mm
  • Parfocal height: 33mm
  • Image size: ?
  • Correction: Achromat
  • Light: Transmitted, bright field
  • Spectrum range: 250-330nm
  • Research method: -
  • Contrast method: -
  • Other features: -

Here are two links to pictures took with such UV lenses by one of our customers from Germany:

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
