Object-micrometer OMO is purposed for reflected light. It serves to determine an objective magnification, microscope linear field of view, scale factor of eyepiece grids and scales, and to determine an image magnification factor on micro photographs.

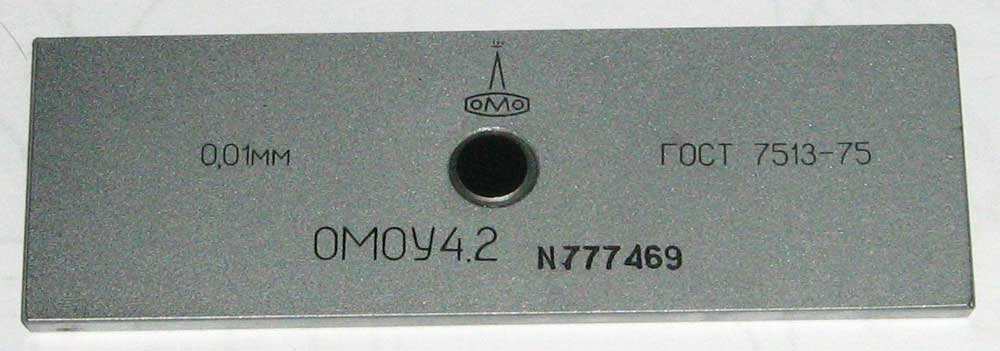

The object micrometer is a chromed glass plate with 1mm long scale having 0.01mm scale factor.

This glass plate with the scale is glued into the steel holder having dimensions of usual microscope slide.

To determine a magnification, it is necessary to compare number of the scale steps in the microscope image of the object-micrometer with number of the scale steps in the eyepiece grid or in the eyepiece-micrometer.

Micro picture factor is determined by measuring distance between scale steps of the pictured object-micrometer.

The scale length - 1mm
Number of the scale steps - 100
Scale factor - 0.01mm
Dimensions:
length - 76mm
width - 26mm
height - 2mm
weight - 0.03kg
