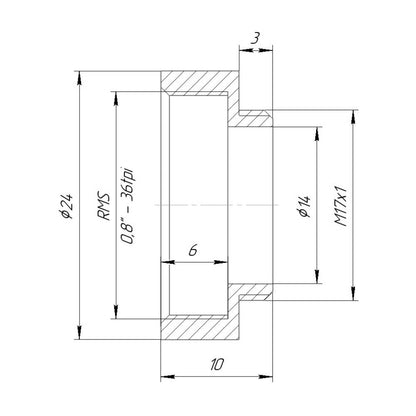

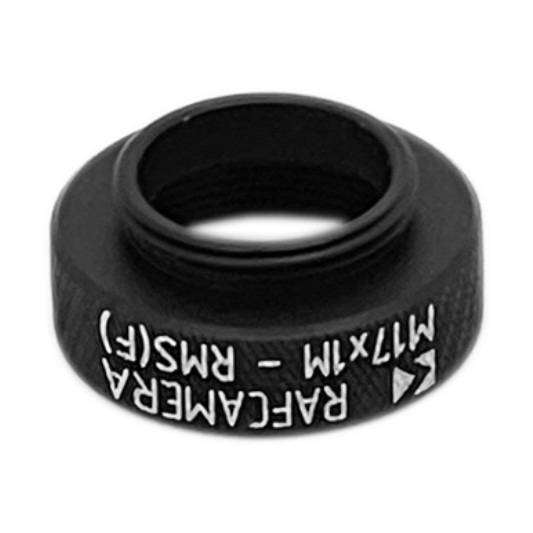

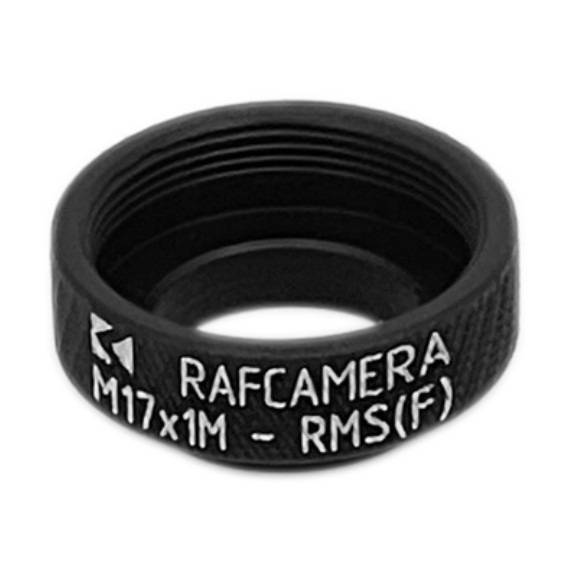

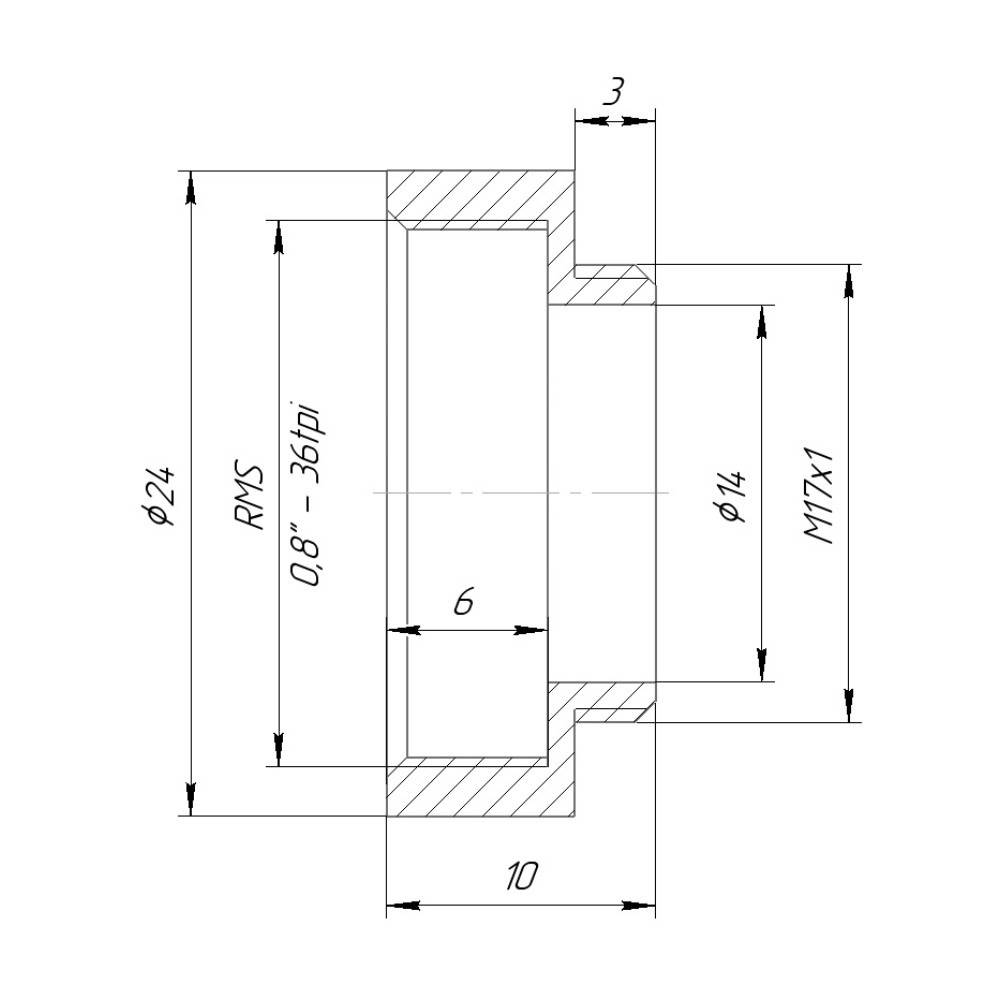

- Front side - RMS female thread (0.8"-36tpi)
- Rear side - M17x1 male thread
Machined from high quality aluminium alloy.
This adapter allows mounting microscope objectives with RMS thread to some phone cages (like a NEEWER phone lens case).
IMPORTANT: M17 thread is different among manufacturers. Some use 0.75mm pitch, others - 1mm pitch. Make sure that your case has a 1mm pitch for this thread; otherwise, the adapter will not fit well.
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
Details
- Front side - RMS female thread (0.8"-36tpi)
- Rear side - M17x1 male thread
Machined from high quality aluminium alloy.
This adapter allows mounting microscope objectives with RMS thread to some phone cages (like a NEEWER phone lens case).
IMPORTANT: M17 thread is different among manufacturers. Some use 0.75mm pitch, others - 1mm pitch. Make sure that your case has a 1mm pitch for this thread; otherwise, the adapter will not fit well.
More Information
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
