M19x0.75 male to RMS female thread adapter, black

1 3
€33,00 EUR
€33,00 EUR
Sale Sold out

SKU#:763461169067
This adapter allows using objectives with RMS/DIN thread on Zeiss Mikroval microscopes with M19x0.75 head.
View full details

  • Details
  • More Information
  • Questions

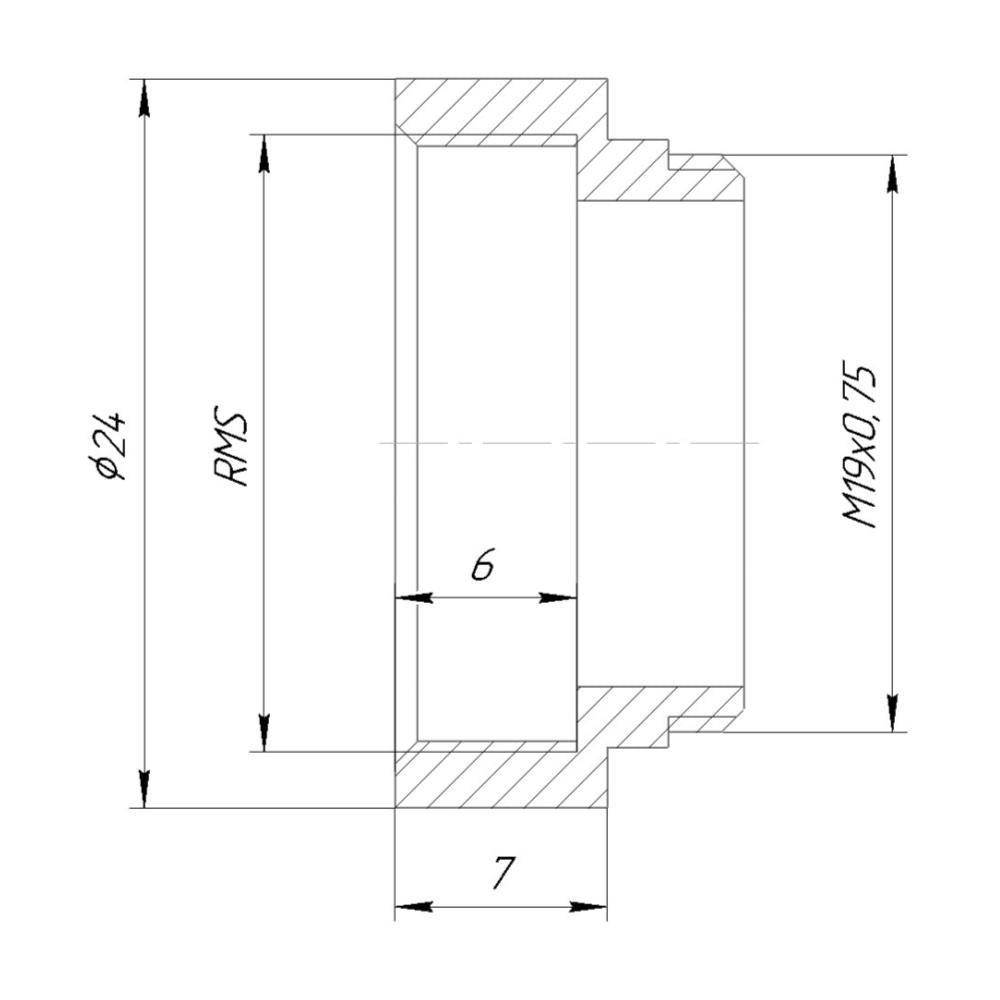

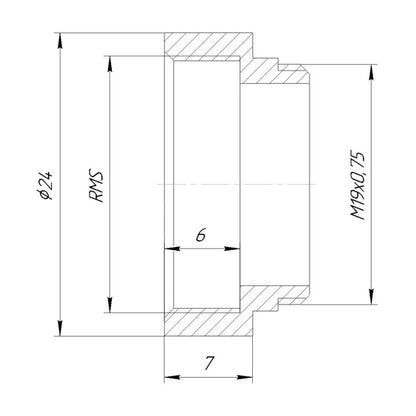

  • Front side - RMS (0.8″-36tpi) female thread
  • Rear side - M19x0.75 male thread
  • Max. diameter - 24 mm
  • Thickness - 7 mm
  • Weight - 4 g

This adapter allows using objectives with RMS/DIN thread on Zeiss Mikroval microscopes with M19x0.75 head.

Made of anodized aluminium.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - RMS (0.8″-36tpi) female thread
  • Rear side - M19x0.75 male thread
  • Max. diameter - 24 mm
  • Thickness - 7 mm
  • Weight - 4 g

This adapter allows using objectives with RMS/DIN thread on Zeiss Mikroval microscopes with M19x0.75 head.

Made of anodized aluminium.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
