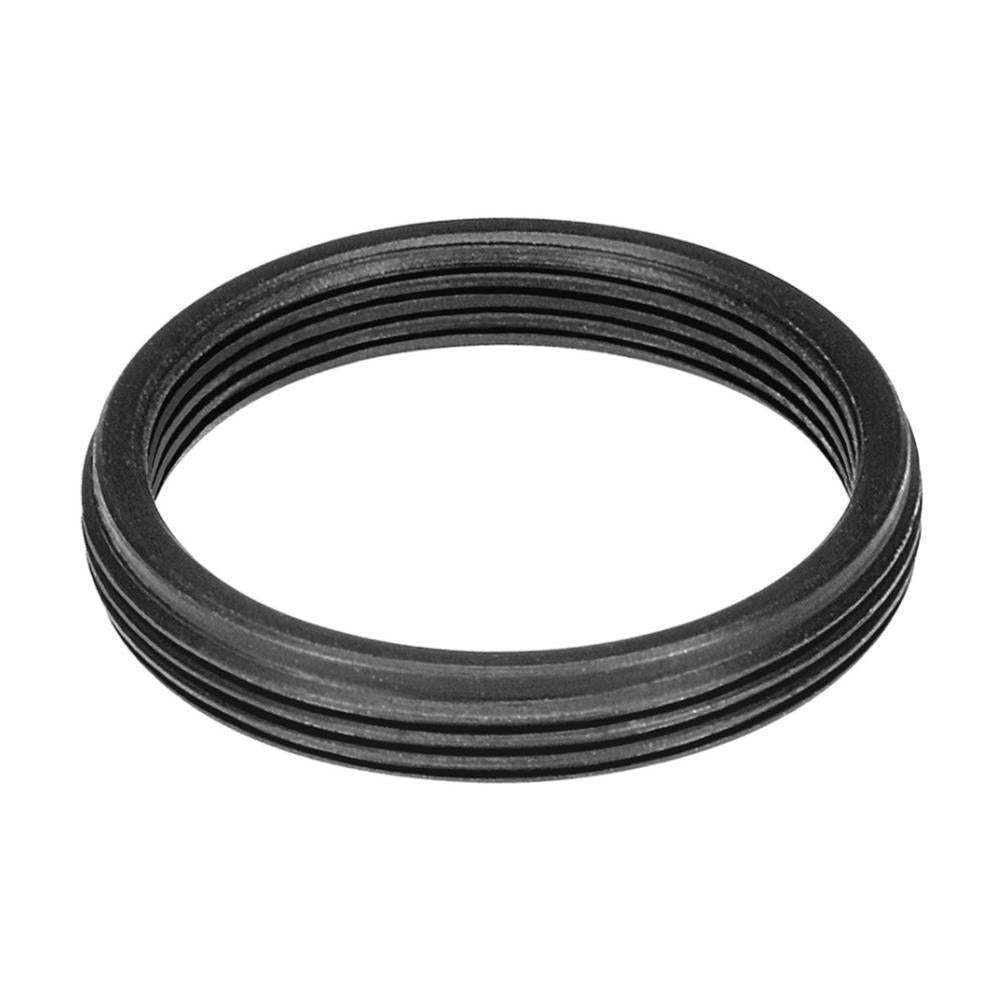

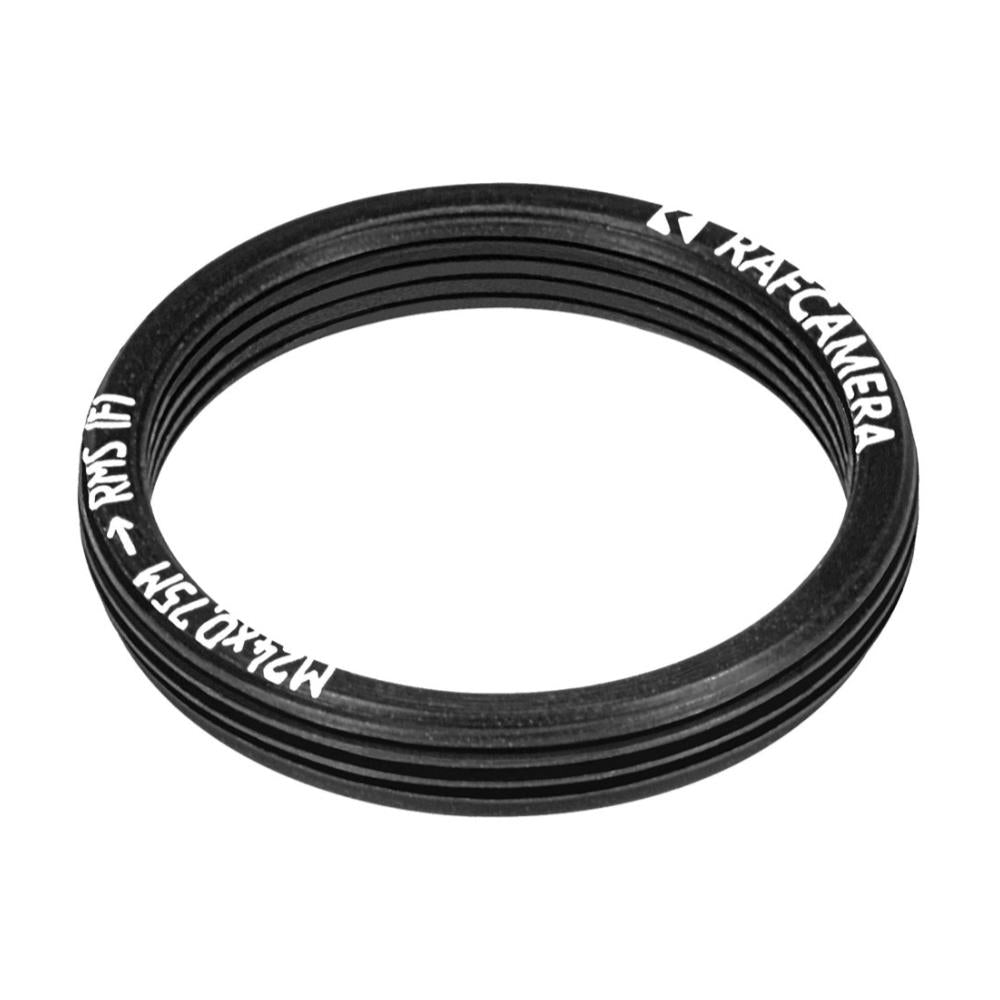

M24x0.75 male to RMS female thread adapter, flangeless, black

1 3
★ ★ ★ ★ ★
41 Reviews
€30,00 EUR
€30,00 EUR
Sale Sold out

SKU#:763461169104
This adapter allows using of easily available microscope objectives with RMS thread (0.8"-36tpi or M20.3x0.7) on microscopes with M24x0.75 thread.
View full details

  • Details
  • More Information
  • Reviews
  • Questions

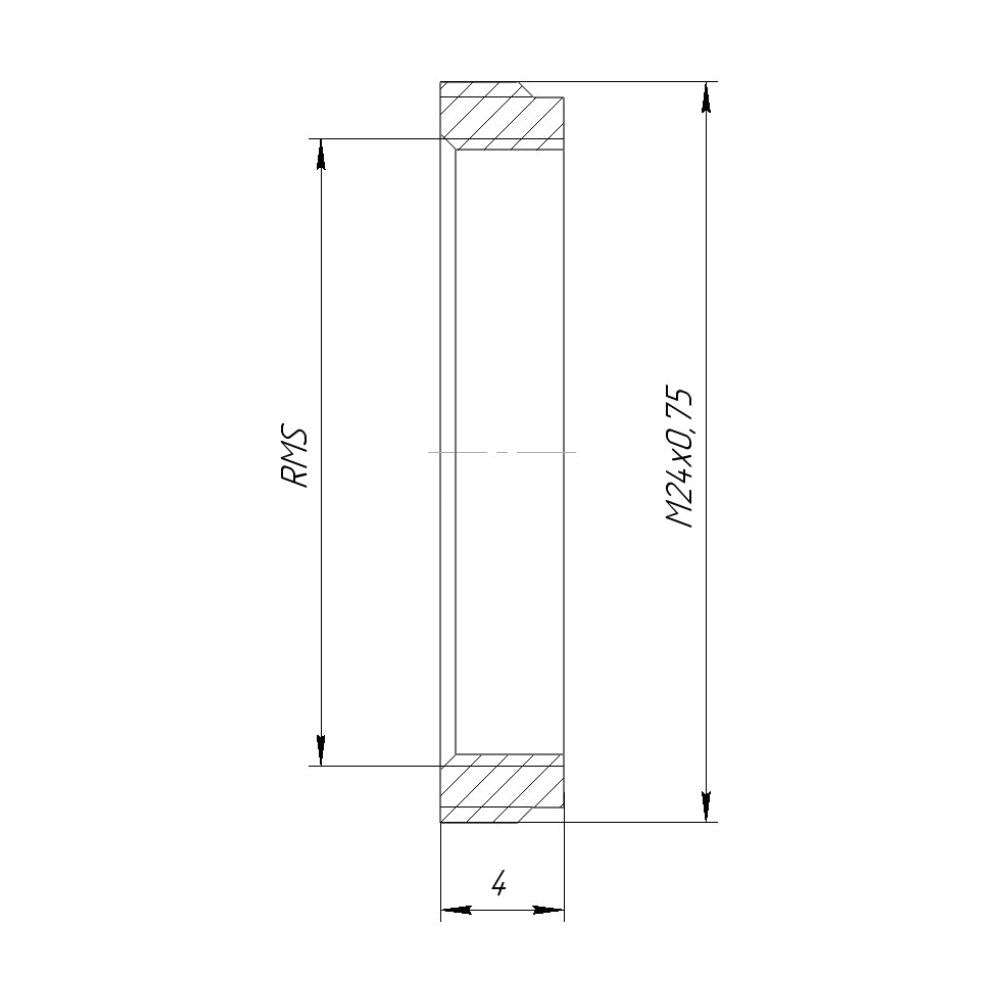

  • Front side - RMS (0.8″-36tpi) female thread
  • Rear side - M24x0.75 male thread
  • Thickness - 4 mm
  • Weight - 1 g
  • Machined of high quality aluminium alloy.

This adapter allows using of easily available microscope objectives with RMS thread (0.8"-36tpi or M20.3x0.7) on microscopes with M24x0.75 thread.

Flangeless design allows preserving original parfocal height of the objective.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - RMS (0.8″-36tpi) female thread
  • Rear side - M24x0.75 male thread
  • Thickness - 4 mm
  • Weight - 1 g
  • Machined of high quality aluminium alloy.

This adapter allows using of easily available microscope objectives with RMS thread (0.8"-36tpi or M20.3x0.7) on microscopes with M24x0.75 thread.

Flangeless design allows preserving original parfocal height of the objective.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
