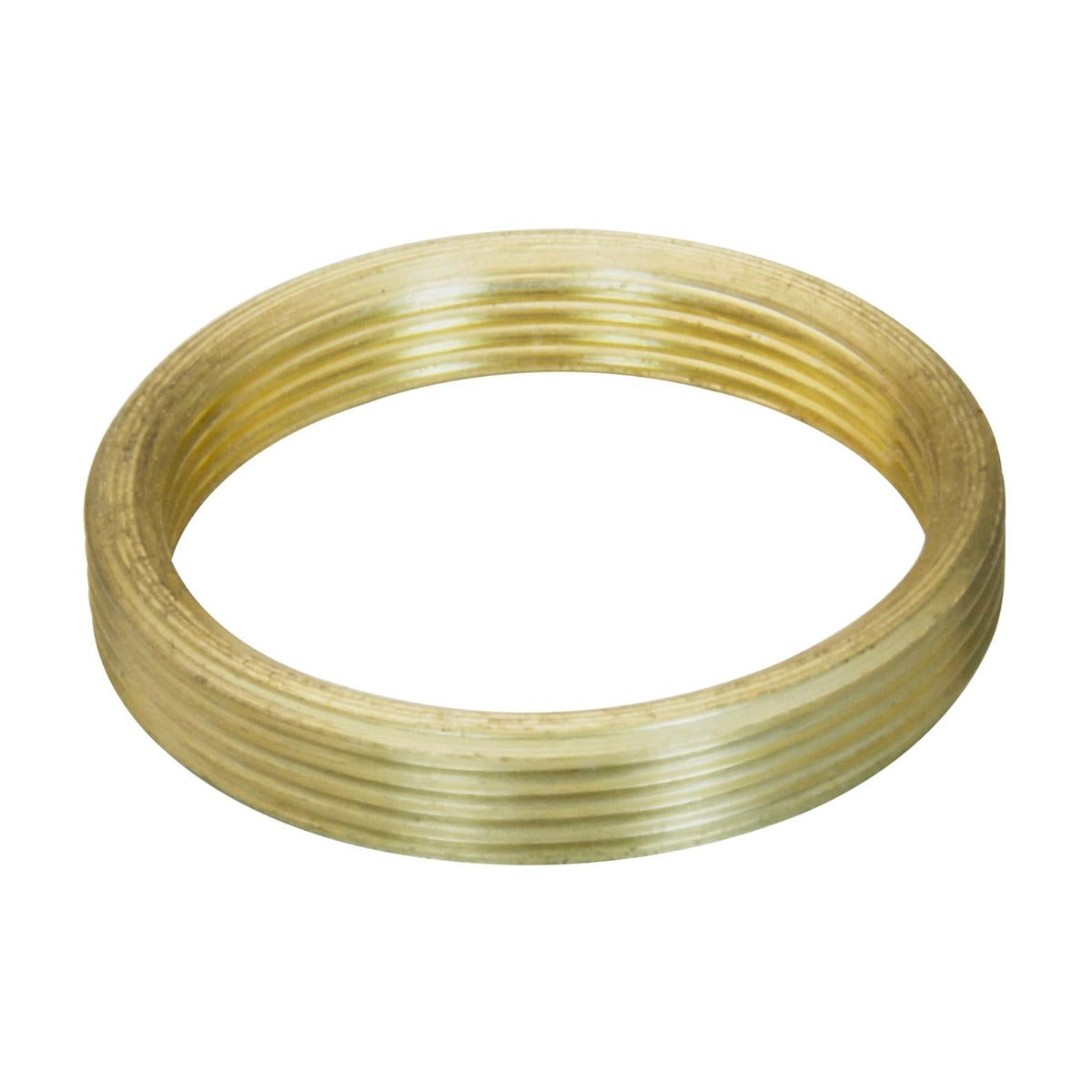

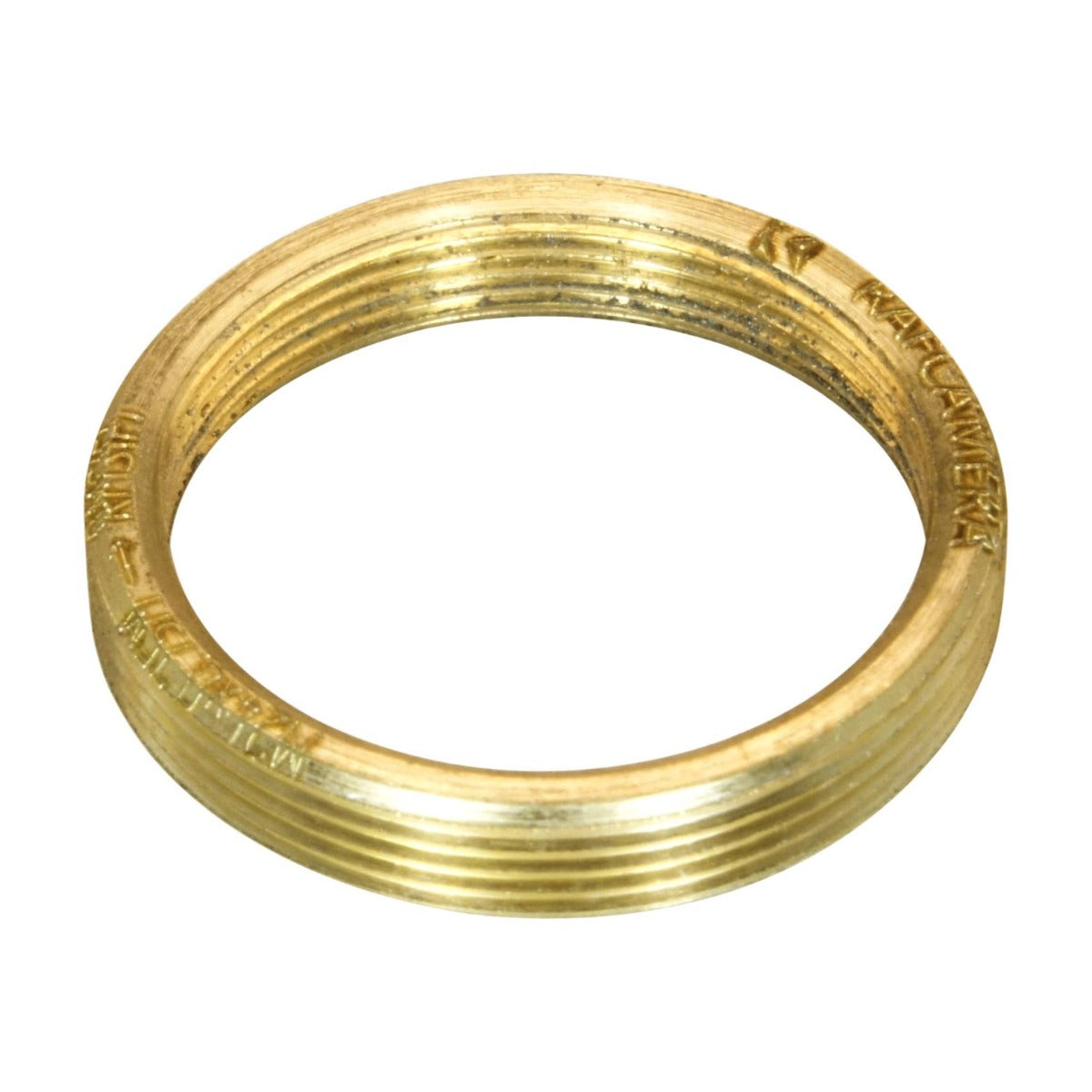

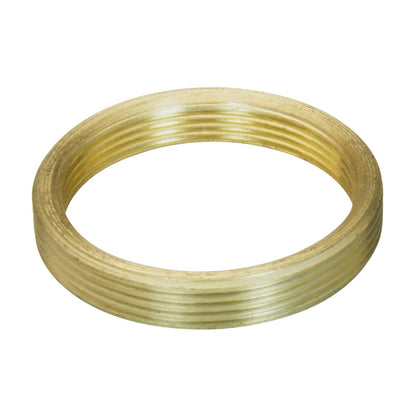

M24x0.75 male to RMS female thread adapter, flangeless, bronze

1 3
€30,00 EUR
€30,00 EUR
Sale Sold out

SKU#:763461169081
This adapter allows using of easily available microscope objectives with RMS thread on microscopes with M24x0.75 thread.
View full details

  • Details
  • More Information
  • Questions

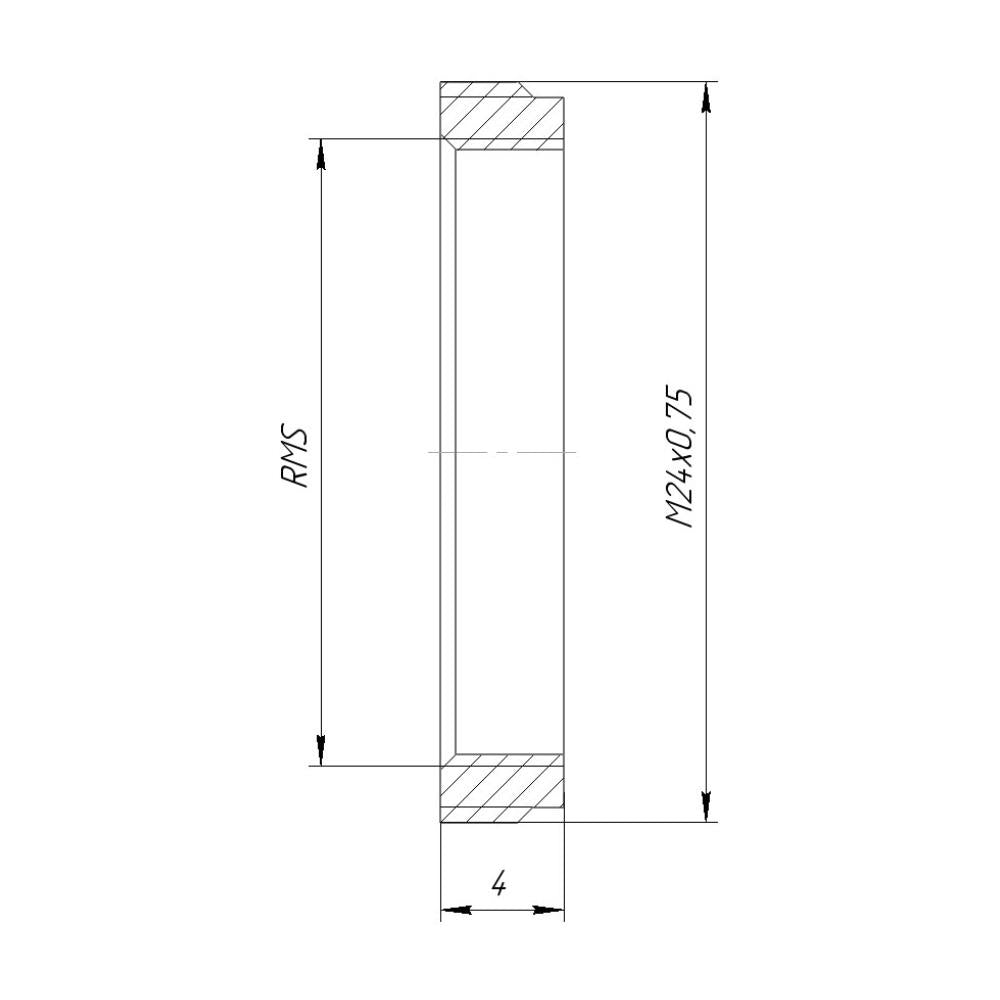

  • Front side - RMS (0.8″-36tpi) female thread
  • Rear side - M24x0.75 male thread
  • Thickness - 4 mm
  • Weight - 4 g

This adapter allows using of easily available microscope objectives with RMS thread on microscopes with M24x0.75 thread.

Flangeless design allows matching of parfocal height with other objectives on the head (if all objectives have same parfocal height originally).

Made of durable bronze.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - RMS (0.8″-36tpi) female thread
  • Rear side - M24x0.75 male thread
  • Thickness - 4 mm
  • Weight - 4 g

This adapter allows using of easily available microscope objectives with RMS thread on microscopes with M24x0.75 thread.

Flangeless design allows matching of parfocal height with other objectives on the head (if all objectives have same parfocal height originally).

Made of durable bronze.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
