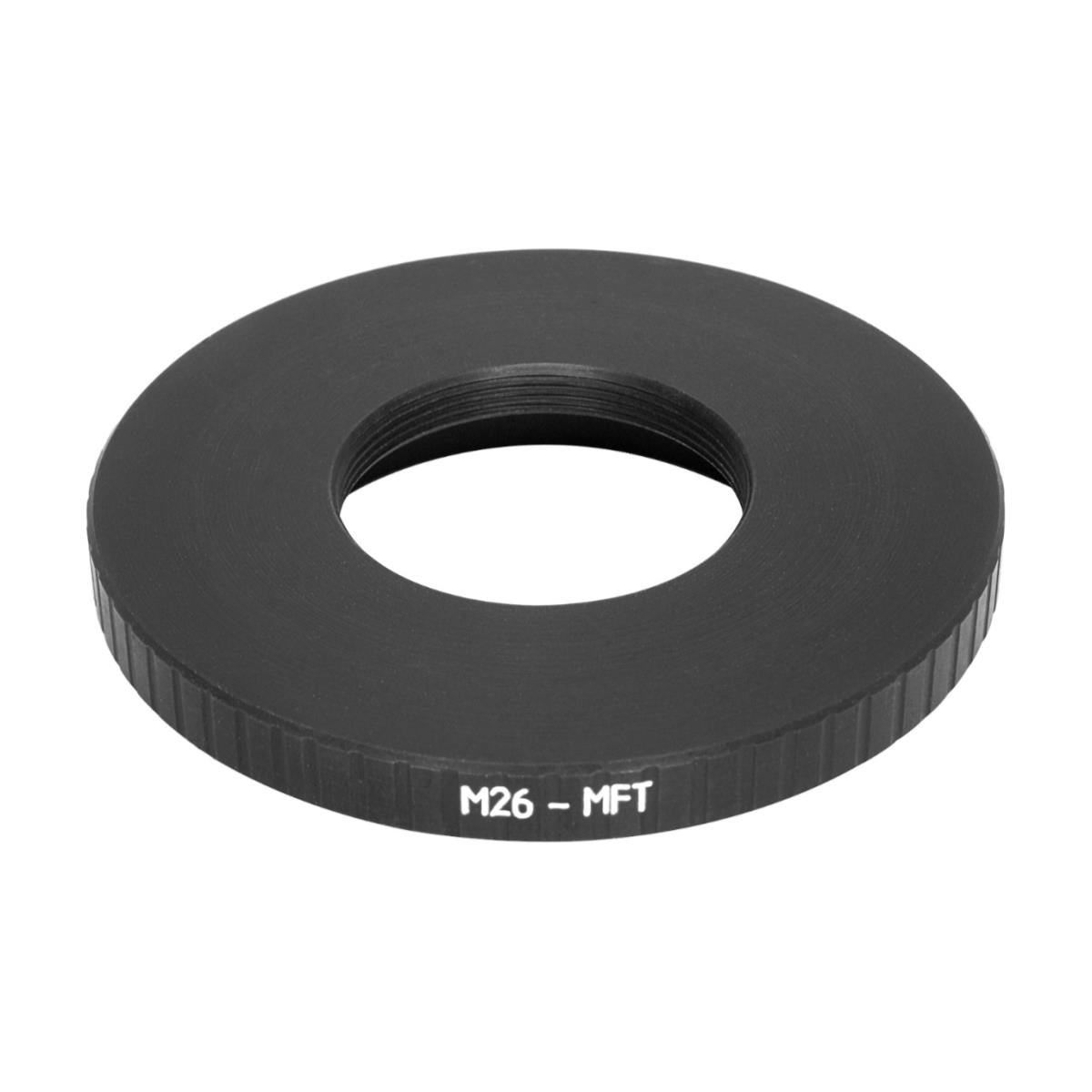

M26x0.7 (36 tpi, Mitutoyo) female thread to MFT (micro 4/3) camera mount adapter
- Details
- More Information
- Questions
- Front side - M26x0.7 (36 tpi) female thread

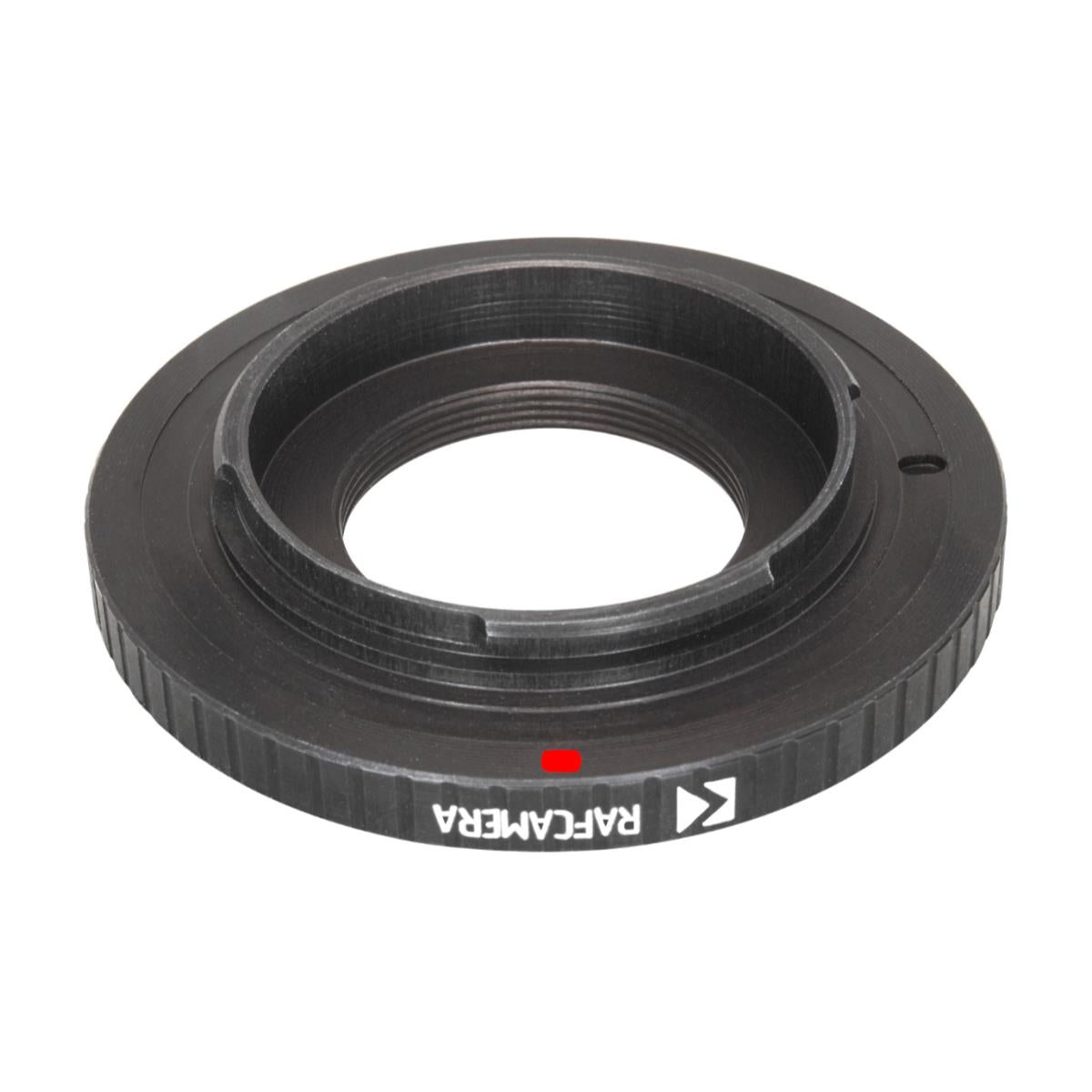

- Rear side - MFT (micro 4/3) mount

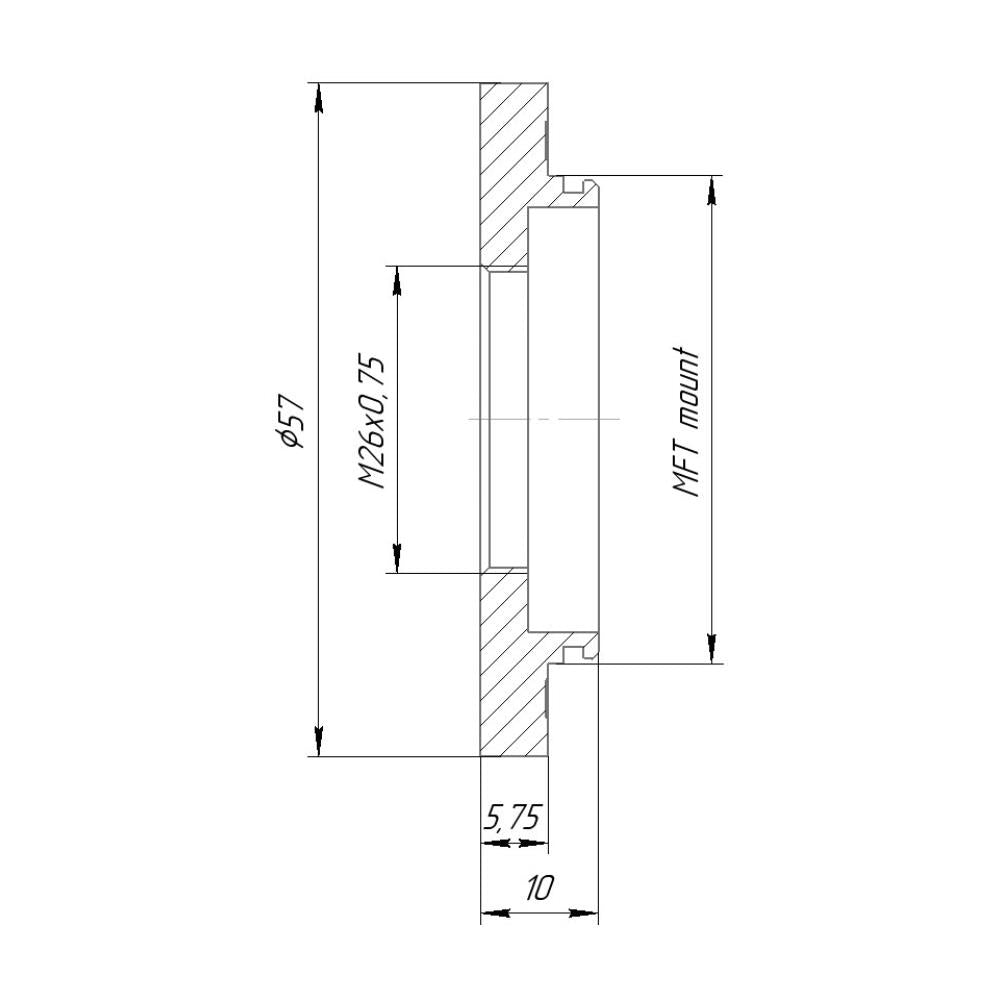

- Max. diameter - 57 mm
- Distance between flanges - 5.75 mm
- Weight - 32 g

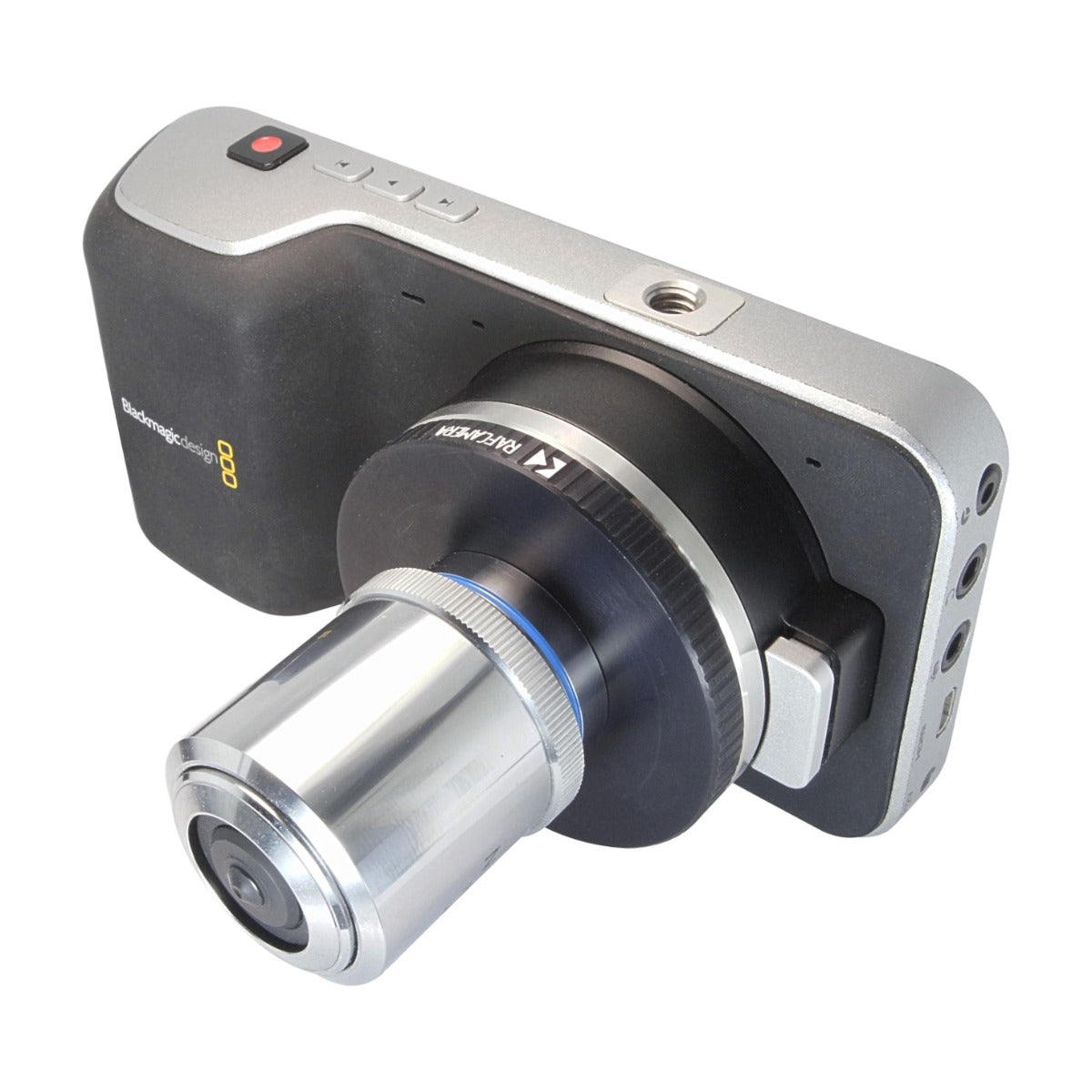

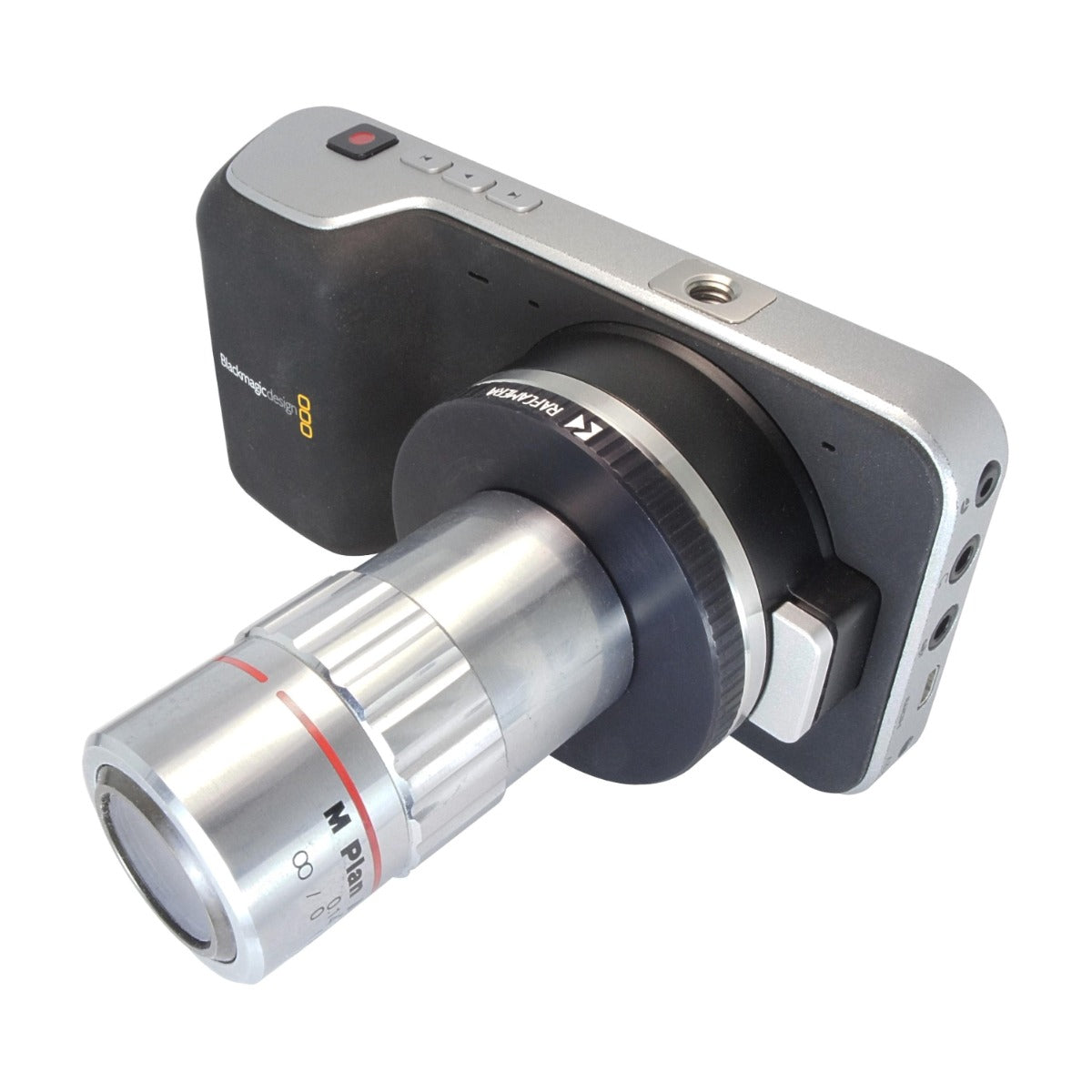

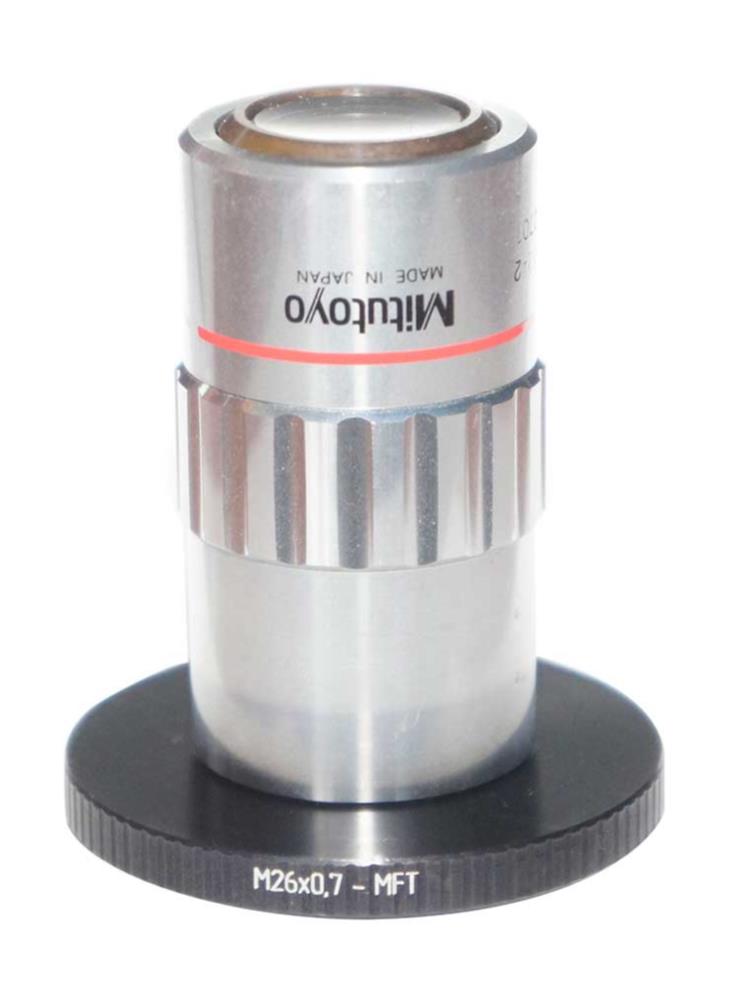

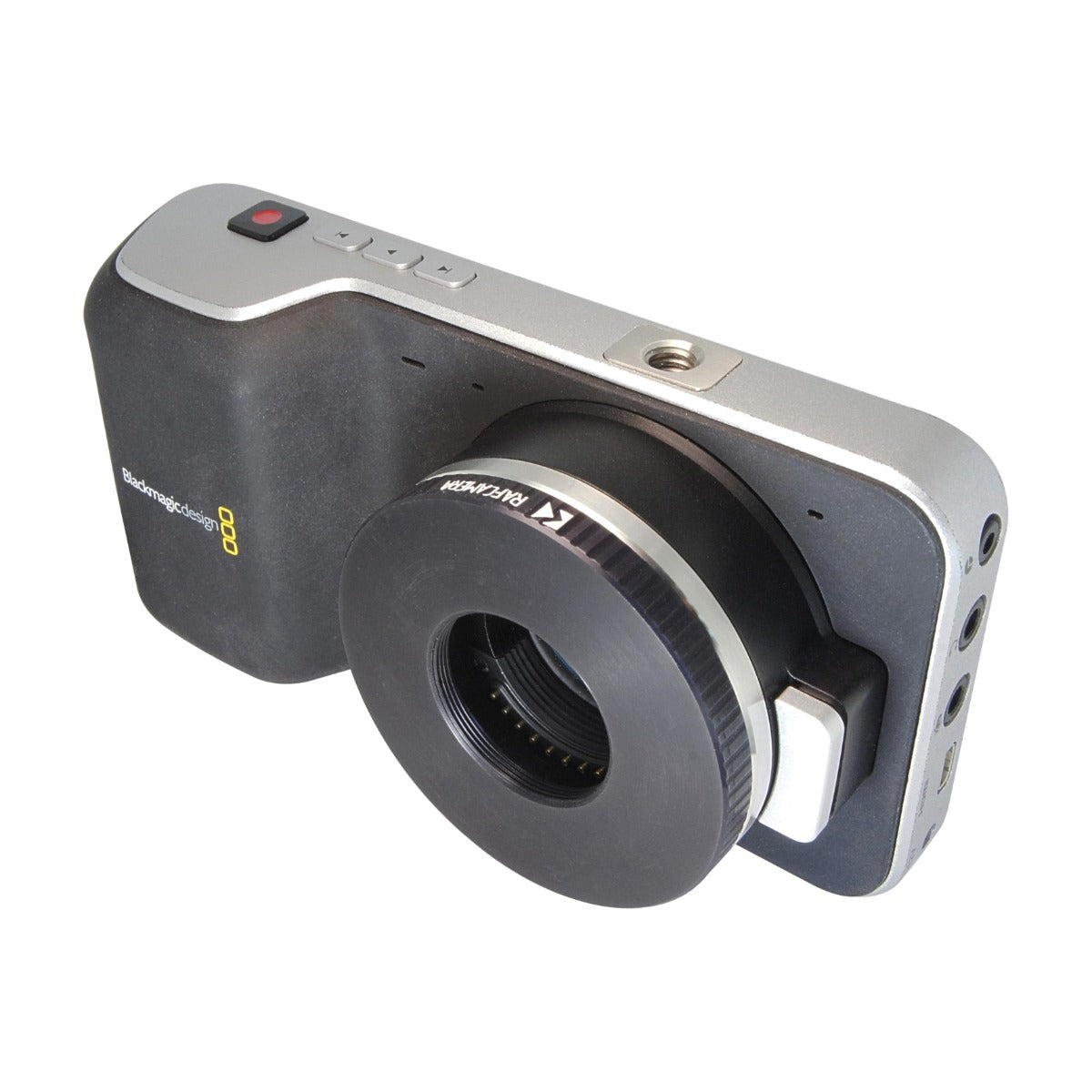

This adapter allows using Mitutoyo microscope objectives with M26x0.7 (36 tpi) mount thread on cameras with MFT (Micro Four Thirds) mount like Panasonic Lumix G1, Black Magic Pocket Cinema Camera etc.
Tolerances are made large enough to fit M26x0.75 thread as well (like Nikon BD objectives).
Made of anodized aluminium.
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
Details
- Front side - M26x0.7 (36 tpi) female thread
- Rear side - MFT (micro 4/3) mount
- Max. diameter - 57 mm
- Distance between flanges - 5.75 mm
- Weight - 32 g
This adapter allows using Mitutoyo microscope objectives with M26x0.7 (36 tpi) mount thread on cameras with MFT (Micro Four Thirds) mount like Panasonic Lumix G1, Black Magic Pocket Cinema Camera etc.
Tolerances are made large enough to fit M26x0.75 thread as well (like Nikon BD objectives).
Made of anodized aluminium.
More Information
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
