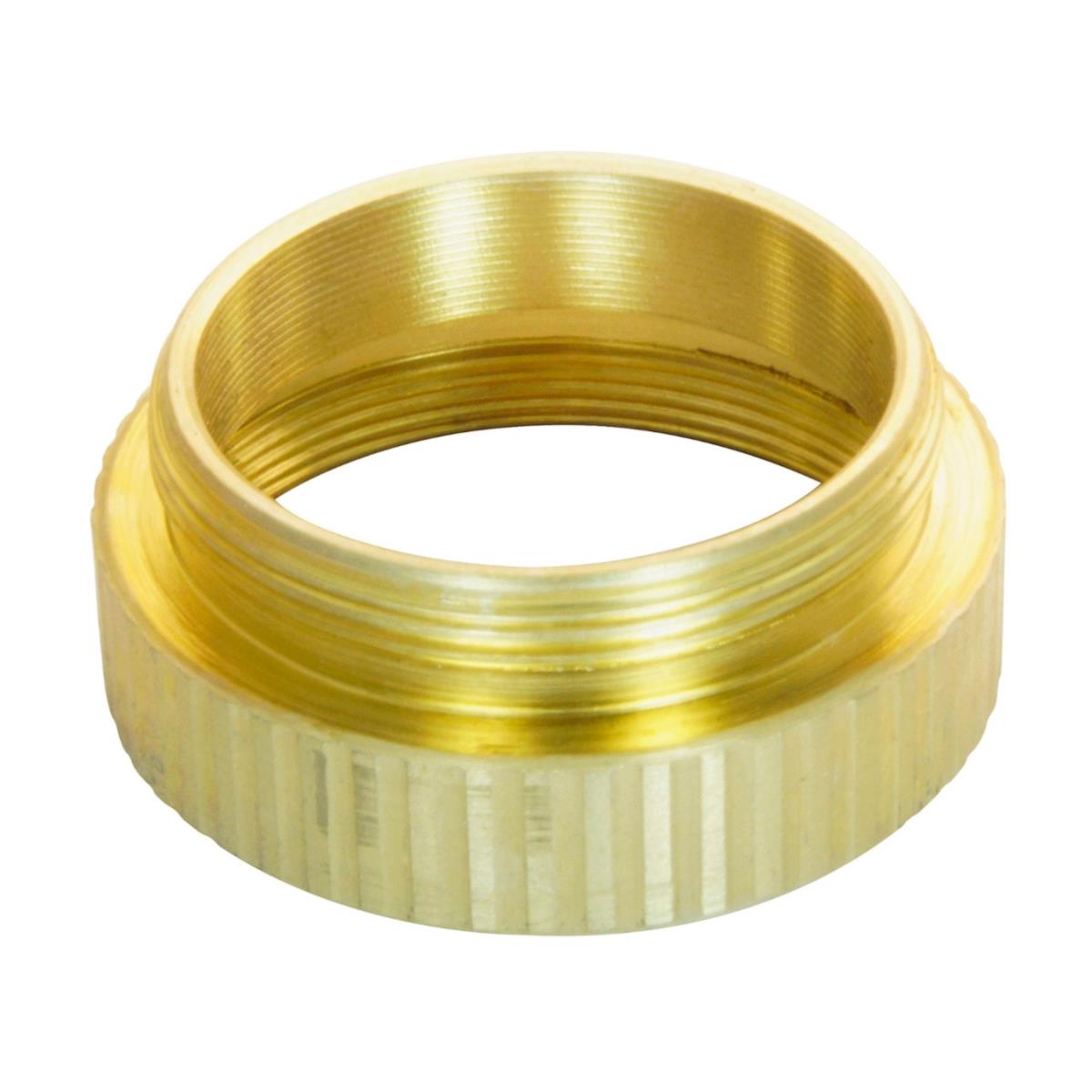

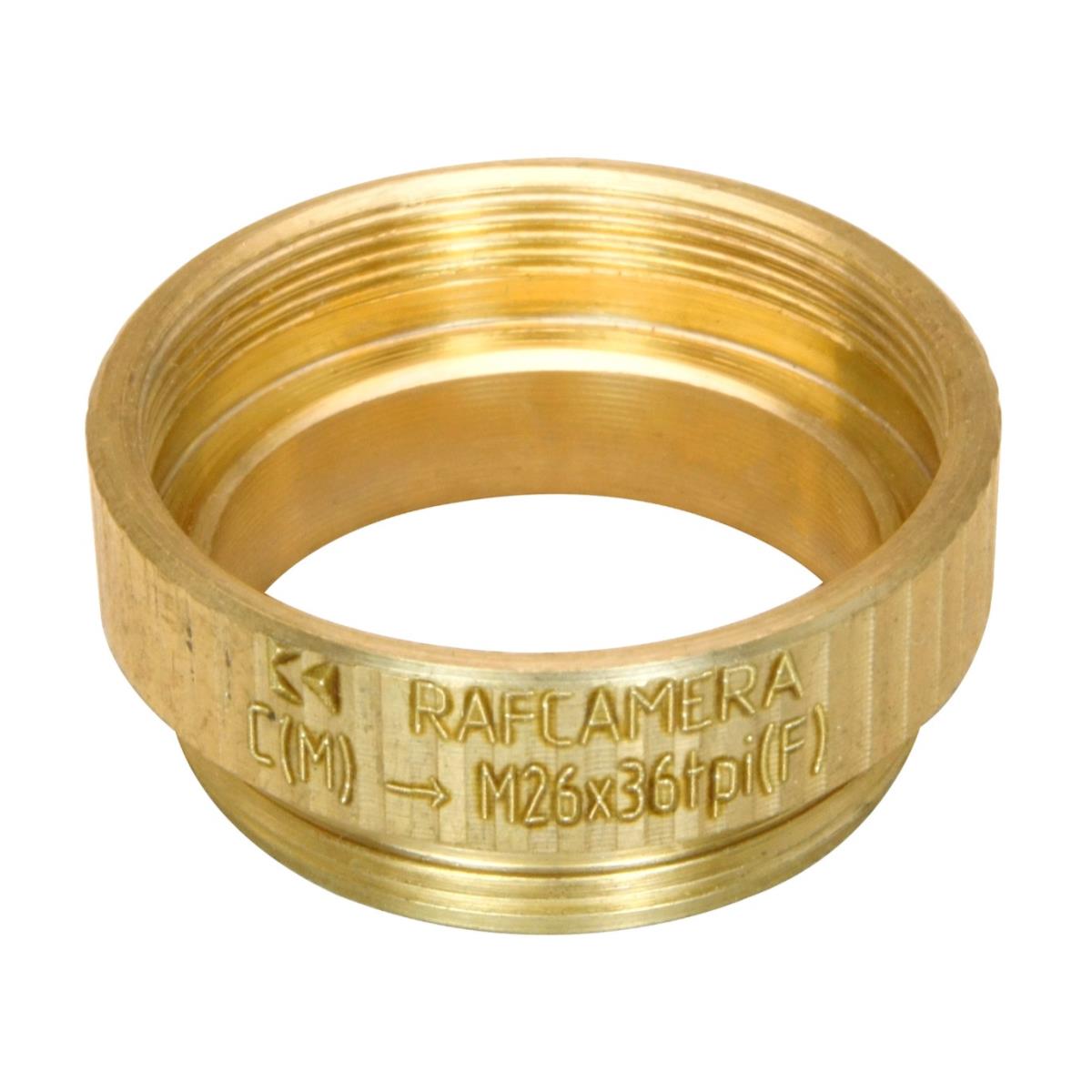

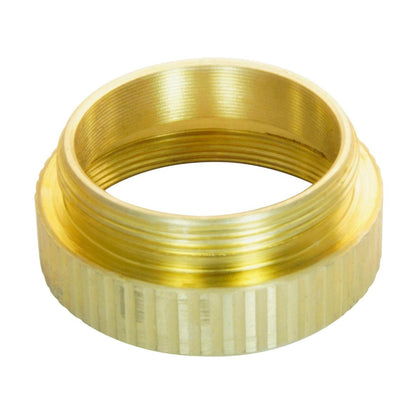

M26x0.7 (36tpi, Mitutoyo) female thread to to C-mount camera, bronze

1 3
€30,00 EUR
€30,00 EUR
Sale Sold out

SKU#:763461169524
This adapter allows using microscope objectives with M26x0.7 thread (such thread is used by Mitutoyo objectives) on cameras with C-mount thread.
View full details

  • Details
  • More Information
  • Questions

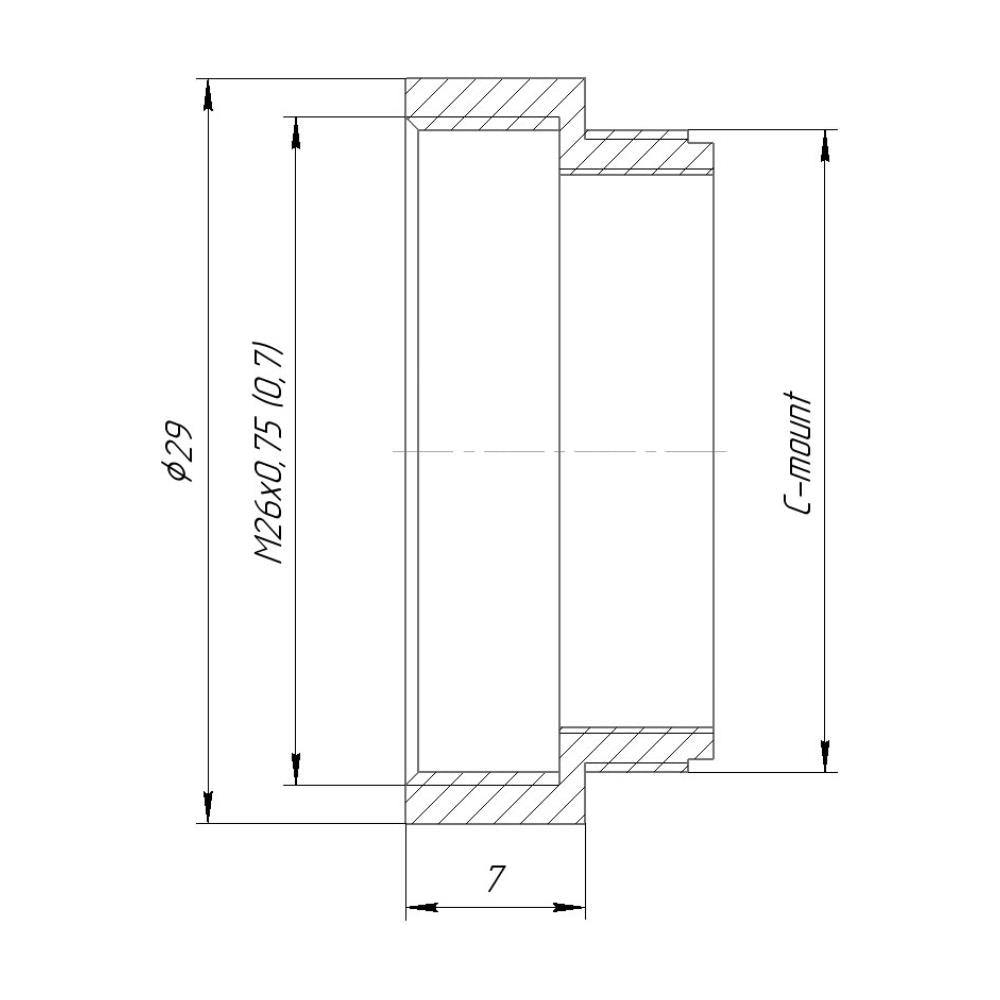

  • Front side - M26x0.7 (36tpi) female thread
  • Rear side - C-mount (1"-32tpi) male thread
  • Thickness - 7 mm
  • Weight - 11 g

This adapter allows using microscope objectives with M26x0.7 thread (such thread is used by Mitutoyo objectives) on cameras with C-mount thread.

Made of durable bronze.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - M26x0.7 (36tpi) female thread
  • Rear side - C-mount (1"-32tpi) male thread
  • Thickness - 7 mm
  • Weight - 11 g

This adapter allows using microscope objectives with M26x0.7 thread (such thread is used by Mitutoyo objectives) on cameras with C-mount thread.

Made of durable bronze.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
