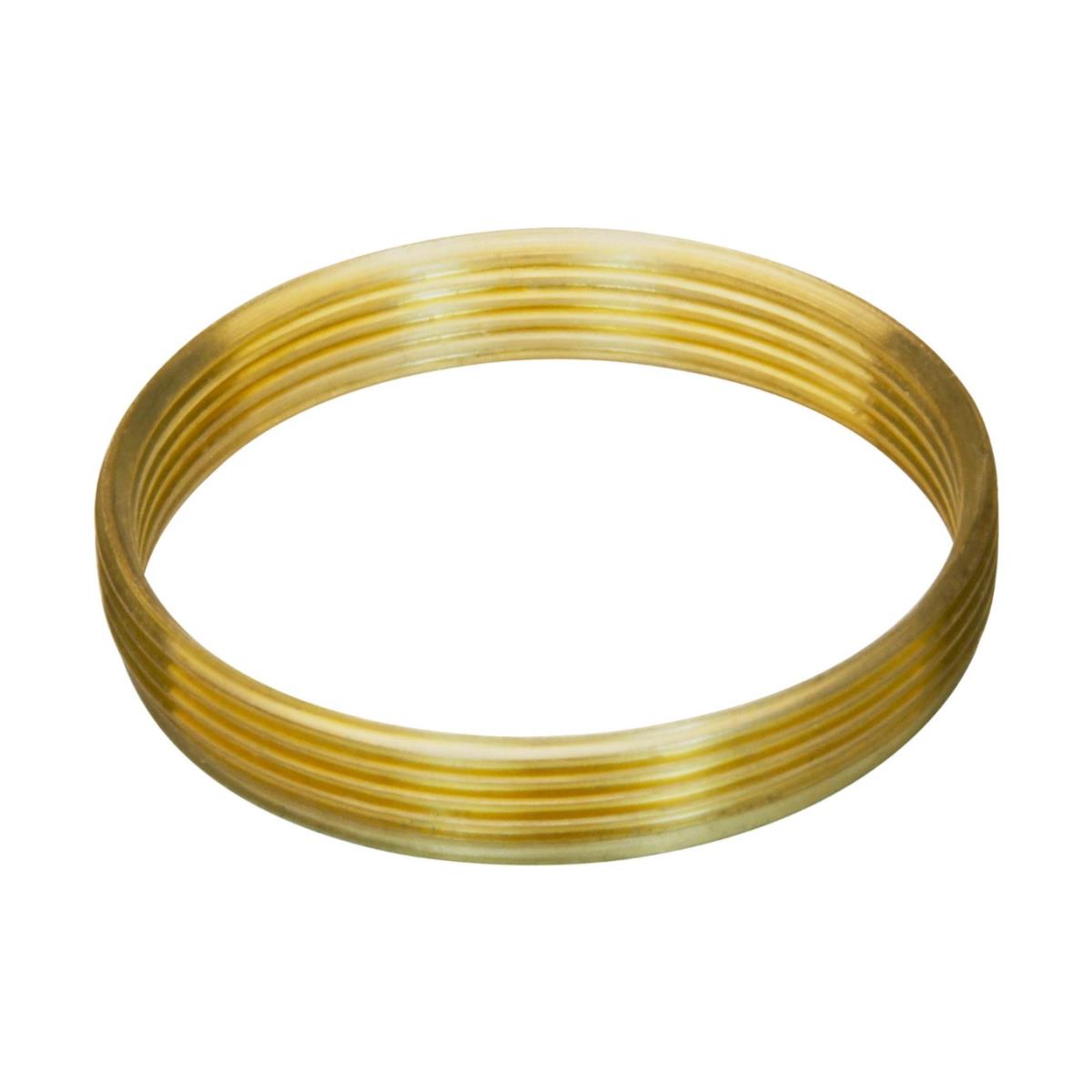

M26x0.75 male to M24x0.75 female thread adapter, flangeless, bronze

1 2
€31,20 EUR
€31,20 EUR
Sale Sold out

SKU#:763461169845
This adapter allows using microscope objectives with M24x0.75 thread on microscopes with M26x0.75 thread.
View full details

  • Details
  • More Information
  • Questions

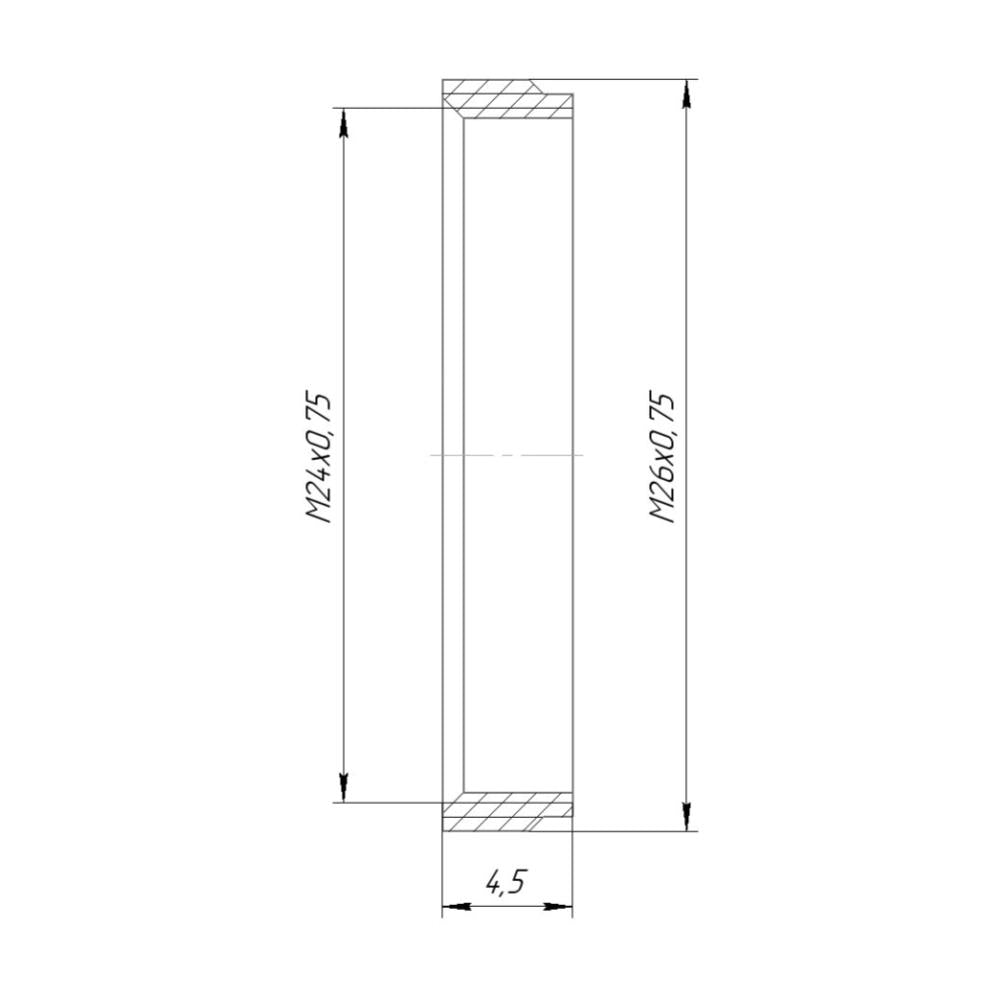

  • Front side - M24x0.75 female thread
  • Rear side - M26x0.75 male thread
  • Thickness - 4.5 mm
  • Weight - 2 g

This adapter allows using microscope objectives with M24x0.75 thread on microscopes with M26x0.75 thread.

Tolerances are large enough to fit Mitutoyo microscopes with M26x36tpi thread.

Shoulder-less design allows preserving original parfocal height.

Made of durable bronze.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - M24x0.75 female thread
  • Rear side - M26x0.75 male thread
  • Thickness - 4.5 mm
  • Weight - 2 g

This adapter allows using microscope objectives with M24x0.75 thread on microscopes with M26x0.75 thread.

Tolerances are large enough to fit Mitutoyo microscopes with M26x36tpi thread.

Shoulder-less design allows preserving original parfocal height.

Made of durable bronze.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
