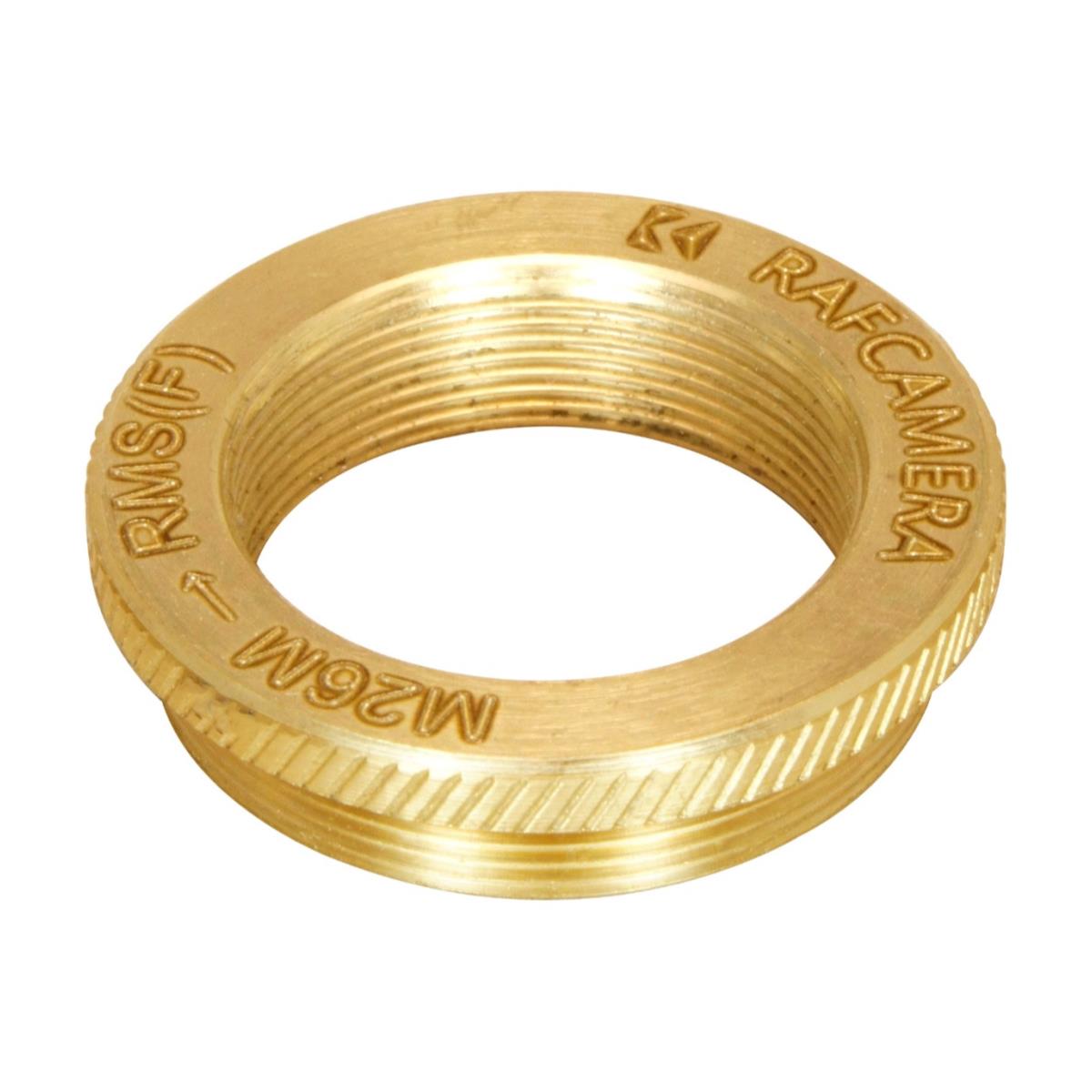

M26x0.75 male to RMS female thread adapter, 3mm, bronze

1 3
€32,40 EUR
€32,40 EUR
Sale Sold out

SKU#:763461169906
This adapter allows using microscope objectives with RMS thread mount on microscopes with M26x0.75 thread mount.
View full details

  • Details
  • More Information
  • Questions
  • Front side - RMS (0.8″-36tpi) female thread
  • Rear side - M26x0.75 male thread
  • Thickness - 3 mm
  • Weight - 15 g

This adapter allows using microscope objectives with RMS thread mount on microscopes with M26x0.75 thread mount.

Tolerances are made large enough to fit Mitutoyo microscopes with M26x36tpi thread as well.

Made of bronze.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - RMS (0.8″-36tpi) female thread
  • Rear side - M26x0.75 male thread
  • Thickness - 3 mm
  • Weight - 15 g

This adapter allows using microscope objectives with RMS thread mount on microscopes with M26x0.75 thread mount.

Tolerances are made large enough to fit Mitutoyo microscopes with M26x36tpi thread as well.

Made of bronze.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
