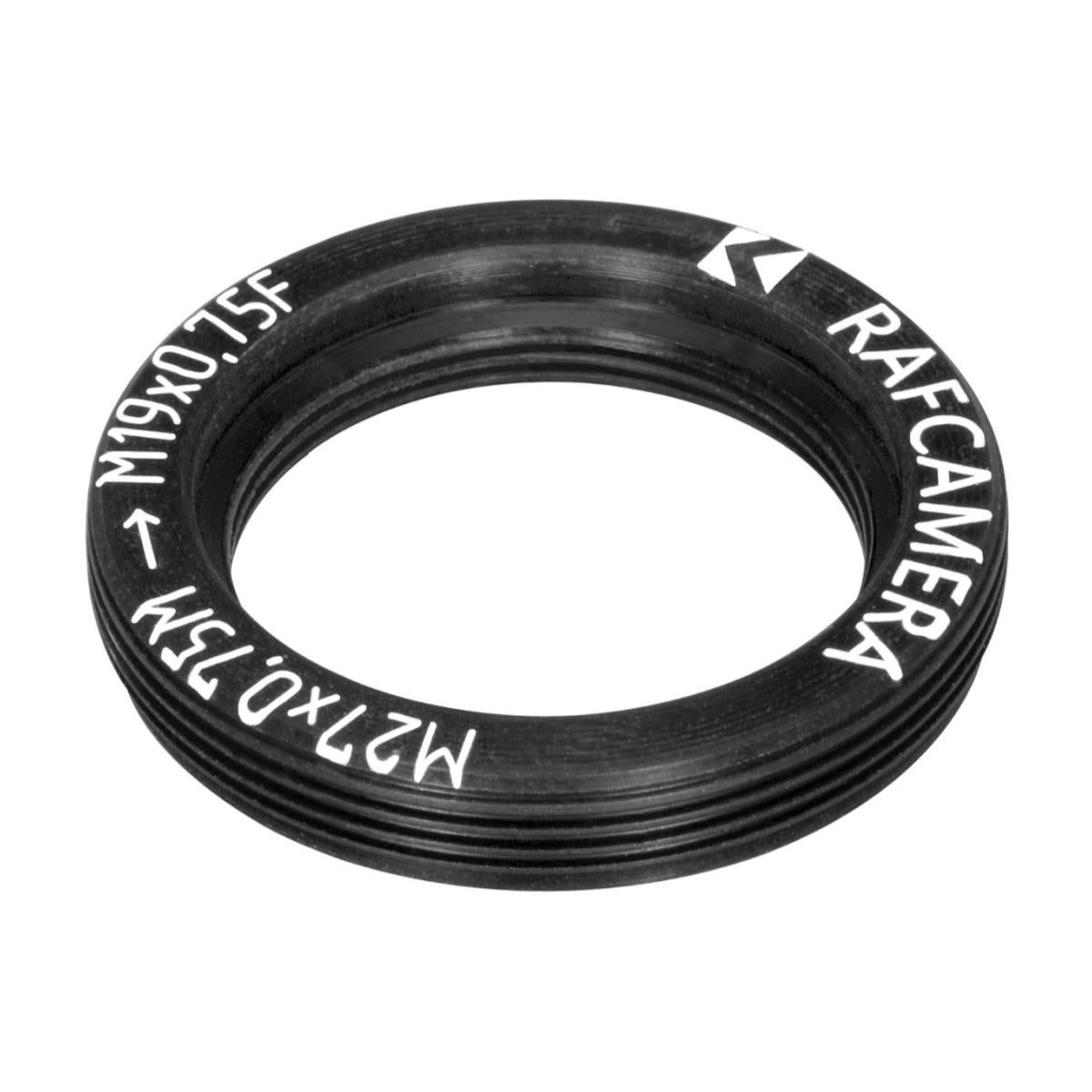

M27x0.75 male to M19x0.75 female thread adapter, flangeless, black

1 2
€30,00 EUR
€30,00 EUR
Sale Sold out

SKU#:763461170056
Flangeless design allows preserving original parfocal height. Be carefull to not drop the adapter into the microscope turret - secure it firmly on the objective first.
View full details

  • Details
  • More Information
  • Questions

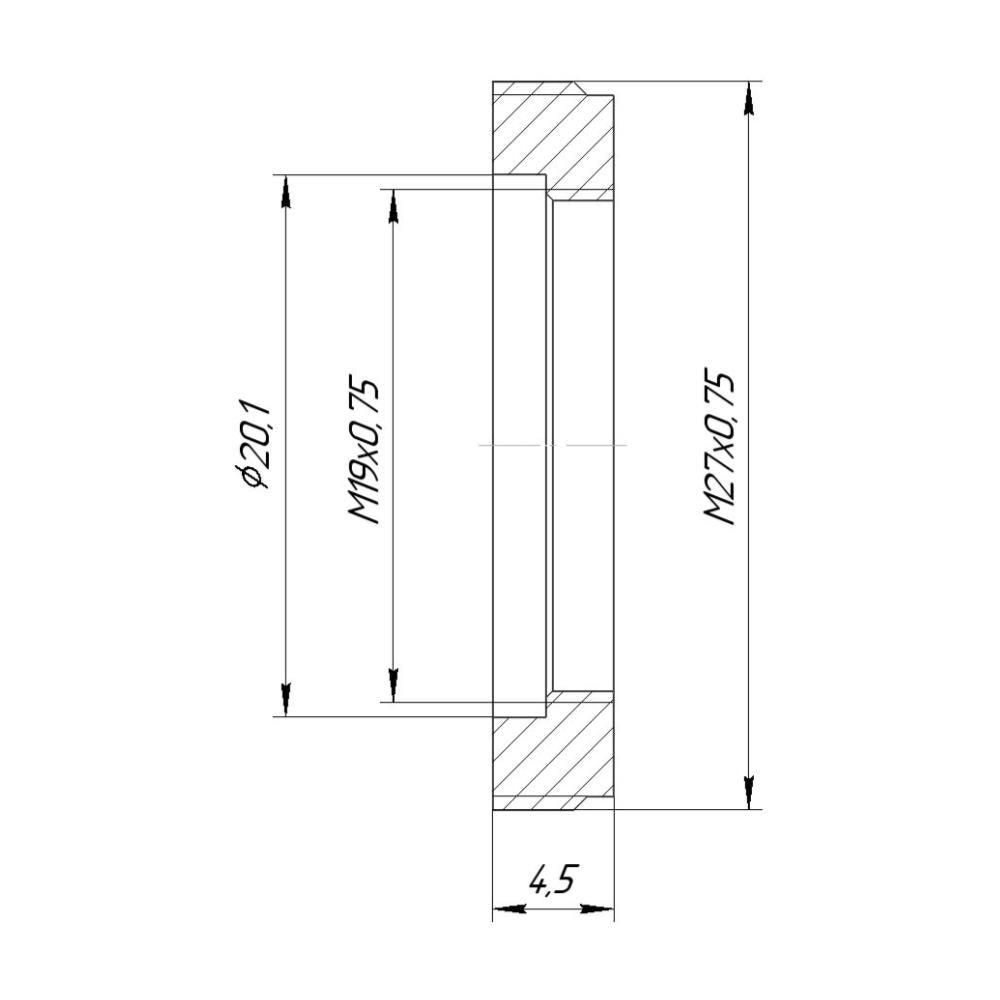

  • Front side - M19x0.75 female thread
  • Rear side - M27x0.75 male thread
  • Thickness - 4.5 mm
  • Weight - 3 g
  • Machined of high quality aluminium alloy

This adapter allows using Zeiss Mikroval microscope objectives with M19x0.75 thread on microscopes with M27x0.75 thread mount.

Flangeless design allows preserving original parfocal height. Be carefull to not drop the adapter into the microscope turret - secure it firmly on the objective first.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
