- Front side - M24x0.75 female thread
- Rear side - M27x0.75 male thread
- Thickness - 3 mm
- Weight - 3 g

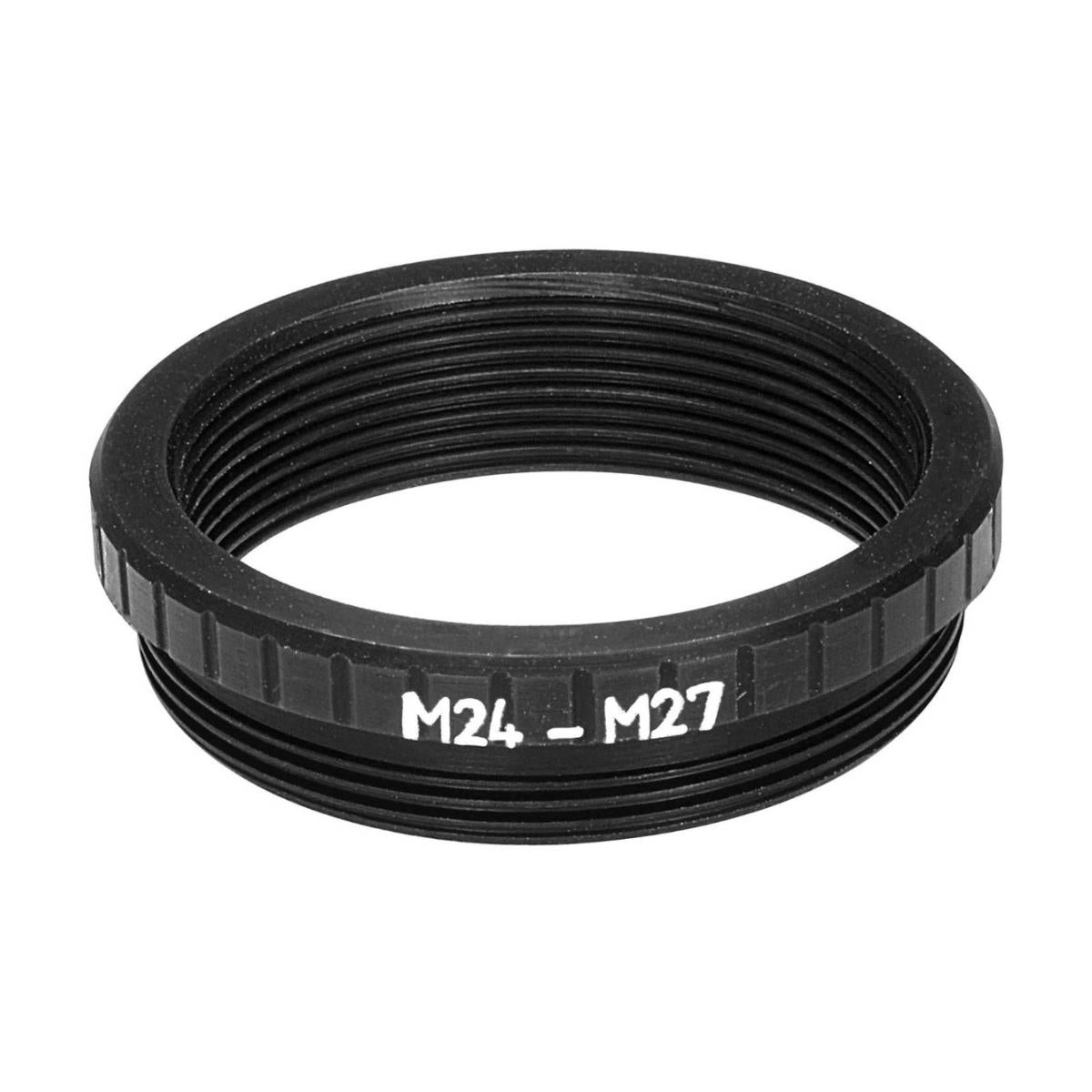

This adapter allows using microscope objectives with M24x0.75 thread on microscopes with M27x0.75 thread.
Made of anodized aluminium.

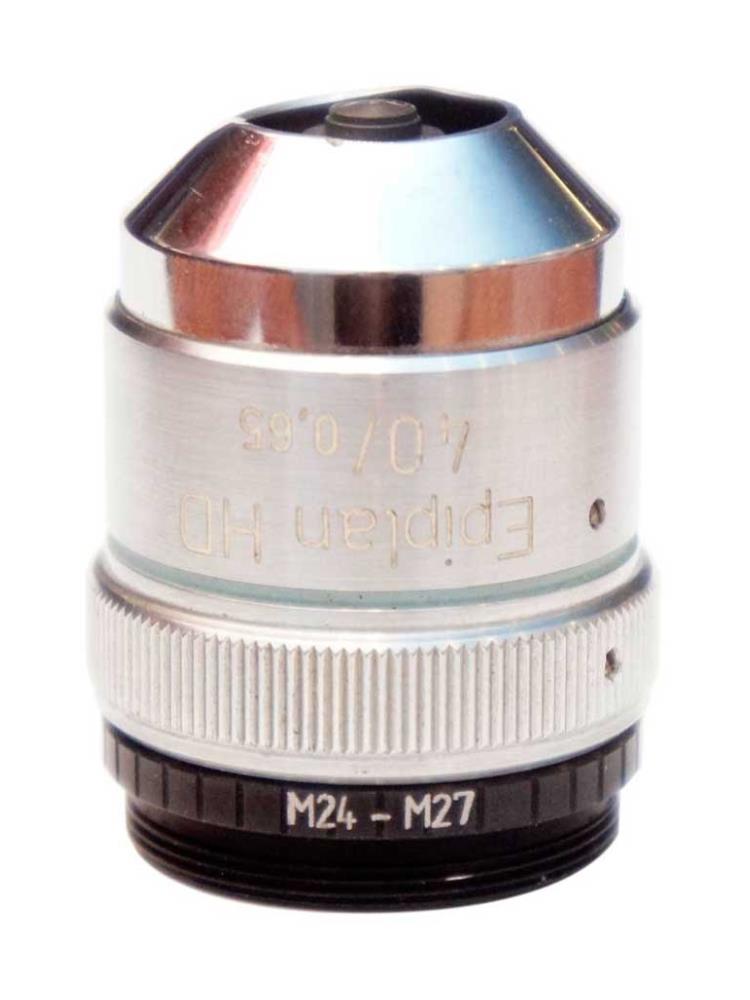

For example, it can be used to facilitate the installation of a Zeiss Epiplan HD objective on the condenser stage of a commercial Leica TCS II SP5 microscope. The low-profile adapter nicely serves this purpose.
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
Details
- Front side - M24x0.75 female thread
- Rear side - M27x0.75 male thread
- Thickness - 3 mm
- Weight - 3 g
This adapter allows using microscope objectives with M24x0.75 thread on microscopes with M27x0.75 thread.
Made of anodized aluminium.
For example, it can be used to facilitate the installation of a Zeiss Epiplan HD objective on the condenser stage of a commercial Leica TCS II SP5 microscope. The low-profile adapter nicely serves this purpose.
More Information
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
