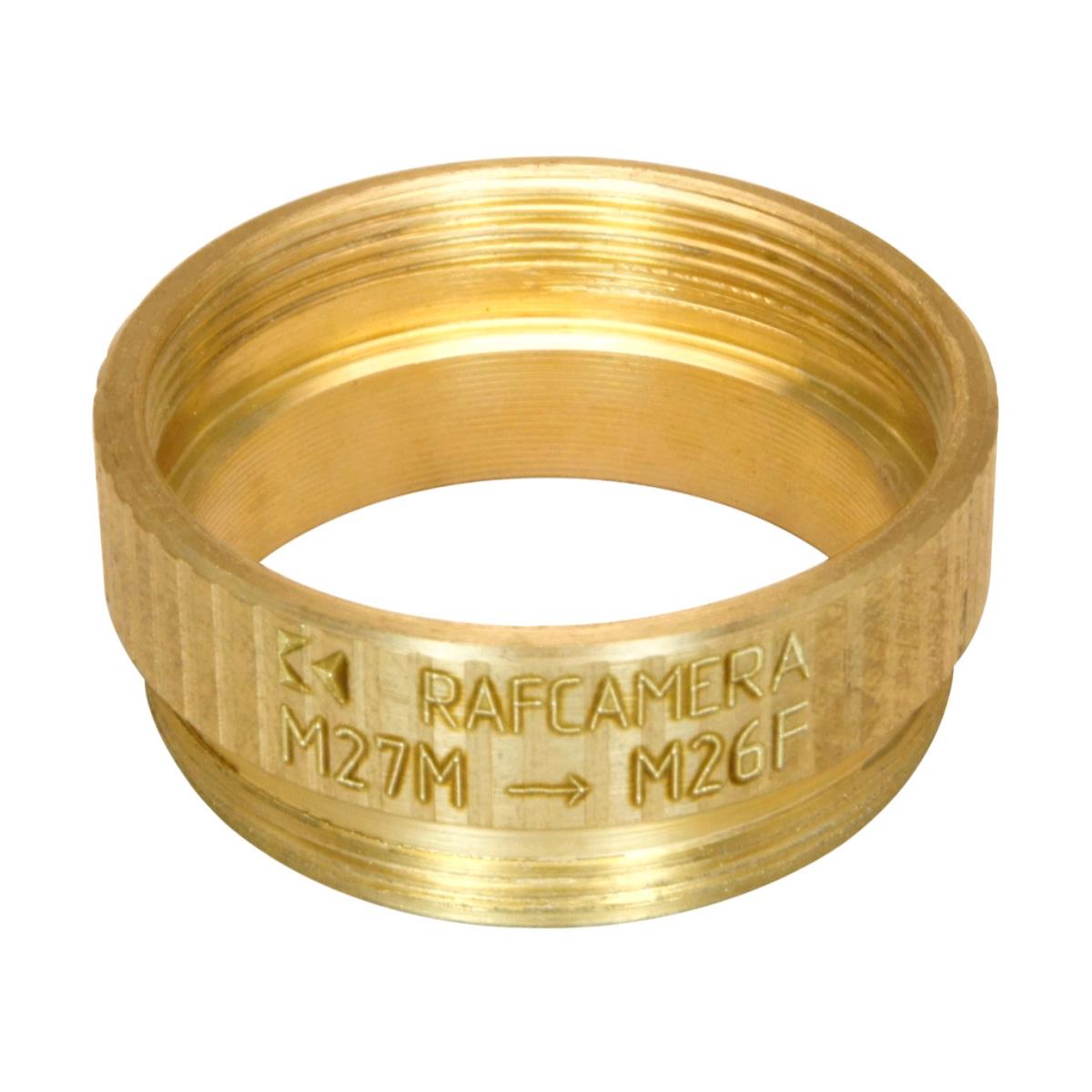

M27x0.75 male to M26x0.75 (0.7) female thread adapter, bronze

1 4
€33,00 EUR
€33,00 EUR
Sale Sold out

SKU#:763461169968

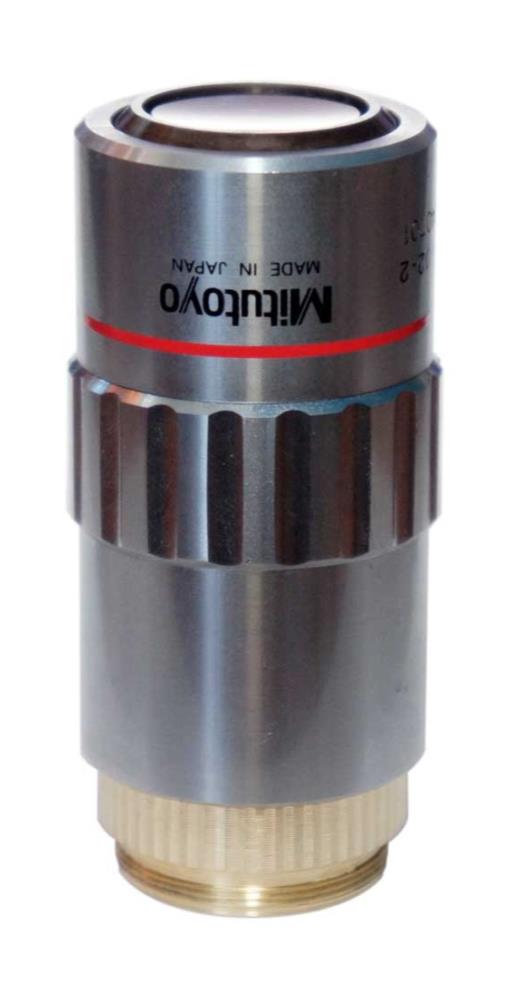

This adapter allows using microscope objectives with M26x0.7 thread (such thread is used by Mitutoyo objectives) on microscopes with M27x0.75 thread. Tolerances are large enough to fit Nikon objectives with M26x0.75 thread as well.
View full details

  • Details
  • More Information
  • Questions

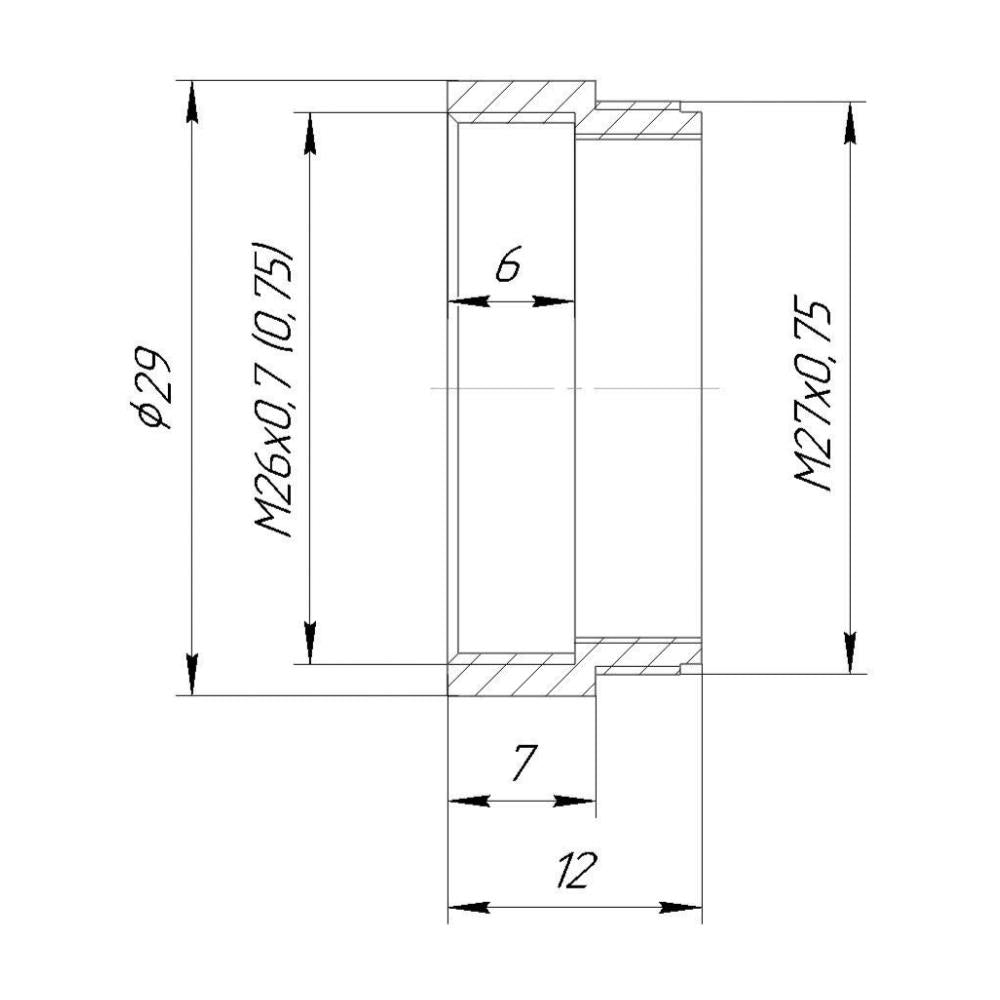

  • Front side - M26x0.75 (compatible with 36tpi)

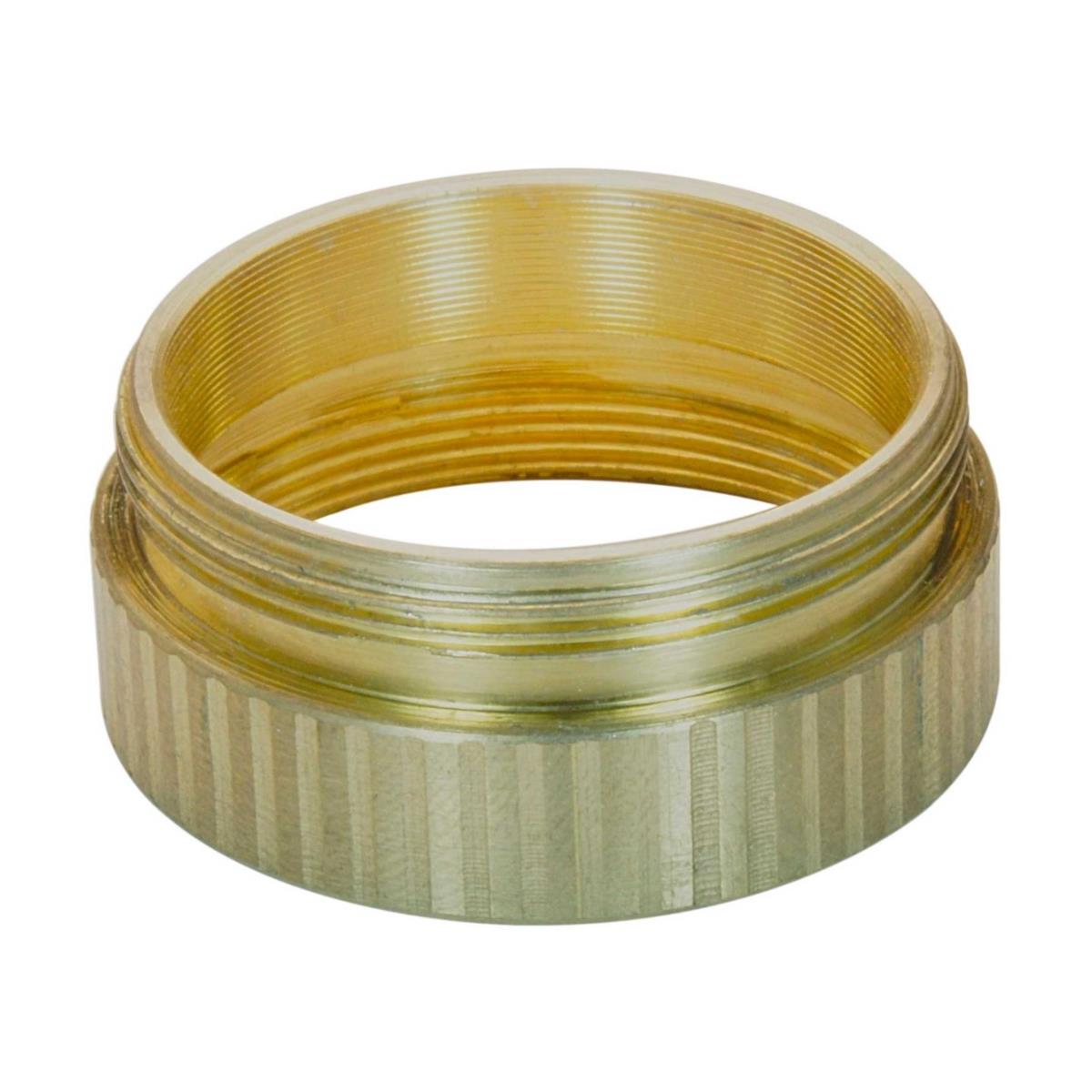

  • Rear side - M27x0.75 male thread
  • Thickness - 7 mm
  • Weight - 10 g

This adapter allows using microscope objectives with M26x0.7 thread (such thread is used by Mitutoyo objectives) on microscopes with M27x0.75 thread. Tolerances are large enough to fit Nikon objectives with M26x0.75 thread as well.

Made of durable bronze.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - M26x0.75 (compatible with 36tpi)
  • Rear side - M27x0.75 male thread
  • Thickness - 7 mm
  • Weight - 10 g

This adapter allows using microscope objectives with M26x0.7 thread (such thread is used by Mitutoyo objectives) on microscopes with M27x0.75 thread. Tolerances are large enough to fit Nikon objectives with M26x0.75 thread as well.

Made of durable bronze.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
