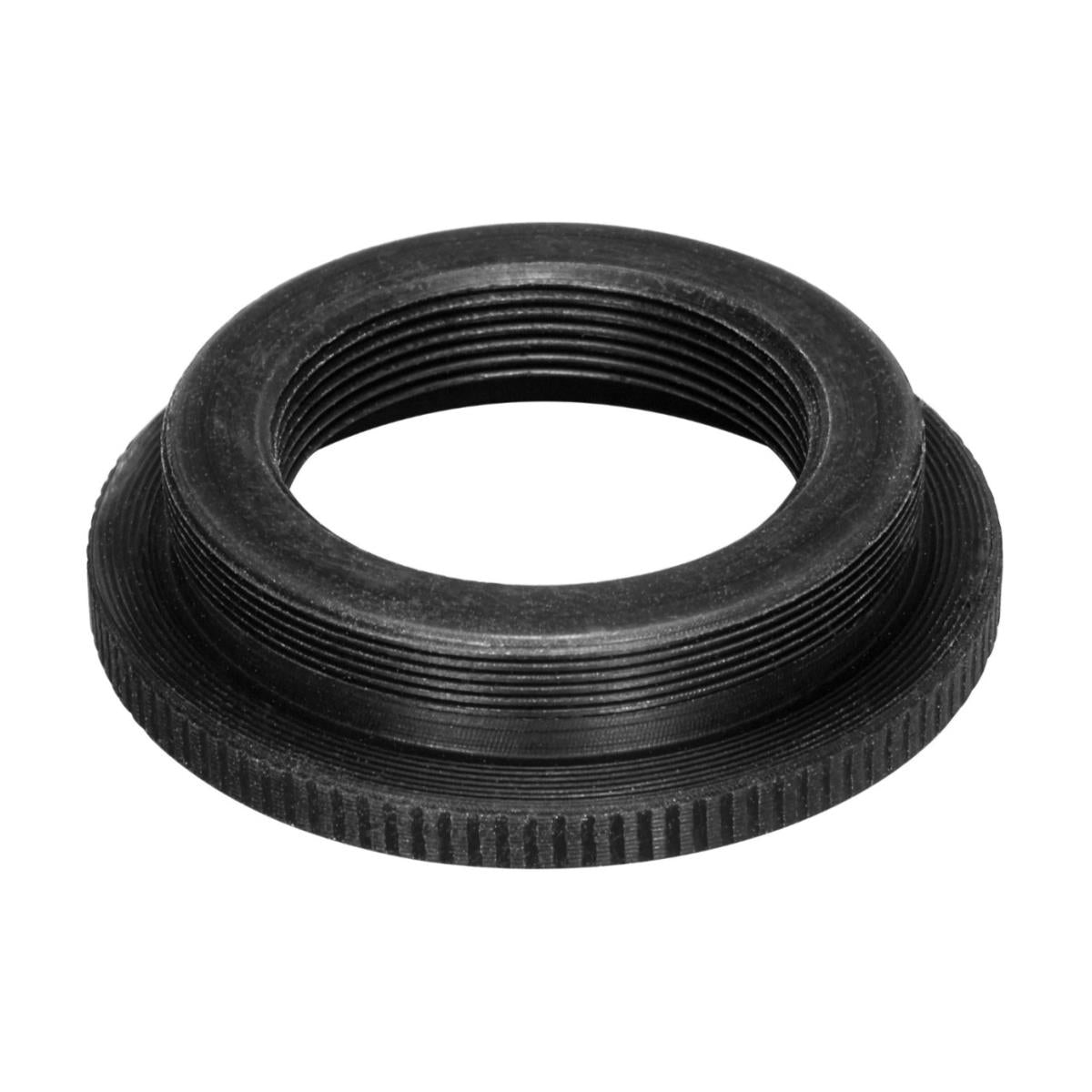

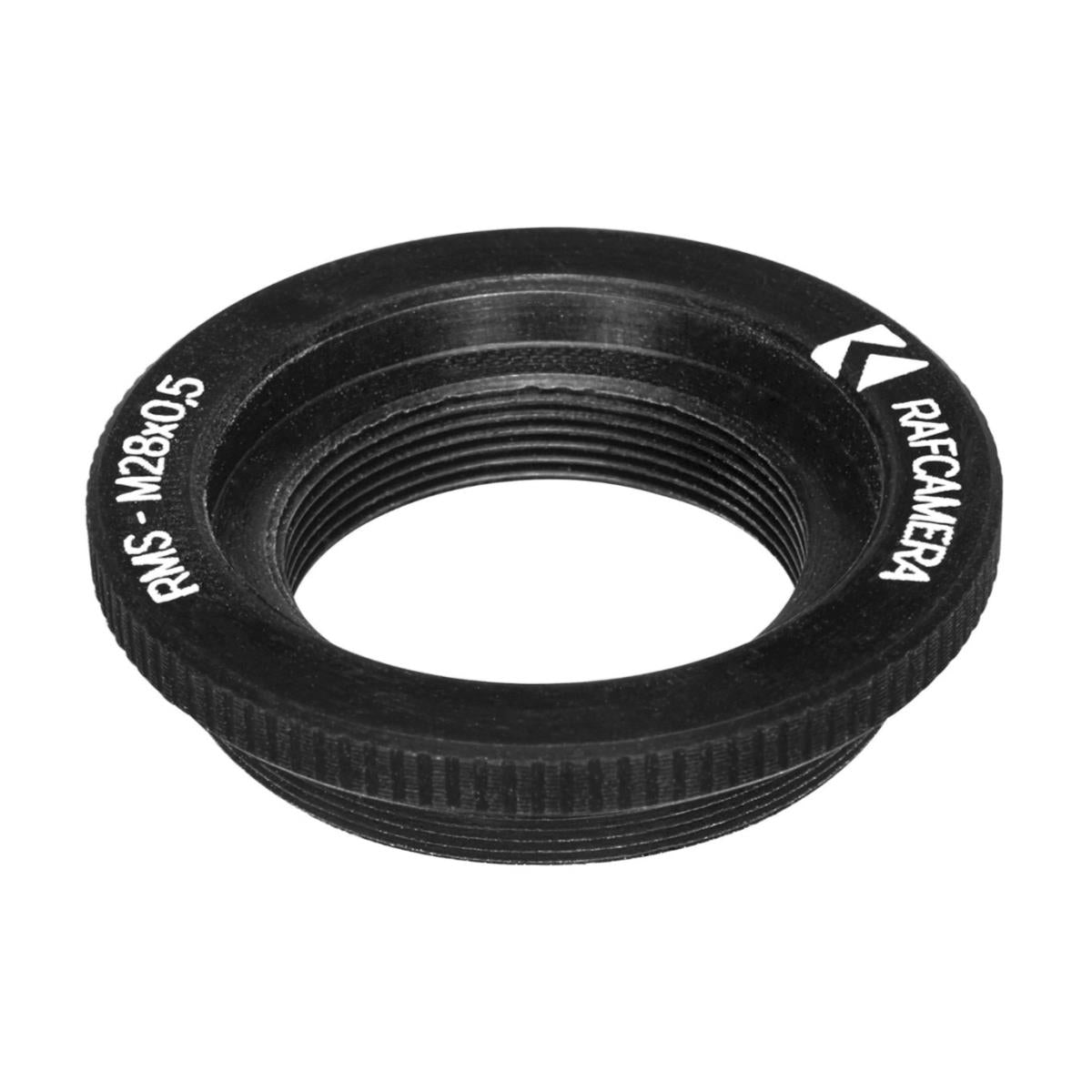

M28x0.5 male to RMS female thread adapter

- Details
- More Information
- Questions
<ul>
<li>Front side - RMS/DIN (0.8″-36tpi) female thread</li>
<li>Rear side - M28x0.5 male thread</li>
<li>Distance between flanges - 0 mm</li>
<li>Weight - 7 g</li>
</ul>
<p>This adapter allows you using easily available RMS/DIN microscope objectives on some enlarger lenses and pocket digital cameras that have M28x0.5 filter thread. Such setup can be used for macrophotography purposes.</p>

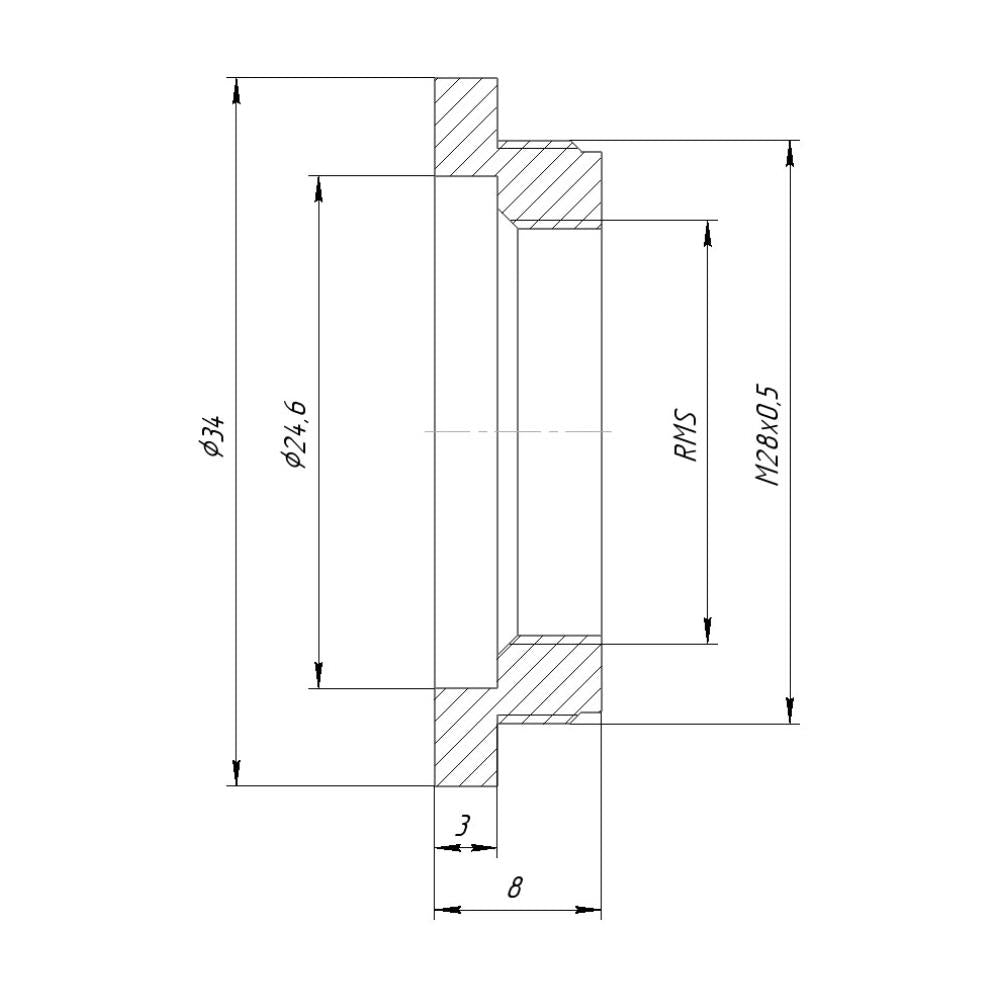

<p>This adapter preserves parfocal height of an ovjective since both M28 and RMS flange planes are mached. This implies one limitation - rear part of RMS objective should have diameter not larger that 24.5mm. Most LOMO objectives fit this size.</p>
<p>Made of anodized aluminium.</p>
<p> </p>
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
Details
<ul>
<li>Front side - RMS/DIN (0.8″-36tpi) female thread</li>
<li>Rear side - M28x0.5 male thread</li>
<li>Distance between flanges - 0 mm</li>
<li>Weight - 7 g</li>
</ul>
<p>This adapter allows you using easily available RMS/DIN microscope objectives on some enlarger lenses and pocket digital cameras that have M28x0.5 filter thread. Such setup can be used for macrophotography purposes.</p>
<p>This adapter preserves parfocal height of an ovjective since both M28 and RMS flange planes are mached. This implies one limitation - rear part of RMS objective should have diameter not larger that 24.5mm. Most LOMO objectives fit this size.</p>
<p>Made of anodized aluminium.</p>
<p> </p>
More Information
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
