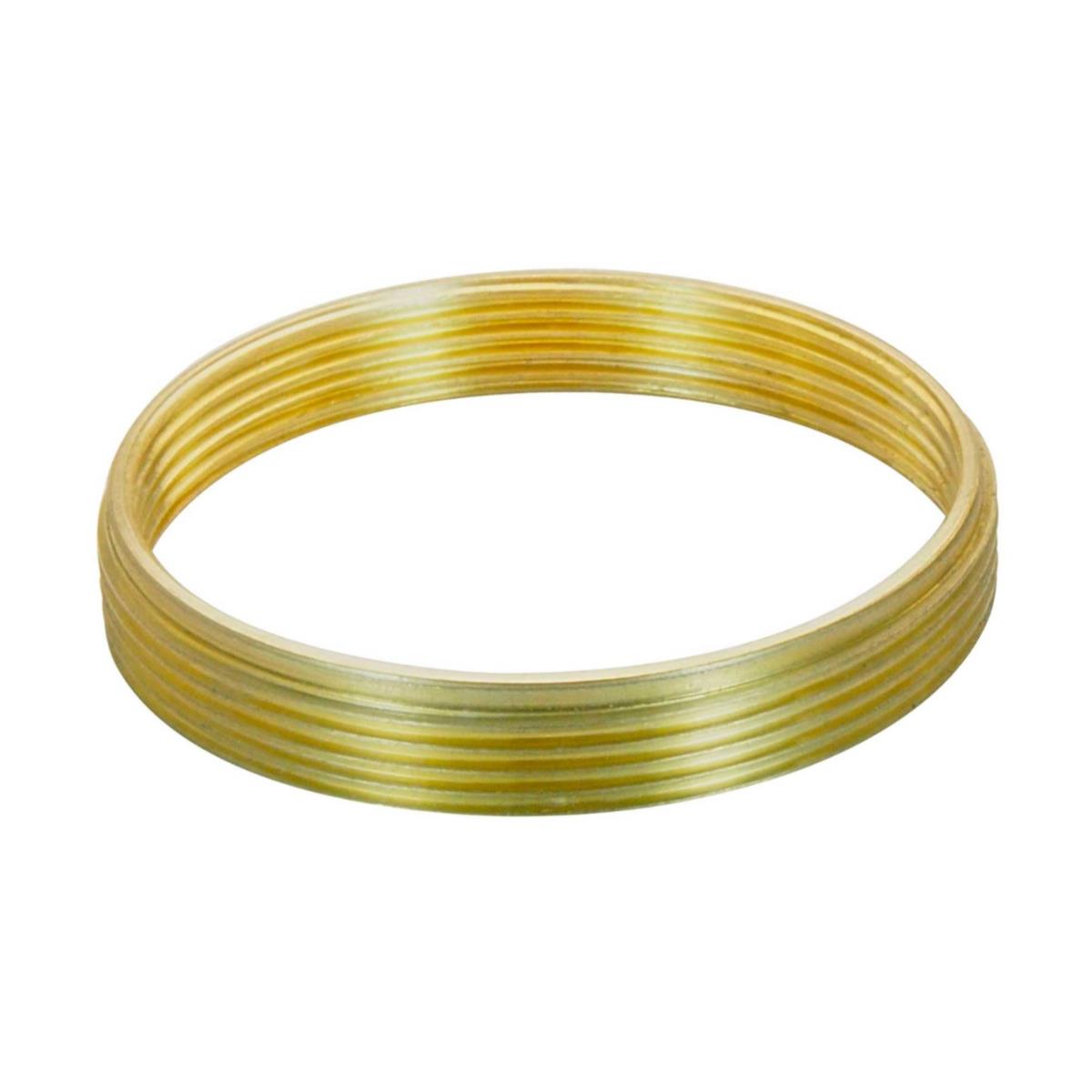

M28x0.75 male to M26x0.75 (0.7) female thread adapter, flangeless, bronze
- Details
- More Information
- Questions

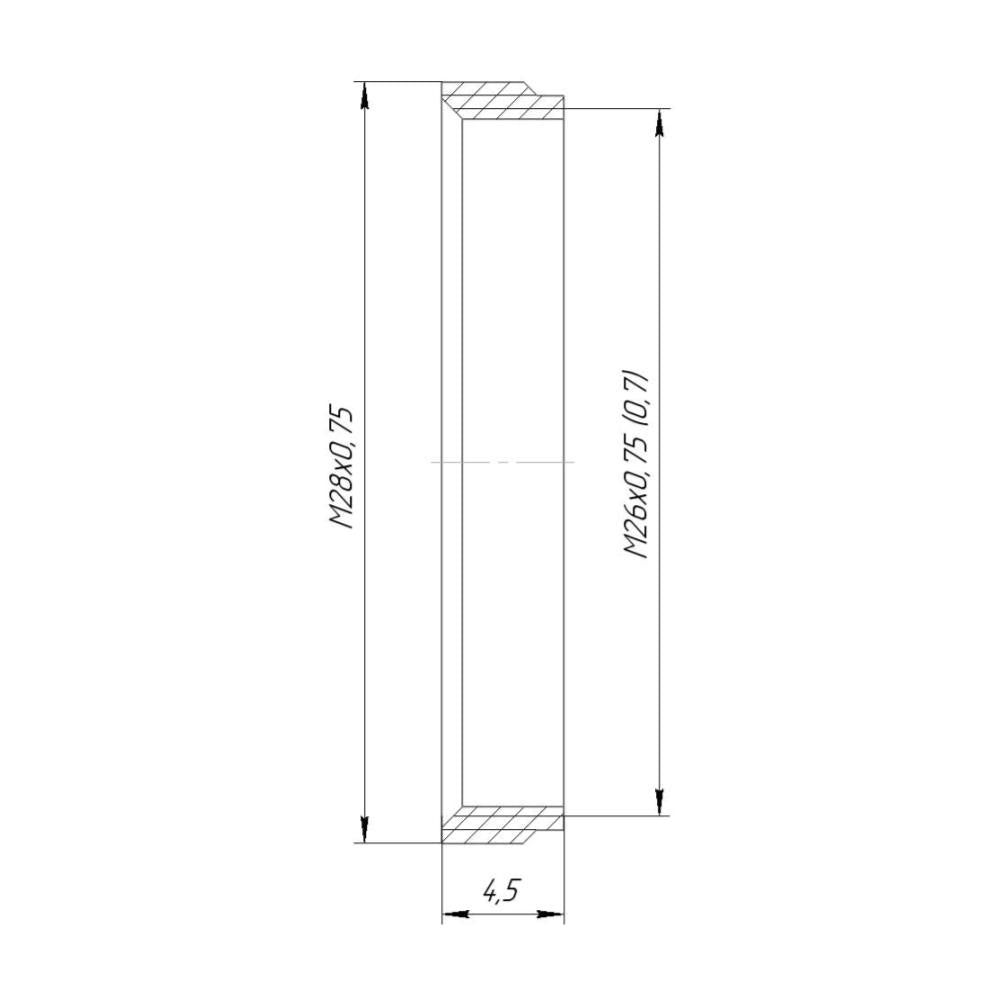

- Front side - M26x0.75 female thread
- Rear side - M28x0.75 male thread
- Thickness - 4.5 mm
- Weight - 2 g
This adapter allows using microscope objectives with M26x0.75 thread mount on microscopes with M28x0.75 thread mount.
Shoulderless design allows preserving original parfocal height. Tolerances are large enough to fit Mitutoyo objectives with M26x36tpi thread as well.
Made of bronze. Be careful to not drop the adapter into the microscope turret. Secure it firmly on the objective first.
For sale is the adapter only. Objective is pictured for illustration purposes.
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
