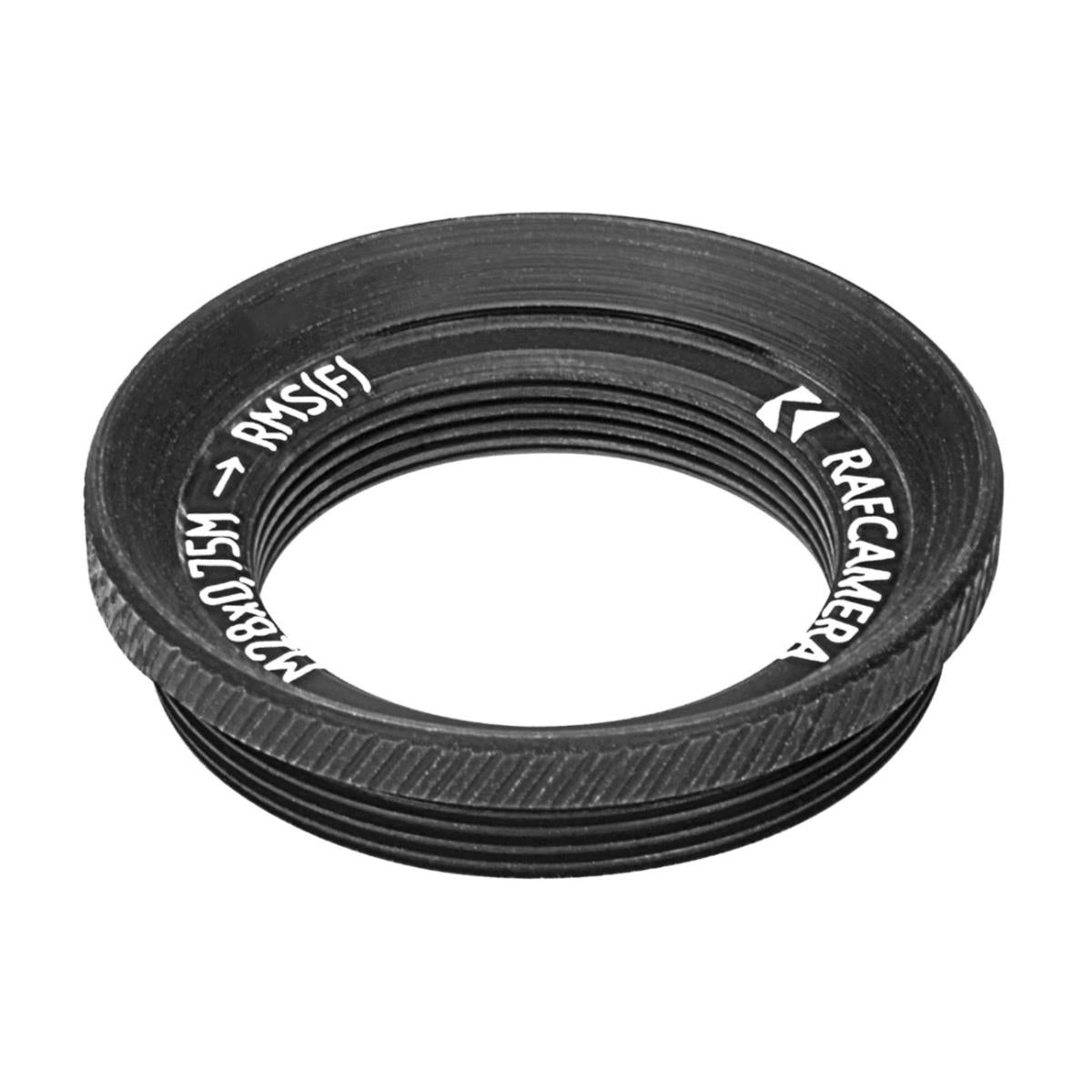

M28x0.75 male to RMS female thread adapter, black

1 3
€30,00 EUR
€30,00 EUR
Sale Sold out

SKU#:763461170131
This adapter allows you using RMS/DIN microscope objectives on Reichert and other microscopes with 28x0.75 heads.
View full details

  • Details
  • More Information
  • Questions

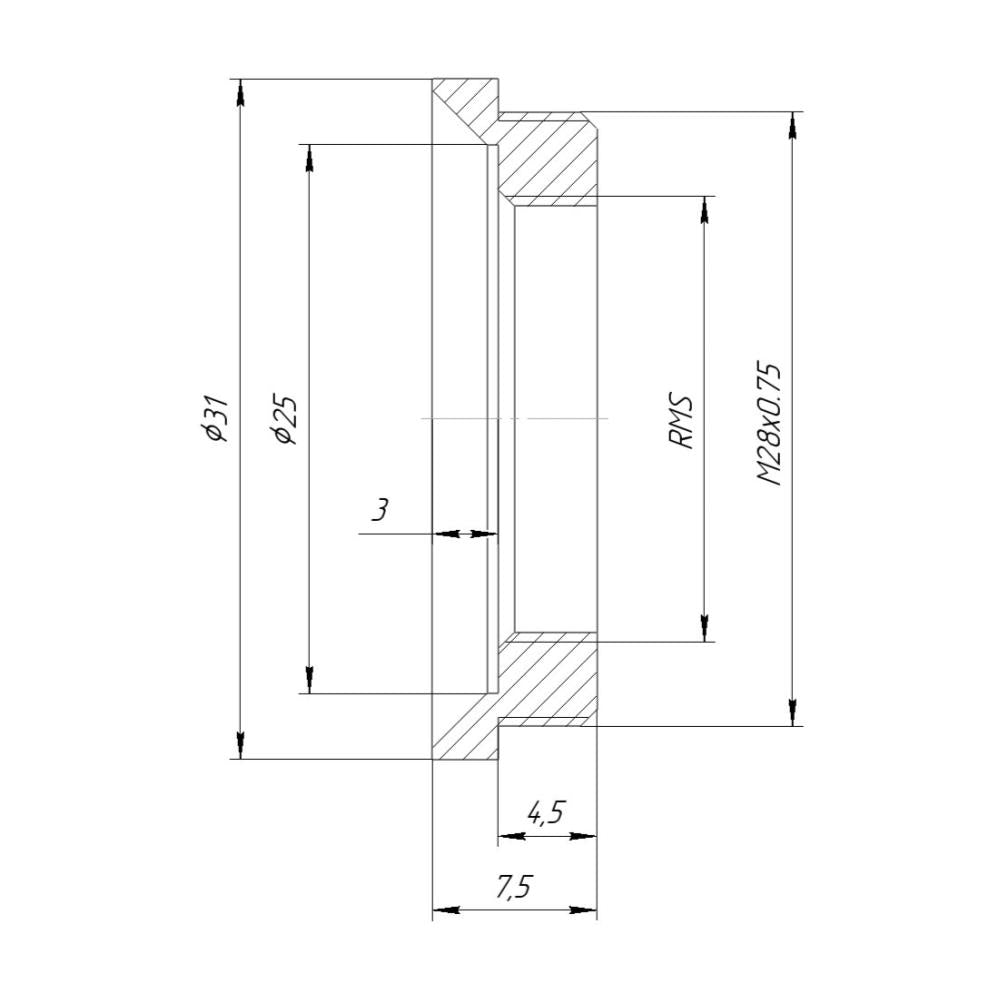

  • Front side - RMS/DIN (0.8″-36tpi) female thread

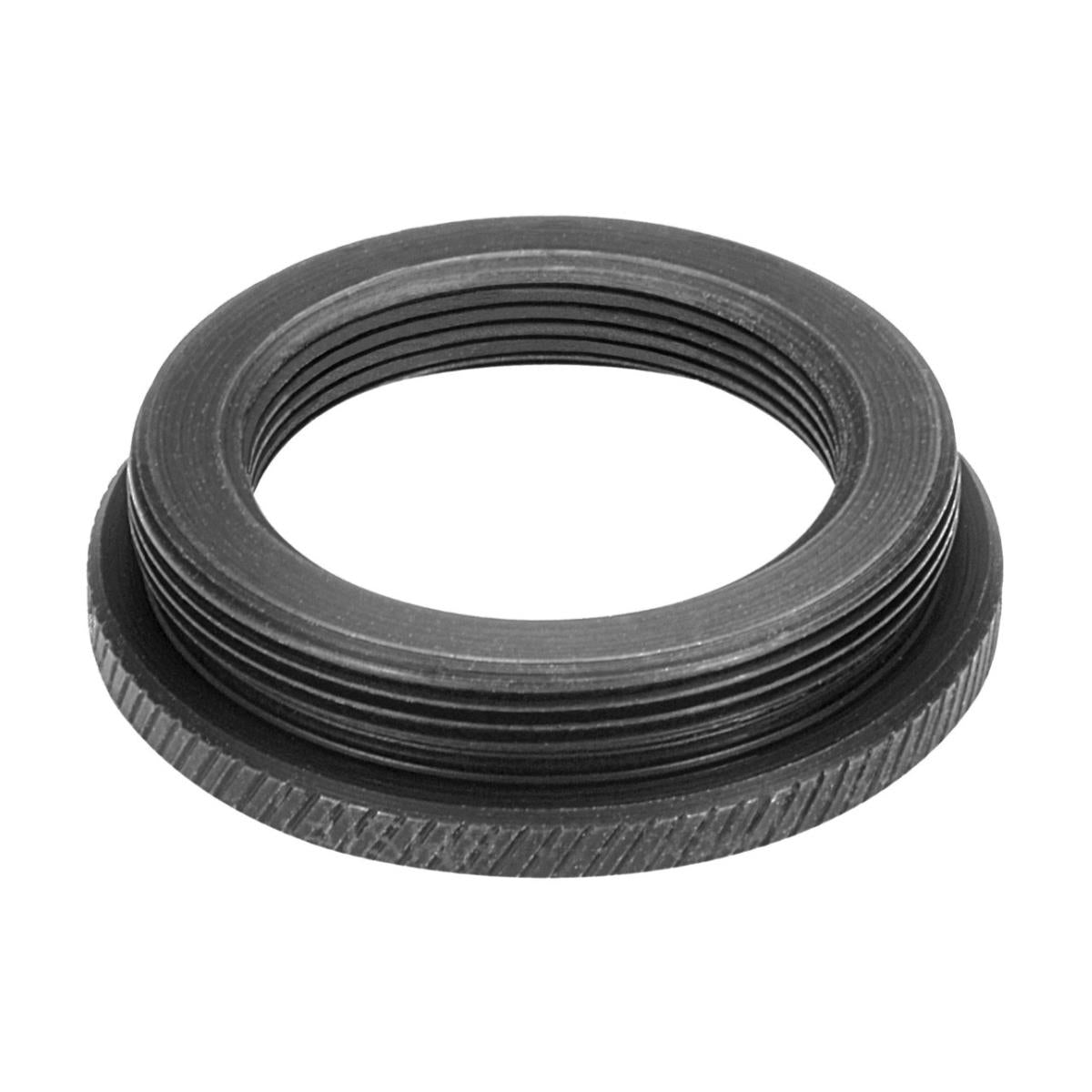

  • Rear side - M28x0.75 male thread
  • Max. diameter - 31.5 mm
  • Distance between flanges - 0 mm
  • Weight - 6 g

This adapter allows you using RMS/DIN microscope objectives on Reichert and other microscopes with 28x0.75 heads.

This adapter preserves parfocal height of an objective since both M28 and RMS flange planes are mached.

Made of anodized aluminium.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - RMS/DIN (0.8″-36tpi) female thread
  • Rear side - M28x0.75 male thread
  • Max. diameter - 31.5 mm
  • Distance between flanges - 0 mm
  • Weight - 6 g

This adapter allows you using RMS/DIN microscope objectives on Reichert and other microscopes with 28x0.75 heads.

This adapter preserves parfocal height of an objective since both M28 and RMS flange planes are mached.

Made of anodized aluminium.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
