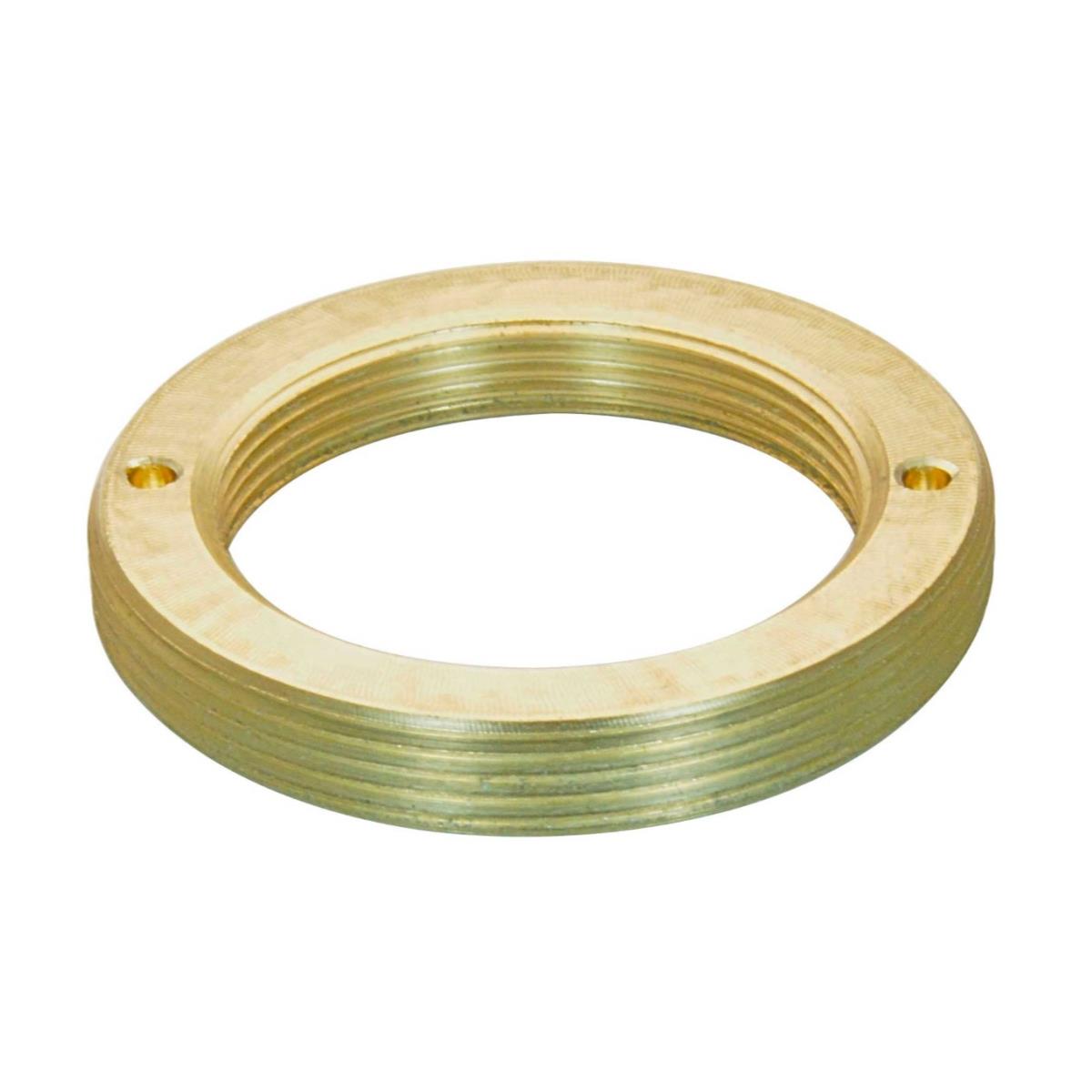

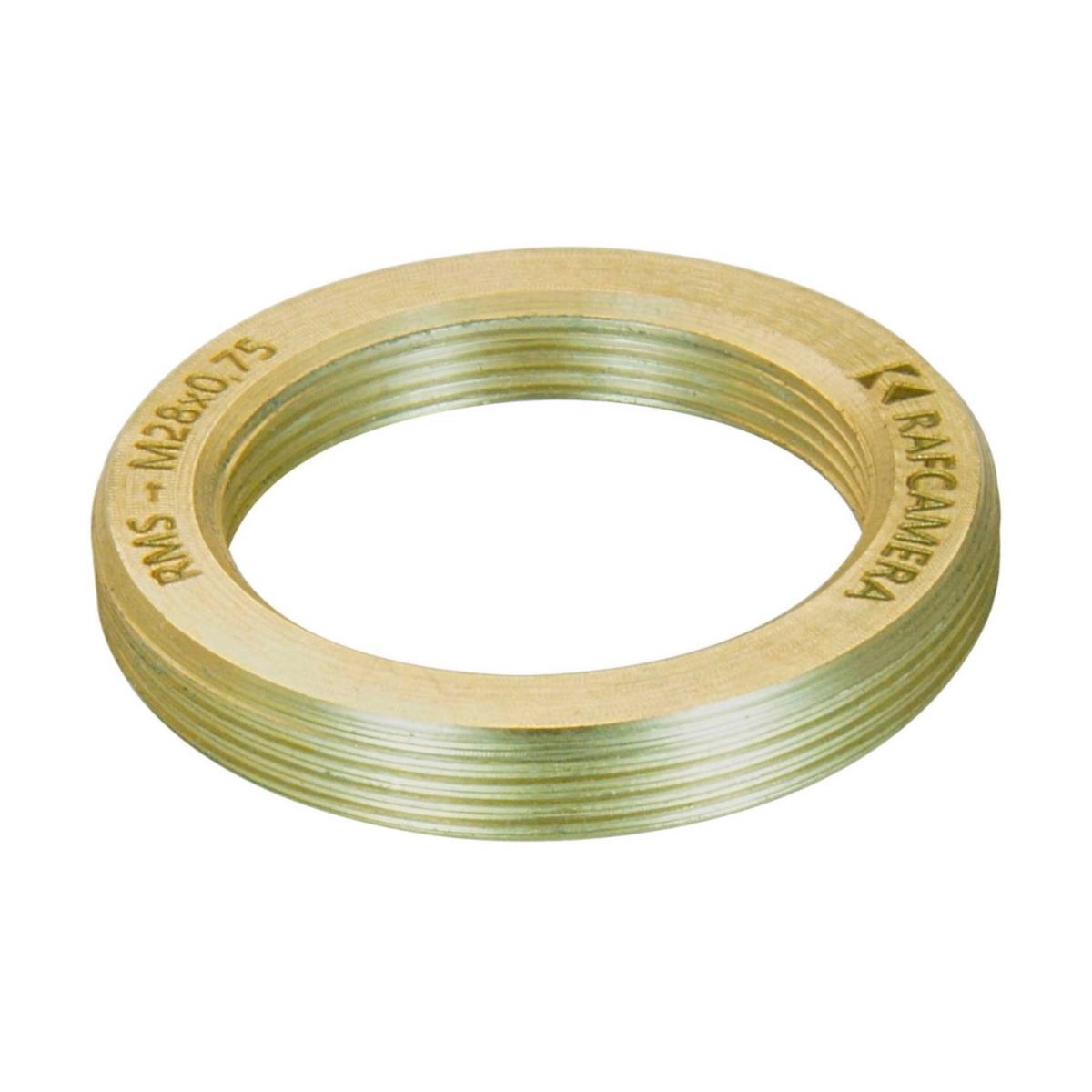

M28x0.75 male to RMS female thread adapter, flangeless, bronze

1 4
€32,40 EUR
€32,40 EUR
Sale Sold out

SKU#:763461170162
This adapter allows using of easily available microscope objectives with RMS/DIN thread on microscopes with M28x0.75 thread. It has no flange, so it can be screwed into the head as deep as it necessary to achieve parfocality with other objectives.
View full details

  • Details
  • More Information
  • Questions

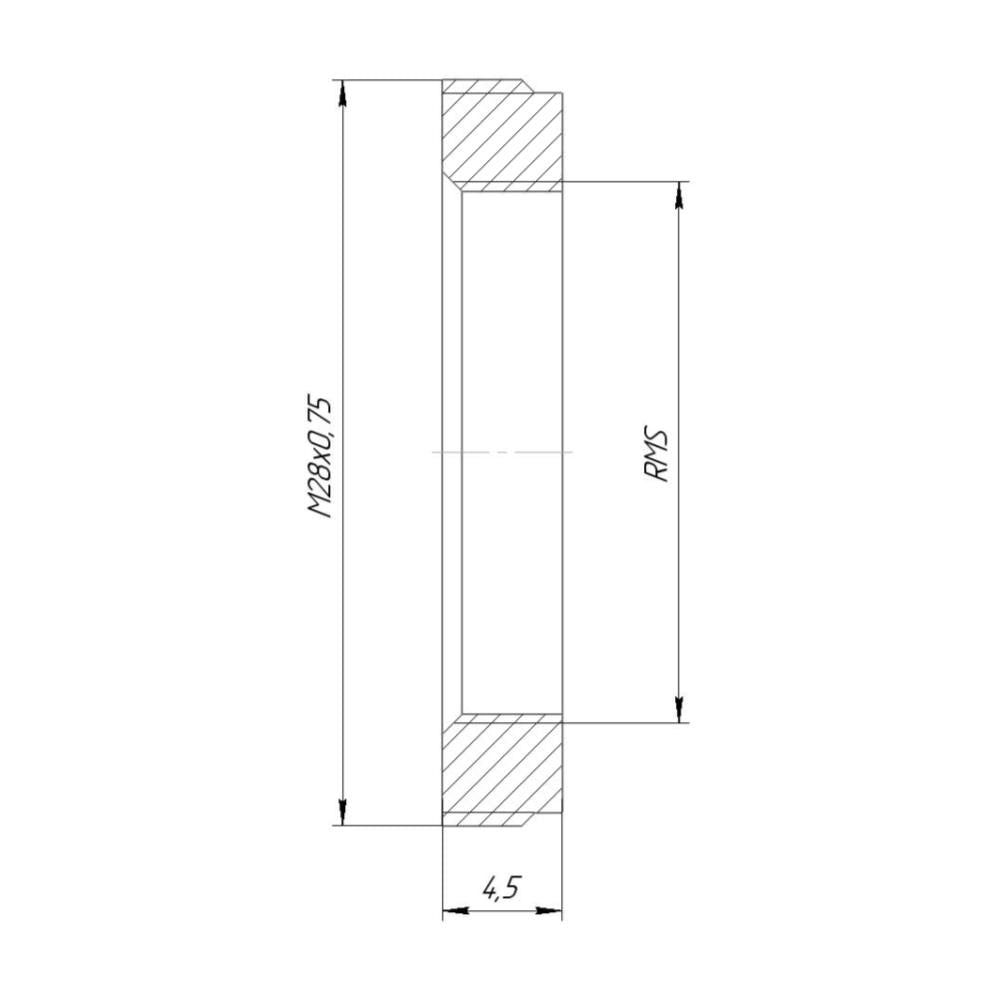

  • Front side - RMS (0.8″-36tpi) female thread
  • Rear side - M28x0.75 male thread
  • Thickness - 4.5 mm
  • Weight - 3 g

This adapter allows using of easily available microscope objectives with RMS/DIN thread on microscopes with M28x0.75 thread. It has no flange, so it can be screwed into the head as deep as it necessary to achieve parfocality with other objectives.

Made of bronze.

For sale is the adapter only. Objective is pictures just for reference.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - RMS (0.8″-36tpi) female thread
  • Rear side - M28x0.75 male thread
  • Thickness - 4.5 mm
  • Weight - 3 g

This adapter allows using of easily available microscope objectives with RMS/DIN thread on microscopes with M28x0.75 thread. It has no flange, so it can be screwed into the head as deep as it necessary to achieve parfocality with other objectives.

Made of bronze.

For sale is the adapter only. Objective is pictures just for reference.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
