M30x0.75 male to RMS female thread adapter, black

1 5
€33,00 EUR
€33,00 EUR
Sale Sold out

SKU#:763461170513
This adapter allows using microscope objectives with RMS thread mount on microscopes with M30x0.75 thread mount.
View full details

  • Details
  • More Information
  • Questions

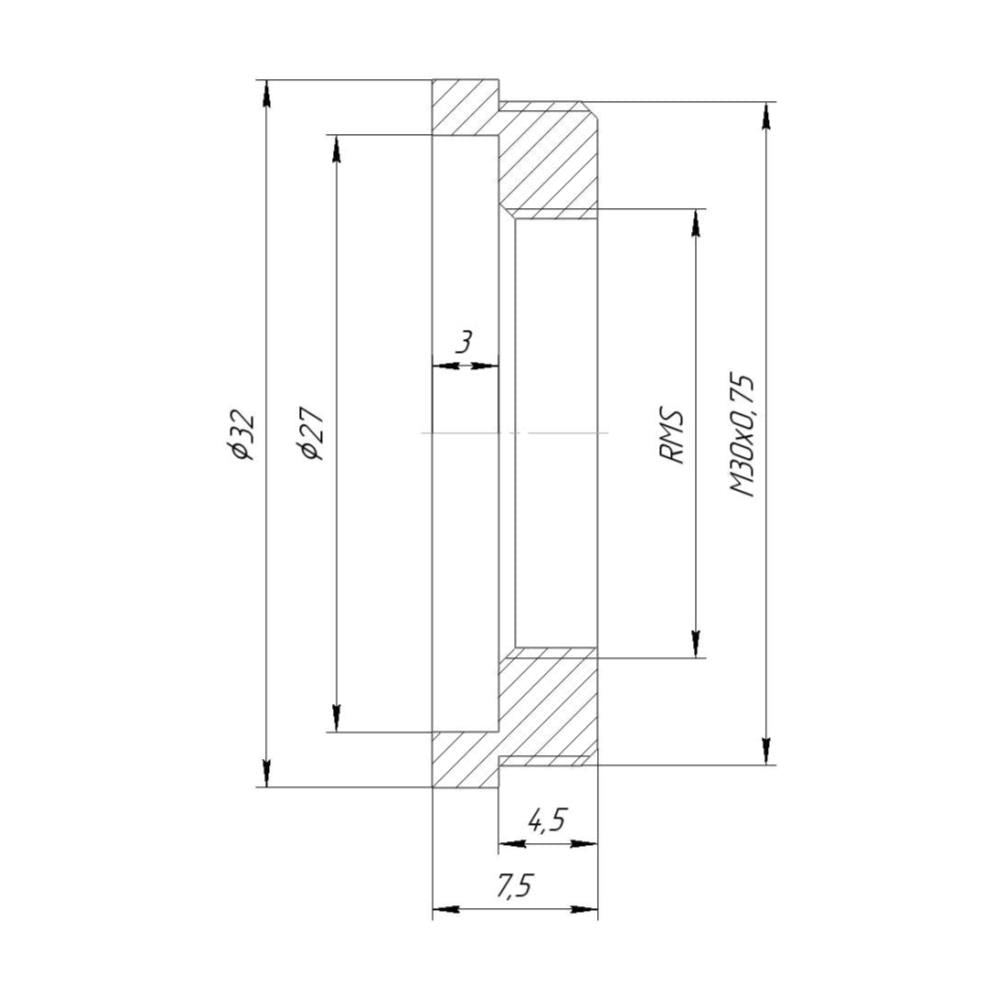

  • Front side - RMS (0.8″-36tpi) female thread
  • Rear side - M30x0.75 male thread
  • Distance between flanges - 0 mm
  • Weight - 4 g

This adapter allows using microscope objectives with RMS thread mount on microscopes with M30x0.75 thread mount.

Height of both flanges is same, so this adapter preserves original parfocal height of objective.

Made of anodized aluminium.

For sale is the adapter only. Objective is pictured for illustration purposes.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - RMS (0.8″-36tpi) female thread
  • Rear side - M30x0.75 male thread
  • Distance between flanges - 0 mm
  • Weight - 4 g

This adapter allows using microscope objectives with RMS thread mount on microscopes with M30x0.75 thread mount.

Height of both flanges is same, so this adapter preserves original parfocal height of objective.

Made of anodized aluminium.

For sale is the adapter only. Objective is pictured for illustration purposes.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
