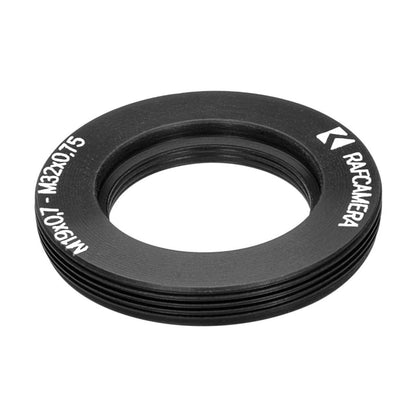

M32x0.75 male M19x0.75 female thread adapter, flangeless, black

1 4
€30,00 EUR
€30,00 EUR
Sale Sold out

SKU#:763461170629
This adapter allows using some Zeiss microscope objectives with M19x0.7 thread mount on microscopes with M32x0.75 thread mount.
View full details

  • Details
  • More Information
  • Questions

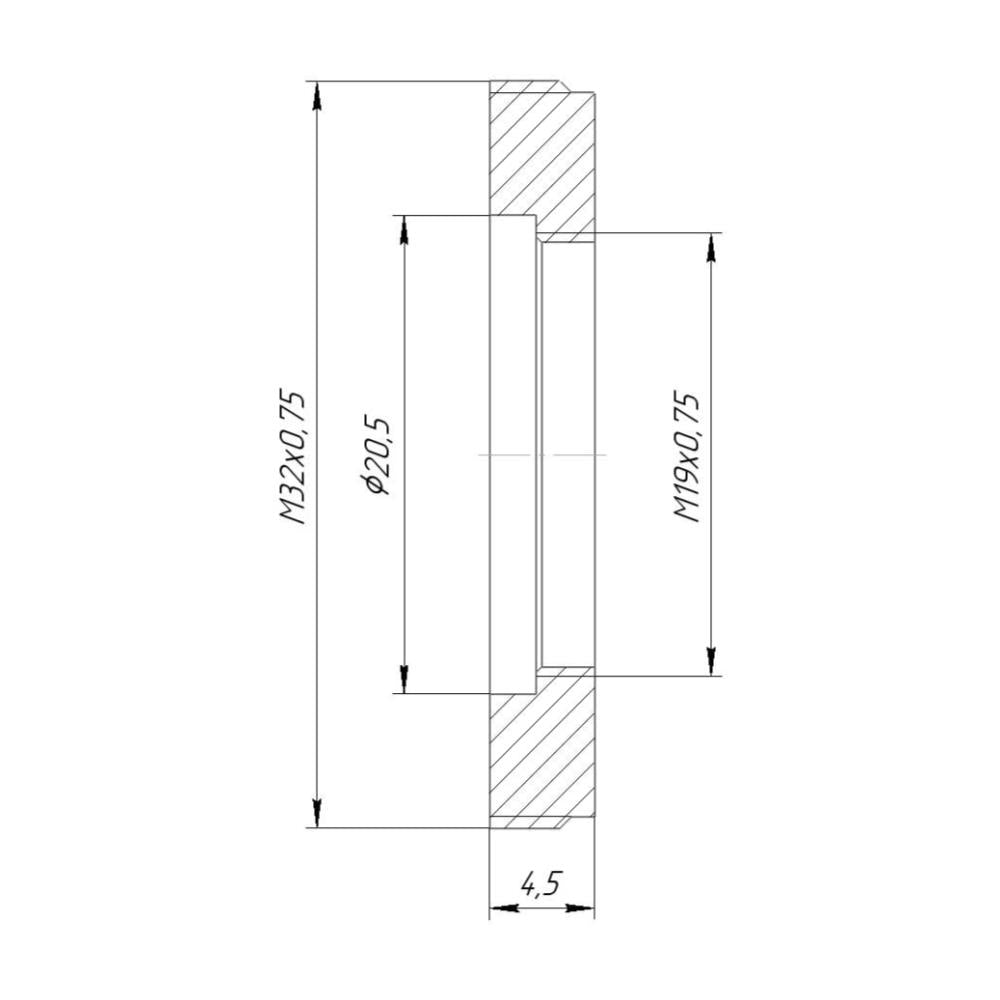

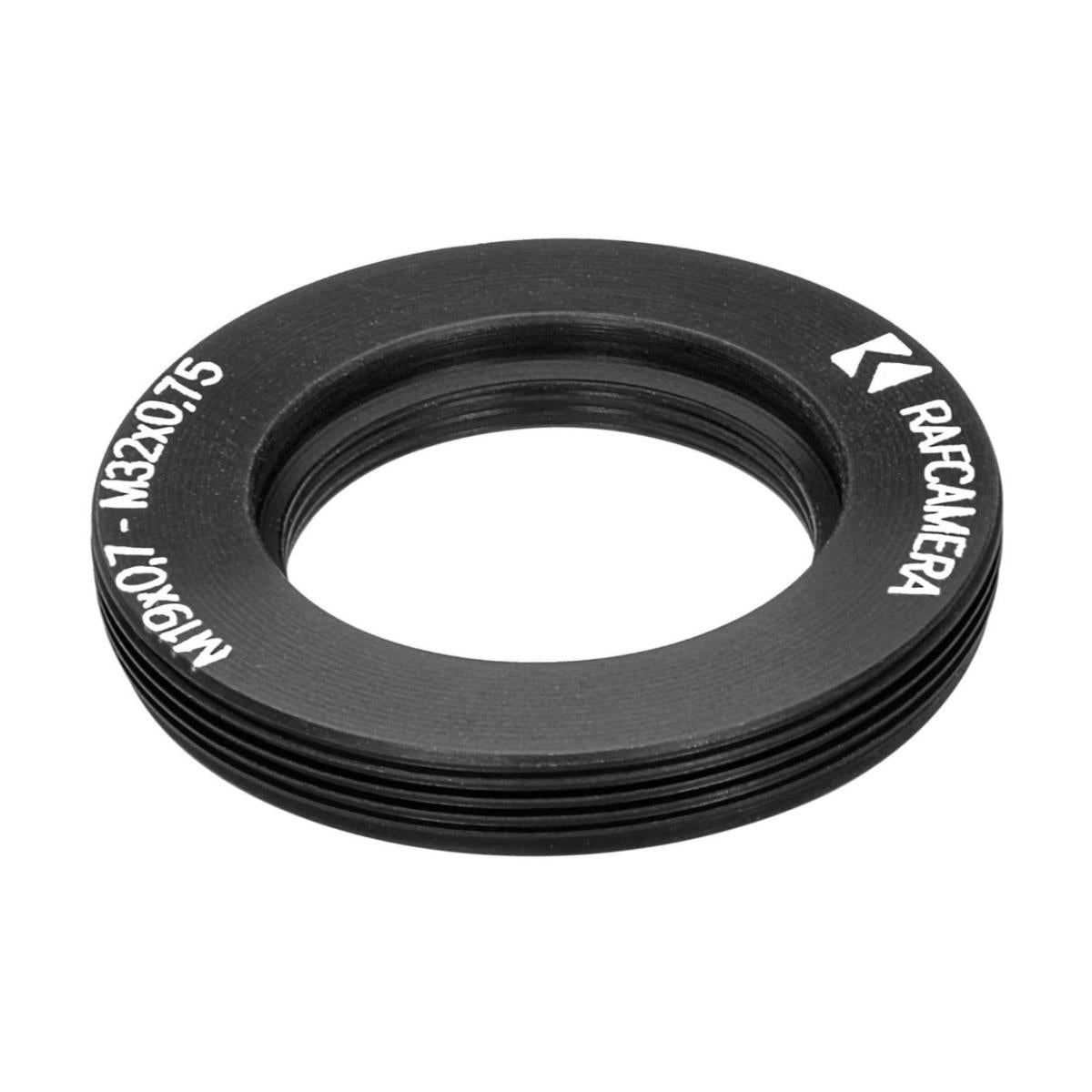

  • Front side - M19x0.7 female thread

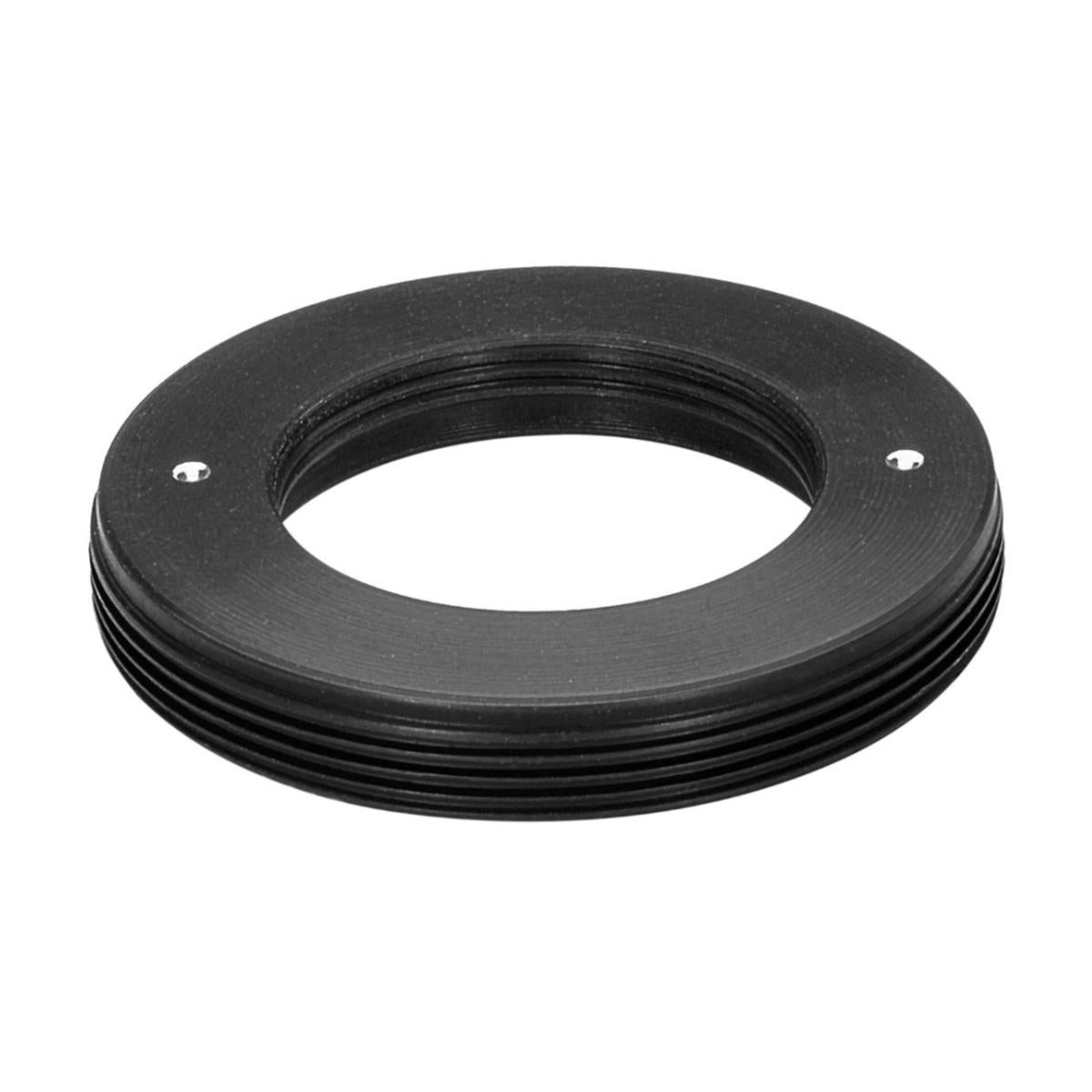

  • Rear side - M32x0.75 male thread
  • Thickness - 4.5 mm
  • Weight - 6 g

This adapter allows using some Zeiss microscope objectives with M19x0.7 thread mount on microscopes with M32x0.75 thread mount.

Shoulder-less design allows preserving original parfocal height.

Made of anodized aluminium.

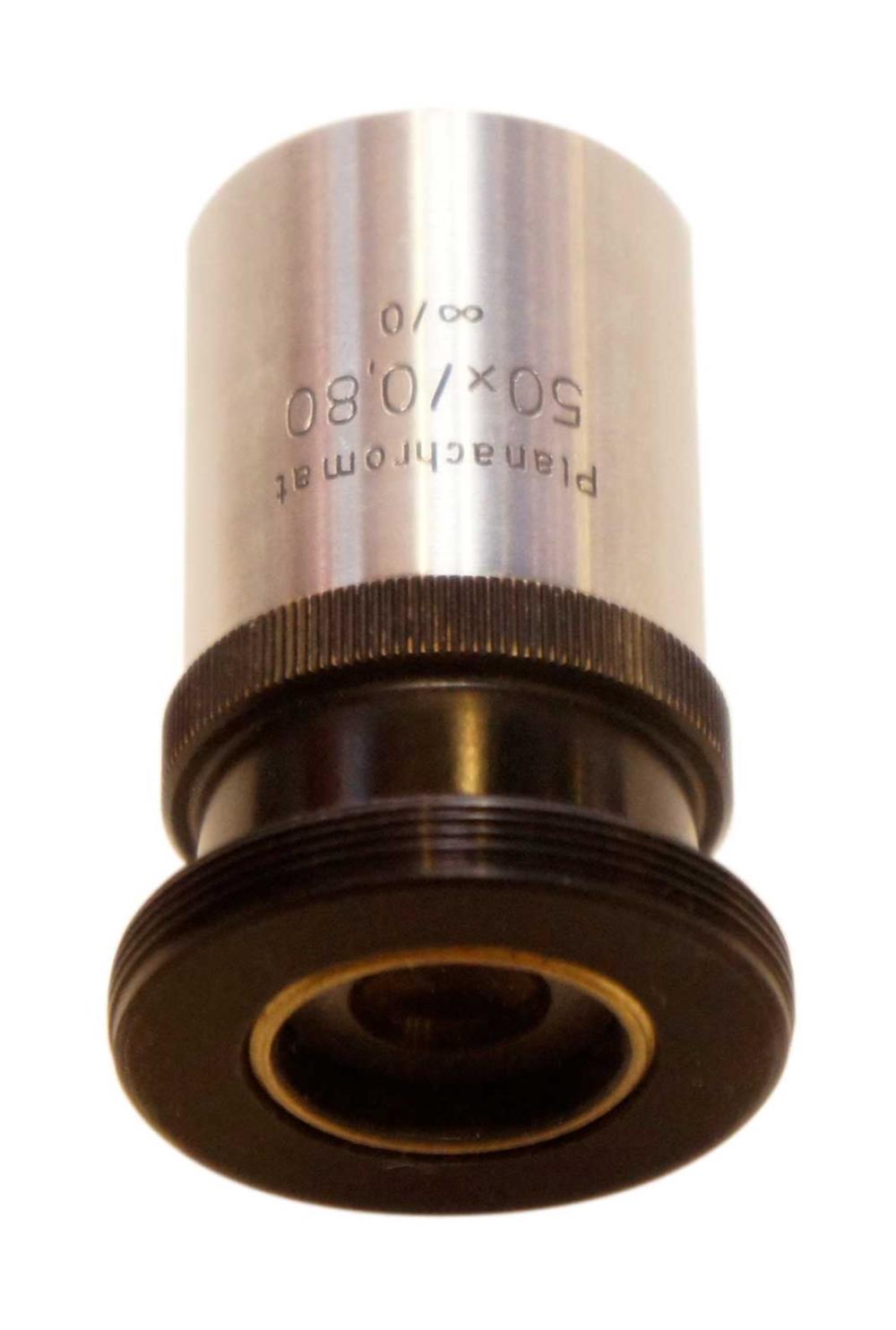

For sale is the adapter only. Objective is pictured for illustration purposes.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - M19x0.7 female thread
  • Rear side - M32x0.75 male thread
  • Thickness - 4.5 mm
  • Weight - 6 g

This adapter allows using some Zeiss microscope objectives with M19x0.7 thread mount on microscopes with M32x0.75 thread mount.

Shoulder-less design allows preserving original parfocal height.

Made of anodized aluminium.

For sale is the adapter only. Objective is pictured for illustration purposes.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
