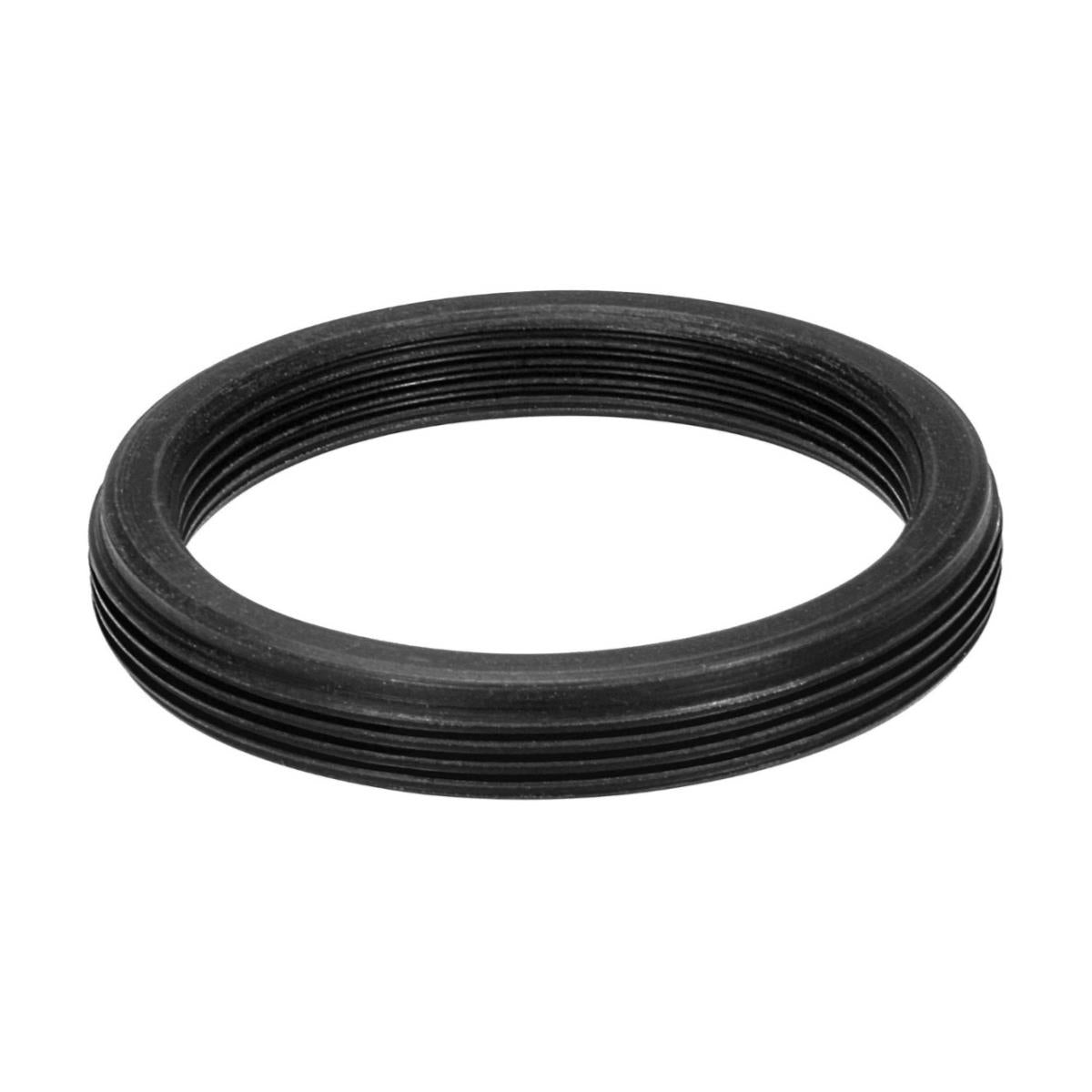

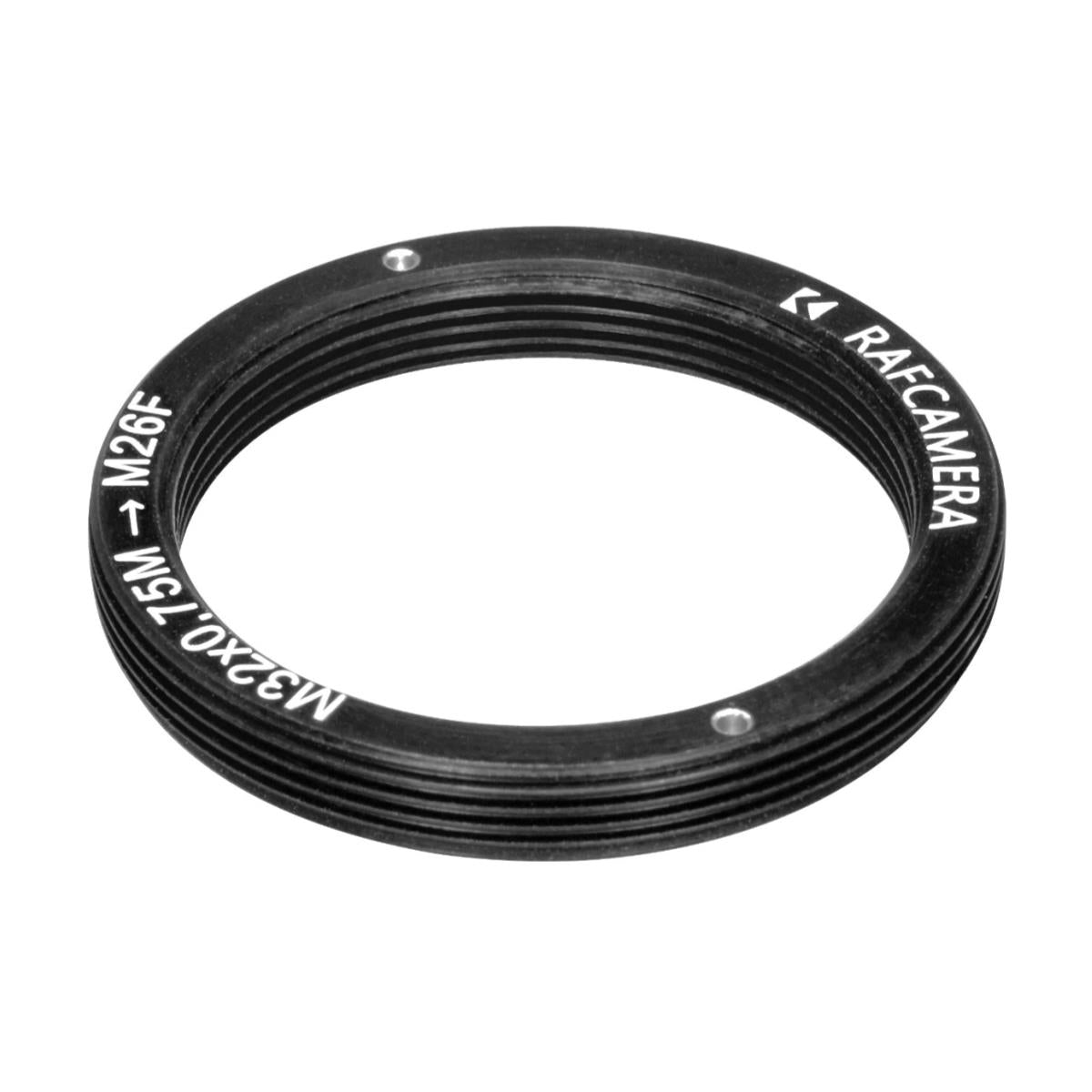

M32x0.75 male to M26x0.75 (36tpi) female thread adapter, flangeless, black
- Details
- More Information
- Reviews
- Questions

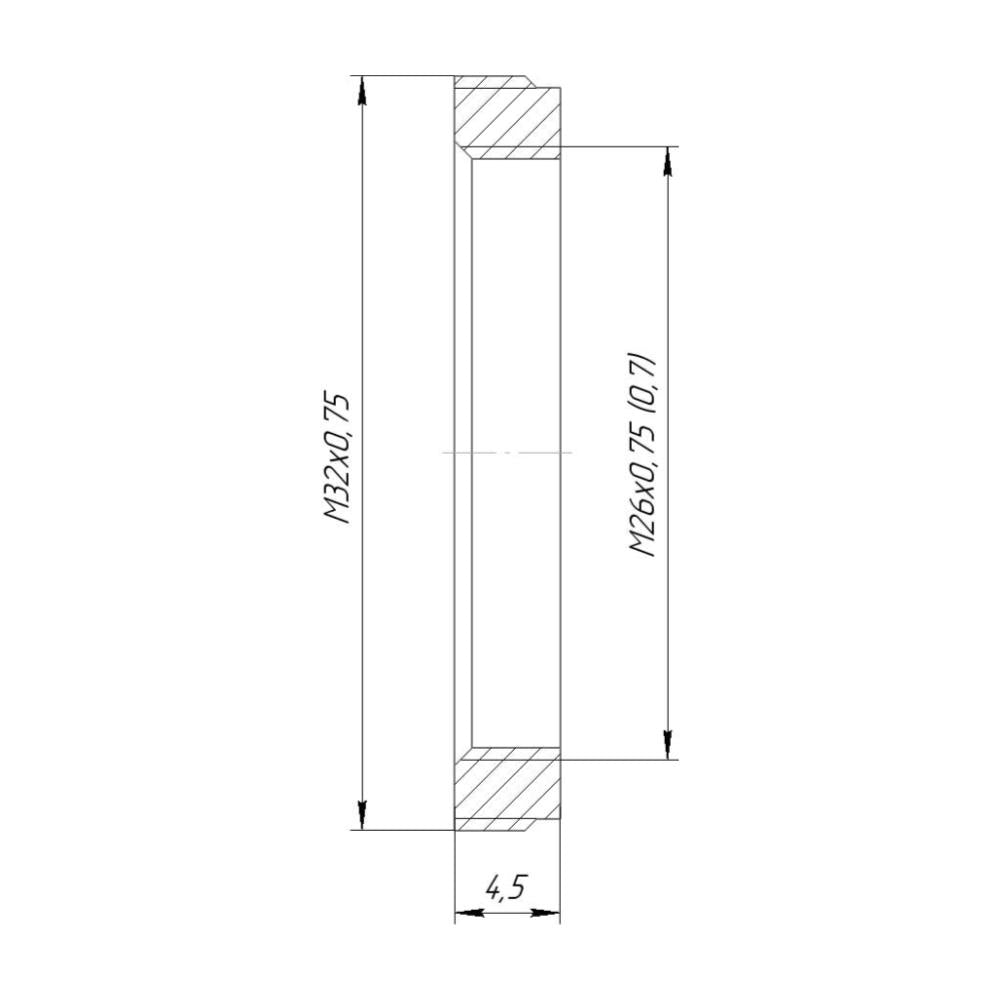

- Front side - M26x0.75 female thread
- Rear side - M32x0.75 male thread
- Thickness - 4.5 mm
- Weight - 3 g
- Machined of high quality aluminium alloy
This adapter allows using Nikon microscope objectives with M26x0.75 thread on microscopes with M32x0.75 thread mount.
Large enough tolerances of the 26mm thread allows installing objectives with M26x36tpi as well (like Mitutouo).
Shoulderless design allows preserving original parfocal height. Be careful though to not drop the adapter into the microscope turret. Secure it firmly on the objective first.

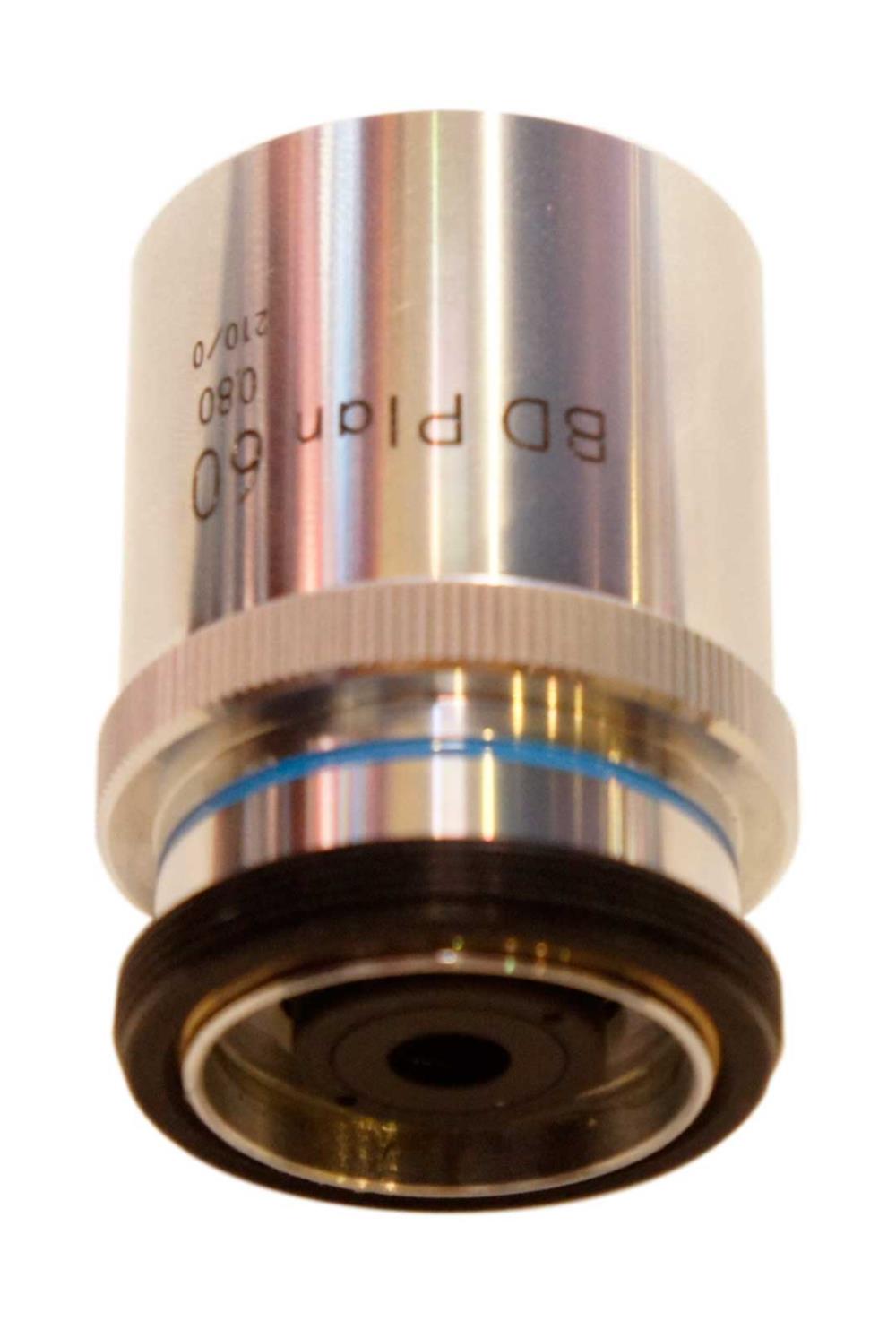

For sale is the adapter only. Objective is pictured for illustration purposes.
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
