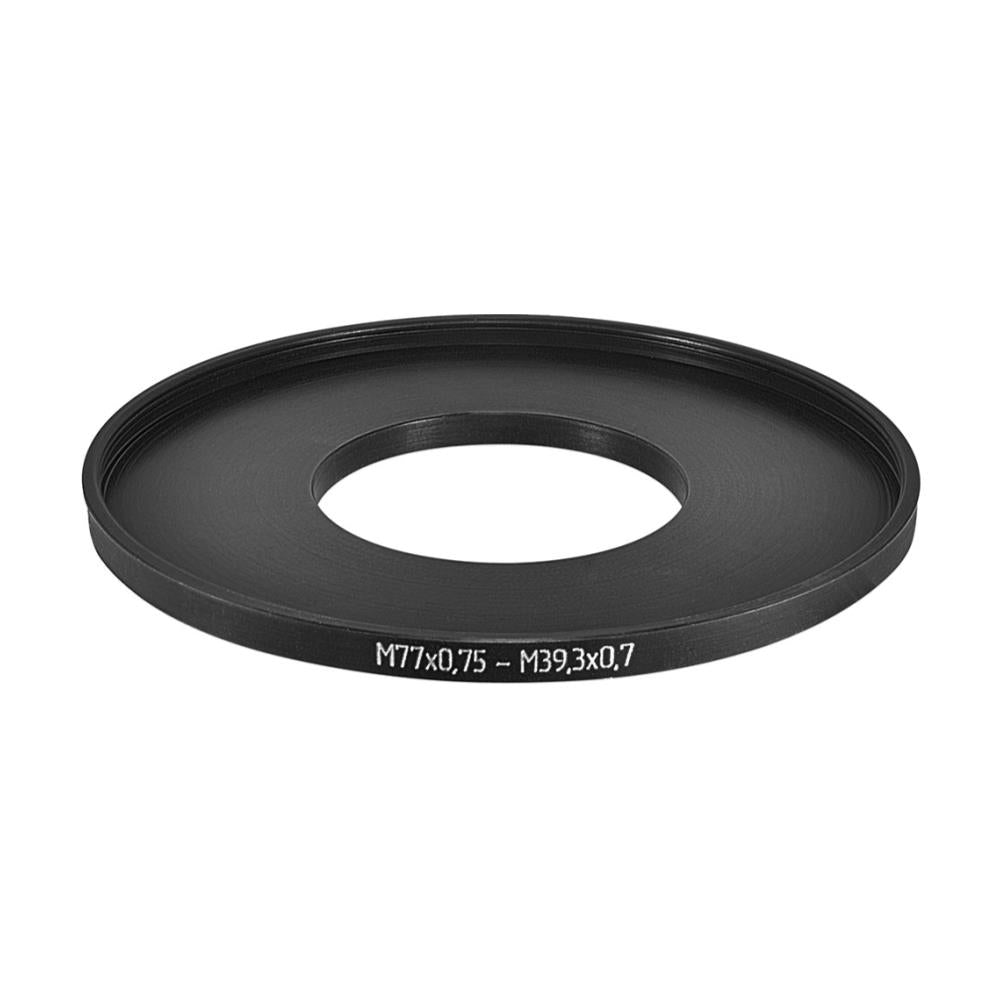

M39.3x0.7 male to M77x0.75 female thread adapter (39.3mm to 77mm step-up ring)
- Details
- More Information
- Questions

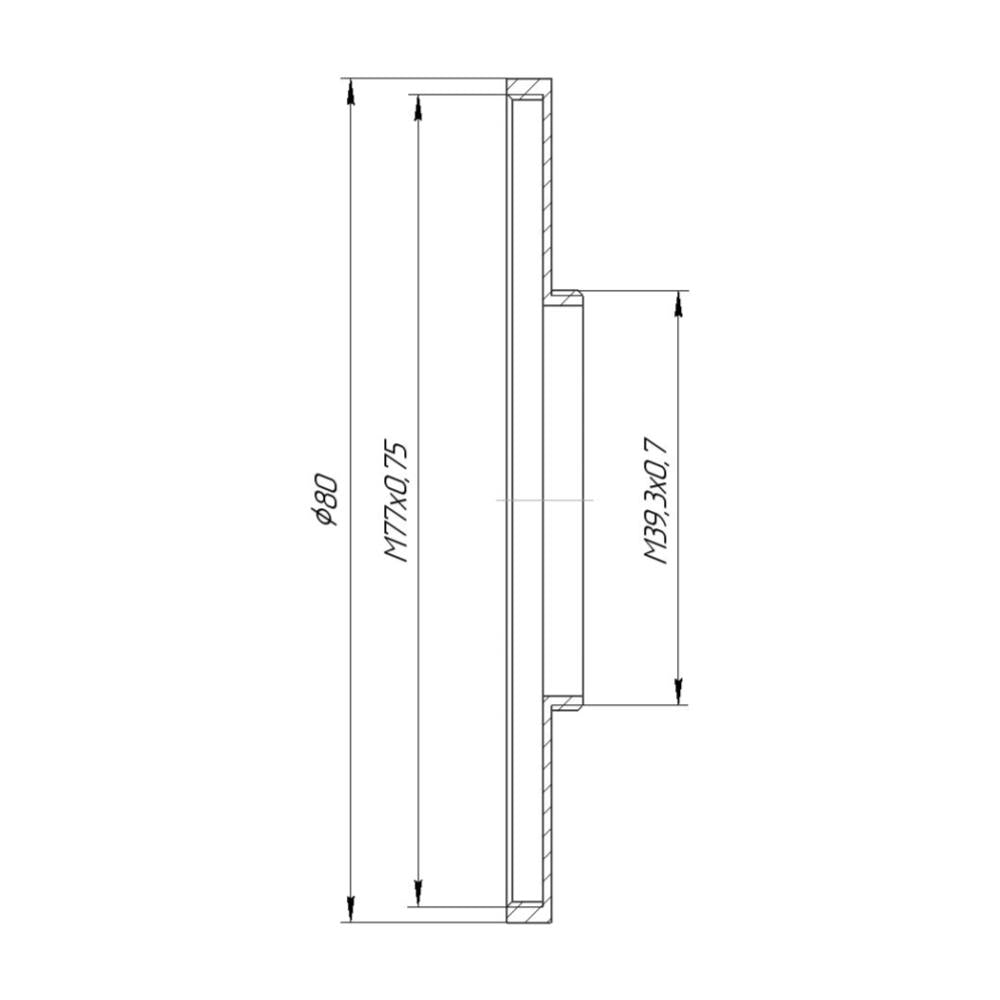

- Front side - M77x0.75 female thread

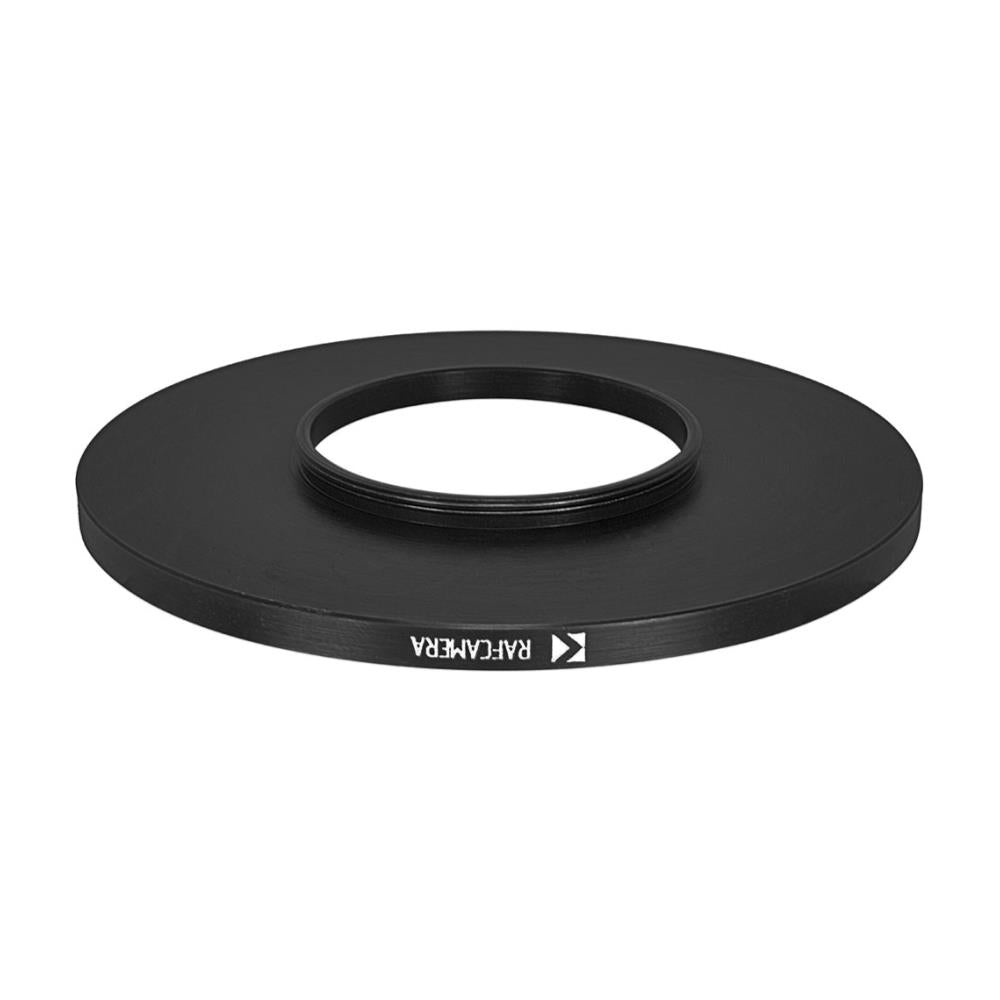

- Rear side - M39.3x0.7 (36 tpi) male thread
- Max. diameter - 80 mm
- Thickness - 4 mm
- Weight - 15 g
This adapter allows using M77x0.75 filters on lenses with M39.3x0.7 filter thread.
Made of anodized aluminium.

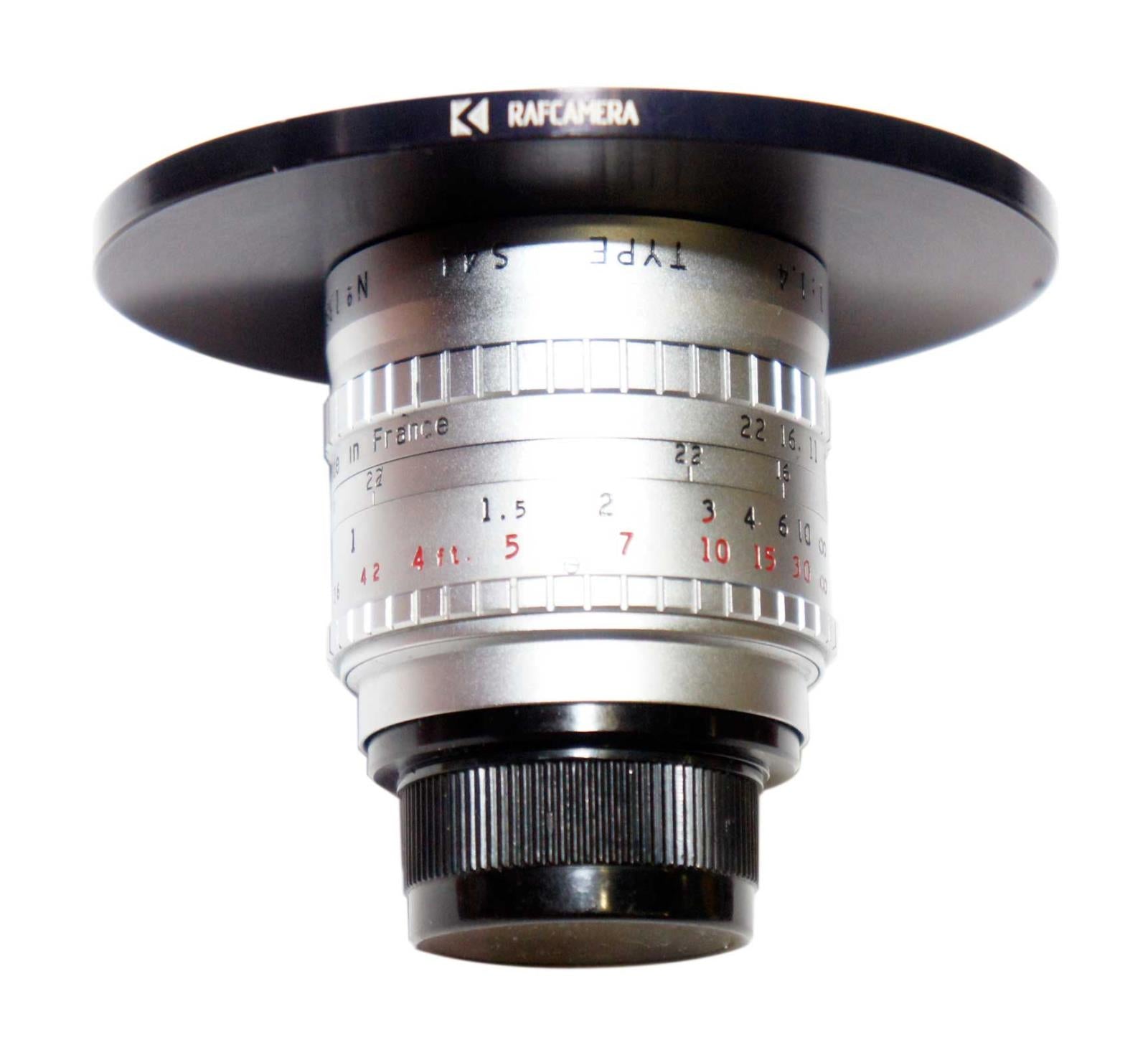

Known compatible lenses are 16mm Angenieux ones:
- Type R41 1.3/15mm
- Type S41 1.4/25mm
- Type S42 1.4/25mm
- Type M1 0.95/25mm
- Type P3 2.5/75mm
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
Details
- Front side - M77x0.75 female thread
- Rear side - M39.3x0.7 (36 tpi) male thread
- Max. diameter - 80 mm
- Thickness - 4 mm
- Weight - 15 g
This adapter allows using M77x0.75 filters on lenses with M39.3x0.7 filter thread.
Made of anodized aluminium.
Known compatible lenses are 16mm Angenieux ones:
- Type R41 1.3/15mm
- Type S41 1.4/25mm
- Type S42 1.4/25mm
- Type M1 0.95/25mm
- Type P3 2.5/75mm
More Information
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
Questions
