M42x1 thread lens to Konvas/Kinor OCT-19 camera mount adapter

Skip to product information
1 of 4

Regular price €88,80 EUR
Regular price Sale price €88,80 EUR
Sale Sold out

SKU#:SKU: SKU#:763461173453


View full details

  • Details
  • More Information
  • Questions

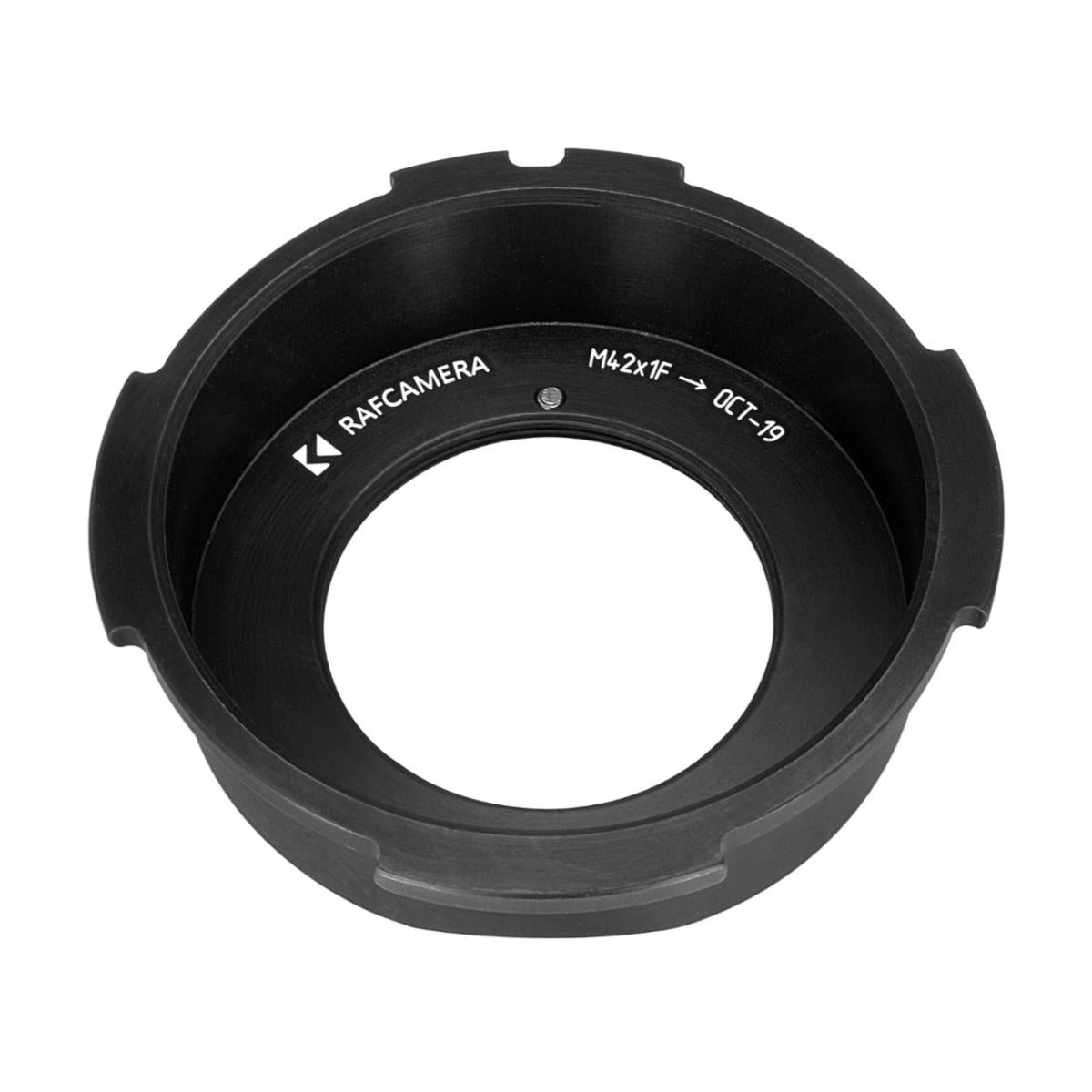

  • Front side - M42x1 female thread

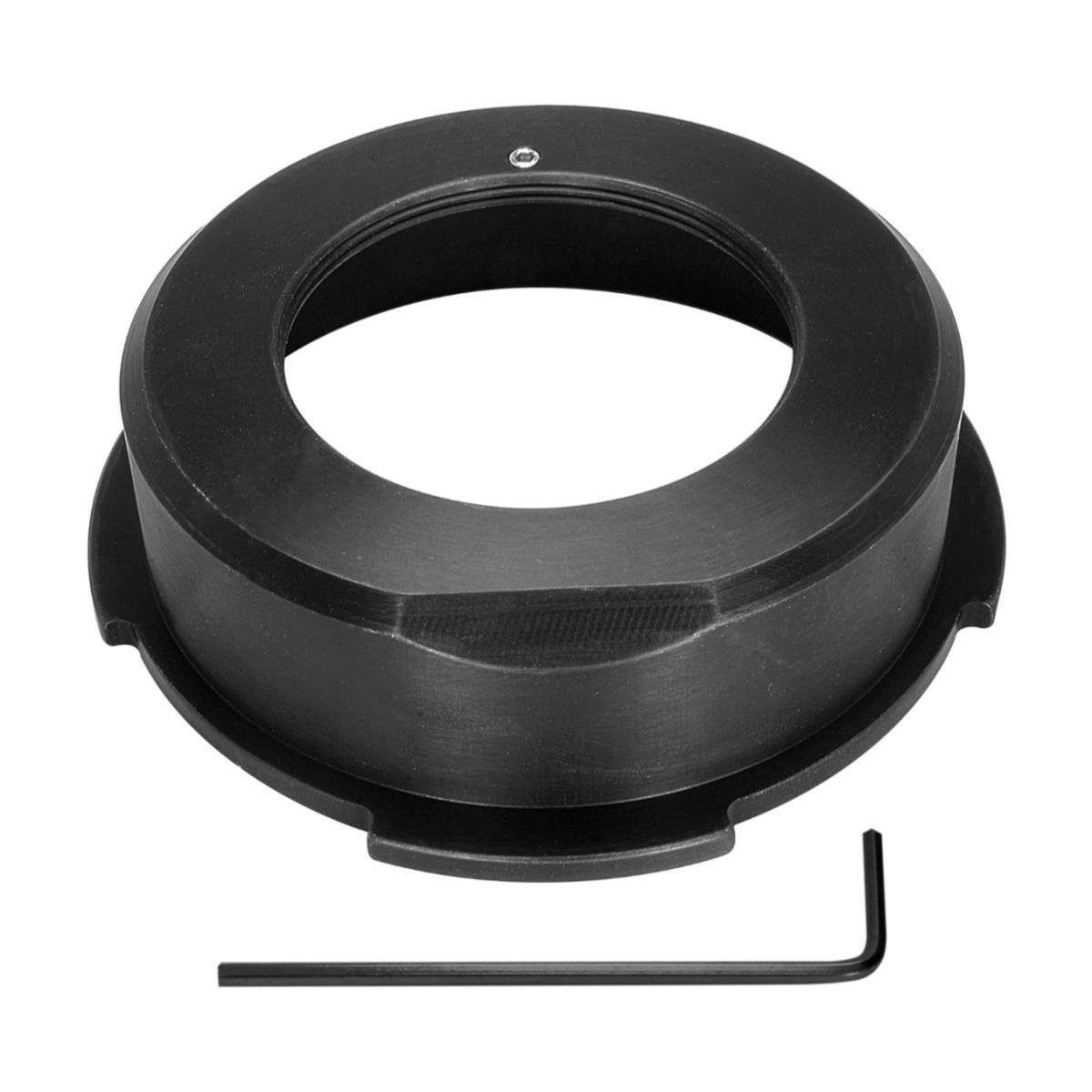

  • Rear side - fits OCT-19 camera mount
  • Machined of high quality aluminium alloy
This adapter allows you to use Zenit/Praktica M42 lenses on your Konvas-2M camera. Due to necessity to match flange focal distance, we had to protrude it inside the camera. This causes two problems:
  1. This adapter will not fit Kinor-35.
  2. Some M42 lenses will not fit it.

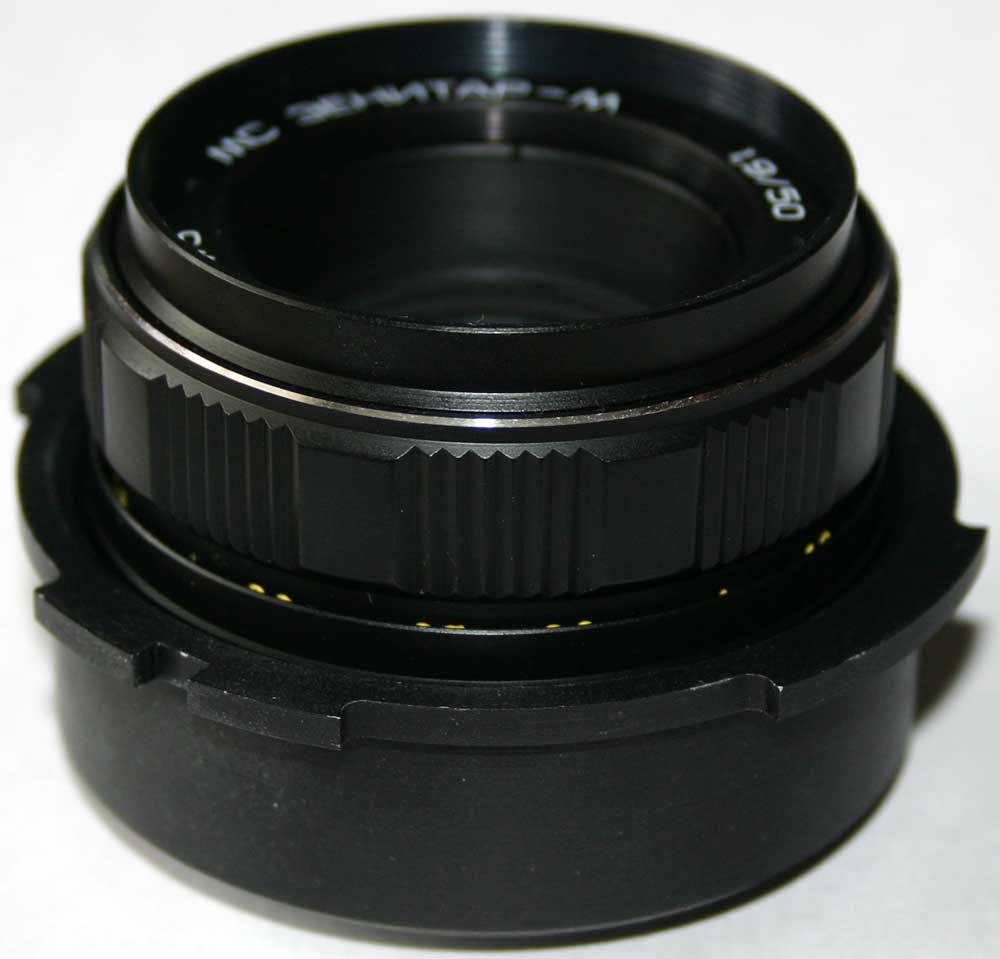

I have only three M42 lenses at the moment. All three fit the adapter and focus fine. Focus and aperture rings of Industar-50-2 and Helios-44-2 are accessible. On the Zenitar-M, aperture ring becomes inaccessible since it is located too close to the mount.

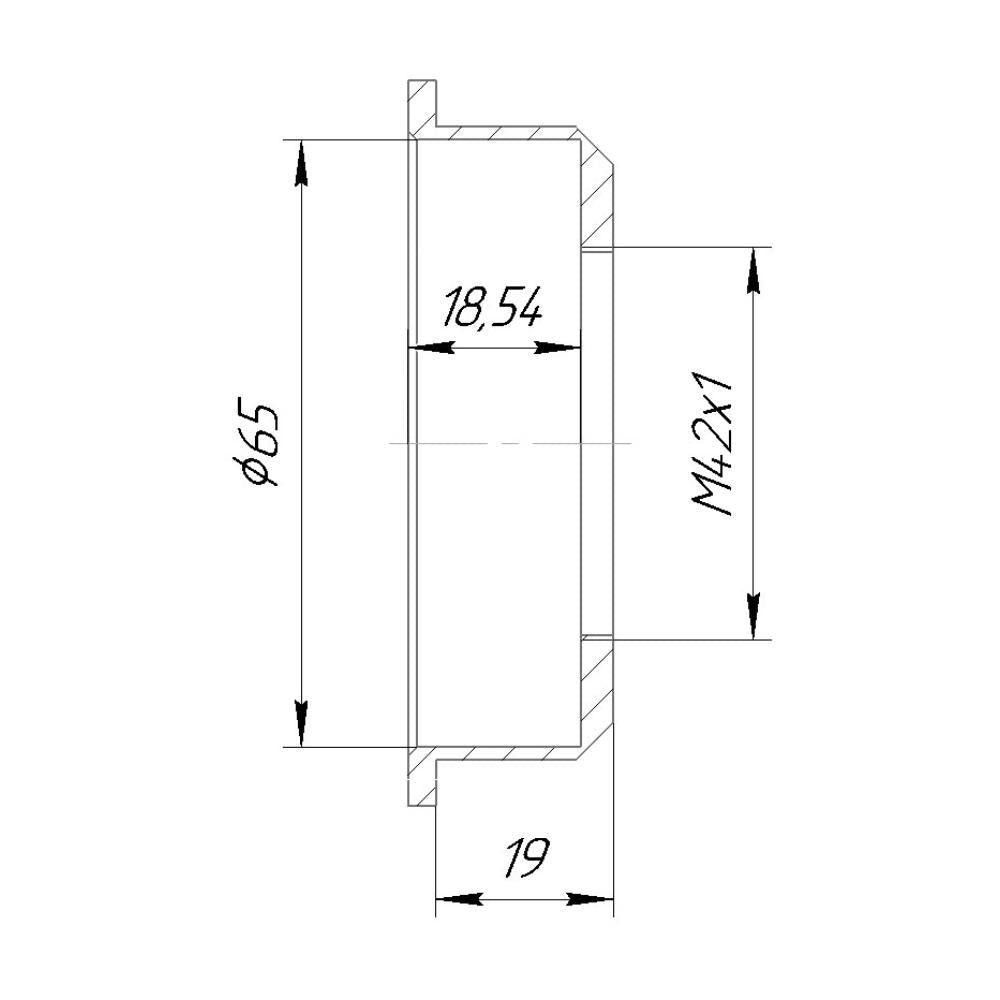

You should check dimensions of your lenses before purchase. Depth of the adapter is 19mm, inner diameter is 64mm. Make sure that your lens is slim enough in its rear part to fit the adapter. If not, you still can use this adapter in reverse direction, but you'll be able to use the lens in macro mode only, and aligning of the optical axis may be tricky.
Also, this adapter has no stop ring for instant return diaphragm pin. Your lens should have manual aperture mode switch.
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
