M44x0.5 female to M58x0.75 male thread adapter for LOMO 75mm optical blocks
- Details
- More Information
- Questions

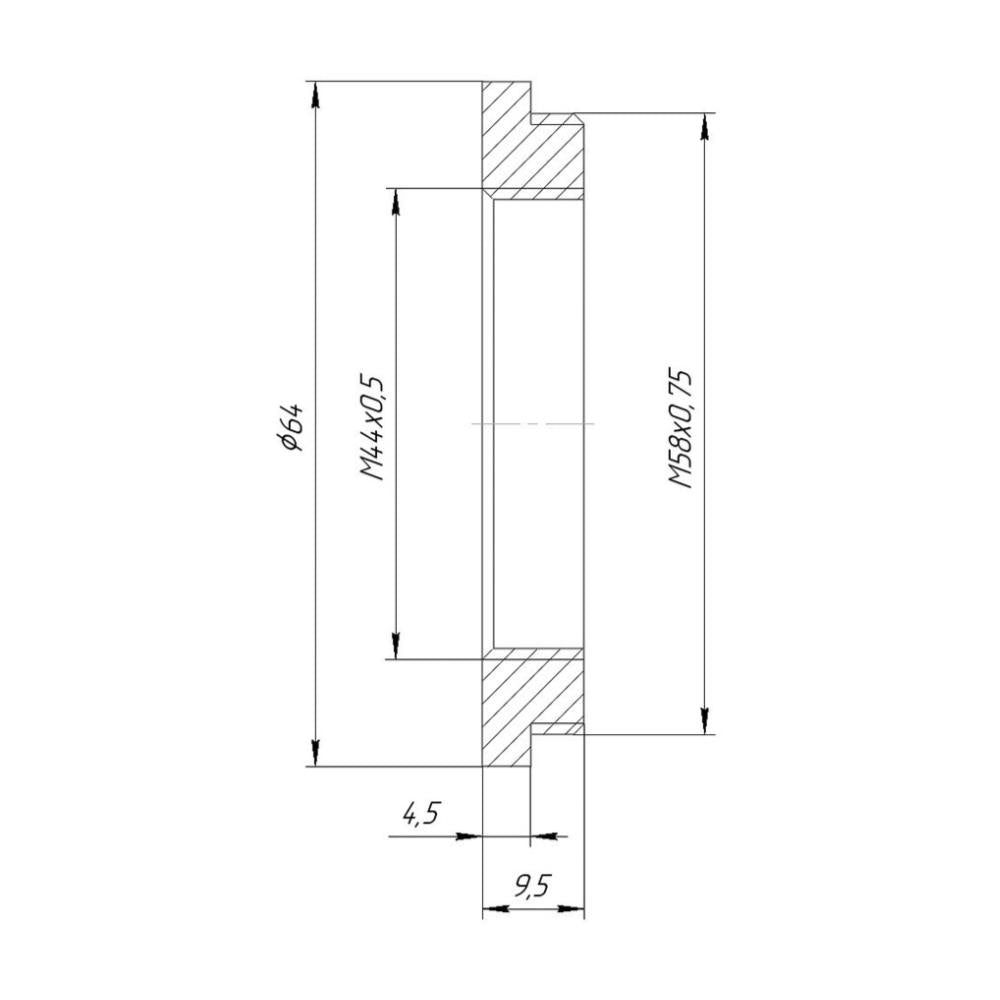

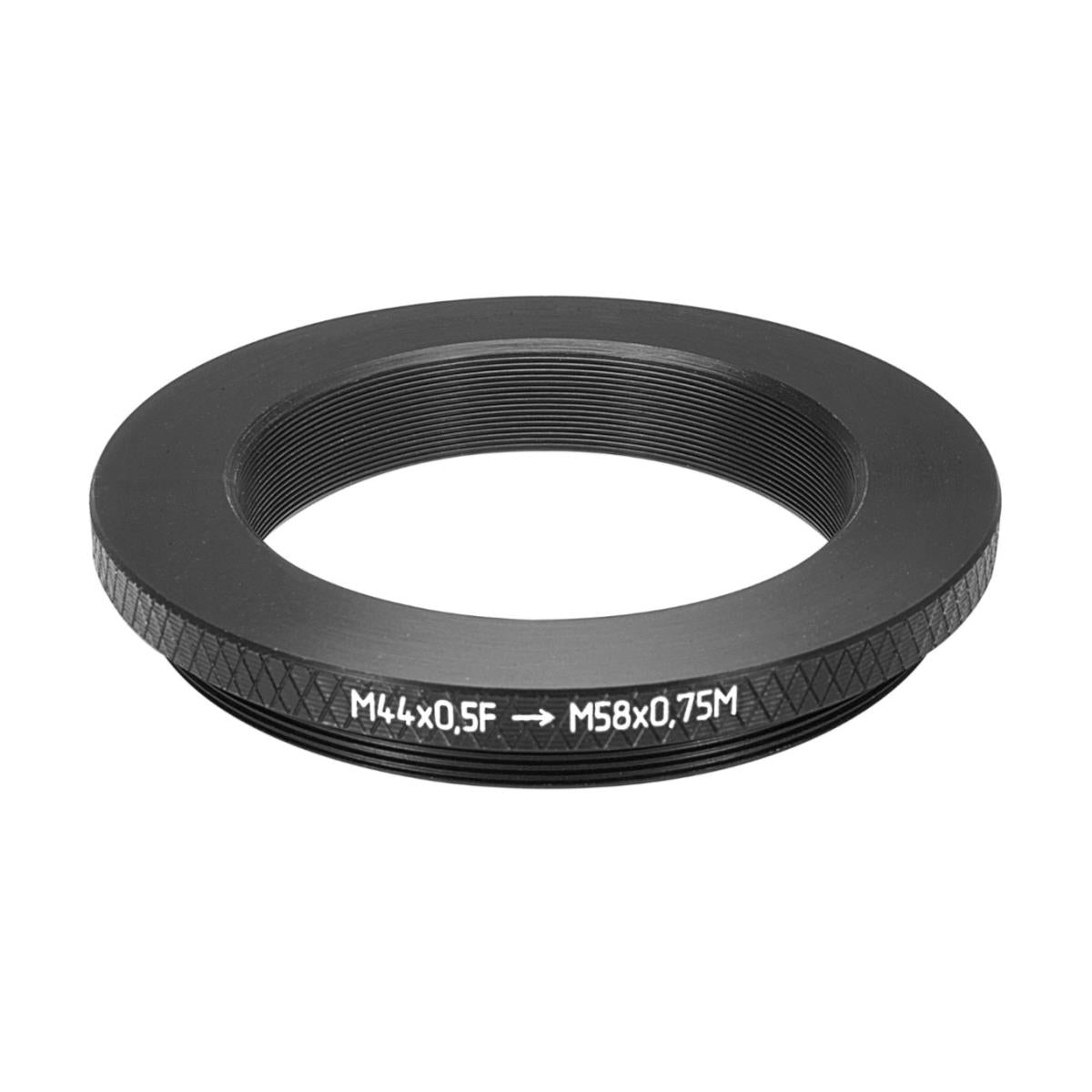

- Front side - M44x0.5 female thread

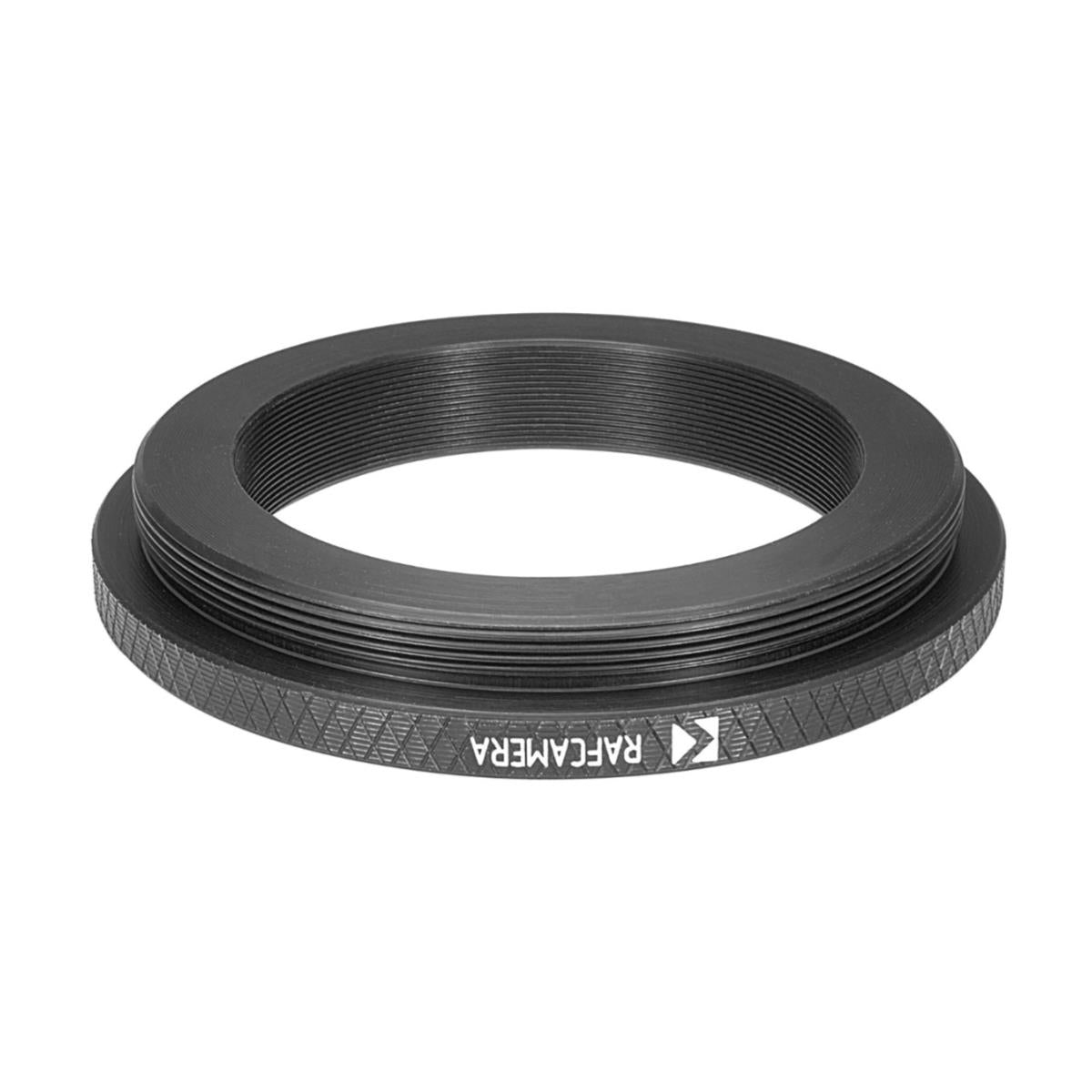

- Rear side - M58x0.75 male thread
Some LOMO lenses like OKS1-75-1, OKS6-75-1 come in weird unusable mounts that can't be adapted to modern cameras.
In this case you can disassemble it and take just its optical block (glass assembly with diaphragm mechanism).
Focusing mechanism will be lost in the result. To solve this problem and regain focus ability, you can use our adapter.
It allows installing 75mm LOMO optical blcoks that have M44x0.5 thread onto Chinese focusing helicoids with M58x0.75 thread and achieve infinity focus.
Take note that 75mm blocks may have either 0.5mm pitch or 0.75mm pitch. This adapter is for 0.5mm pitch.
Made of anodized aluminium.
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
