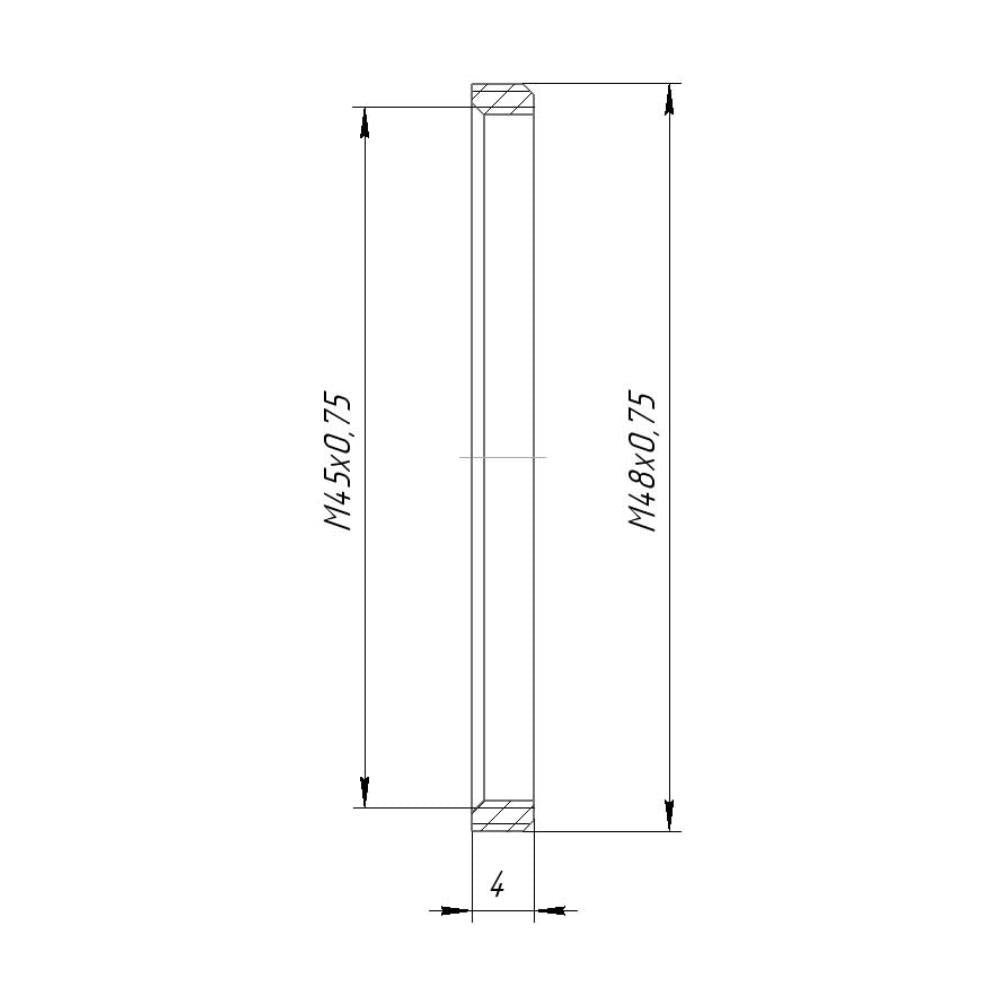

- Front side - M45x0.75 female thread

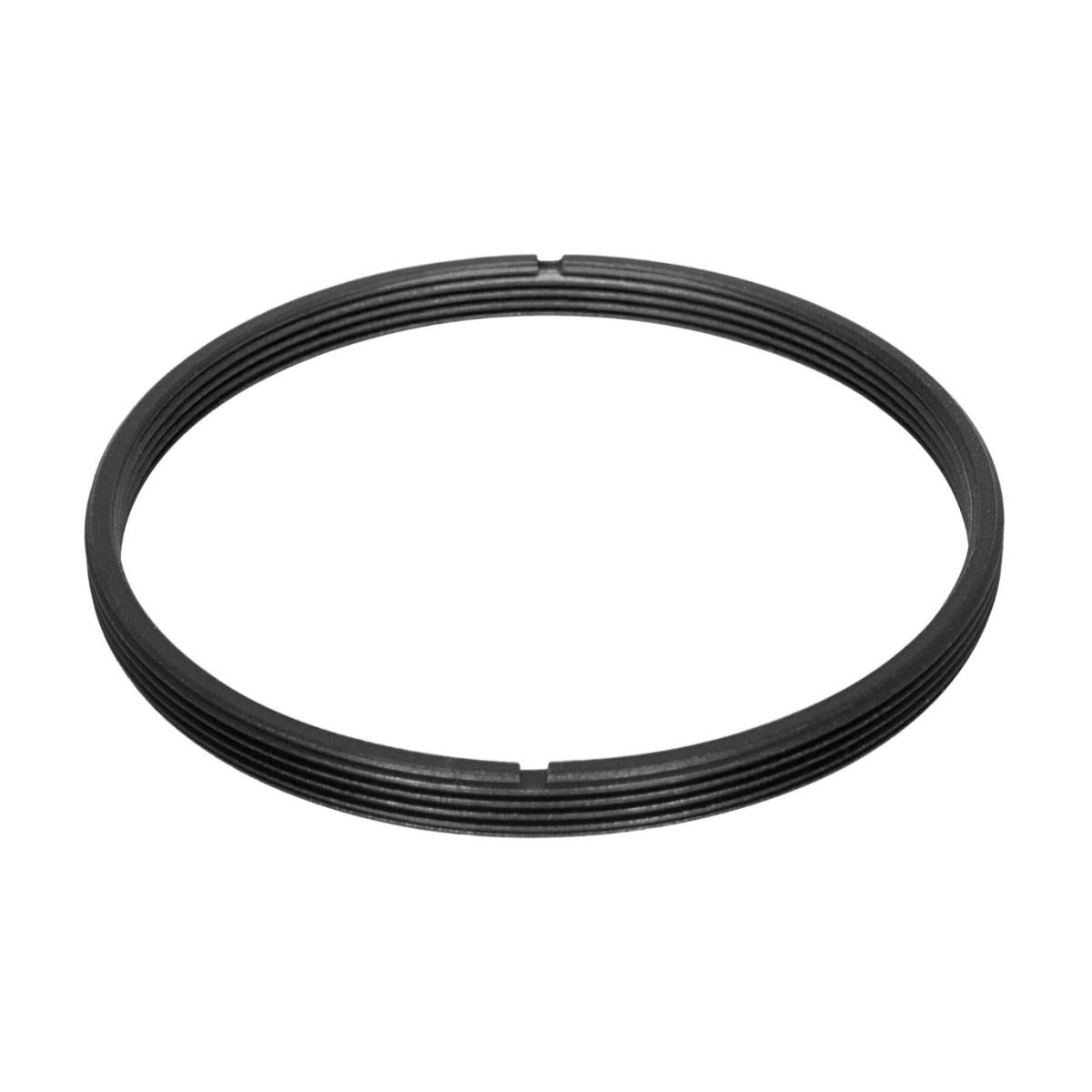

- Rear side - M48x0.75 male thread
Machined of high quality aluminium alloy.
Flangeless desing allows avoiding extra optical path.

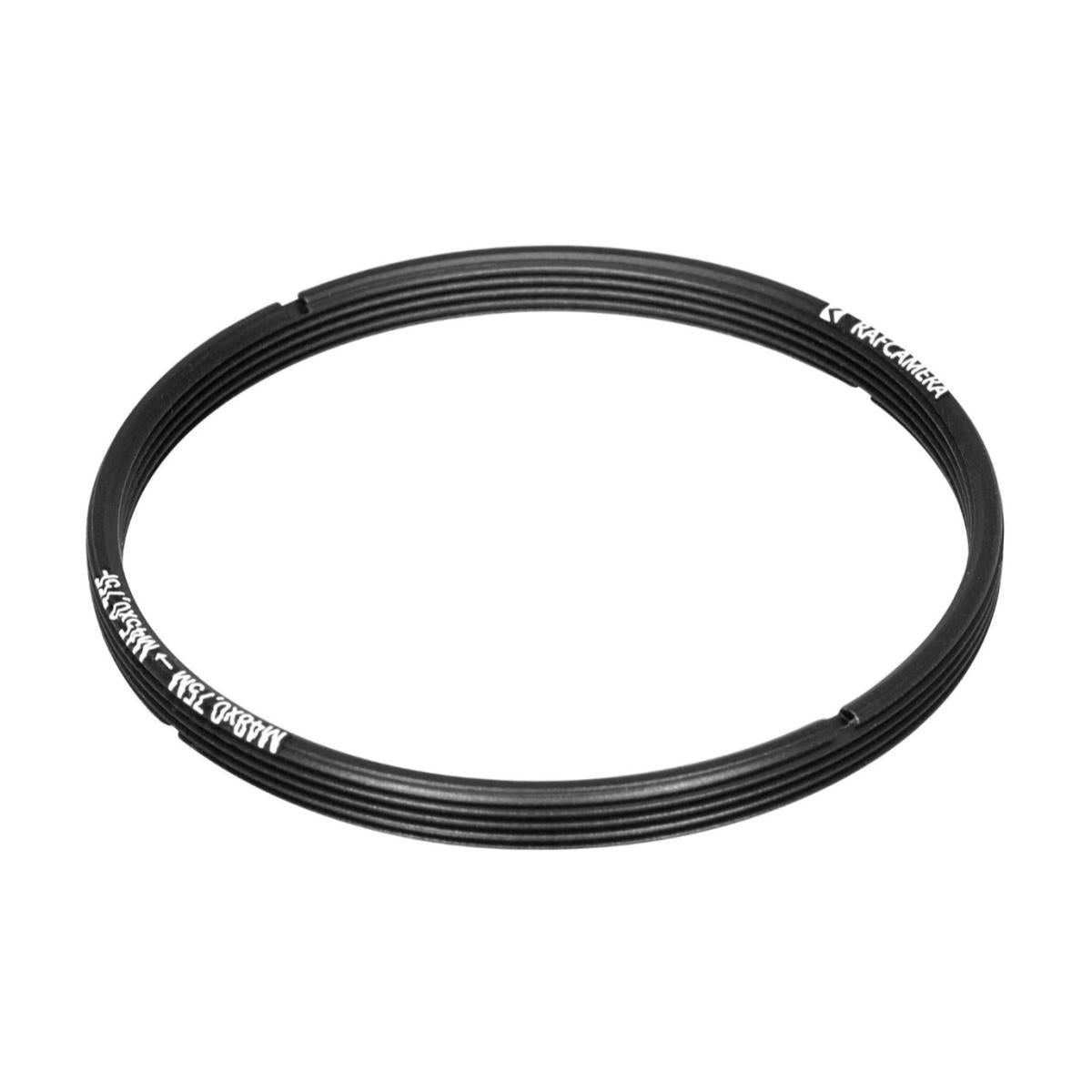

This adapter converts the M45x0.75 threads beneath the eyecup of the 30mm APM UFF eyepiece to a standard 2” filter thread (M48x0.75). The TNV-14 Filter Holder (48mm) can then be threaded to the eyepiece allowing for direct attachment of a PVS-14 image intensifier for afocal use.
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
Details
- Front side - M45x0.75 female thread
- Rear side - M48x0.75 male thread
Machined of high quality aluminium alloy.
Flangeless desing allows avoiding extra optical path.
This adapter converts the M45x0.75 threads beneath the eyecup of the 30mm APM UFF eyepiece to a standard 2” filter thread (M48x0.75). The TNV-14 Filter Holder (48mm) can then be threaded to the eyepiece allowing for direct attachment of a PVS-14 image intensifier for afocal use.
More Information
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
