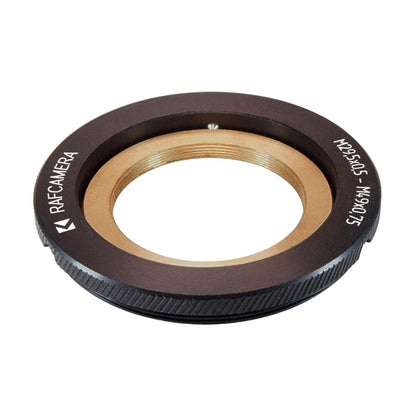

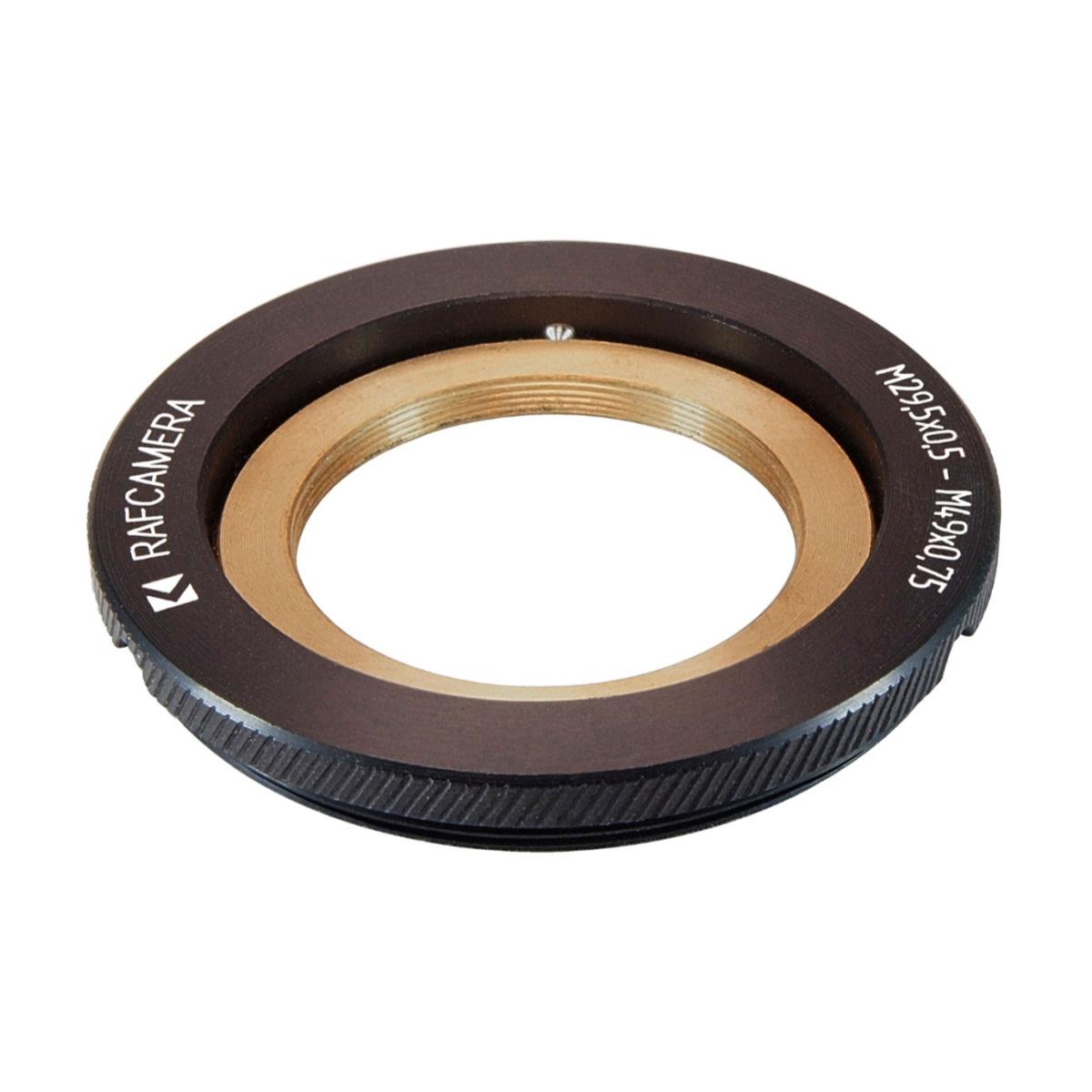

M49x0.75 male to M29.5x0.5 female thread adapter, rotatable

1 2
€58,80 EUR
€58,80 EUR
Sale Sold out

SKU#:711332401235
This adapter allows using some anamorphic attachments like KOWA Prominar 8/2x with M29.5x0.5 thread mount on lenses M49x0.75 (49mm) filter thread.
View full details

  • Details
  • More Information
  • Questions
  • Front side - M29.5x0.5 female thread
  • Rear side - M49x0.75 male thread
  • Max. diameter - 52 mm
  • Distance between flanges - 0.5 mm
  • Weight - 27 g

This adapter allows using some anamorphic attachments like KOWA Prominar 8/2x with M29.5x0.5 thread mount on lenses M49x0.75 (49mm) filter thread.

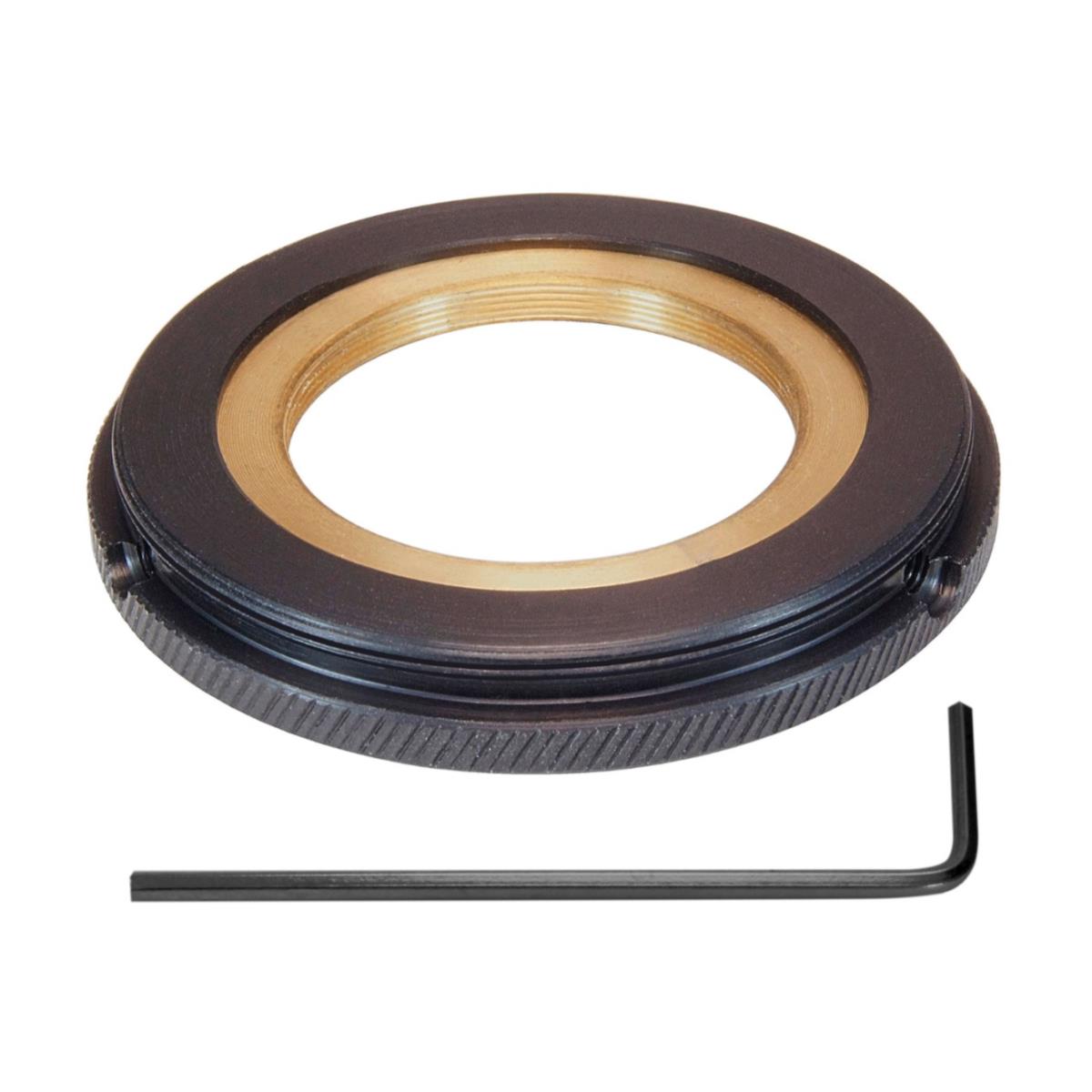

Inner insert can rotate and it is secured with 3 set screws, so you can adjust position of your attachment to achieve perfect vertical/horizontal squeeze, or skew image if you want.

Adapter body is made of anodized aluminium. Inner thread insert is made of bronze.



Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - M29.5x0.5 female thread
  • Rear side - M49x0.75 male thread
  • Max. diameter - 52 mm
  • Distance between flanges - 0.5 mm
  • Weight - 27 g

This adapter allows using some anamorphic attachments like KOWA Prominar 8/2x with M29.5x0.5 thread mount on lenses M49x0.75 (49mm) filter thread.

Inner insert can rotate and it is secured with 3 set screws, so you can adjust position of your attachment to achieve perfect vertical/horizontal squeeze, or skew image if you want.

Adapter body is made of anodized aluminium. Inner thread insert is made of bronze.



More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
