M65x1 female thread to MFT (Micro 4/3) camera mount adapter, long

Skip to product information
1 of 5

Regular price €41,40 EUR
Regular price Sale price €41,40 EUR
Sale Sold out

SKU#:SKU: SKU#:711332403086


Made of high quality aluminium alloy.
View full details

  • Details
  • More Information
  • Questions

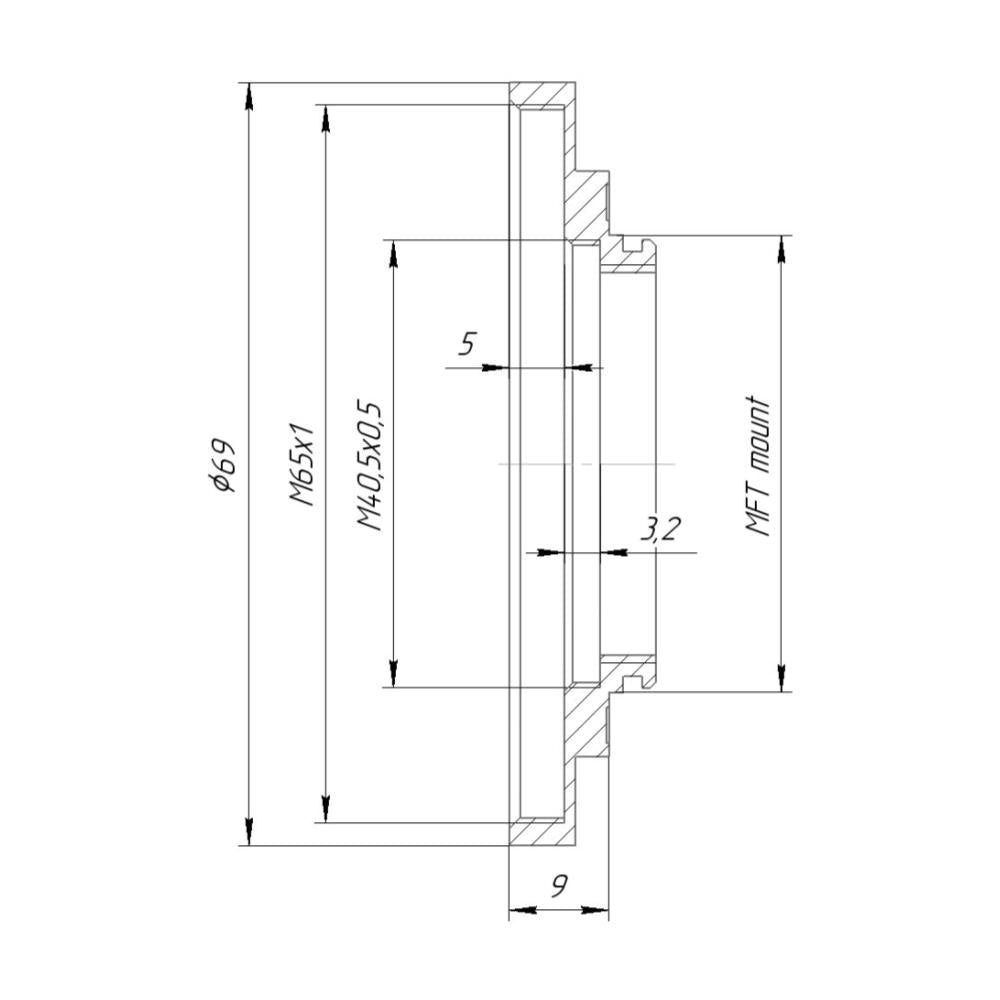

  • Front side - M65x1 female thread

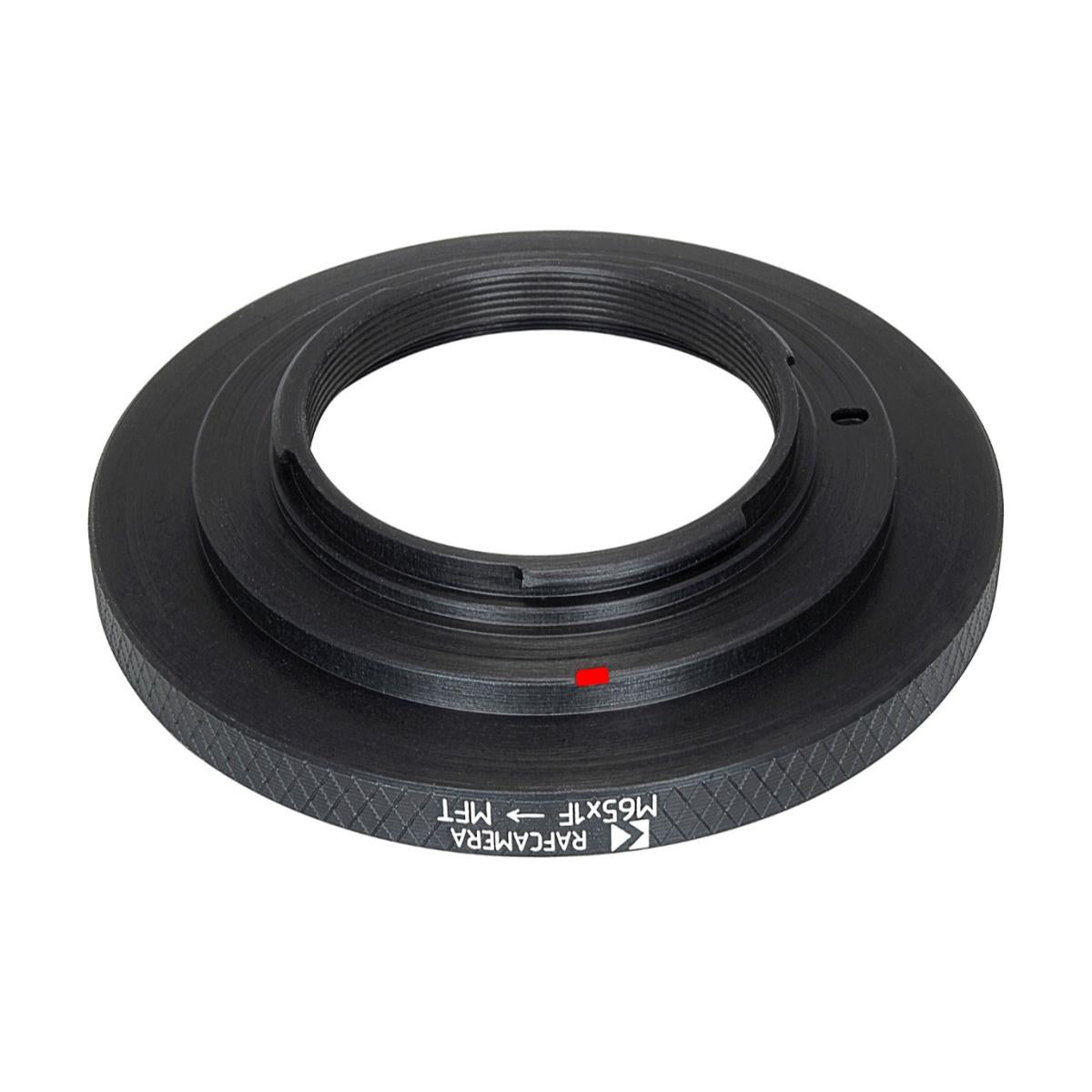

  • Rear side - MFT (micro4/3) mount
  • Flange-to-flange distance - 9 mm
  • Max. diameter - 69 mm
  • Weight - 25 g

Made of high quality aluminium alloy.

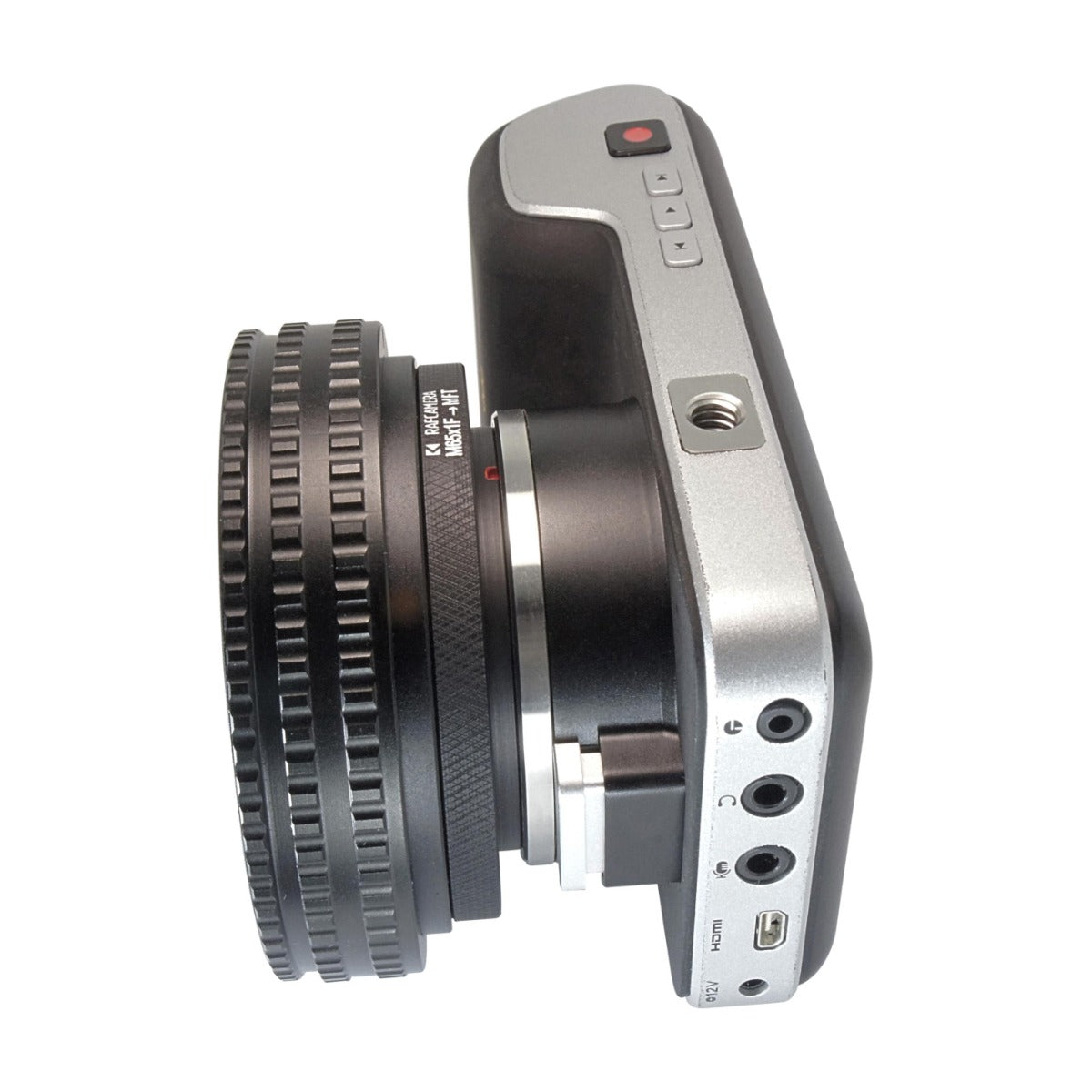

This adapter allows using large focusing helicoids on cameras with MFT (Micro Four Thirds) mount.

Such focusing helicoids allow using some LOMO projection lenses for portrait and macro purposes.

This adapther adds 9mm to optical path.

Pros: you can use it on any MFT cameras, even with protruding front elements like Panasonic G1.

Cons: some lenses could not reach infinity focus in such setup, probably (not confirmed so far, but there is some risk).

Another advantage over original version is front M40.5x0.5 female thread. It allows using polarizers or neutral density filters if necessary.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - M65x1 female thread
  • Rear side - MFT (micro4/3) mount
  • Flange-to-flange distance - 9 mm
  • Max. diameter - 69 mm
  • Weight - 25 g

Made of high quality aluminium alloy.

This adapter allows using large focusing helicoids on cameras with MFT (Micro Four Thirds) mount.

Such focusing helicoids allow using some LOMO projection lenses for portrait and macro purposes.

This adapther adds 9mm to optical path.

Pros: you can use it on any MFT cameras, even with protruding front elements like Panasonic G1.

Cons: some lenses could not reach infinity focus in such setup, probably (not confirmed so far, but there is some risk).

Another advantage over original version is front M40.5x0.5 female thread. It allows using polarizers or neutral density filters if necessary.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
