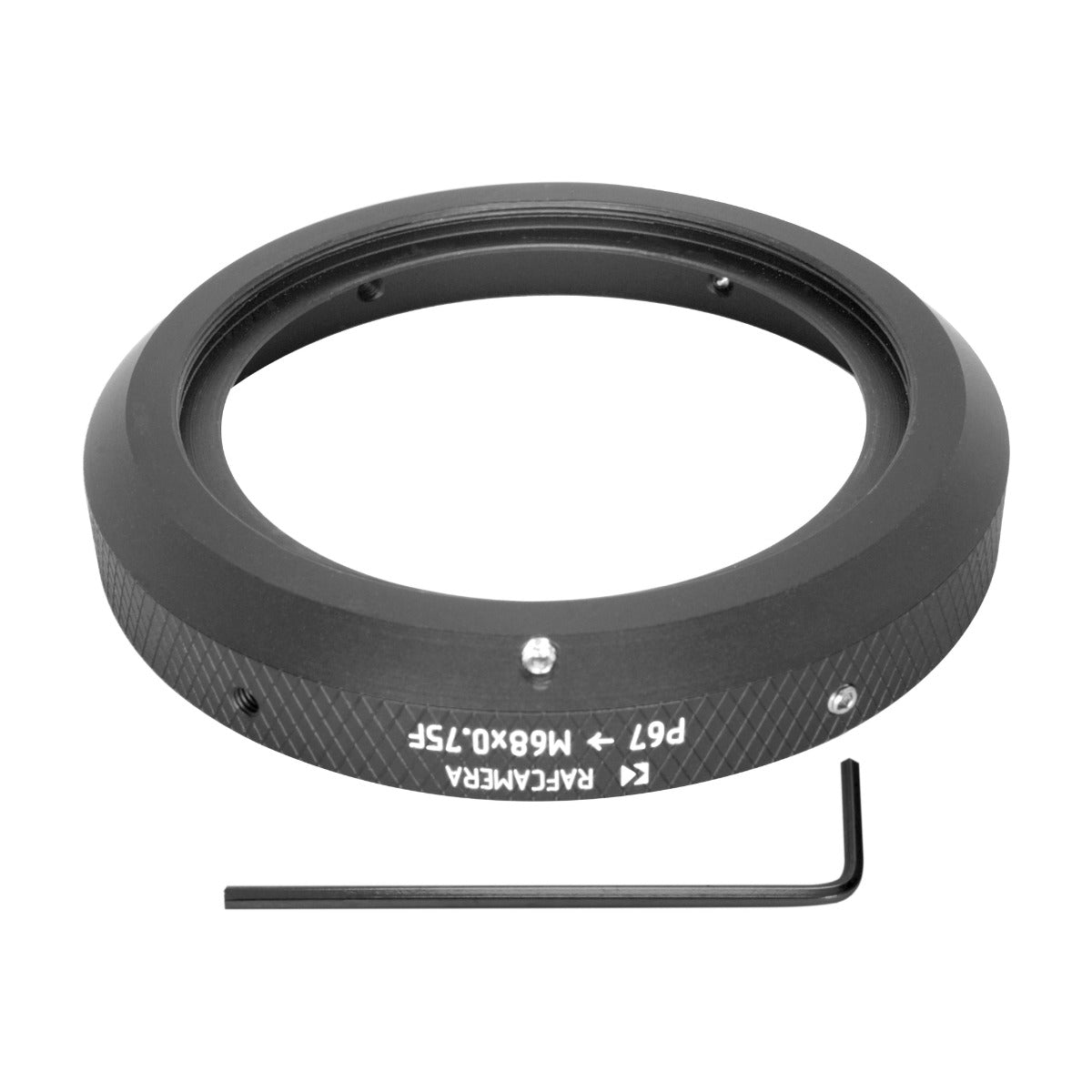

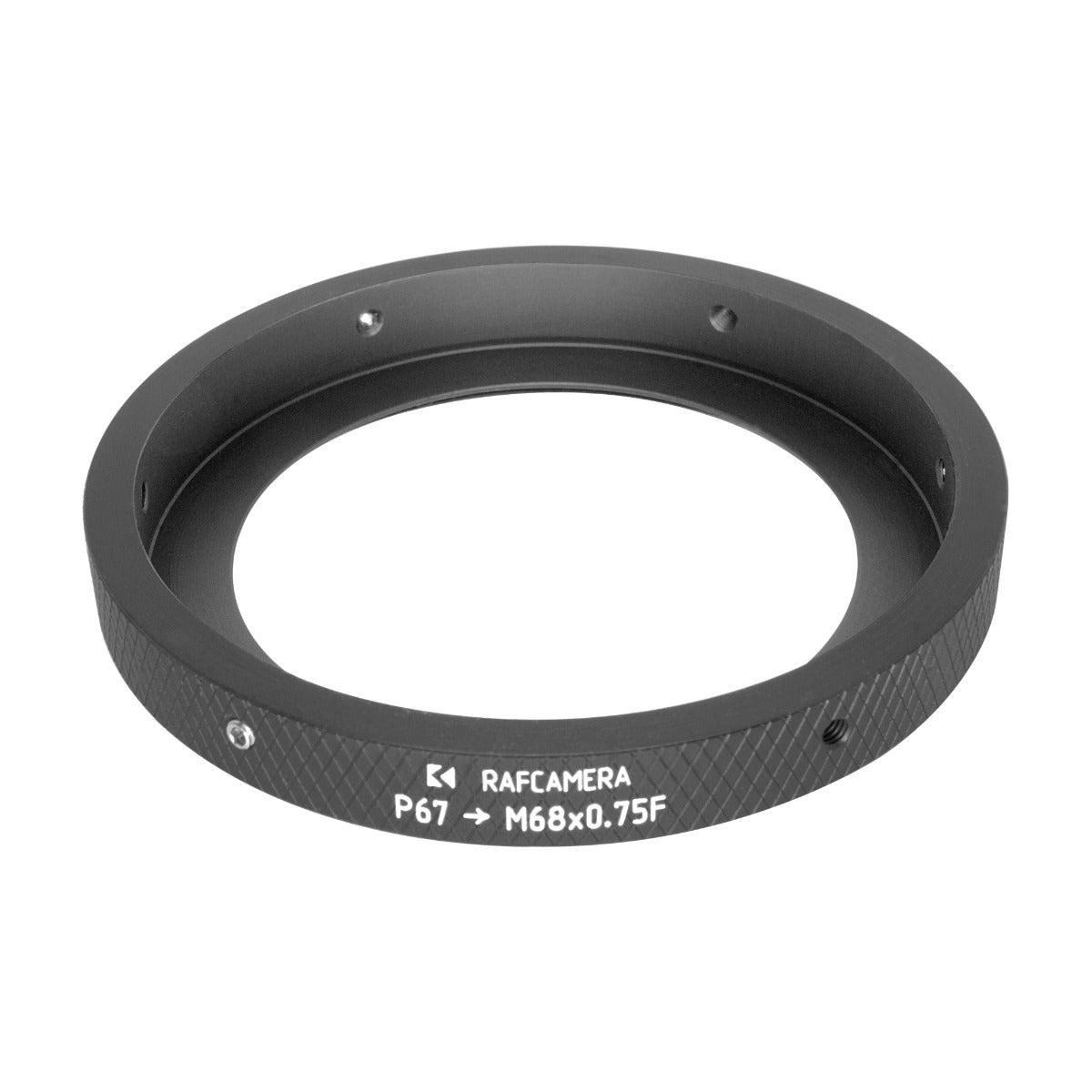

• Front side - accepts Pentax 67 lenses
• Rear side - M68x0.75 female thread
• Machined of high quality aluminium alloy.

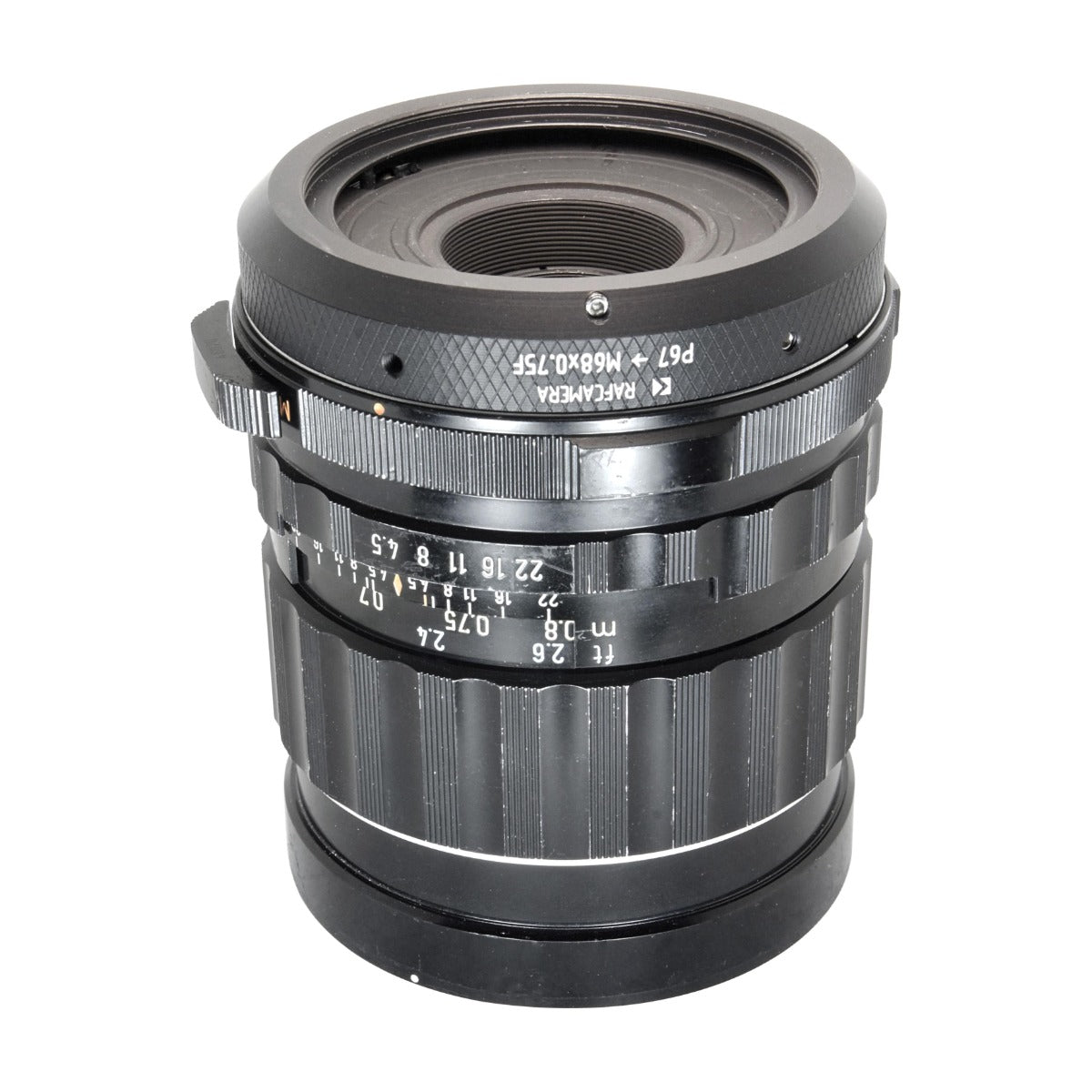

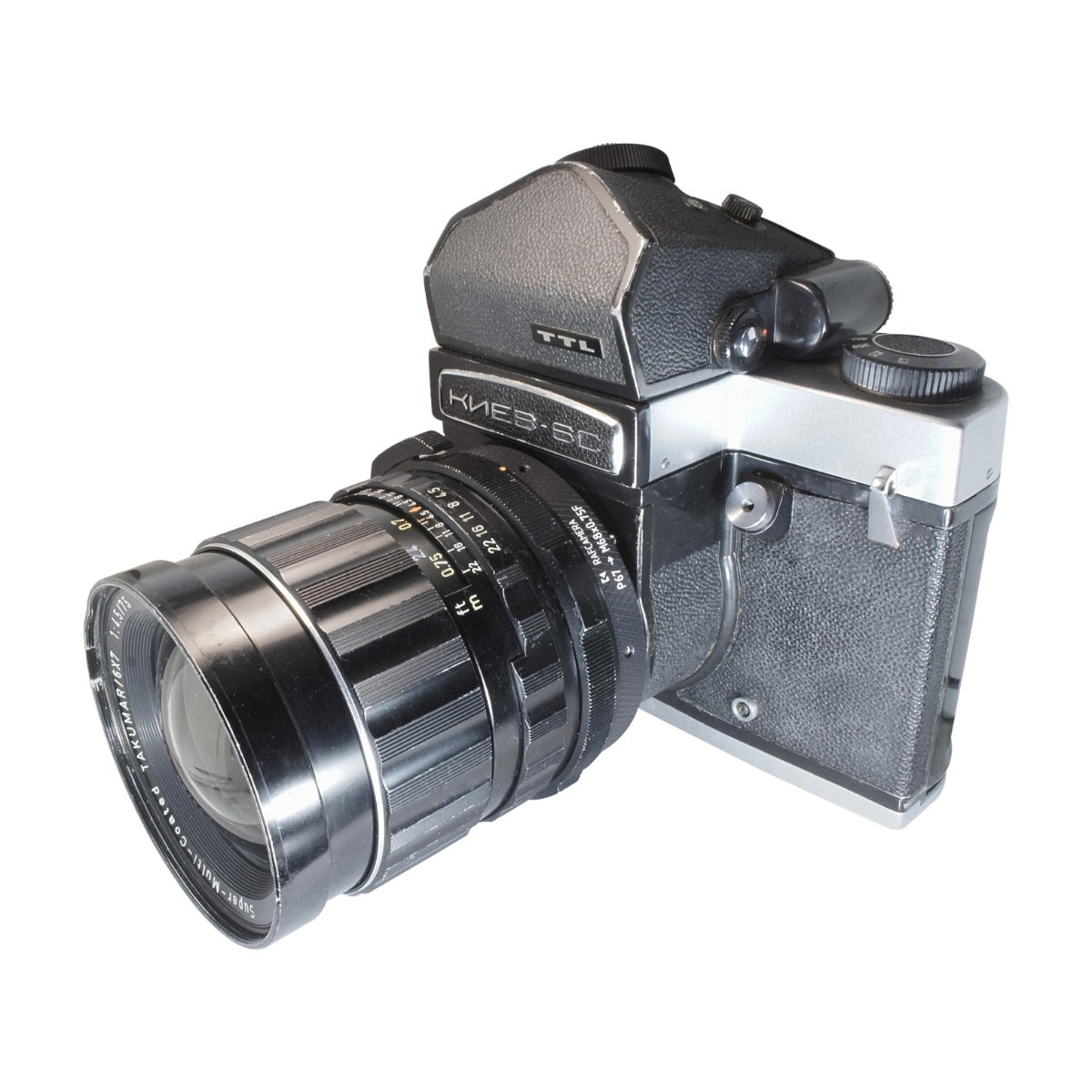

This adapter allows using lenses with Pentax 67 mount on Kiev-60/6C cameras. Please read the description carefully to make sure you understand how it works.

We can't make spring-loaded mounts, and secure a Pentax 67 lens with set screws therefore. This will damage P67 lens mount a bit, but not significantly. It is recommended to mount this adapter to a P67 lens permanently. This securing method is NOT purposed for often lens change.

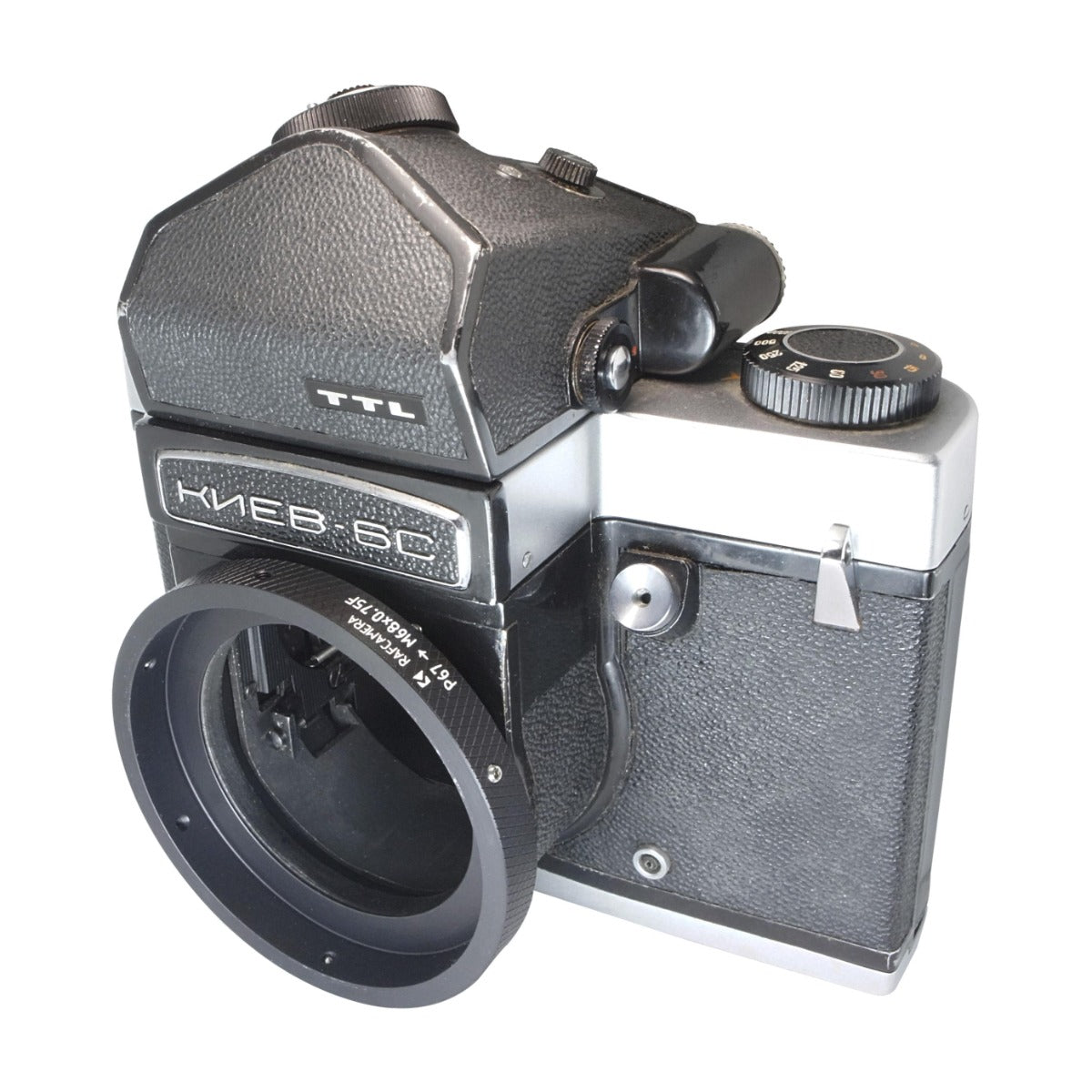

Rear side is made with M68x0.75 female thread instead of male bayonet Kiev-60 mount. This was necessary to reach infinity focus. To use this adapter, you will need to remove a retaining ring from the Kiev-60 camera mount, and screw on our adapter instead of the ring.

The adapter is made without a lens alignment pin, so you can adjust the lens as necessary.

Other than these couple issues, the adapter should work fine and provide infinity focus.

The installation procedure step-by-step:

• Unscrew a set screw from the Kiev-60 camera mount retaining ring.
• Remove the ring.
• Screw on our adapter till stop and tight it with reasonable effort.
• Tight the set screw on the adapter side where original retaining ring screw was. This will help to prevent unscrewing the adapter if your P67 lens has a stiff focus ring.
• Place a Pentax 67 lens into the adapter.
• Tight 3 set screws on the adapter to secure the lens. You may need to use different screw holes to catch the lens lugs. There are 6 holes, but you need to use only 3 suitable ones depending on your lens placement.

If your lens overruns infinity, you can loose the securing screw on the adapter, turn the adapter counter-clockwise a bit till you achieve perfect infinity, and tight that screw again. After this, you may need to re-install the lens, so its witness mark is in convenient position again.
