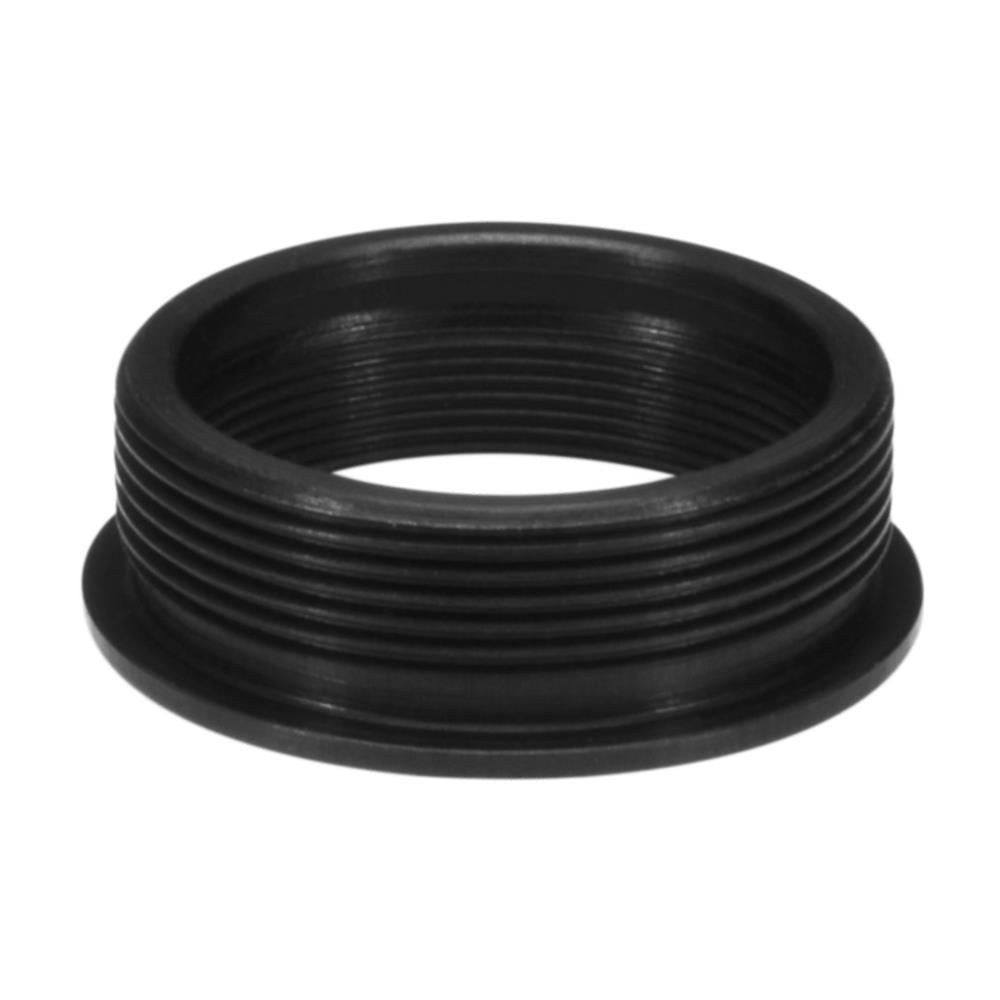

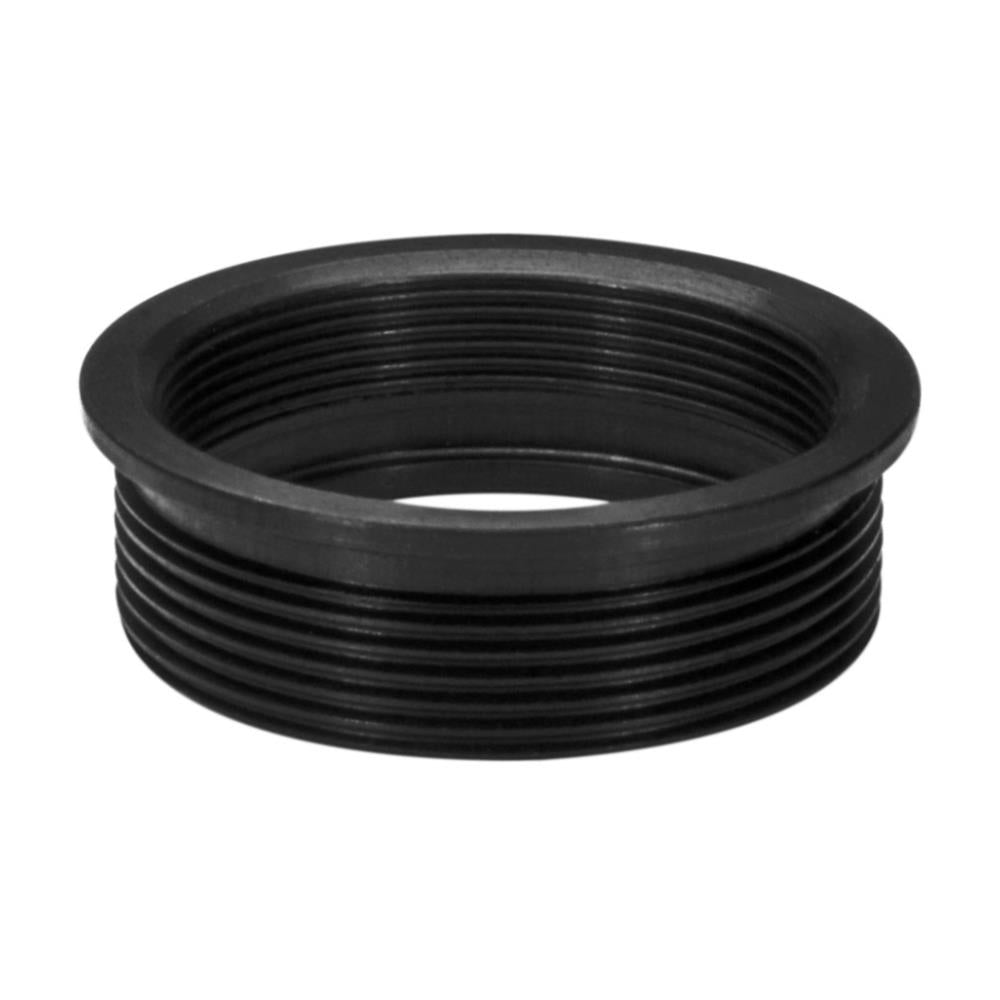

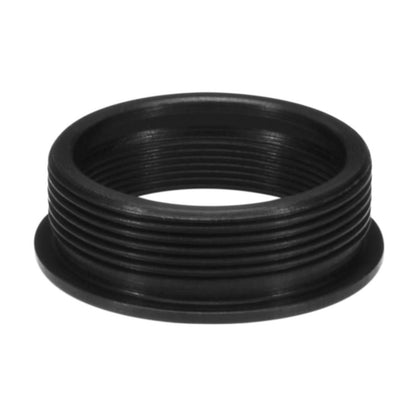

RMS male to M18x0.5 female thread adapter for D-Claron 4/23mm, black

1 3
€30,00 EUR
€30,00 EUR
Sale Sold out

SKU#:711332401617
This adapter allows using lenses with M18x0.5 thread on RMS microscope heads.
View full details

  • Details
  • More Information
  • Questions

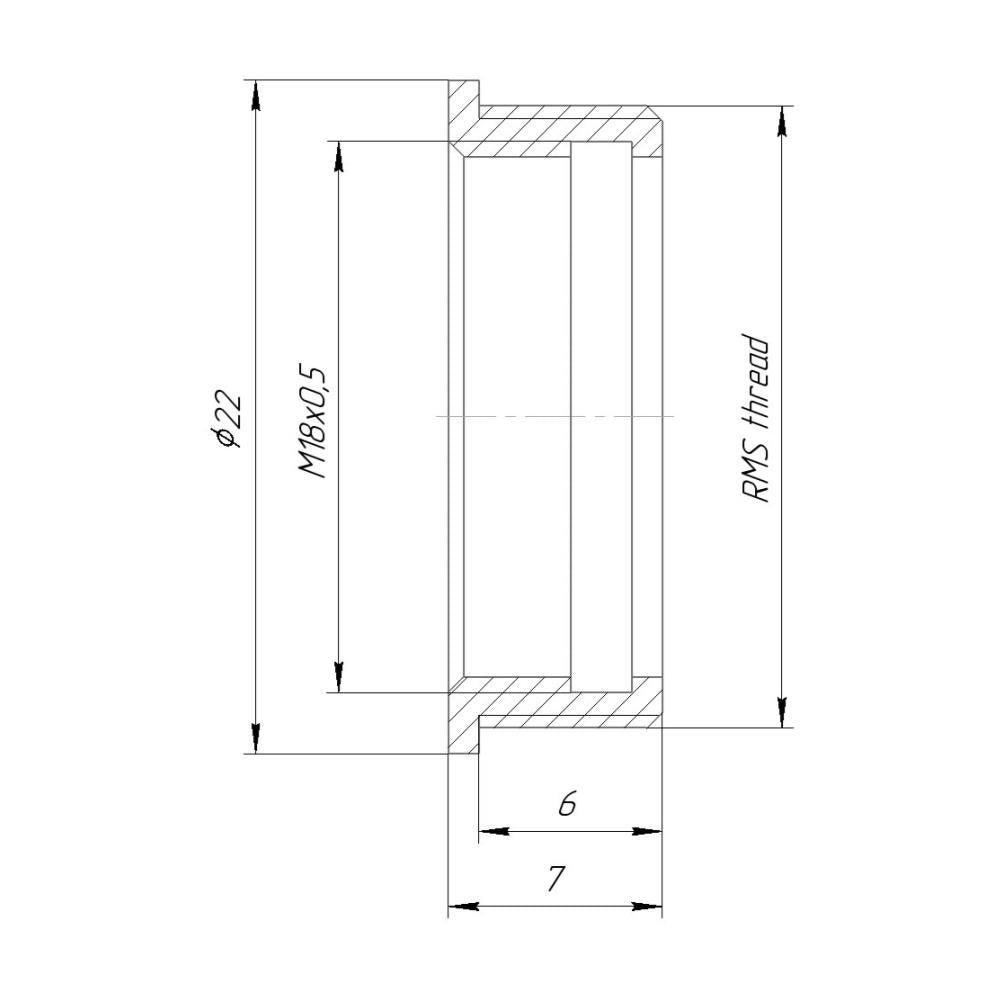

  • Front side - M18x0.5 female thread
  • Rear side - RMS (0.8″-36tpi) male thread
  • Max. diameter - 22 mm
  • Distance between flanges - 1 mm
  • Weight - 1 g

This adapter allows using lenses with M18x0.5 thread on RMS microscope heads.

Among suitable lenses is Schneider D-Claron 4/23mm.

Made of anodized aluminium.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - M18x0.5 female thread
  • Rear side - RMS (0.8″-36tpi) male thread
  • Max. diameter - 22 mm
  • Distance between flanges - 1 mm
  • Weight - 1 g

This adapter allows using lenses with M18x0.5 thread on RMS microscope heads.

Among suitable lenses is Schneider D-Claron 4/23mm.

Made of anodized aluminium.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
