SM2 male to M29.5x0.5 female and M38x0.75 female thread adapter

  • SM2 male to M29.5x0.5 female and M38x0.75 female thread adapter
  • SM2 male to M29.5x0.5 female and M38x0.75 female thread adapter
  • SM2 male to M29.5x0.5 female and M38x0.75 female thread adapter
  • SM2 male to M29.5x0.5 female and M38x0.75 female thread adapter
1 4
€94,80 EUR
€94,80 EUR
Sale Sold out

SKU#:808238403552
Machined from high quality aluminium alloy.
View full details

  • Details
  • More Information
  • Questions

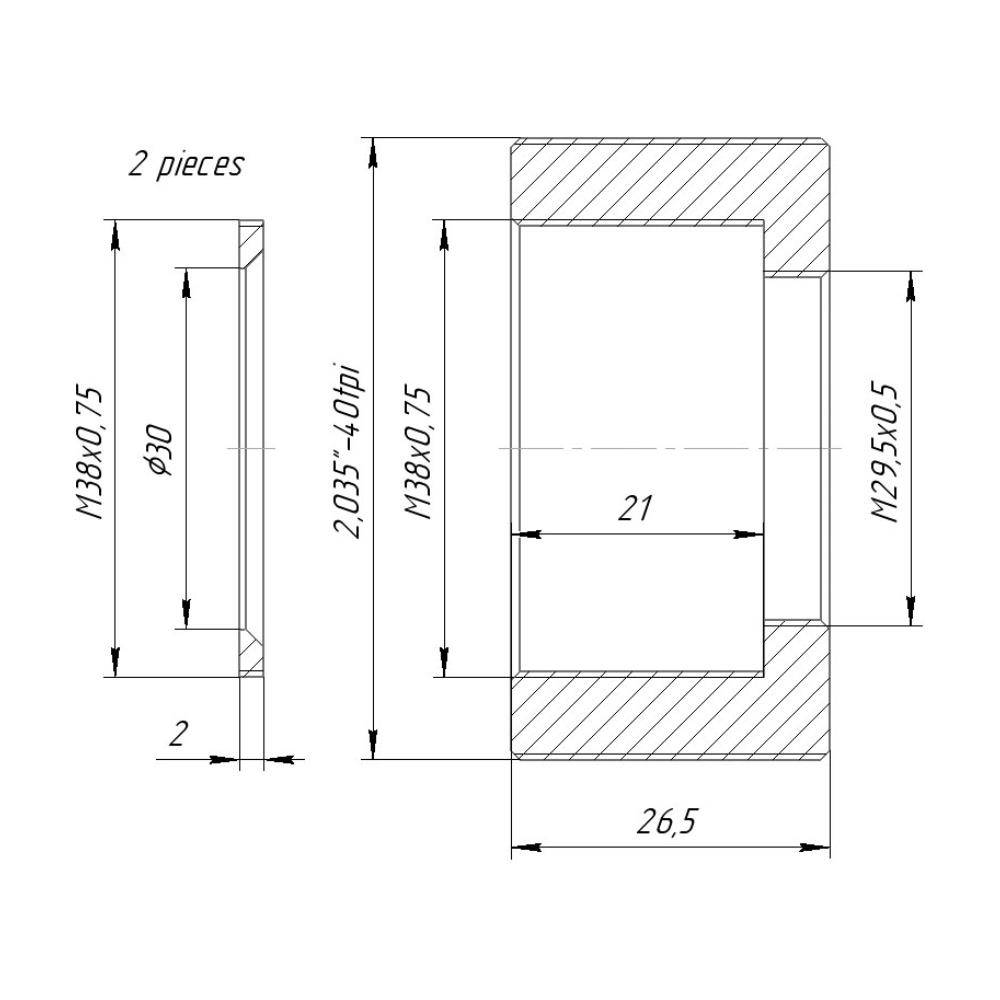

  • Outer side - SM2 male thread (2.035"-40tpi)
  • Inner side - M29.5x0.5 female thread and M38x0.75 female thread

Machined from high quality aluminium alloy.

This adapter allows mounting front or rear lens cells with 29.5mm thread (from Copal/Compur/Prontor #0 shutters) into SM2 tubes/adapters.

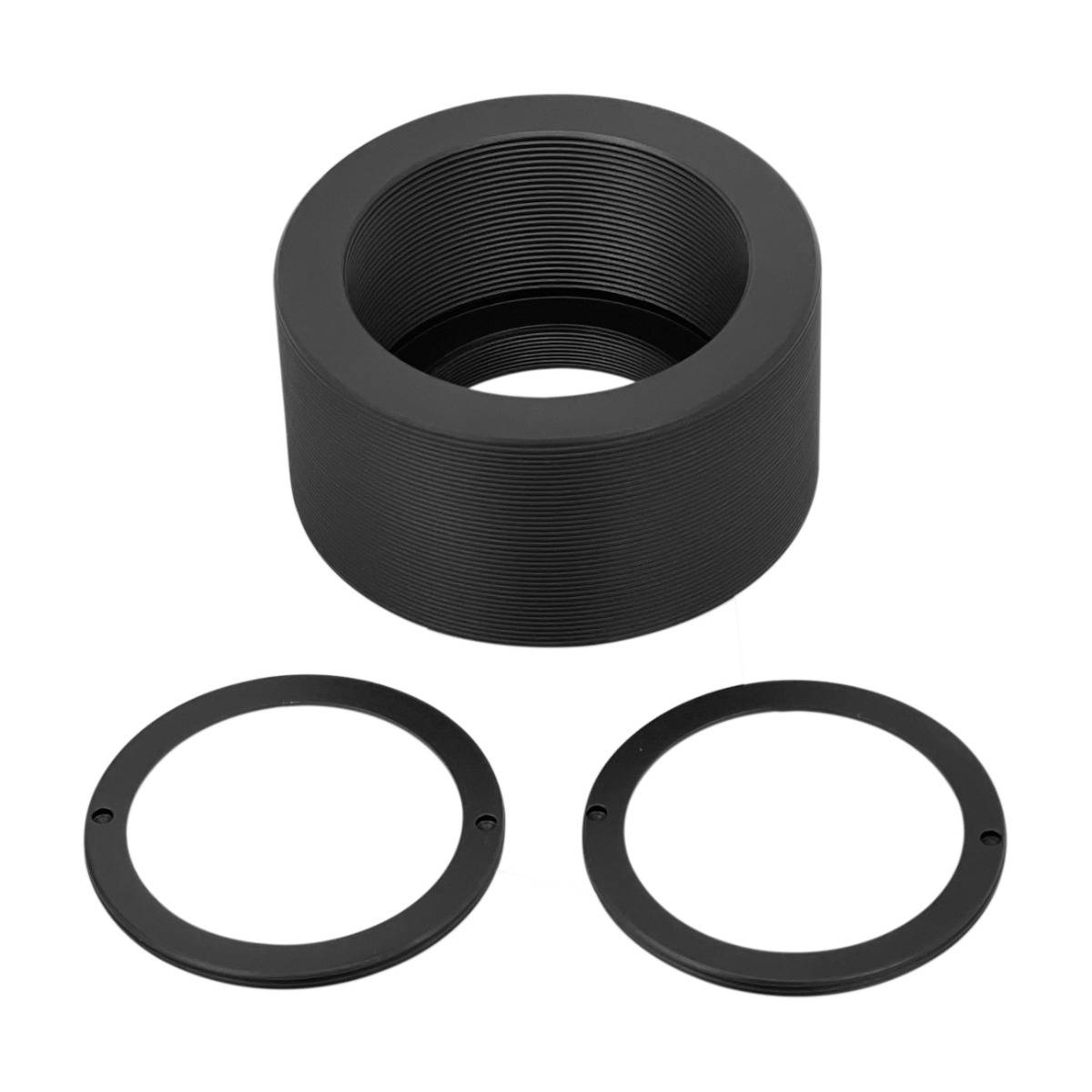

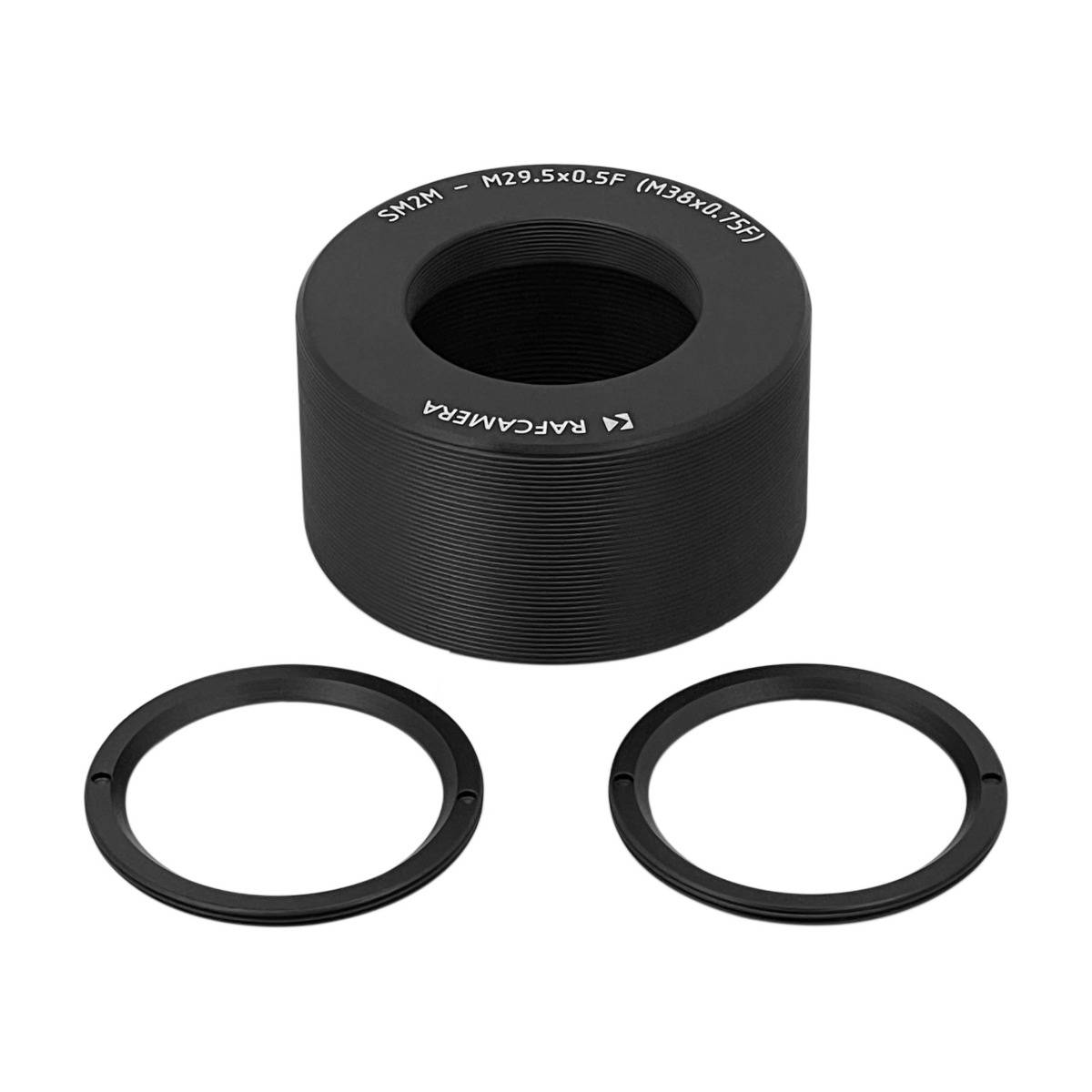

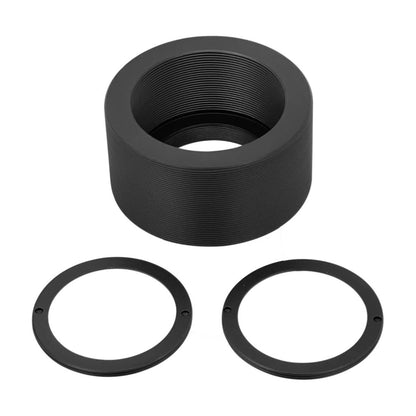

There are two thin retaining rings in the kit. Their purpose is to hold an aperture disk inside the adapter if necessary.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Outer side - SM2 male thread (2.035"-40tpi)
  • Inner side - M29.5x0.5 female thread and M38x0.75 female thread

Machined from high quality aluminium alloy.

This adapter allows mounting front or rear lens cells with 29.5mm thread (from Copal/Compur/Prontor #0 shutters) into SM2 tubes/adapters.

There are two thin retaining rings in the kit. Their purpose is to hold an aperture disk inside the adapter if necessary.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
