Foton lens isn't too heavy (about 1kg), but some people may want to support it anyway if the use it with a small camera.

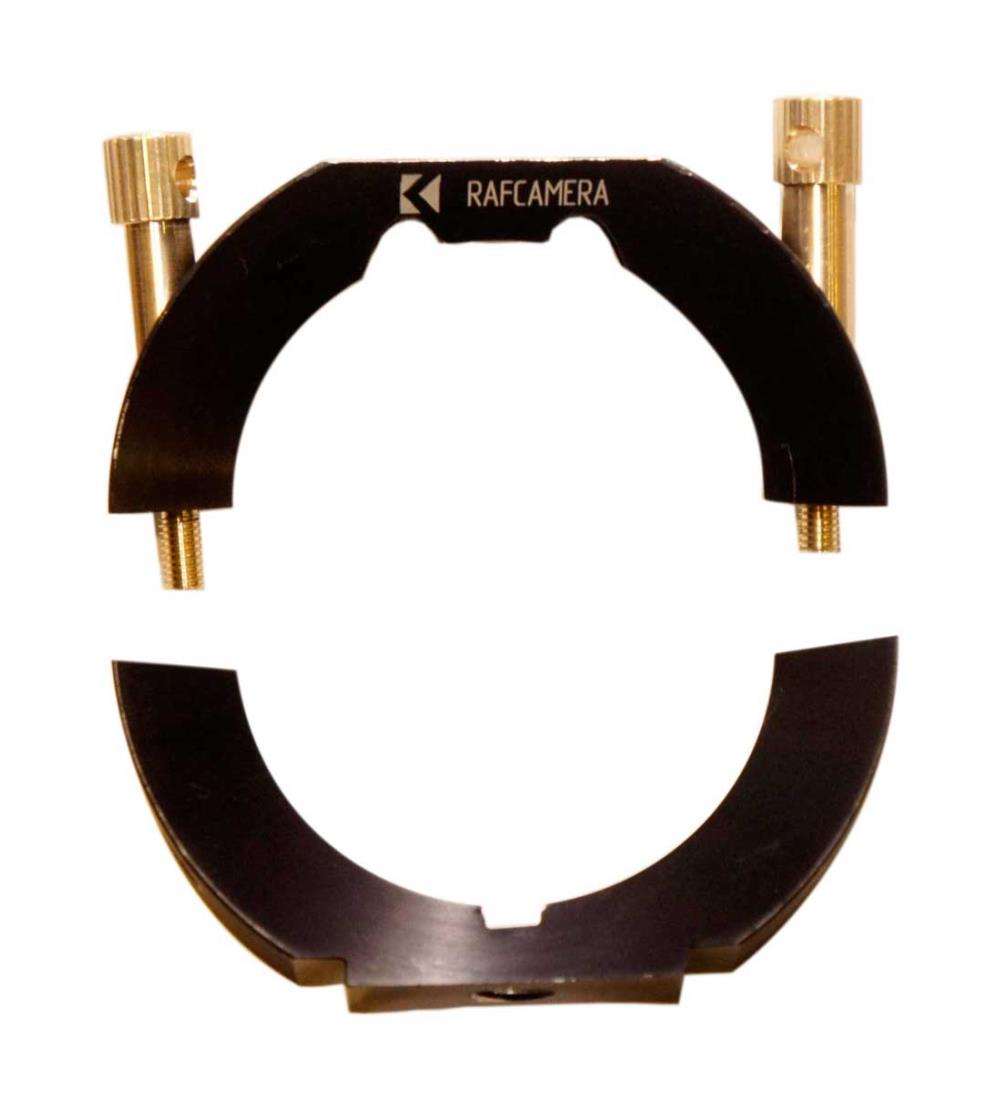

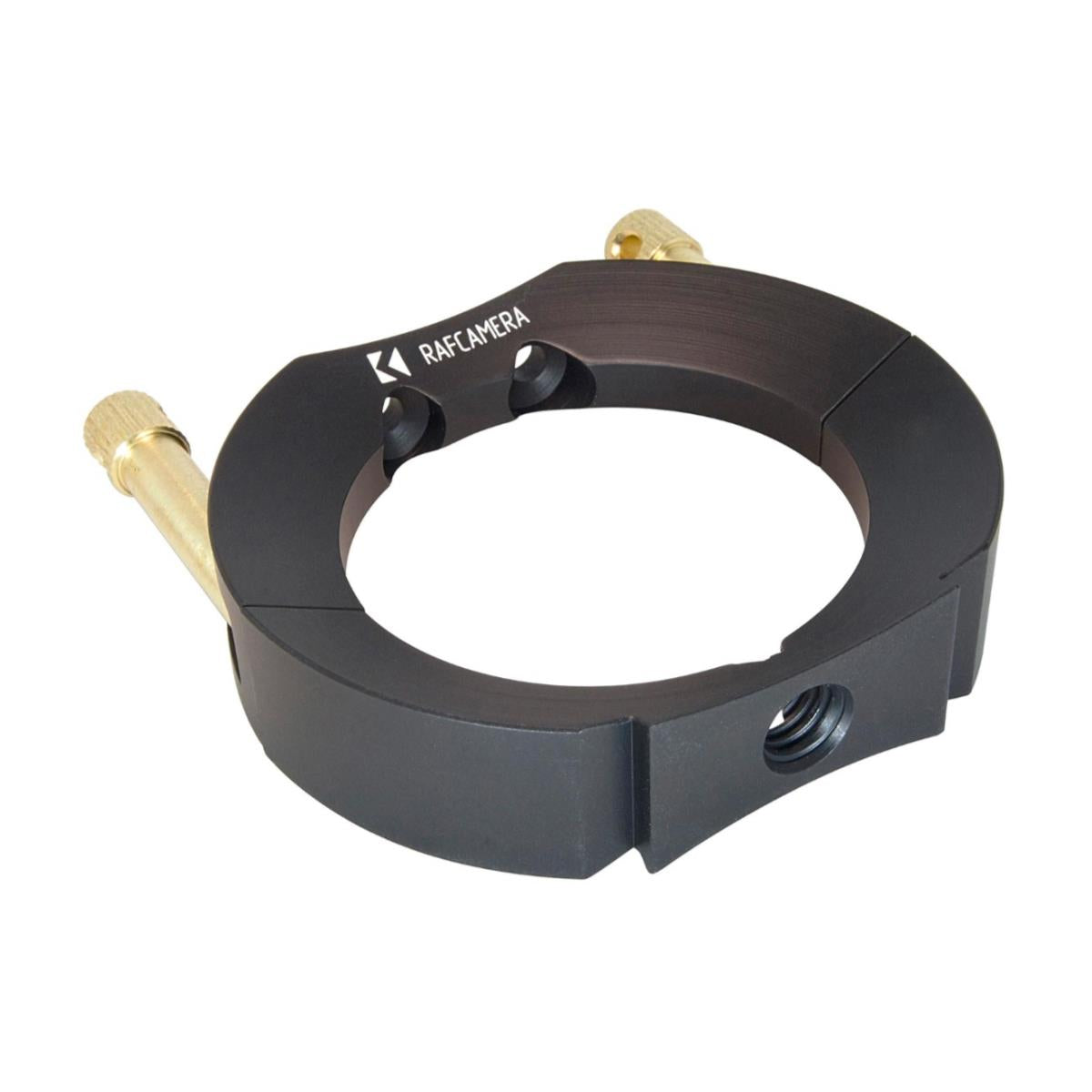

This support bracket was made specially for LOMO Foton zoom lens. It has trapece section shape since a lens part where it is possible to attach the support is quite short, and it has index mark on it. So, narrow inner support part allow you seeing that mark from both sides.
Inner diameter of the bracket is 58.5mm.
Bottom support part has industry standard 3/8″ tripod thread.
Top part has 2 of 5mm through holes with 20mm offset to attach some other accessory.
The bracket is made of anodized aluminium. Captive screws are made of bronze. Screw heads have knurl for fingers and hole to apply a lever if necessary.

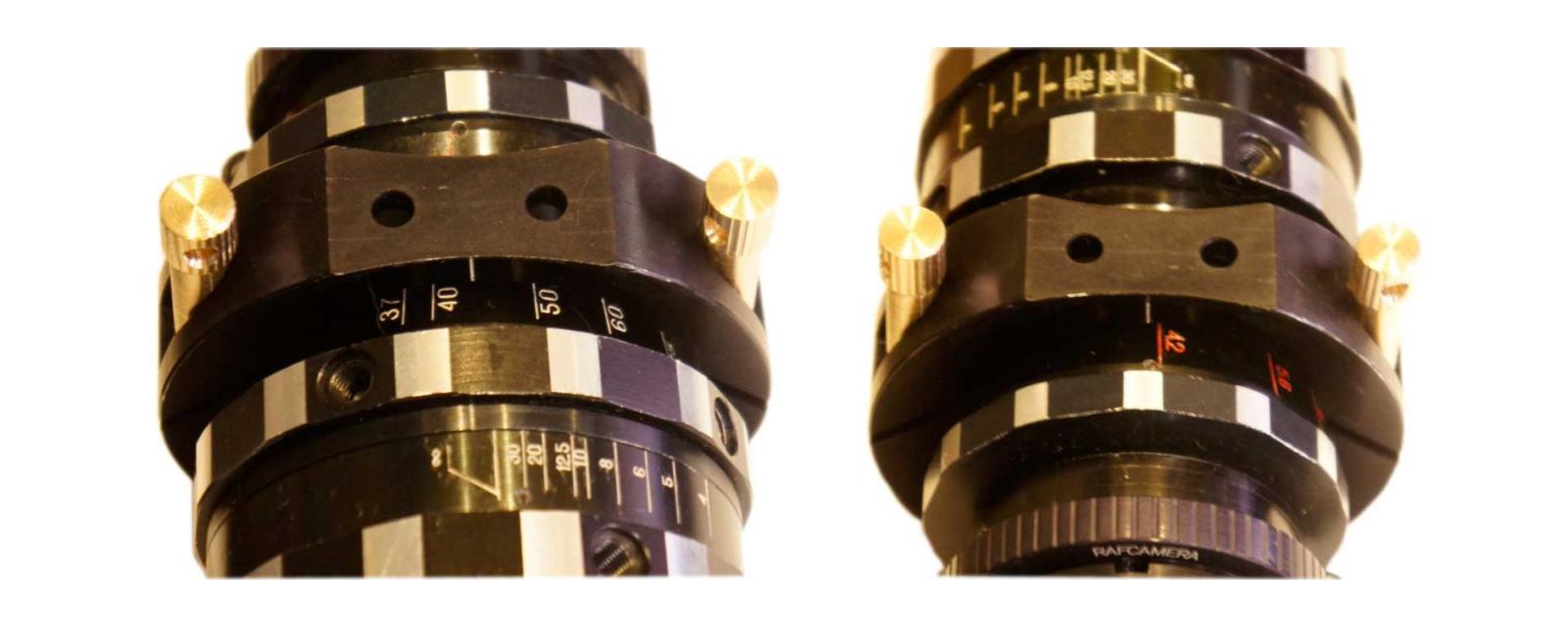

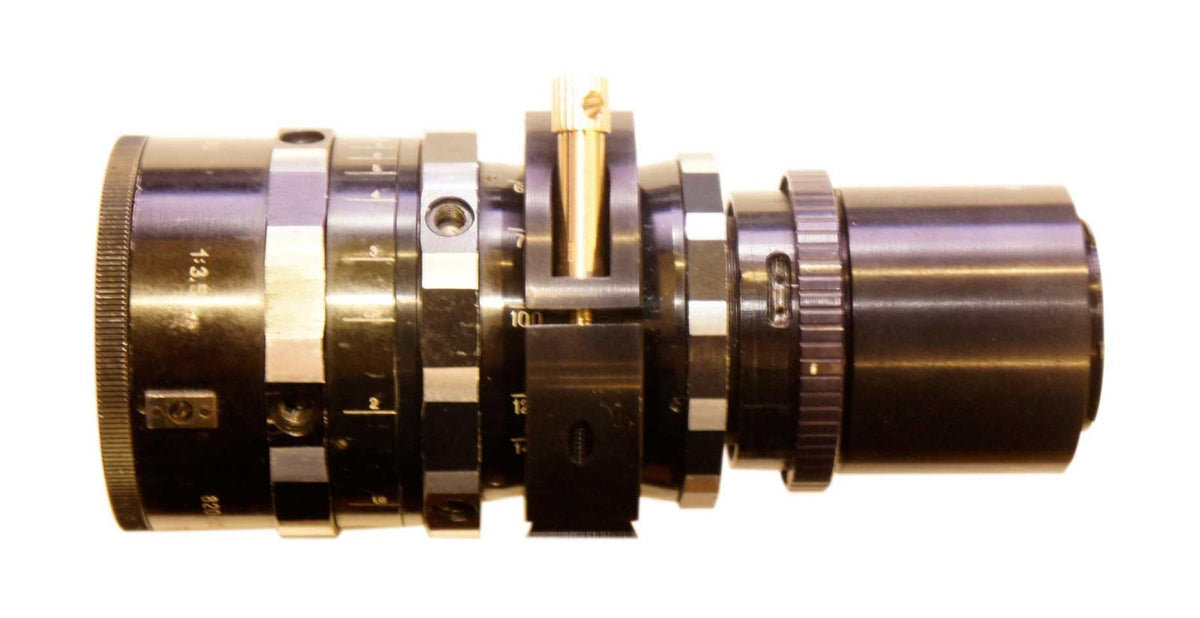

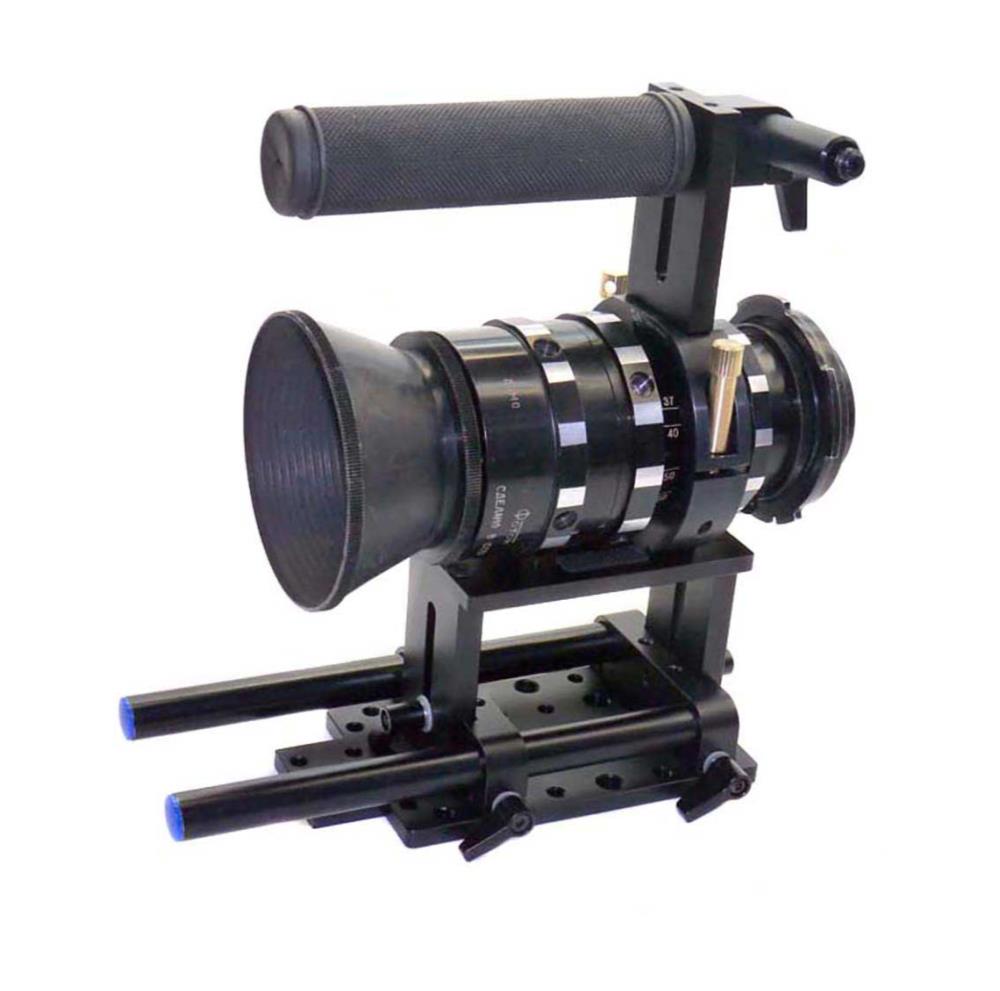

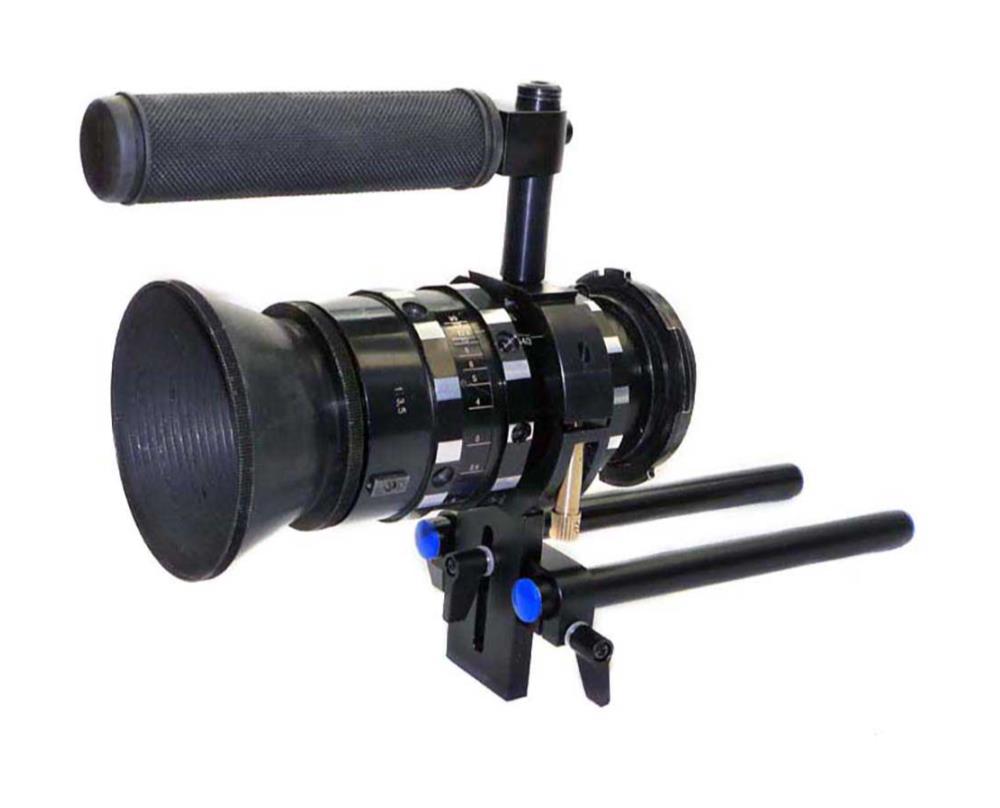

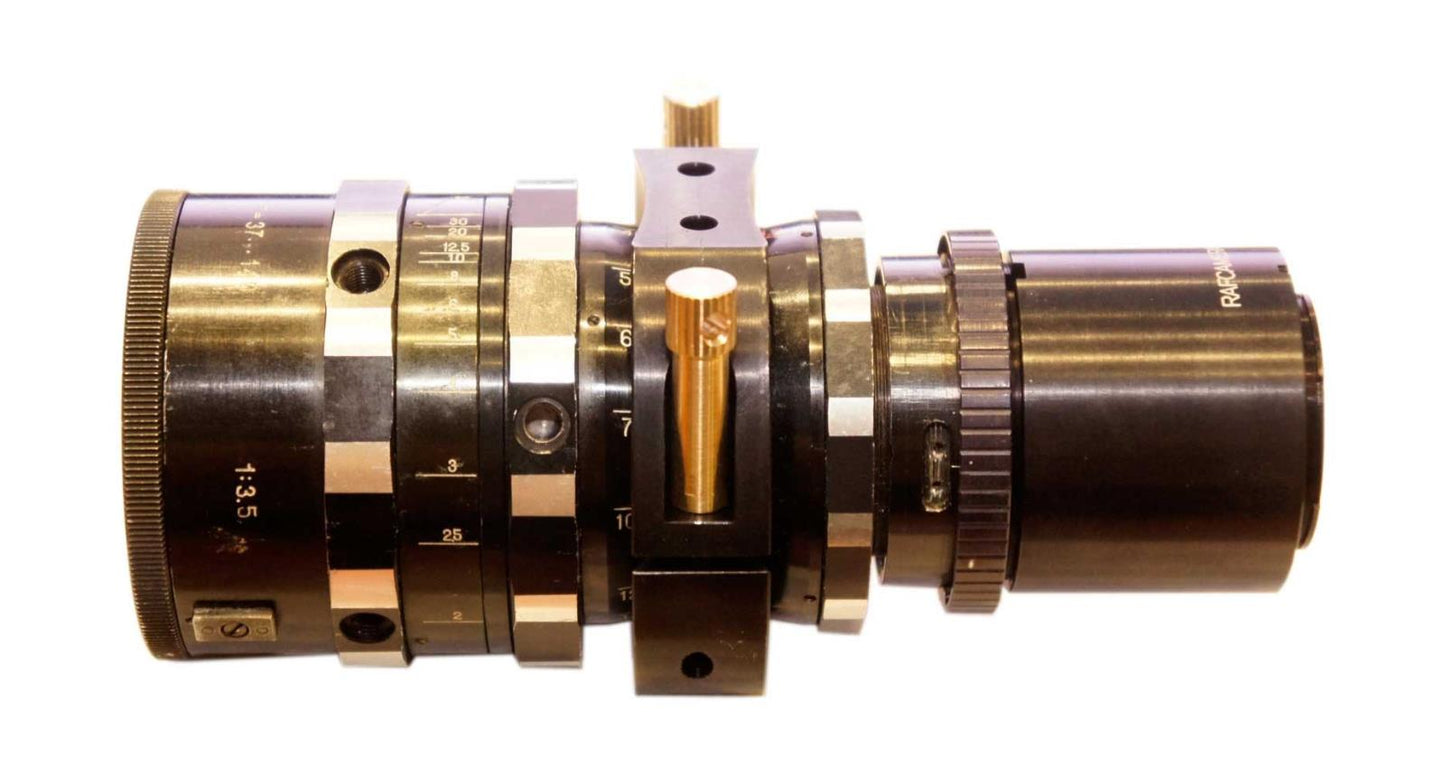

You can see few samples of this bracket application with other (not included) accessories on the pictures.
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
