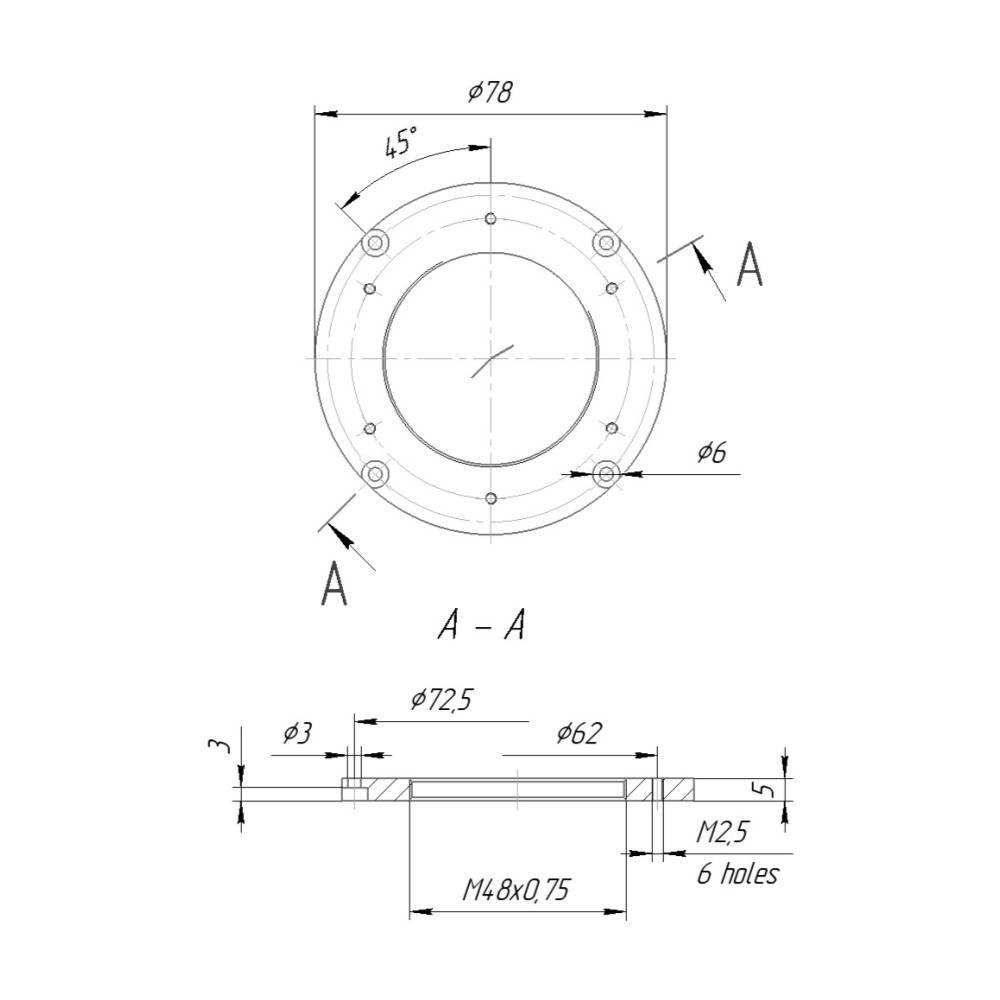

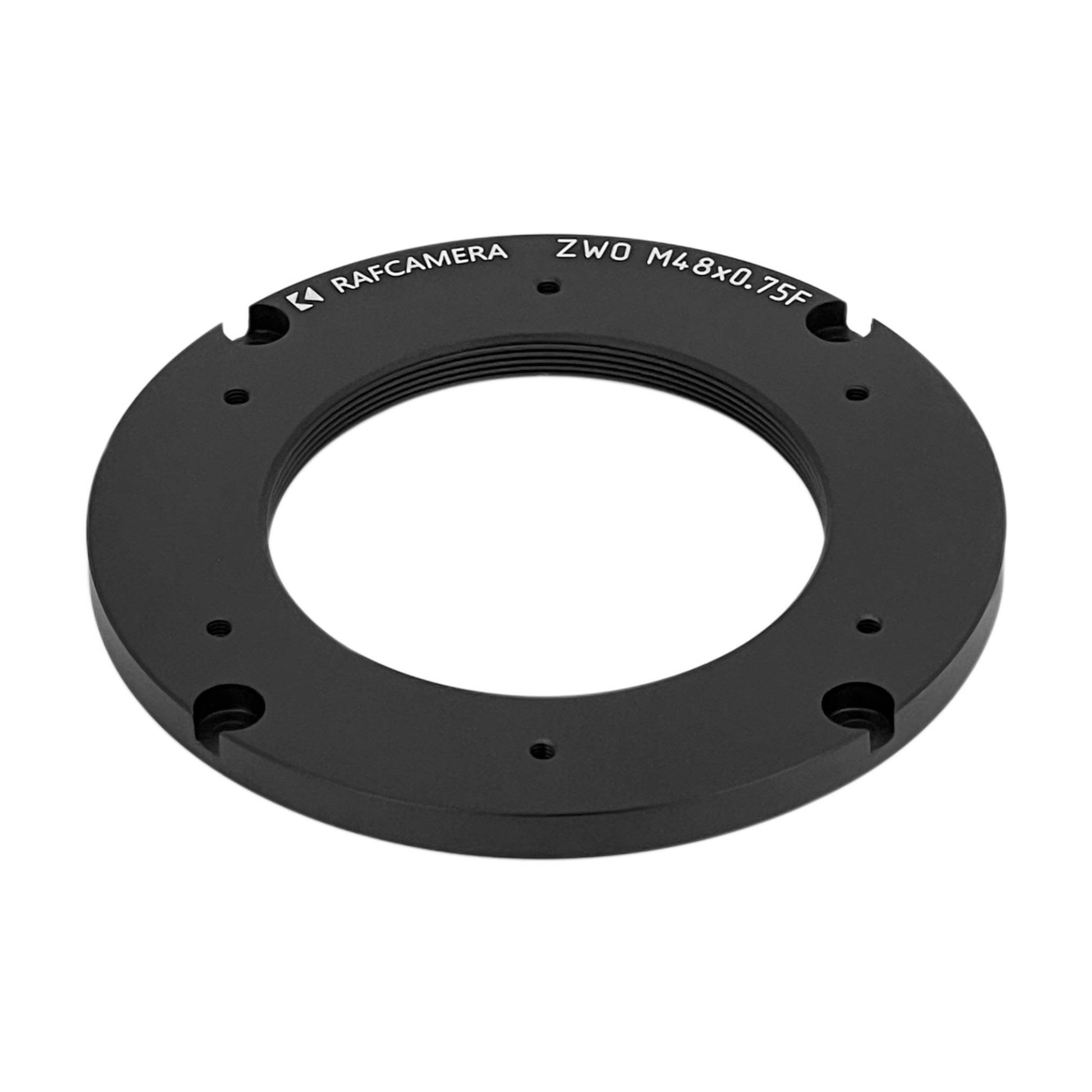

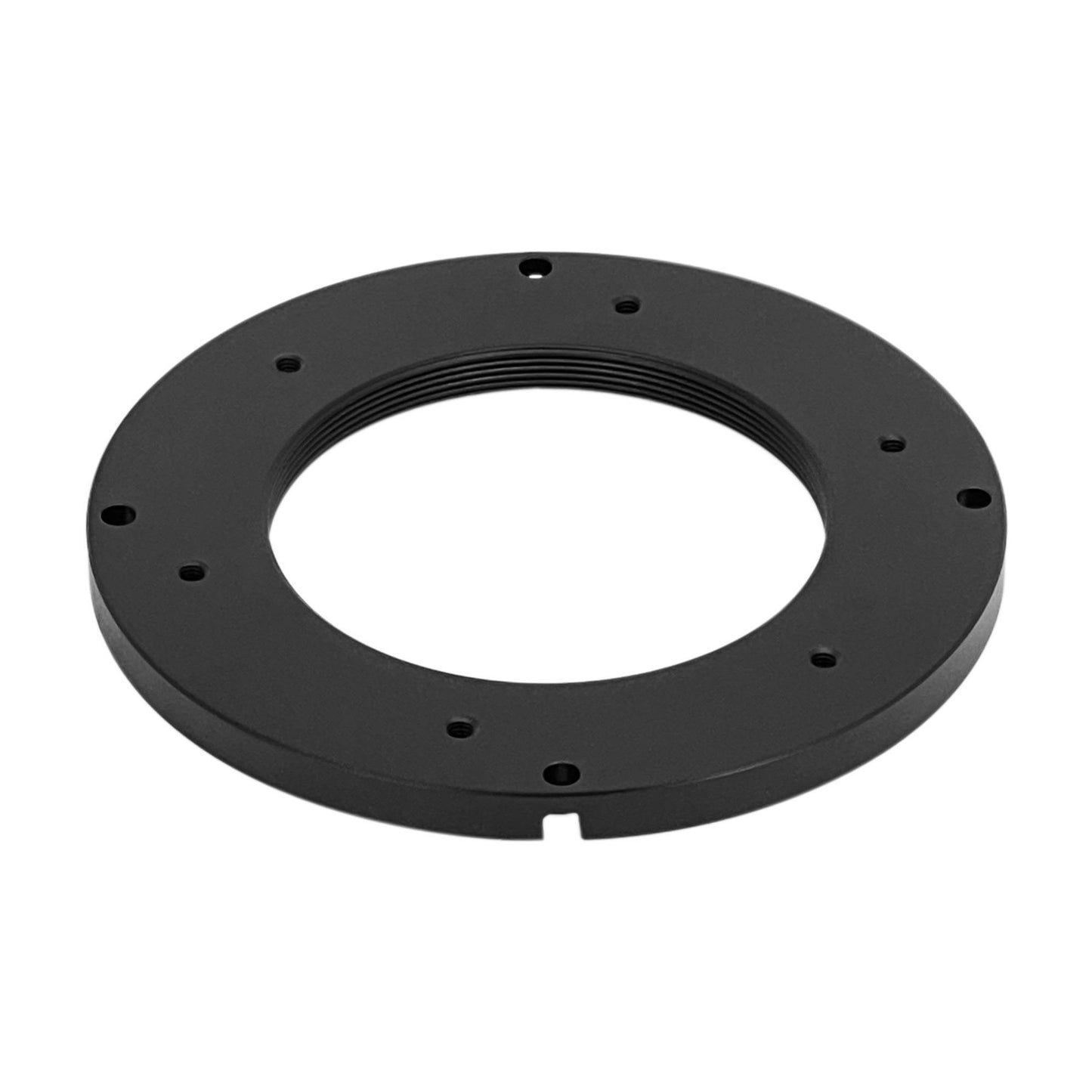

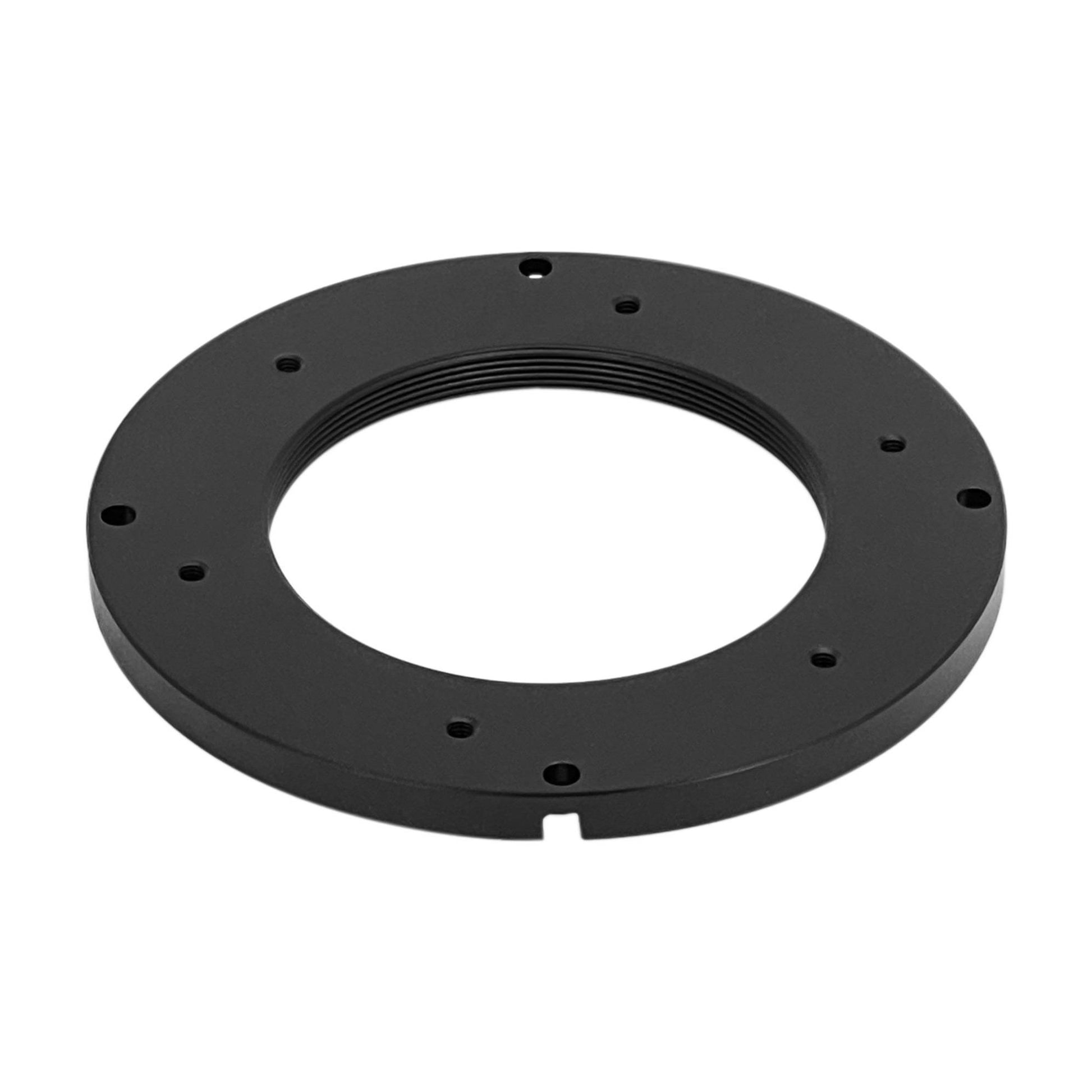

ZWO faceplate with M48x0.75 female thread.
It will fit following ZWO cameras:
- ASI533mm pro
- ASI 533 mc pro
- ASI 294 mm pro
- ASI 294 mc pro
- ASI 585 mm pro
- ASI 585 mc pro
This adapter allows to mount a ZWO M54 Adapter for OAG-L, or ZWO 36mm filter wheel, or ZWO 50mm filter wheel.
Currently all those cameras have M42 threads at center so only screw-on accessories can be used . Because of M42 threads orientation of accessories depends on how far one can screw on.
All newer ZWO cameras have faceplate similar to this adapter which allows to bolt on accessories with m2.5 holes and that make orientation hassle free.
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
Details
ZWO faceplate with M48x0.75 female thread.
It will fit following ZWO cameras:
- ASI533mm pro
- ASI 533 mc pro
- ASI 294 mm pro
- ASI 294 mc pro
- ASI 585 mm pro
- ASI 585 mc pro
This adapter allows to mount a ZWO M54 Adapter for OAG-L, or ZWO 36mm filter wheel, or ZWO 50mm filter wheel.
Currently all those cameras have M42 threads at center so only screw-on accessories can be used . Because of M42 threads orientation of accessories depends on how far one can screw on.
All newer ZWO cameras have faceplate similar to this adapter which allows to bolt on accessories with m2.5 holes and that make orientation hassle free.
More Information
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
